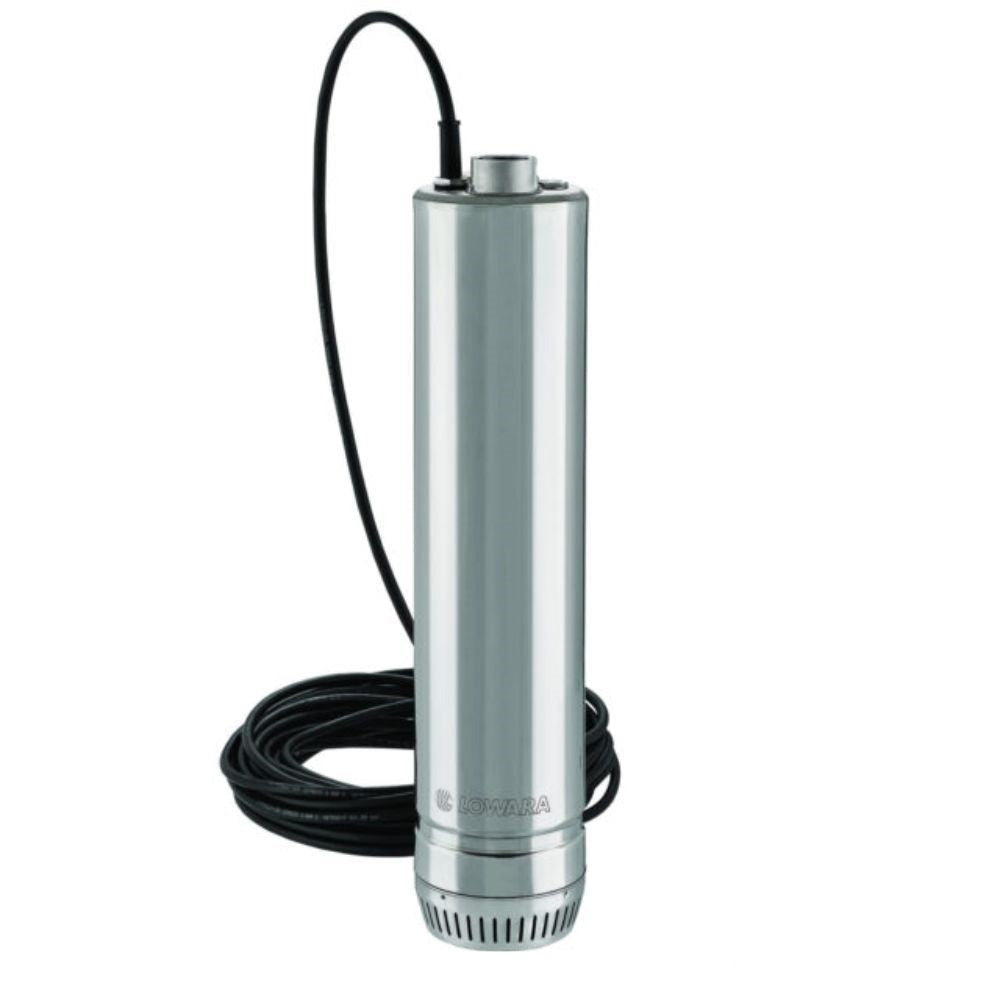

Lowara Scuba Submersible Pump Automatic 240V 1 Phase 50Hz

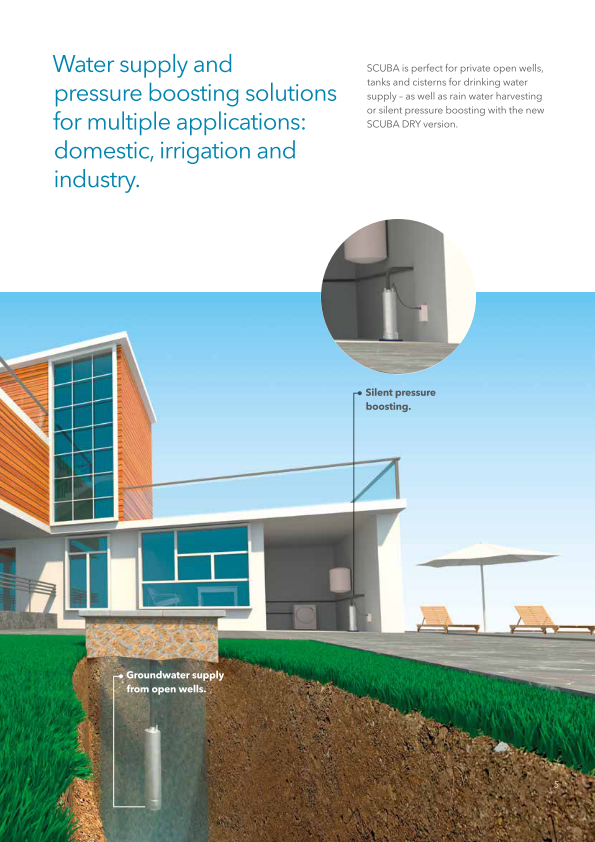

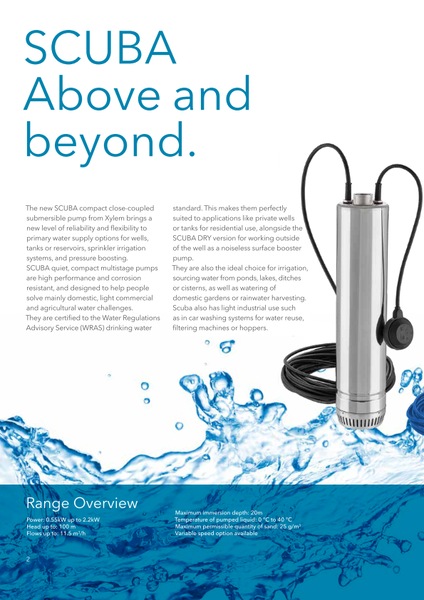

The new Lowara Scuba submersible pump is compact and close-coupled bringing a new level of reliability and flexibility to primary water supply. The Scuba submersible pump is certified to the Water Regulations Advisory Service (WRAS) drinking water standard. Making it perfectly suited to applications like private wells or tanks for residential use, alongside the Scuba DRY version for working outside of the well as a noiseless surface booster pump.

The Scuba submersible pump is also suitable for light industrial use; such as in car washing systems for water reuse, filtering machines or hoppers.

Specifications:

• Delivery: up to 12 m³/h
• Head: up to 100 metres
• Power supply: three-phase and single-phase
  • Single-phase motor: 220-240 V 50Hz
  • Three-phase motor: 380-415 V; 50 Hz
• Power: 0.55 kW to 2.2 kW
• Maximum immersion depth: 20 metres
• Water temperature: 0°C to +40°C
• Passage of solids: up to 2.5 mm
• Maximum permissible quantity of suspended sand: 25 g/m³

   Applications

• Delivery: up to 12 m³/h
• Head: up to 100 metres
• Power supply: three-phase and single-phase
  • Single-phase motor: 220-240 V 50Hz
  • Three-phase motor: 380-415 V; 50 Hz
• Power: 0.55 kW to 2.2 kW
• Maximum immersion depth: 20 metres
• Water temperature: 0°C to +40°C
• Passage of solids: up to 2.5 mm
• Maximum permissible quantity of suspended sand: 25 g/m³

Materials

• Sleeve and head: Stainless steel
• Upper bearing support: Stainless steel
• Shaft: Stainless steel
• Impeller: Technopolymer
• Diffuser: Stainless steel
• Lower bearing support: Die-cast aluminium
• Elastomers: NBR

Market Sectors:

• Residential
• Agriculture
• Light Industrial

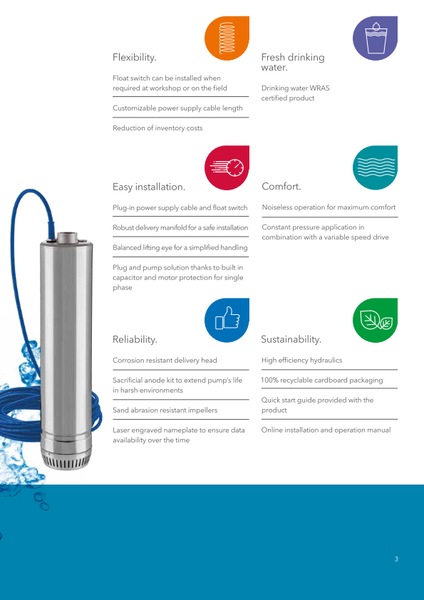

Product Features

• 5" close coupled submersible pump
• Double mechanical face seals for long lifetime

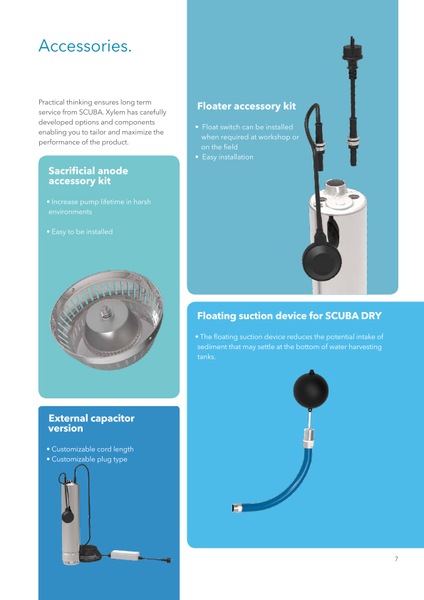

• Plug-in power supply cable and float switch
• Corrosion resistant
• Noiseless operation for maximum comfort
• Variable Speed Drive option available
• Potable water version available

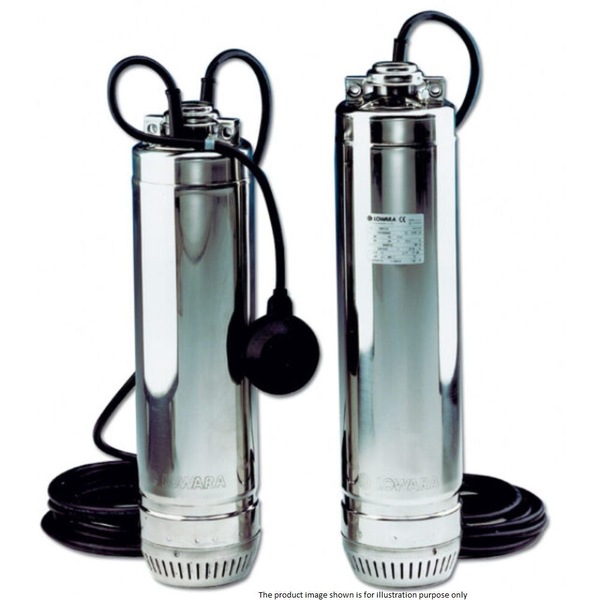

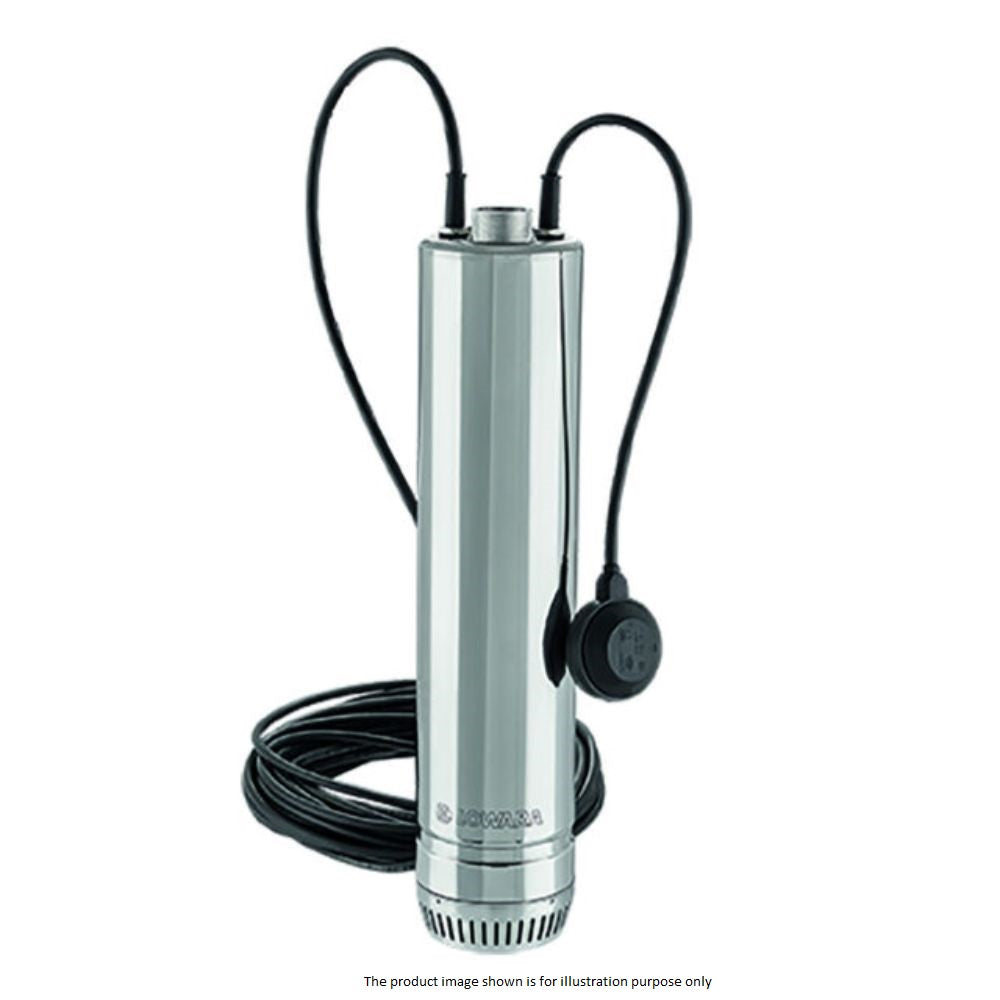

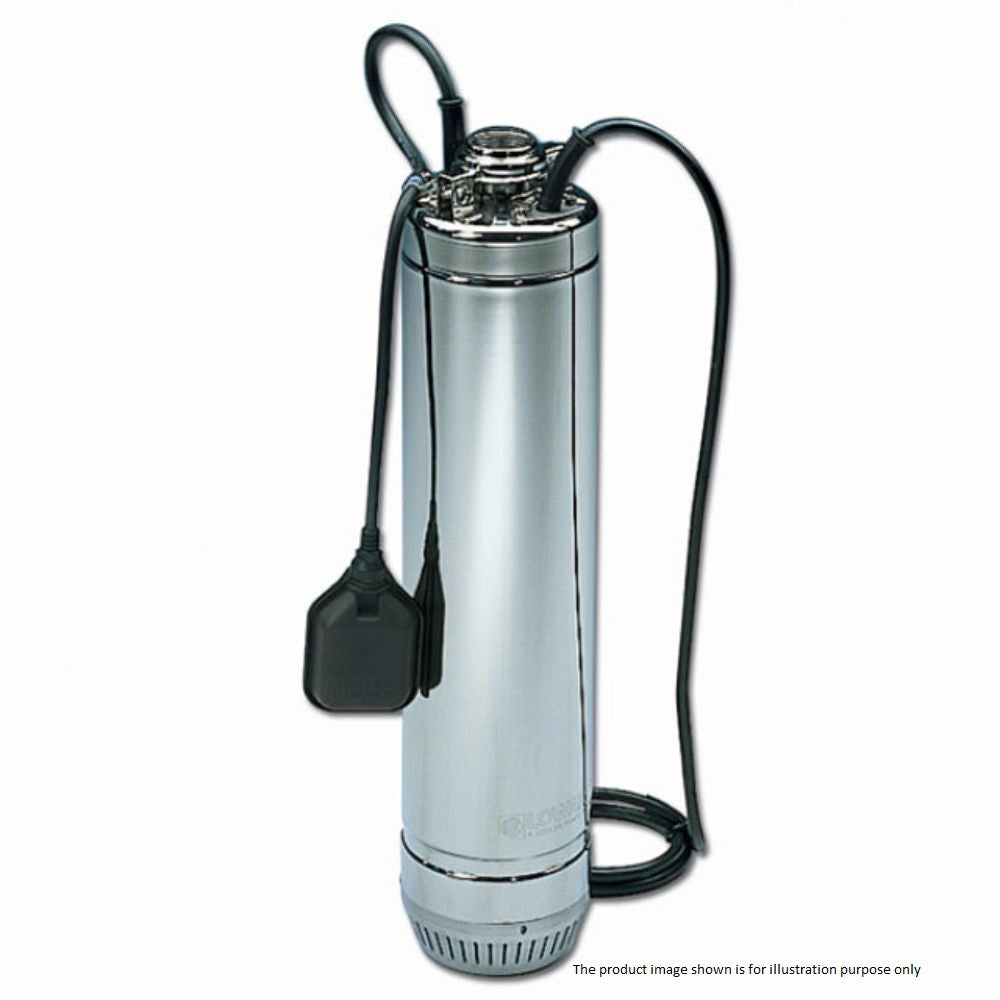

The product image shown is for illustration purpose only
