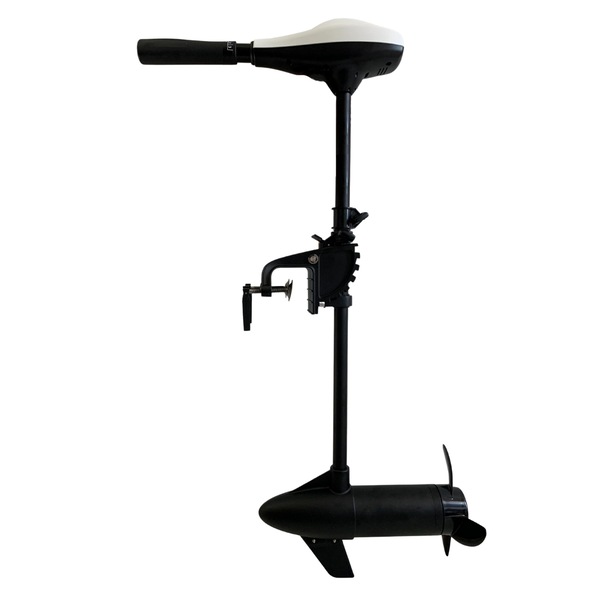

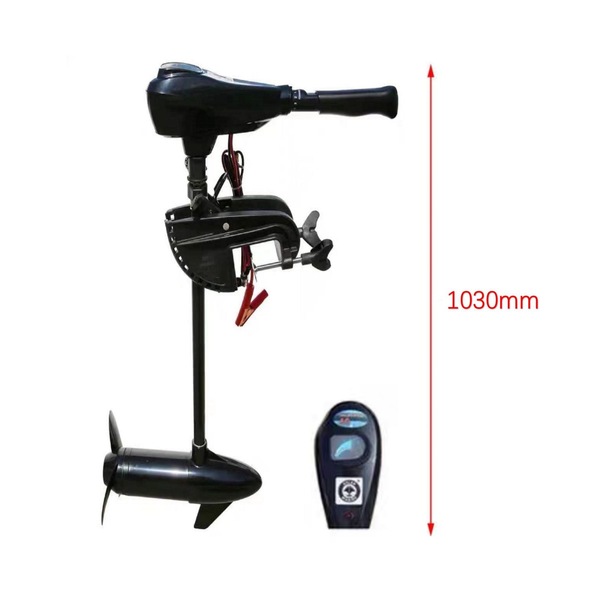

Inflatable Boat Motor Engine Electric Trolling Motor 40LBS/66LBS/86LBS

EFFICIENT POWER: 40lb Thrust - this 12v electric trolling motor provides excellent power and efficiency for any boater. The high quality build allows the motor to run all day long without overheating, or making noise to spook fish.

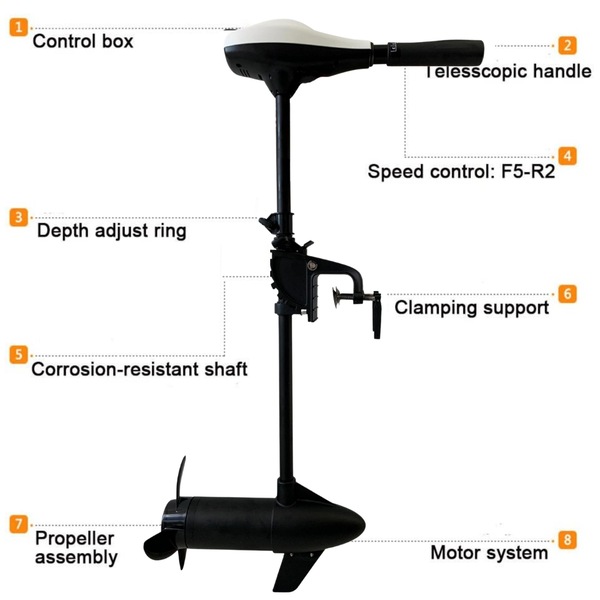

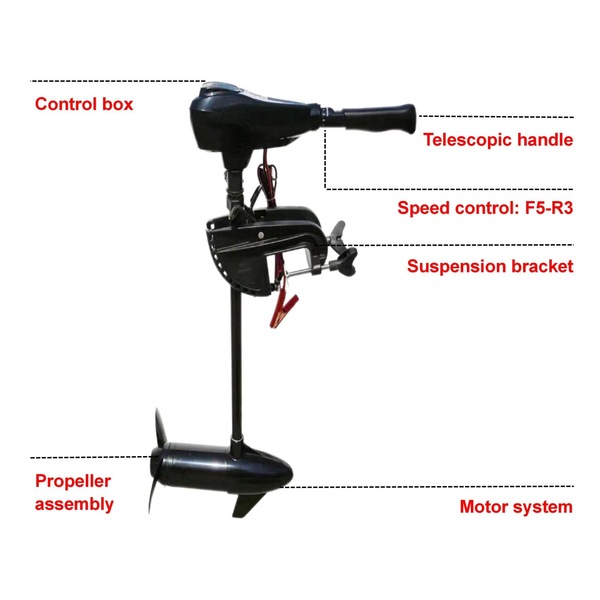

FEATURES: This motor features a 30 inch shaft, a 5 LED battery meter, a 6 inch telescoping tiller handle, and 3 blade propeller. The mount angle, height, and direction can all be adjusted and locked into place when needed.

SPEED: 8 speed motor, 5 forward & 3 reverse. Motor is designed for trolling, with a top speed of 3.5mph, exact top speed depends on boat shape, weight, water, wind, & other factors. 3 blade prop provides great low end torque to get the boat moving.

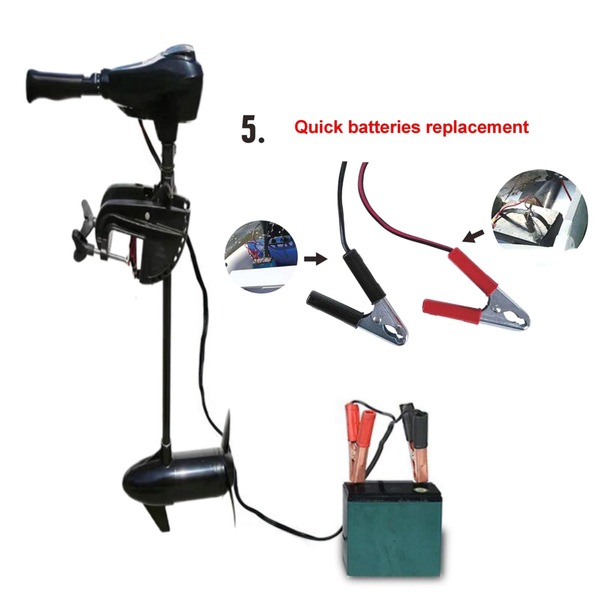

BATTERY: 46lb motor requires one (1) 12V Lead-Acid Deep Cycle or Lithium Deep Cycle battery (not included), 50ah recommended. Motor also includes a 40amp circuit breaker, recommended at all times to protect from battery voltage surges. Max Amp Draw: 40A

QUALITY & RELIABILITY: Newport Vessels trolling motors are made with high quality materials to withstand fresh water and salt water. We stand behind every product we make with industry leading customer service and a 2 year warranty.

Specification:
Max Thrust: 40lb (0.6HP Equivalent)
Total Weight: 7.2Kg
Speed Levels: 8 speed levels, 5 step forward & 3 step reverse
Shaft: 74cm
Max Amp: 32 Amps
Max Battery Voltage:12V
Prop Speed: 1700RPM at full speed
Rated Power: 380W
Handle/Tilt: Up to 28cm includes Extension & 90 Degree Tilt
Maximum Speed: 6km/h
Sound Level: 50db
Battery Meter: 5 LED Meter Display
Stock Propeller：3 Blade (21.3cm)
Package Size：110*52*17cm
Package Weight: 8.7kg
Max Load: 250KG

Note:
1. Use higher capacity battery for longer running time. For example: 12V, 100AH Battery. Under rated power can run up to 3 hrs.
2. Battery is not included.
3. When Changing speed, do not change too fast, has to be one by one.

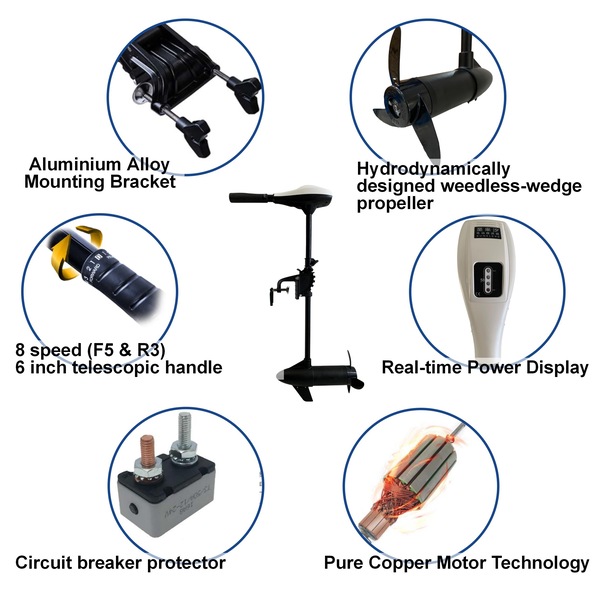

PRODUCT FEATURE: (60LBS)

AMP TECH: Applying US AMP connect technology. AMP connector is a technic only used in accuracy industry like plane. It makes connector between wire and switch more reliable than welding.

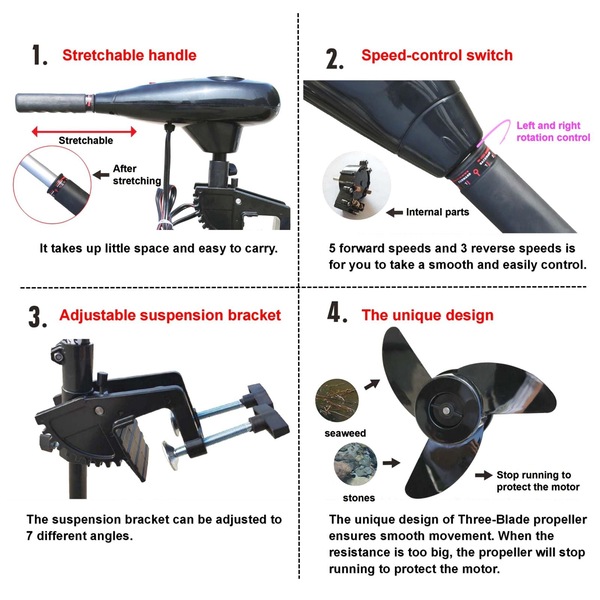

CLAMP: High strength clamp instead of eye-terminals makes more stable in running.

ROTOR: ALL-COPPER rotor in the head of the motor instead of copper-aluminum for the longest life-time. Running in low noise

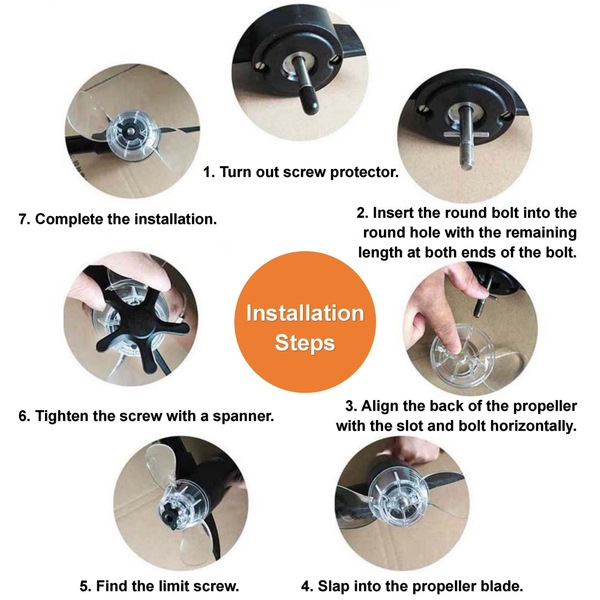

PROPELLER: Hydrodynamically designed weedless-wedge propeller with high performance blade geometry.

BRACKET: Aluminium alloy mounting bracket with full 90 degree adjustment, also much lighter than the conventional steel ones.

HANDLE: 5-speed forward and 3-speed reverse with six inch telescopic handle.

USING environment: Can be used in both salt water and fresh water. The special coating can endure acid, and therefore resist rusting.

Specifications:

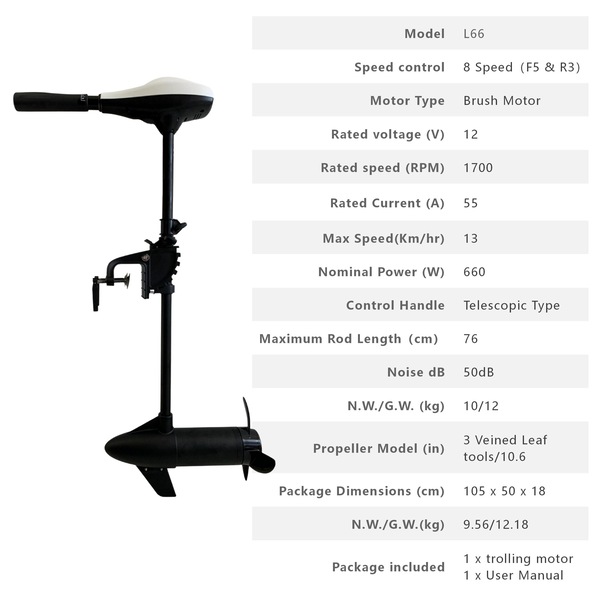

Model: L66 Saltwater
Speed control: 8 Speed（F5 & R3）
Motor Type: Brush Motor
Rated voltage (V): 12
Rated speed (RPM): 1700
Rated Current (a): 55
Nominal Power (W): 660
Control Handle: Telescopic Type

Maximum Rod Length (cm)：76
Maximum speed (km/h): 13
Noise dB: 50dB
N.W./G.W. (kg) 10/12
Propeller Model (in): 3 Veined Leaf tools/10.6
Package Dimensions (cm): 105 x 50 x 18
Package included:
1 x trolling motor
1 x User Manual

Battery Model recommendation:
Select 12 V 100A-150A batteries, the maximum output of 3 hours of continuous operation.
Note: Battery is not included in the price.

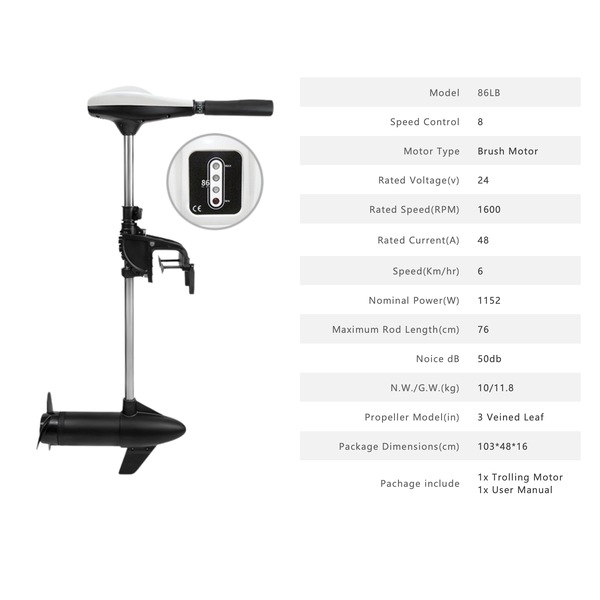

Model: L86 Saltwater
Speed control: 8 Speed（F5 & R3）
Motor Type: Brush Motor
Rated voltage (V): 24
Rated speed (RPM): 1600
Rated Current (a): 48
Nominal Power (W): 1152
Control Handle: Telescopic Type
Maximum Rod Length （cm）：76
Speed (km/h): 6
Noise dB: 50dB
N.W./G.W. (kg) 10/11.8
Propeller Model (in): 3 Veined Leaf
Package Dimensions (cm): 103 x 48 x 16
Package included:
1 x trolling motor
1 x User Manual

Battery Model recommendation:
Select 24V batteries, the maximum output of 3 hours of continuous operation.
Note: Battery is not included in the price.

Salt Water Maintenance:

1. At the end of the day wipe the motor down with a cloth soaked in warm water and then rinse the unit with a light spray with the hose.

2. Make sure the propeller is free of any line or weed, regularly check all nuts and bolts and lubricate all moving parts with an aerosol lubricant.

3. Clean battery terminals regularly and check for frayed wires or loose connections.

Important Note:

1. Over the noise, use with all petrol machines are loud, to inform you that we have not tested the decibels, but the sound is the same as the motorbike so it is a normal phenomenon
2. The machine itself is light weight, it can be used for less than 1000kg, more weight it used for the speed is most certainly not the same, please note.

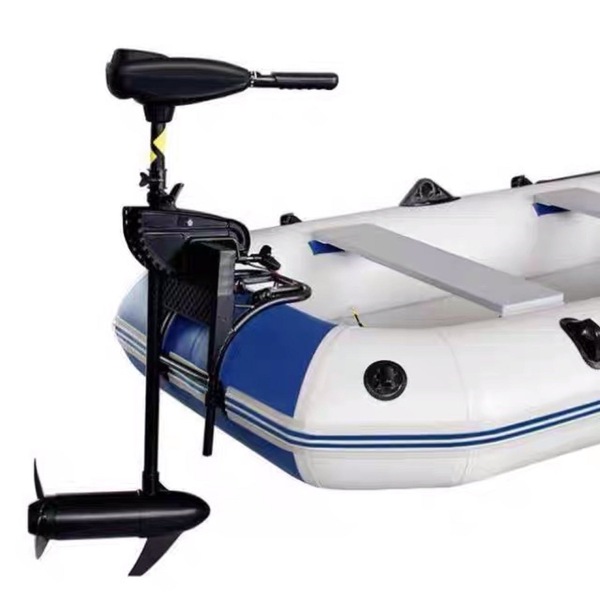

3. It can be with hose boats, the common dinghy or fishing boat.
4. You need to a Boots-motor-stand or hanging board on the boat.
