DOSS NF611 HDMI Cable Tester Type A-A-A-C C-C No Loop Back

DOSS NF611 HDMI Cable Tester Type A-A-A-C C-C No Loop Back

Be the first to review this product

Price	$81
	Collect 243 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

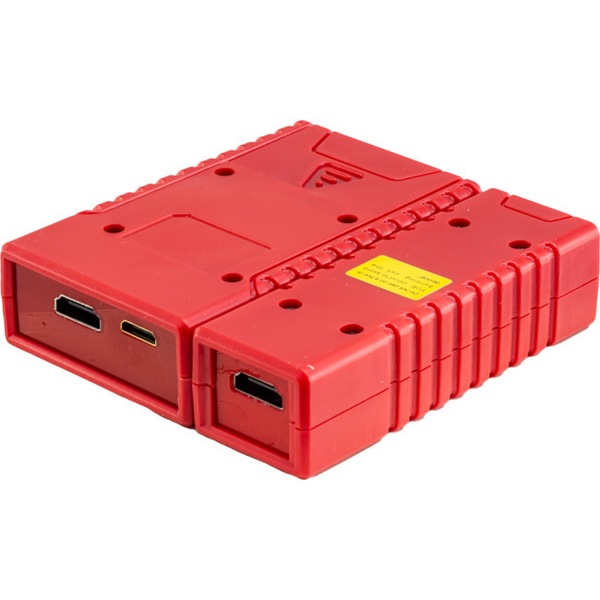

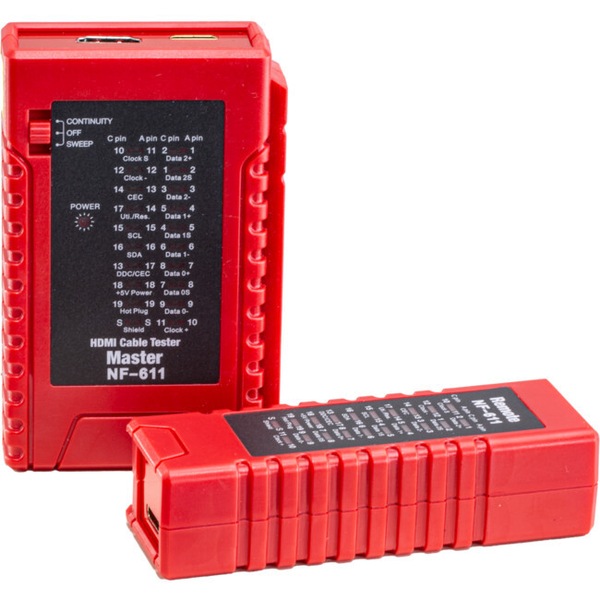

The HDMI Cable Tester is designed for the HDMI installations. This portable device allows installers to quickly test, troubleshoot and verify HDMI cables. It is designed to test wire circuit state of HDMI cables with TypeA & C connectors conforming to all HDMI specifications up to version 2.0. Equipped with 2 test modes: fast and slowscan, to identify the cable short, open and crossed status.

The main differences between NF622 and NF611:

There is no loopback HDMI A socket on the NF611, so all the HDMI tests require to use of the master unit and remote unit.
There are no Pass/Open/Cross/Short led lights on the master unit of NF611.

Features

Fast and accurate verification with type A-A, A-C, C-A and C-C connectors
Test fragile, easily damaged HDMI patch cords and in-wall HDMI cables
Quickly troubleshoot and verify HDTV installation and DIY termination in the field
Test disorder, short, open and cross status of HDMI cables
Mapping continuity and proper configuration
19 pins and grounded connection with the leds on both main and remote unit
Adjustable test modes: Continuity and sweep modes
Supplied with small carry bag

Specifications

Cable Tested	HDMI cables with Type A & C connectors conforming to 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a Category 1 and Category 2 cables
Support test (main unit and remote unit)	19 pin-to-pin wire map and shielding detection
Test interface of Master unit	HDMI (type A) Mini HDMI (type C)
Test interface of Remote unit	HDMI (type A) Mini HDMI (type C)
Test Cable length	≤ 50 metres
Test Mode	Automatically fast scan Automatically slow scan/sweep

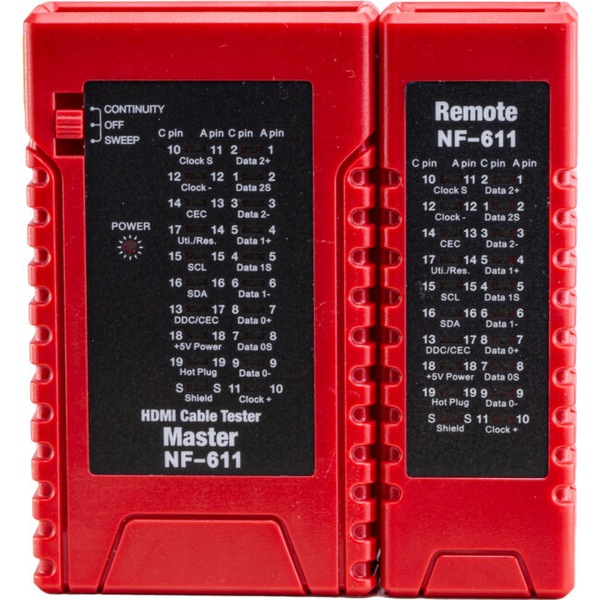

Displays	19 LEDs and shield LED on both main and remote unit
Result indication	Beep sound
Low battery indication	Under 6V
Power source	9V battery (included)
Operating temperature	0 to 40°C <80% RH
Storage temperature	-10 to 50 °C < 70% RH
Dimensions main unit	1036627mm
Dimensions remote unit	1033527mm

GTIN: 9328202033598
