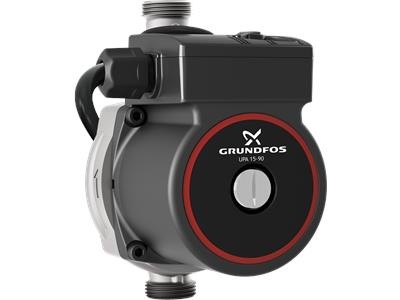

Grundfos UPA15-90 N - Pressure Booster For Hot Water Systems

The UPA 15-90 N is designed to increase the pressure of water from an external source, in residential homes. This makes it possible to increase the pressure available at each domestic point of use such as shower and any other taps. Check local regulations when installed on the mains. An integrated flow switch starts or stops the pump when the tapping point is opened / closed.

Specifications:

Liquid temperature:                    2°C to +95°C

Maximum system pressure:       10 bar

Enclosure class :                         Suitable for covered installation (IPX2D)

Supply voltage:                          1 x 240 Volt 50 Hz

Pump housing:                           Stainless steel

Scope of delivery:                       Union set, cable 1.2 m with plug

• Compact: its width of 104 mm & depth of 160 mm
  makes it suitable for installation in existing pipes
• "AUTO", automatic starts / stops when the flow
  exceeds or falls below 90-120 l/h
• "MANUAL", the pump runs continuously (even if
  tapping points are turned off)
• Robust design
• Quiet operation
