Grundfos SP 5A : 4" Submersible Pump In Stainless Steel Aisi 304

Grundfos SP are submersible borehole pumps, designed for pumping groundwater. Grundfos SP are all stainless-steel pumps, and they are available in 3 material grades. The pumps are suitable for boreholes in sizes ranging from 4" over 6" and 8" to 10". The motor sizes for the pumps are available in 0.37-250 kW.

Suitable for

• Domestic ground water intake
• Domestic water pressure boosting
• Irrigation


Liquid temperature :                       +2°C to +40°C when flow past the motor > 0.15 m/sec
Sand Handling :                              50 grams/cubic metre
Max Flow Rate:                               1.3 x rated flow
Min Flow Rate:                               0.1 x rated flow > 0.15 m/sec (past the motor)
Mains supply to pump :                 1 x 240 Volt & 3 x 415 Volt - 10%/+ 6%, 50 Hz
Complete pump material :             Stainless Steel AISI 304
Minimum borehole diameter :      MS402, Ultra & MS4000 min. 105 mm
Installation submergence :            MS402 & Ultra max. 150 m / MS4000 max. 600 m

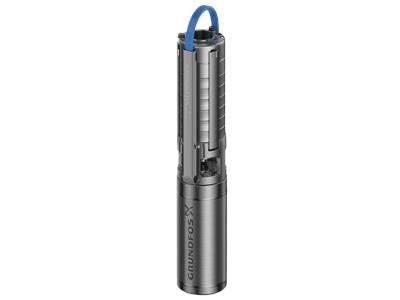

The product image shown is for illustration purpose only
