THORNADO Diesel 3 Inch 7HP Trash / Mud / Slurry Water Transfer Pump Electric Start

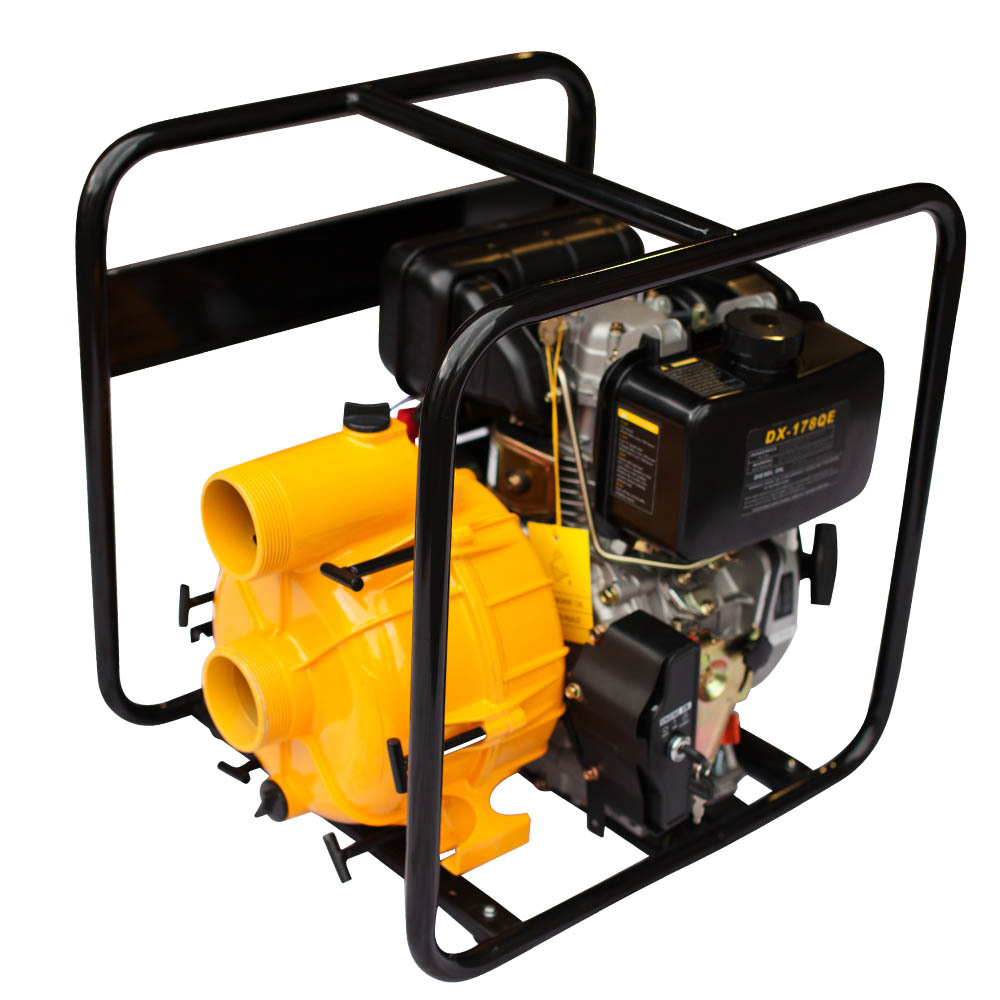

The THORNADO 3 inch trash / mud / slurry water transfer pump is powered by a true commercial THORNADO 7HP Diesel engine, features cast iron impeller and volute that ensures maximum durability and performance, marine grade aluminium alloy pump body, and ability to move water that contains solid material (up to 30mm in size) in mining or construction site through a supplied alloy strainer to be fitted on the suction line. A ceramic carbon mechanical seal is also used on our pump provides rugged construction for long life. With a suction/discharge diameter of 75mm (3 inches), this pump has a maximum water displacement rate of 66,000 litres per hour and a maximum delivery lift of 26m. With the ability to draw water up to 7m in height, the THORNADO 3 inch Diesel Trash / Mud / Slurry water transfer pump is sure to be helpful to you for cleaning trash, sludge, and dewatering fluids with high solid content.
The THORNADO 7HP Diesel engine is a 4-stroke single cylinder forced air-cooled engine with a electric starter that makes it easy to get the equipment running and on task. The engine is coupled with 19.05mm diameter horizontal shaft, delivers strong power and low noise, and a heavy duty steel frame protects the pump and the engine on all sides.
Look no further than THORNADO for quality, range and value when investing in your new water pumps. Order your THORNADO 3 inch Diesel water pump now and experience the force behind the THORNADO brand.
Key Features
- Powered by 7HP THORNADO DIESEL engine with electric start
- 3 inch self priming water pump
- 3 inch suction/discharge Ports
- Soft solids up to 30mm
- Low fuel consumption
- Powder coated pump casing for added corrosion protection
- High-quality ceramic mechanical seal - very critical to water pump
- Rigid mounted cast iron volute and cast iron impeller
- Heavy duty full frame protection
- 12 Months Warranty*
*T&C's Apply, see Warranty Policy for full details.
| SPECIFICATIONS |
| Model No | TH-DWB80 |
| Type | Self priming, Centrifugal pump |
| Inlet Size | 3 inch |
| Outlet Size | 3 inch |
| Max Lift Head | 26m |
| Max Flow | 66,000 litres/hour |
| Max Suction Depth | 7m |
| Max Pressure | 37 PSI |
| Material | Alluminium alloy pump housing, cast iron impeller and diffuser |
| Engine | DX-178 (7HP) |
| Engine Type | 4 stroke, air cooled |
| Max Power HP / Rpm | 7HP / 3600 Rpm |
| Displacement | 296cc |
| Fuel Type | Diesel |
| Oil Type | SAE10w-30 / SAE30 |
| Fuel Tank Capacity | 3.5L |
| Oil Capacity | 1.1L |
| Run Time Full Tank | 2.5h at ¾ load |
| Starting System | Electric/Recoil start |
| Product Length | 630mm |
| Product Width | 460mm |
| Product Height | 550mm |
| Product Weight | 67kg |
| In the Box | Water pump, battery, hose fittings, hose clamps, intake strainer, user manual, |
Suitable Applications
- Transfer liquid contains solid up to 30mm size
- Dirty water from construction site
- Water transfer from septic tank
- Water contains mud, slurry, and sand
- Water transfer from dam
