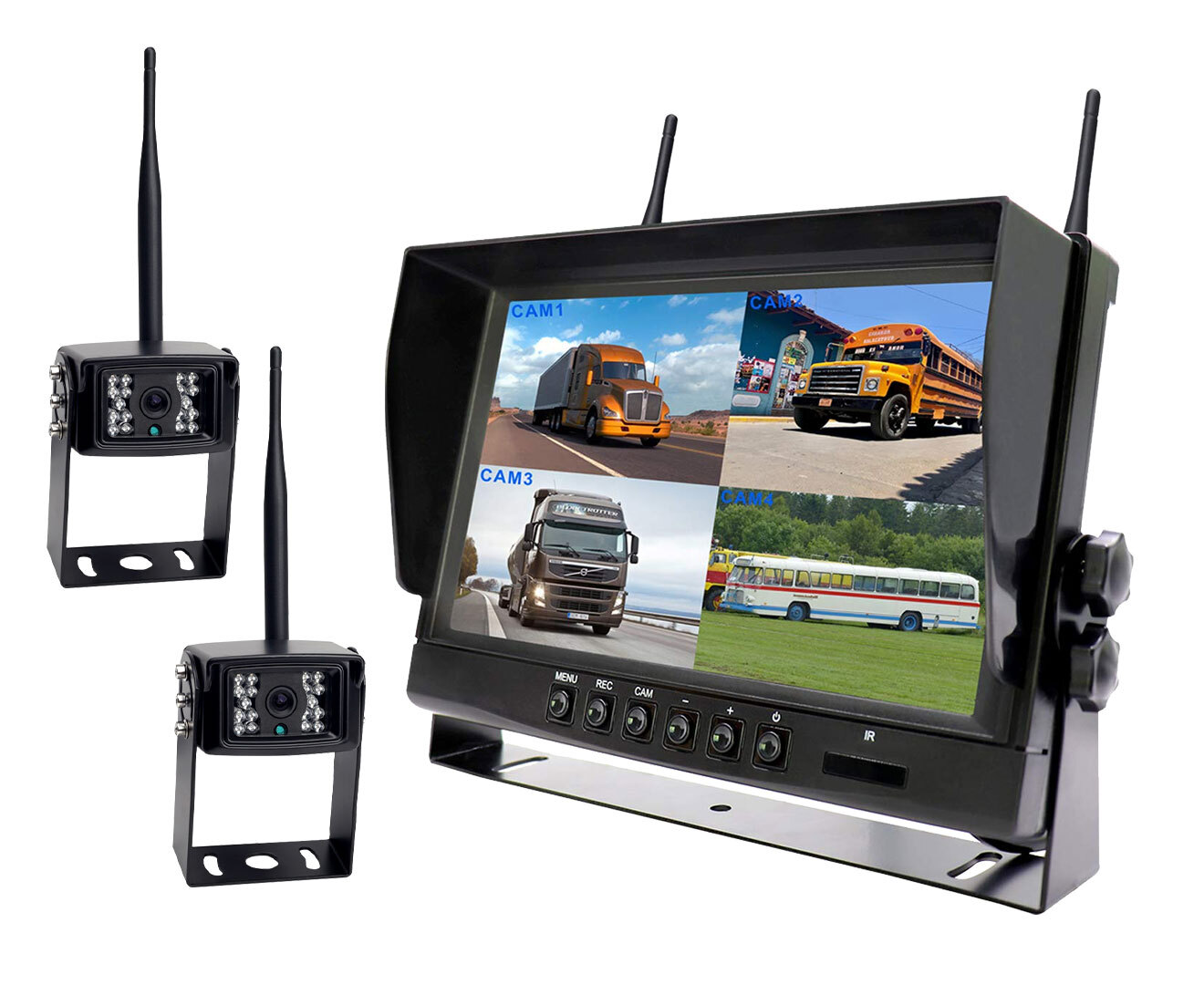

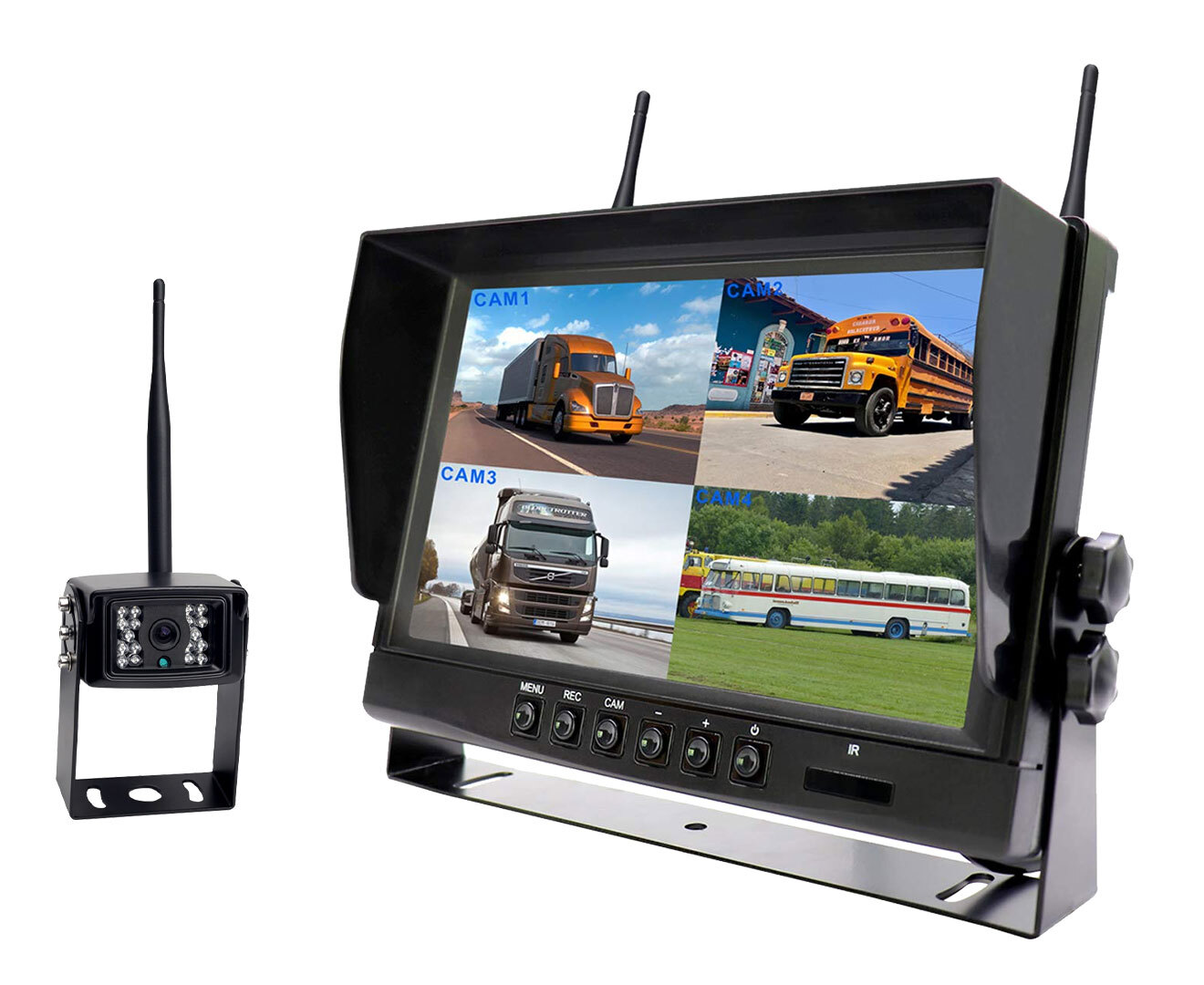

Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR Reversing CMOS 800TVL Camera 12V 24V 2.4GHz

Elinz Digital Wireless 9" Quad Splitscreen Monitor 4CH DVR Reversing CMOS 800TVL Camera 12V 24V 2.4GHz

Price	From $344.95
	Collect 344 Everyday Rewards points Log in to MyDeal to link your card
Option 1	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

SKU: M9-1xRVDWT

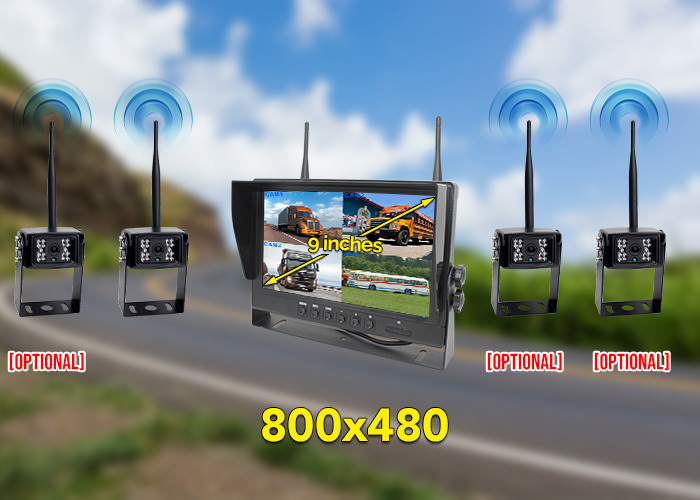

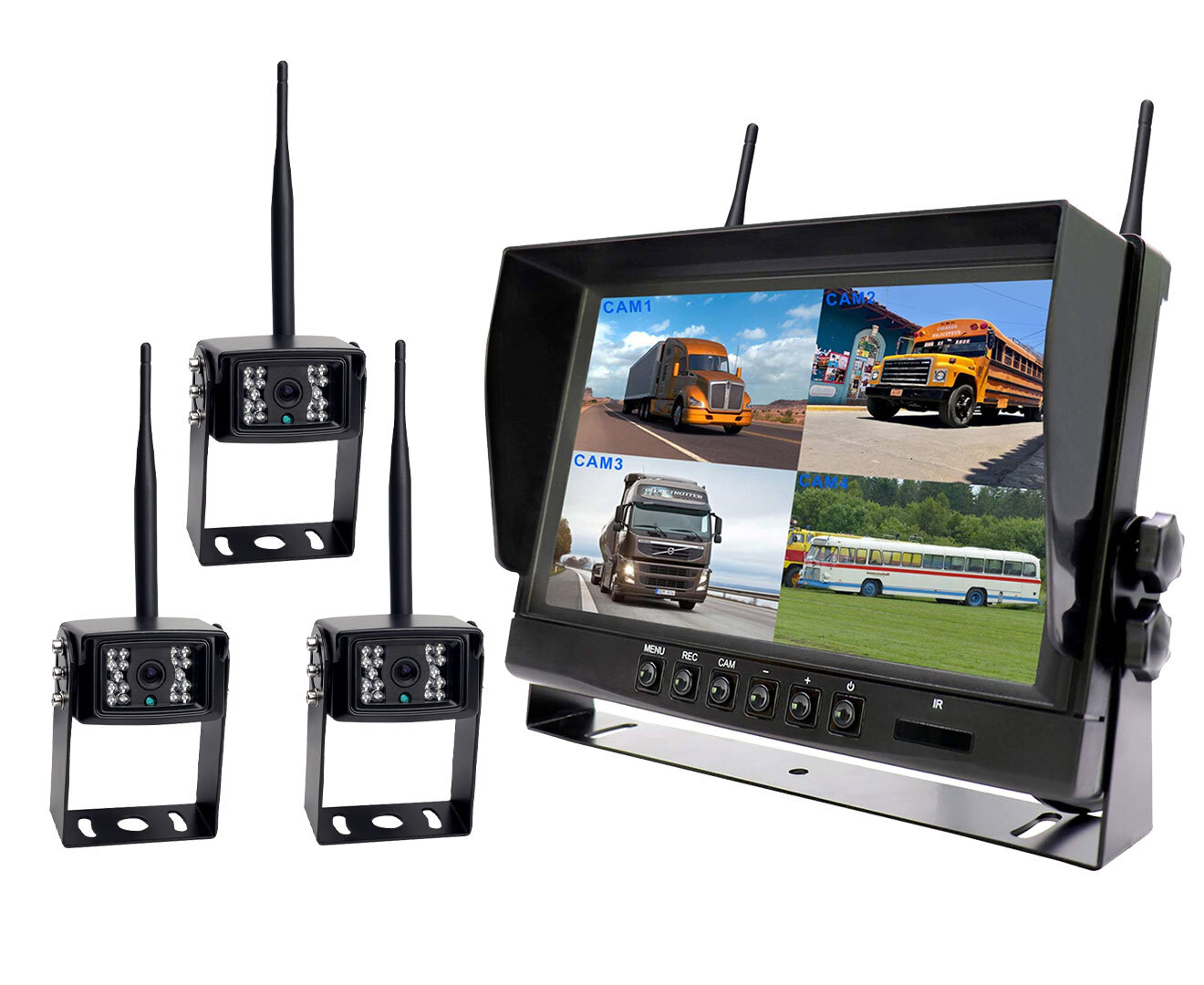

9" TFT-LCD Quad Screen Monitor

800 x 480 Resolution
Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
Support audio recording for all 4 channels wireless cameras
Sunshade is not removable

DVR Recording Function Support up to 128GB SD card

Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately)

Wireless Rear View System

You do not need to run wires to connect the camera and monitor.

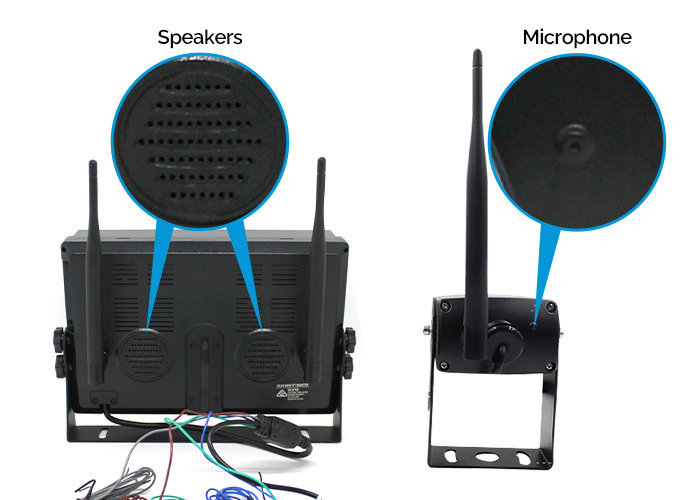

Built-in Microphone and Speakers

Camera has built-in microphone and monitor has built-in speakers for easy communication. Perfect solution for safe parking

Wide Angle View

120° wide angle rear view camera with infrared night vision help us parking our vehicles safely

FREE Windscreen Suction Cup Mount and Car Charger

This new model comes with good quality windscreen suction mount so you can install the monitor easily on your windscreen
Also includes a car charger so you can power up your monitor via lighter outlet.

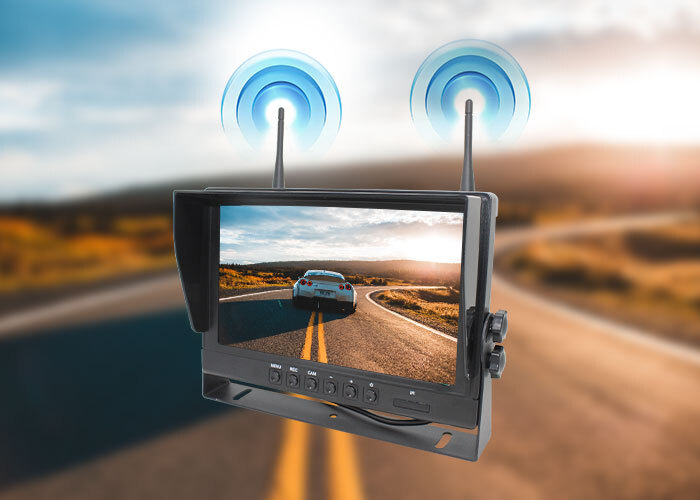

2.4GHz Digital Wireless Transmission

2.4GHz Digital wireless transmission has no interference as compared to Analogue wireless transmission which is prone to interference
Stable signal and HD image, it is compatible to vehicles.
Improved wireless module to provide longer transmission distance of 30m-200m
Dual antennas monitor with stronger transmission 30m with barrier, 200m when no barrier.
Stable transmission up to 100km/h

Universal Fit & Suitable with 12V/24V Power Supply

It is ideal for wide Variety of vehicles like cars, SUV, Utes, Semi-Trailer/Box, Truck, 5th Wheel, Trailer, Bus, Caravan and more.
Suitable for Trucks, Buses, Forklifts, Harvesters, Fire Trucks, Mining Trucks, Crane Trucks, trailers, SUV, Utes, Cars Semi-Trailer/Box, 5th Wheel, Caravan and more

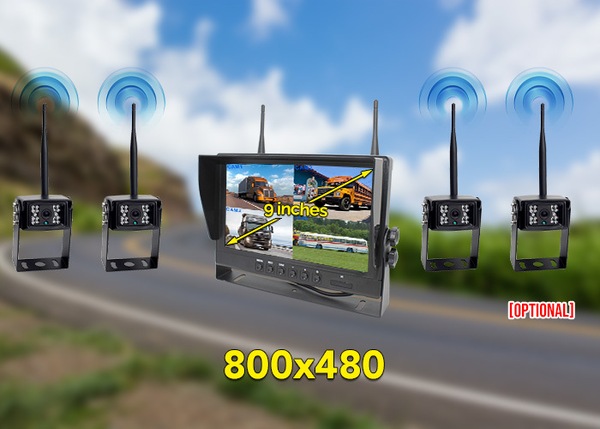

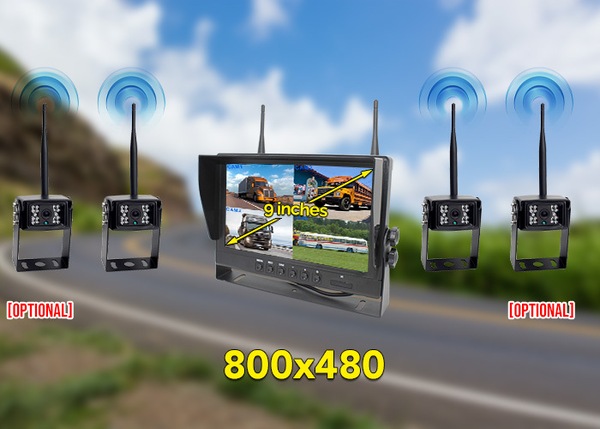

Split Screen Monitor

Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen

Parking guideline can be turned on / off

Industrial Grade Heavy Duty CMOS Camera & 800TVL Resolution

Providing you 120 degree wide field of view which can work constantly for long time
With bigger bracket to provide much better angle
Capability constructed of a metal alloy shell to withstand vehicle shock & vibration
This High resolution camera is 800 TVL to ensure the vivid images day and night.

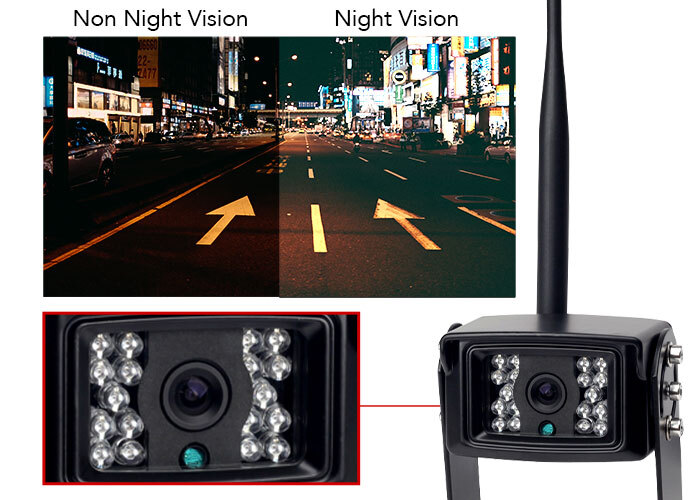

18pcs IR LED Night Vision

Camera comes with built-in 18 IR LEDs night vision which automatically turns on when light level is low, helping you view clearly still at night or in bad weather for added safety.
Night vision distance effective range is 10m.

Easy to install--Wireless

The monitor will start up automatically, and synchronously display the video from rearview camera when you're backing or braking your car.

IP68 Waterproof Camera

High waterproof rating making it very durable and suitable in all environments

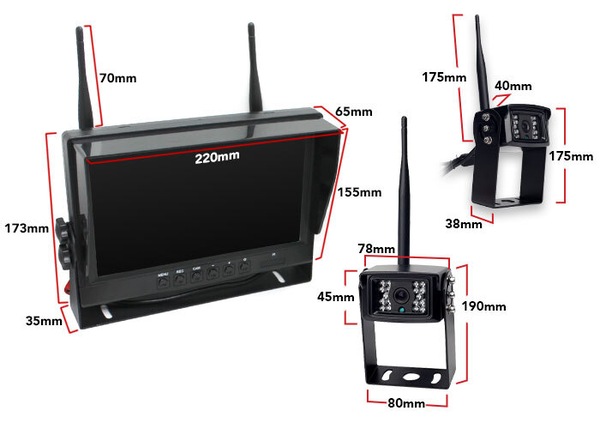

Product Dimensions

Monitor Views

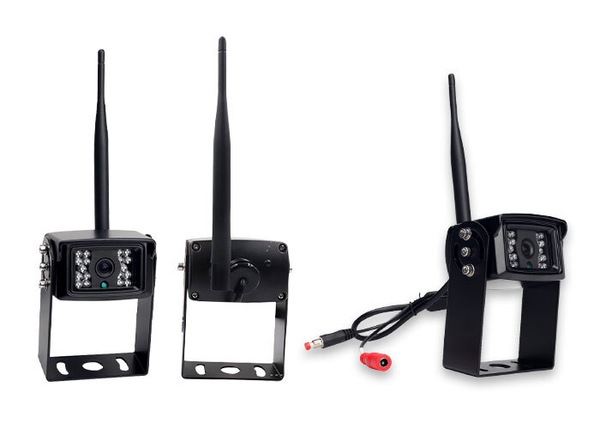

Camera Views

Remote

* No Batteries Included

MORE INFORMATION

Digital Wireless 9" Quad Splitscreen Monitor DVR Reversing CMOS 800TVL Camera 12V 24V 2.4GHz 4CH

Most managers don’t often understand how challenging it is to handle fleet services and trucking businesses. When they do find out how difficult it is, they tend to panic and spend on equipment that their trucks and drivers may not even need. If your goal is to ensure your driver’s safety and allow them to reach their destinations on time, then all you may need is an excellent- performing reversing camera kit. These kits are designed to help your field workers handle their vehicles effectively and be able to complete their daily tasks as scheduled.

Our 9-inch Quadscreen Wireless Monitor Camera kit is also made for a long-range digital signal monitor with no interference and cameras communications for about 30 to 200 metres. Another guaranteed bestseller, this monitor for reversing camera kit can support up to 4 wireless channels, and camera view can show into different splits on screen. Suitable for 12V and 24V vehicles, our camera has a wide view angle of 120 degrees and 18 built-in IR LEDs for night vision. Featuring an impressive wireless connection, this monitor is so easy to install.

• Audio recording for all 4 channels wireless cameras
• U-Support Bracket, Center Mount Bracket, Angle Adjustment Screws, Power Cable.
• Parking guideline can be turned on / off
• Trigger wire auto switch to selection camera

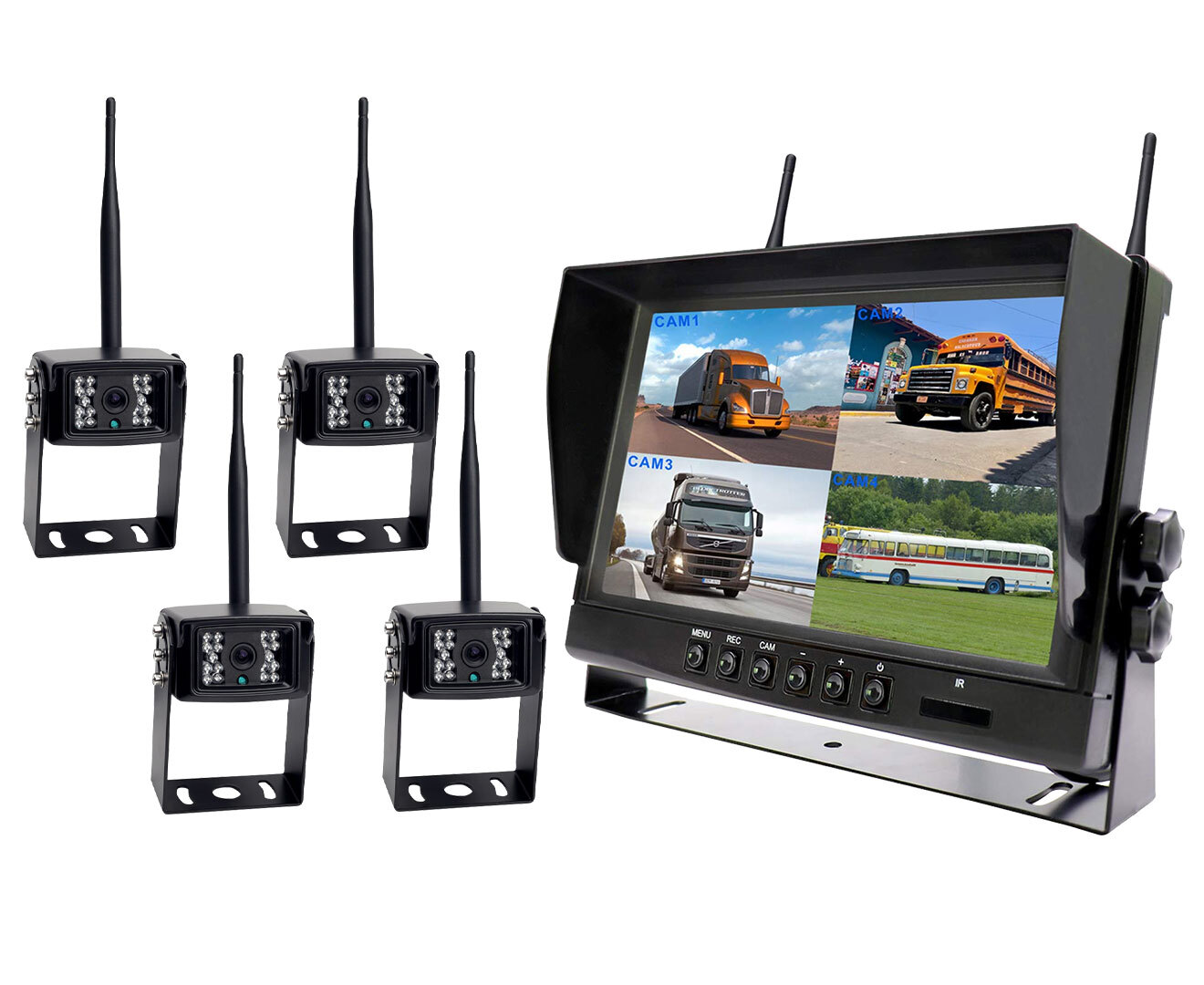

• This wireless monitor comes with 4 wireless channels only and can be connected up to 4 wireless cameras only.

PRODUCT HIGHLIGHTS

9" TFT-LCD Quad Screen Monitor
- 800 x 480 Resolution
- Split screen monitor - It can be single screen, Split screen,quad screen or H-split screen
- Support audio recording for all 4 channels wireless cameras
- Sunshade is not removable
DVR Recording Function Support up to 128GB SD card
- Can support up to 128GB SD card so you can record your footages from all camera. (SD card not included, available to be purchased separately)
Wireless Rear View System
Built-in Microphone and Speakers
Wide Angle View
800TVL Resolution/li>
FREE Windscreen Suction Cup Mount and Car Charger
2.4GHz Digital Wireless Transmission
Universal Fit
Split Screen Monitor
Optional cameras are available to be purchased from our store
Parking guideline can be turned on / off
The image can be adjusted : Mirror / Forward image adjustment available in the monitor setting
Suitable with 12V/24V Power Supply
Industrial Grade Heavy Duty CMOS Camera
18pcs IR LED Night Vision
Easy to install--Wireless
IP68 Waterproof Camera

ITEM DESCRIPTION

LCD size: 9"
Resolution: 800 x 3 (RGB) x 480
Contrast: 500 | 1
Brightness: 400cd/m²
Viewing Angle: U: 50 / D: 70, R/L: 70
Dot pitch: 0.0642(W) x 0.1790(H)
Aspect Ratio: 16 | 9
Channel: 4 channels
Operating Frequency: 2400 - 2483.5 MHz
Receiving Sensitivity: -89 dBm
Decompression Form: MPEG4
Transmit Output Power: 17 dBm
Modulation: 2.4G FSK/GFSK
Time Delay: 120ms
Transmitting Distance: 30-200M
Micro-SD /TF Card: Max. 128GB
System Format: PAL / NTSC
Power Supply: DC 10-32V
Power Consumption: Max. 6W
Loudspeaker: 1.5W/8Ω
Operating temperature: -20~+70ºC, RH90%
Storage temperature: -30~+80ºC,RH90%

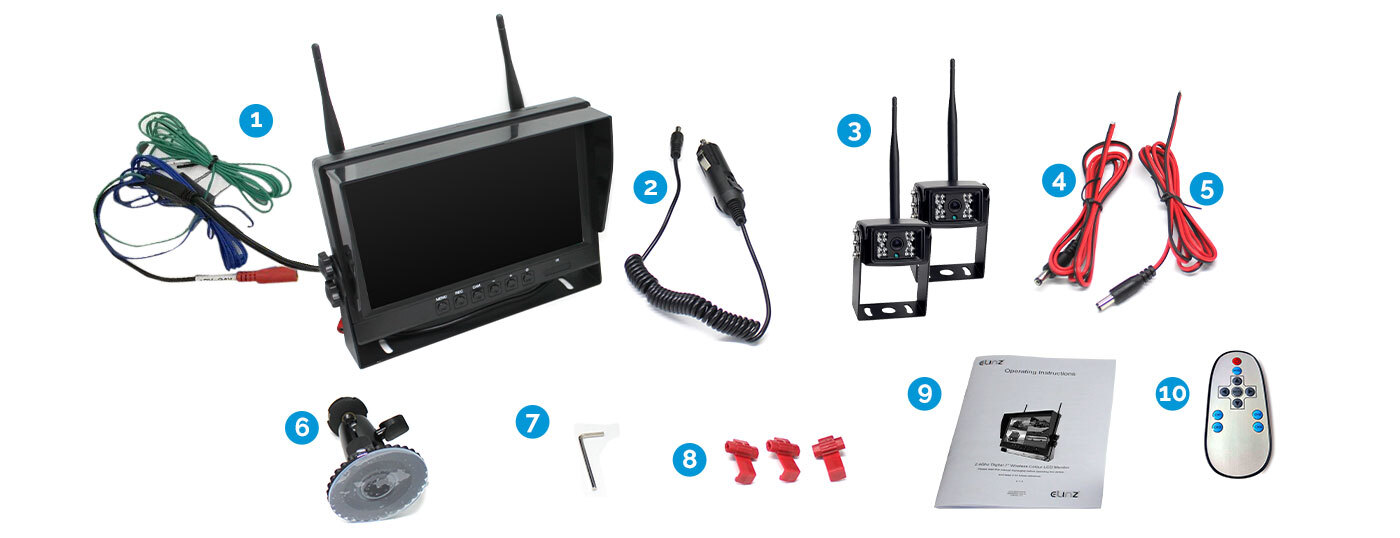

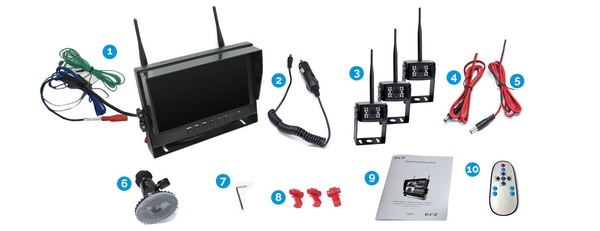

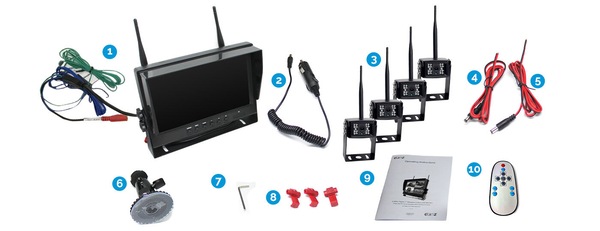

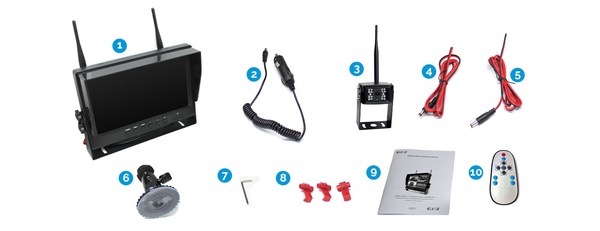

WHAT'S INCLUDED

1. 1x 9” Wireless TFT LCD Monitor

2. 1x Monitor Car Charger

3. 1x Wireless Colour CMOS Camera

4. Camera Power Cord

5. 1x Monitor Power Cord

6. 1x Monitor Suction Mount

7. 1x Allen Wrench

8. 3x Quick Splice Terminal Clip

9. 1x User Manual

10. 1x Remote (*Batteries not Included)
