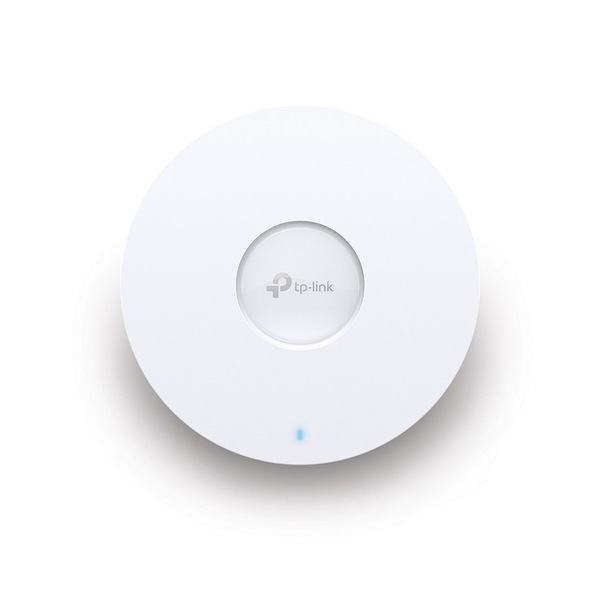

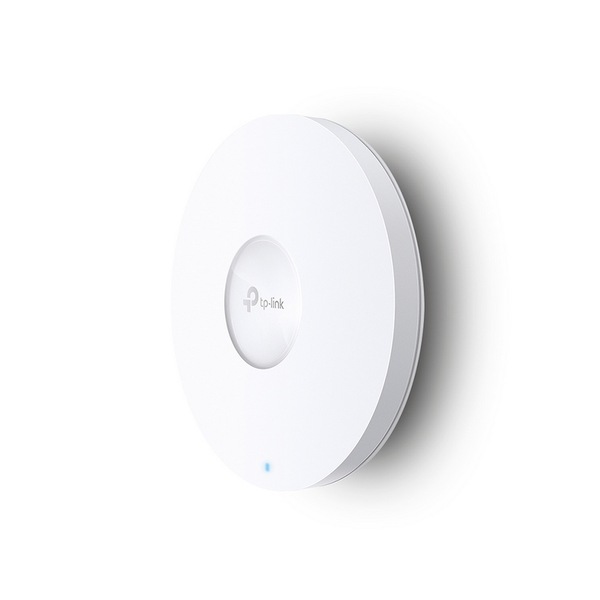

TP-Link EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point

TP-Link EAP653 UR, AX3000 Ceiling Mount WiFi 6 Access Point

Features:
  • Ultra-fast WiFi 6 speeds:2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
  • Ultra-range wireless coverage bymore antennas with higher transmit power
  • Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
  • Advanced Features: Omada Mesh, Seamless Roaming, etc§
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
  • Ultra-Slim Design: Φ6.3in × 1.3 in elegant design brings more agility
  • Integrates with the Omada SDN platform for centralized management
Specifications:

HARDWARE FEATURES

  • Interface :1× Gigabit PoE+ Port
  • Button :Reset
  • Power Supply :• 802.3at PoE
    • 12V DC / 1.5 A (Power Adapter IS NOT included)
    • 48V Passive PoE
  • Power Consumption :• EU: 14.2 W
    • US: 15.5 W
  • Dimensions ( W x D x H ) :6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
  • Antenna Type :Internal Omni
    • 2.4 GHz: 2× 5 dBi
    • 5 GHz: 3× 5 dBi

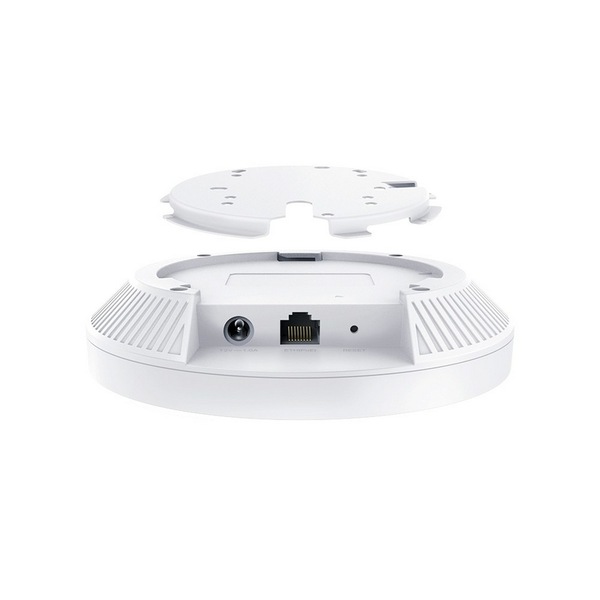

  • Mounting :• Ceiling /Wall Mounting (Kits included)
    • Junction Box Mounting

WIRELESS FEATURES

  • Coverage :185 ? (2000 ft²)***
  • Concurrent Clients :250+**
  • Wireless Standards :IEEE 802.11ax/ac/n/g/b/a
  • Frequency :2.4 GHz and 5 GHz
  • Signal Rate :• 5 GHz: Up to 2402 Mbps
    • 2.4 GHz: Up to 574 Mbps
  • Wireless Functions :• 1024-QAM
    • 4× Longer OFDM Symbol
    • OFDMA
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
    • HE160 (160 MHz Bandwidth)
    • Seamless Roaming(802.11k/v/r)§
    • Omada Mesh§
    • Band Steering
    • Load Balance
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
  • Wireless Security :• Captive Portal Authentication§
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
  • Transmission Power :• CE:
    <20 dBm(2.4 GHz, EIRP)
    <23 dBm(5 GHz, Band1 & Band2, EIRP)
    <29 dBm(5 GHz, Band3, EIRP)
    • FCC:
    <26 dBm (2.4 GHz)
    <27 dBm (5 GHz)

MANAGEMENT

  • Omada App :Yes
  • Centralized Management :• Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    • Omada Cloud-Based Controller
  • Cloud Access :Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
  • Email Alerts :Yes
  • LED ON/OFF Control :Yes
  • Management MAC Access Control :Yes
  • SNMP :v1, v2c, v3
  • System Logging Local/Remote Syslog :Local/Remote Syslog
  • SSH :Yes
  • Web-based Management :HTTP/HTTPS
  • L3 Management :Yes
  • Multi-site Management :Yes
  • Management VLAN :Yes
  • Zero-Touch Provisioning :Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

  • Certification :CE, FCC, RoHS
  • Package Contents :• EAP653 UR
    • Ceiling/Wall Mounting Kit
    • Installation Guide
    Note: DC adapter is not included in the package, and is sold separately.
  • System Requirements :Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
  • Environment :• Operating Temperature: 0–40 ? (32–104 ?)
    • Storage Temperature: -40–70 ? (-40–158 ?)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
