Description:
?

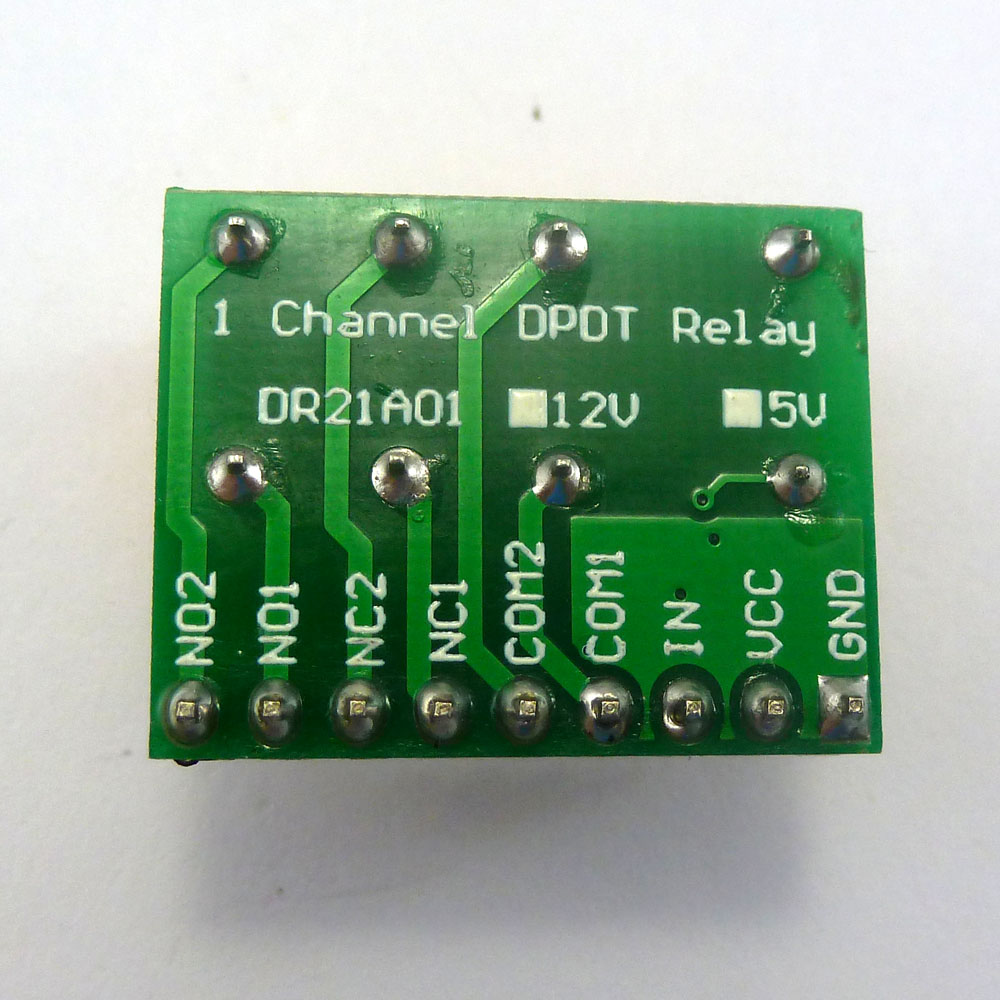

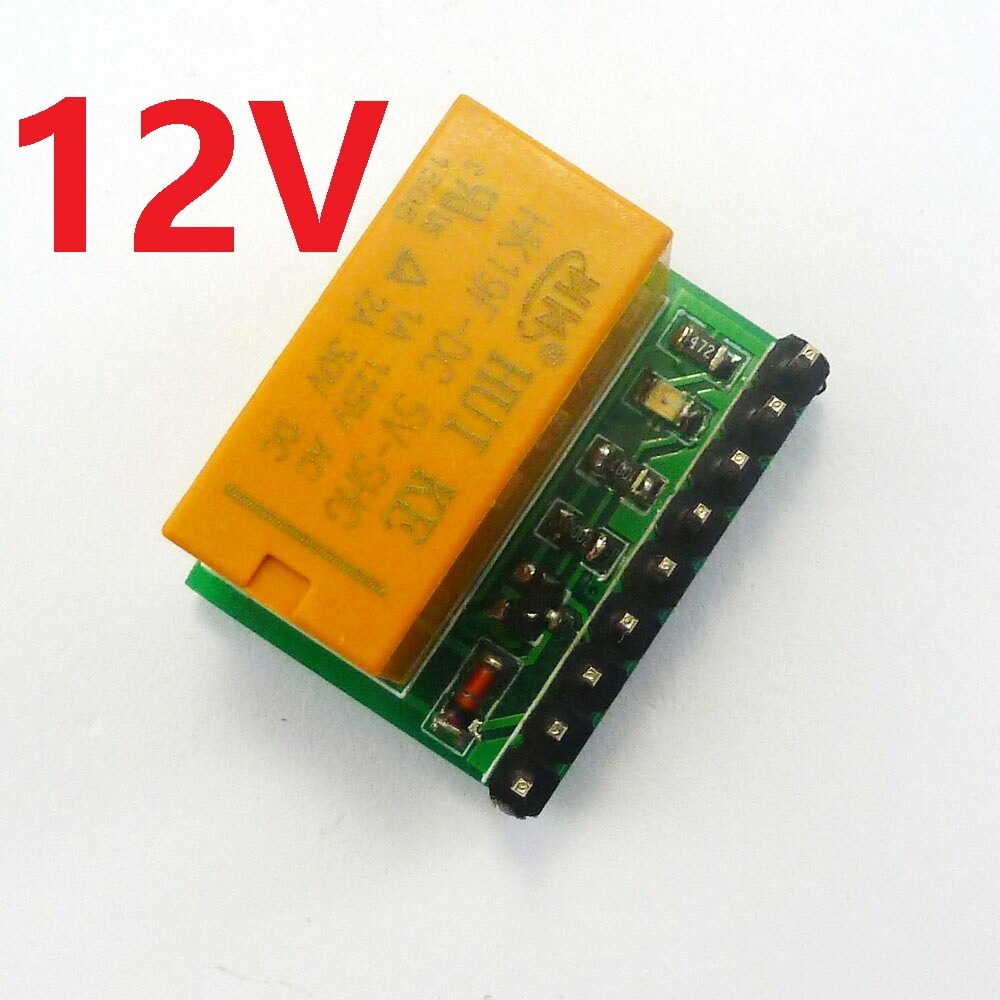

DR21C01 12VDC 1 Channel DPDT Relay Board
Operating Voltage : DC 12V
Operating Current(Relay ON): 15MA
Standby Current(Relay OFF) : <1MA
Input control signal voltage: 0V - 0.6V Low stage (relay is OFF), 0.6V �C 2.4V (unknown state). 2.4V - 24V High state (relay is ON).
Input control signal high state current:2.4V: 0.15mA??5V: 0.4mA??12V: 1.2mA??20V: 2mA
Relay Load : 1A 125VAC;2A 30VDC

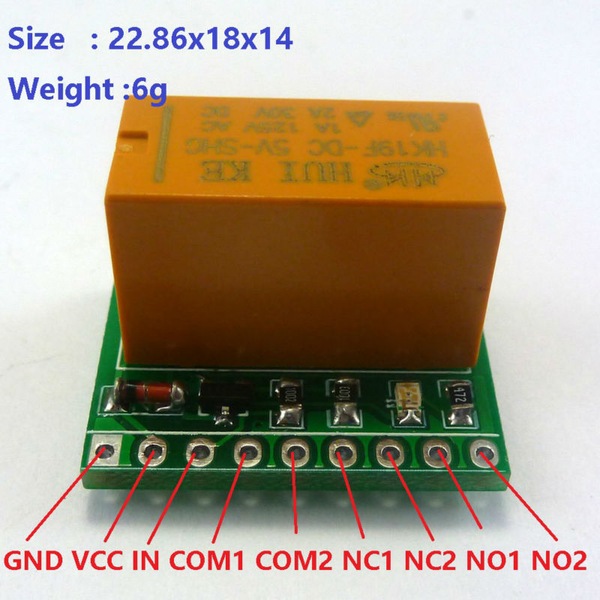

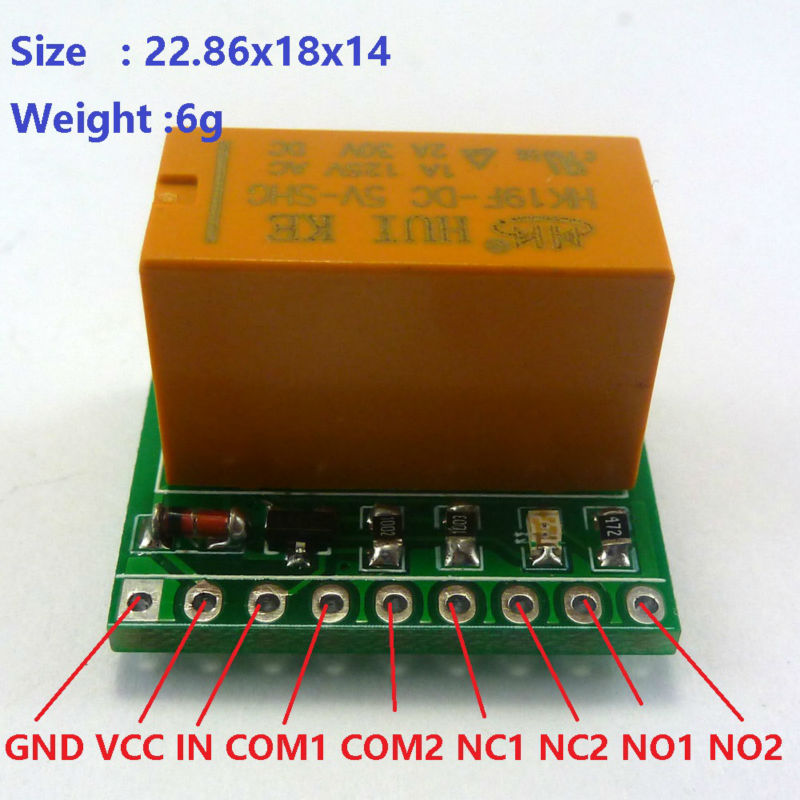

Size?? : 22.86x18x14
Weight :7g

Typical applications:
Automotive electronics
Audio and video equipment

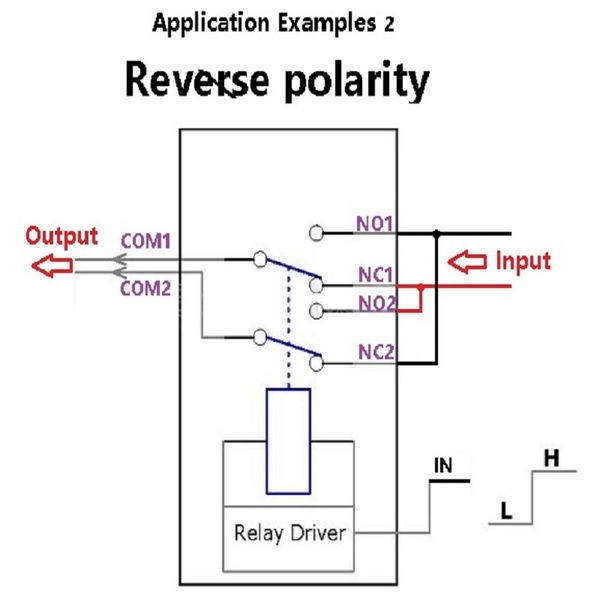

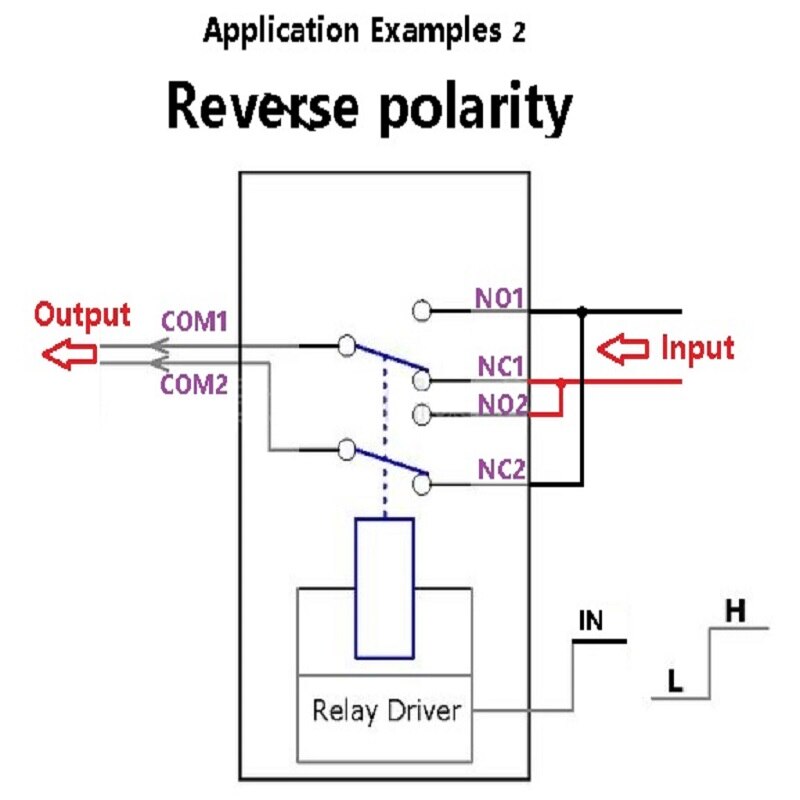

Motor Polarity reversal
LED
Smart Home
Emergency lighting

Packing list:1 PCS DR21C01? 1 Channel? DC 12V DPDT Relay Module

GTIN: 774048926744
