Deye 8KW Inverter Charger Regulator 8KW Hybrid Solar Inverter Off-Grid

Deye 8KW Inverter Charger Regulator 8KW Hybrid Solar Inverter Off-Grid

Limited Stock!

Price	$3899
	Collect 3899 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

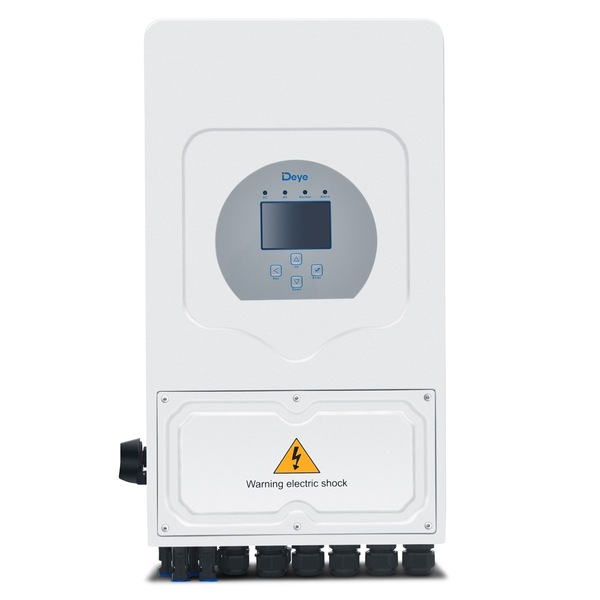

This is a multi-function inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible power support with portable size and make the most of your solar system.

An on-grid inverter’s main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Stop wasting money on inefficient, overpriced inverters. Invest in one of the most versatile and effective solar power management systems out there today. Our hybrid inverters are next-level and truly worth of your purchase.

Features:

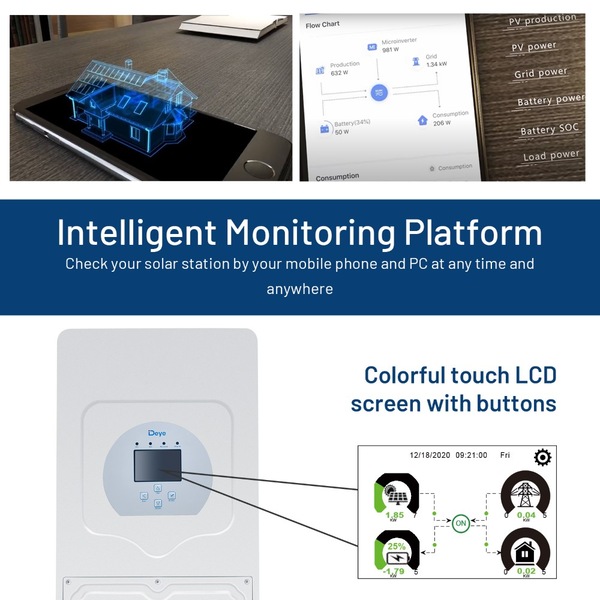

Colorful touch LCD, IP65

6 time periods for battery charging/discharging

Max.16pcs parallel

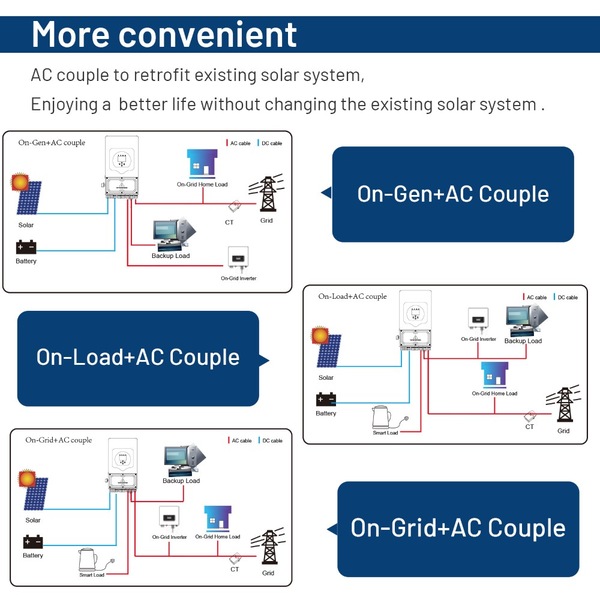

DC couple and AC couple to retrofit existing solar system

Support storing energy from diesel generator

48V low voltage battery, safe and reliable

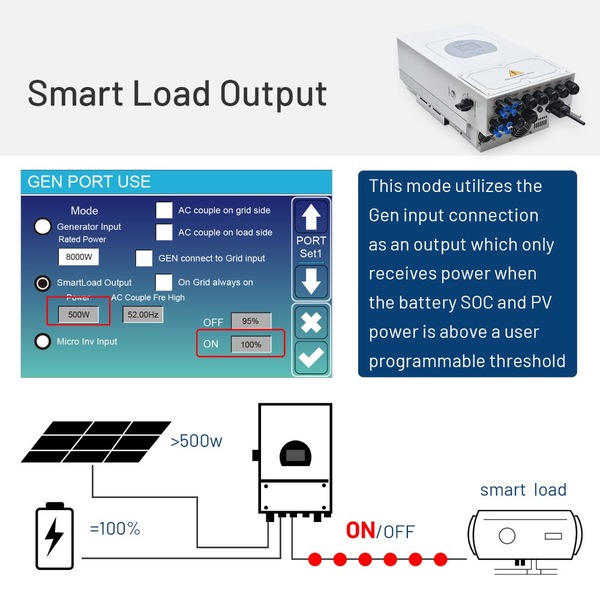

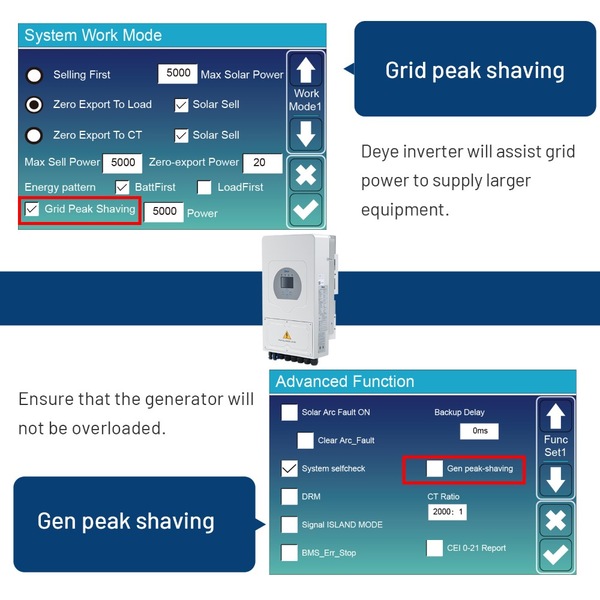

Unique Smart Load application and Grid peak shaving function

4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

Battery Input Data

Battery Type: Lead-acid or Lithium-ion

Battery Voltage Range (V): 40~60

Max. Charging Current (A): 190

Max. Discharging Current (A):190

Charging Curve: 3 Stages / Equalization

External Temperature Sensor:Yes

Charging Strategy for Li-Ion Battery: Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W):10400

Rated PV Input Voltage (V):370 (125~500)

Start-up Voltage (V):125

MPPT Voltage Range (V):150-425

Full Load DC Voltage Range (V):200-425

PV Input Current (A):26+26

Max. PV ISC (A): 34+34

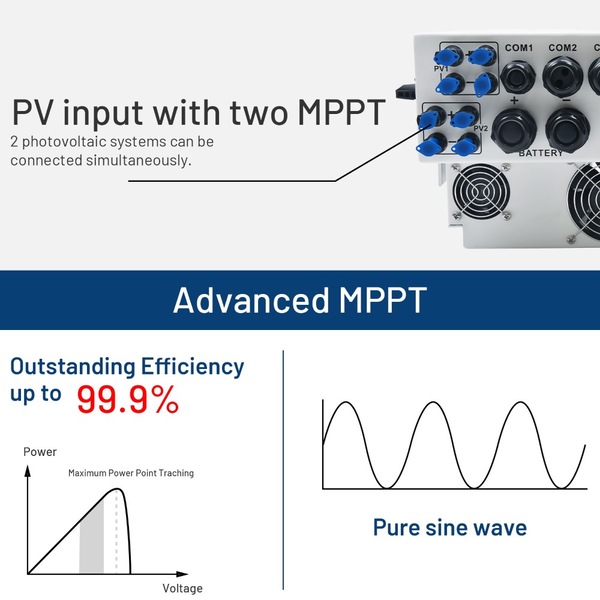

Number of MPPT / Strings per MPPT: 2/1+1

AC Output Data

Rated AC Output and UPS Power (VA): 8000

Max. AC Output Power (W): 8000

AC Output Rated Current (A):34.8

Max. AC Current (A):34.8

Grid Type: Single Phase

Efficiency:

Max. Efficiency:97.60%

Euro Efficiency:97.00%

MPPT Efficiency: 99.90%

General Data

Operating Temperature Range (°C):-40~60°C, >45°C derating

Cooling : Nature Cooling

Noise (dB): <30 dB

Communication with BMS:RS485; CAN

Weight (kg):24

Size (mm):330W x 580H x237D

Protection Degree: IP65

Installation Style: Wall-mounted

Warranty: 10 Years

Dimensions & Weight:

Weight (kg):24

Size (mm):330W x 580H x237D

Package:

1 x Hybrid Inverter

1 x Wall Mounting Bracket

1 x Set of Stainless Steel Anti-collision Bolt M6 x60 x4

1 x Set of Stainless Steel Mounting Screws M4 x12 x2

1 x Parallel Communication Cable

1 x L-type Hexagon Wrench

1 x Wi-Fi Plug

1 x Battery Temperature Sensor

1 x Sensor Clamp

1 x User Manual

If that's not enough, check out "Deye Hybrid Inverter.pdf" to find out more about this Hybrid Inverter.

Deye Hybrid Inverter.pdf

GTIN: 702658798130
