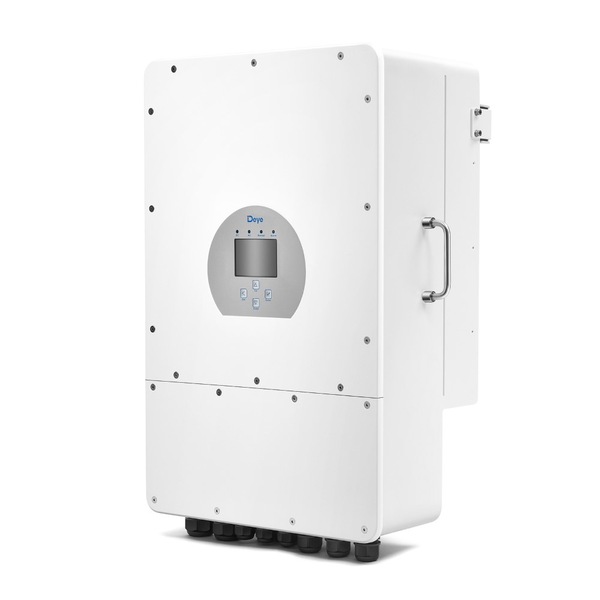

Deye VoltX 10KW 10000W Hybrid Solar Inverter MPPT Charger Regulator 48V Low Voltage
3x

Deye VoltX 10KW 10000W Hybrid Solar Inverter MPPT Charger Regulator 48V Low Voltage


Deye VoltX multi-function inverter/charger is the ideal hybrid inverter for anyone that is looking for dependable access to off-grid or on-grid solar power, no matter what life throws at them. Whether you are a homeowner that wants to be prepared for power outages and natural disasters, or you just want to reduce your monthly electricity bill by offsetting the costs with clean, reliable solar electricity, our inverter is the perfect solution!

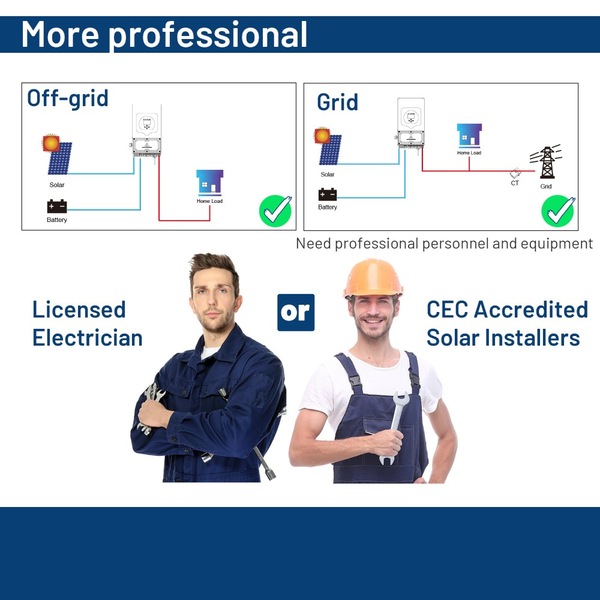

An on-grid inverter's main job is to convert DC power generated from the PV array into usable AC power. Hybrid inverters go a step further and work with batteries to store excess power as well. In the developing world, hybrid inverters are more of a necessity to compensate for weak or intermittent grids or a lack of grid electricity all together.

Stop wasting money on inefficient, overpriced inverters. Invest in one of our versatile and effective hybrid solar inverters today!

Why us?
  • Outstanding Efficiency - up to 97.60%.
  • Industry Leading Power-Max. 16pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
  • Unrivaled Versatility-Support storing energy from diesel generator

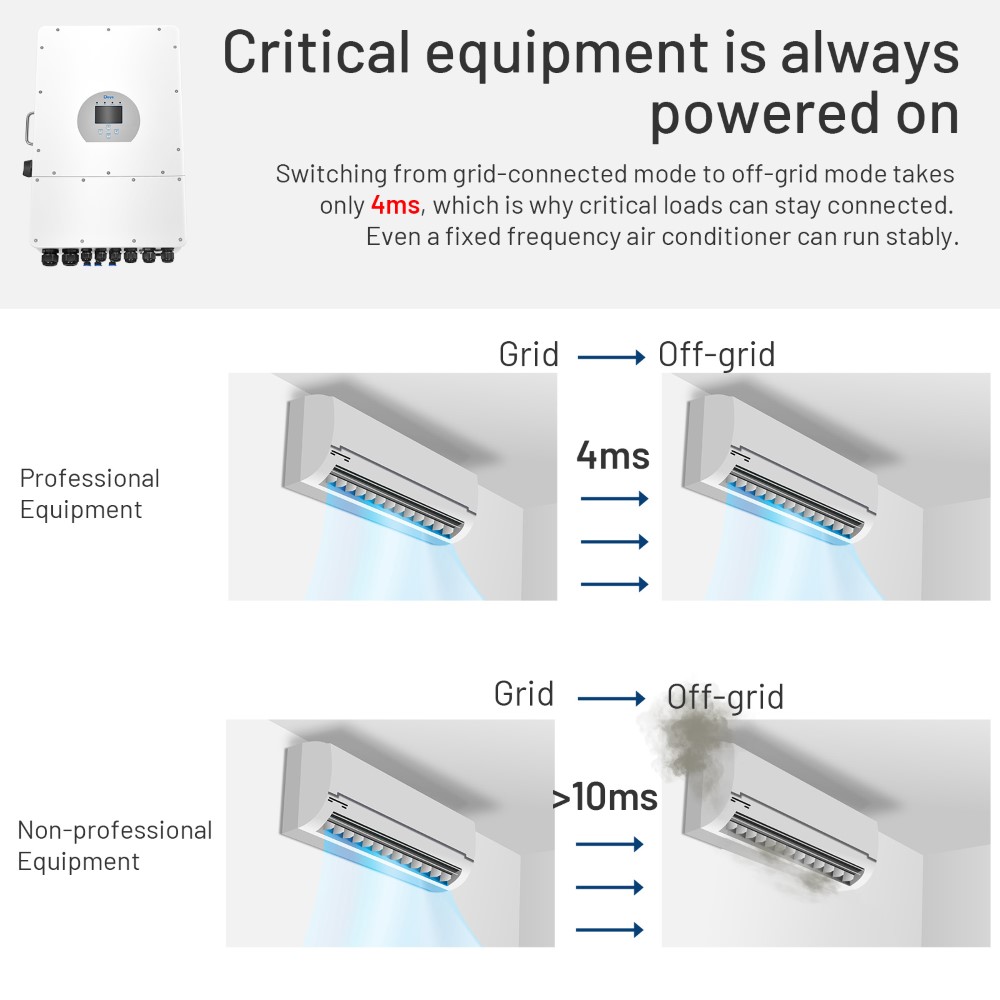

  • User-Friendly Simplicity-4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well

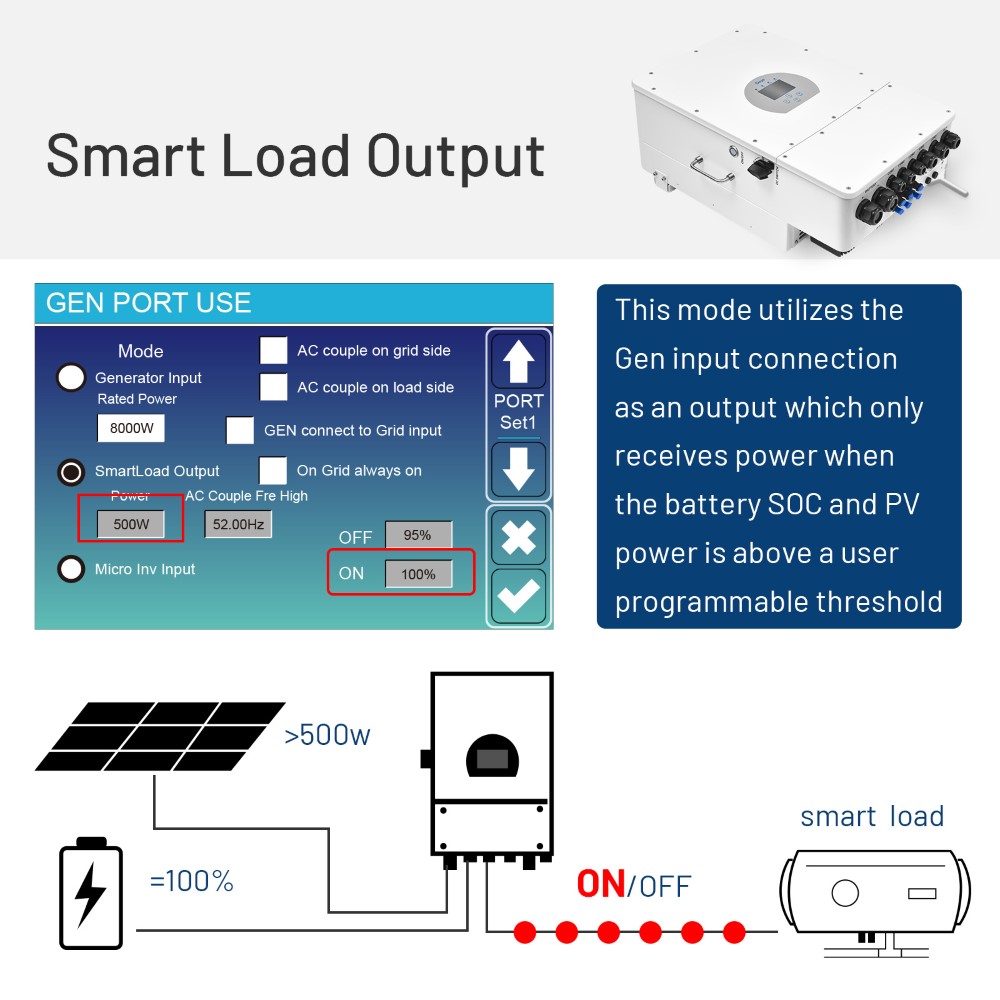

  • Affordability and Support-Unique Smart Load application and Grid peak shaving function


  • Battery Input Data
  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40~60
  • Max. Charging Current (A): 210
  • Max. Discharging Current (A):210
  • Charging Curve: 3 Stages / Equalization
  • External Temperature Sensor:Yes
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS


  • PV String Input Data
  • Max. DC Input Power (W):13000
  • Rated PV Input Voltage (V):550 (160~800)
  • Start-up Voltage (V):160
  • MPPT Voltage Range (V):200-650
  • Full Load DC Voltage Range (V):350-650
  • PV Input Current (A):26+13
  • Max. PV ISC (A): 39+19.5

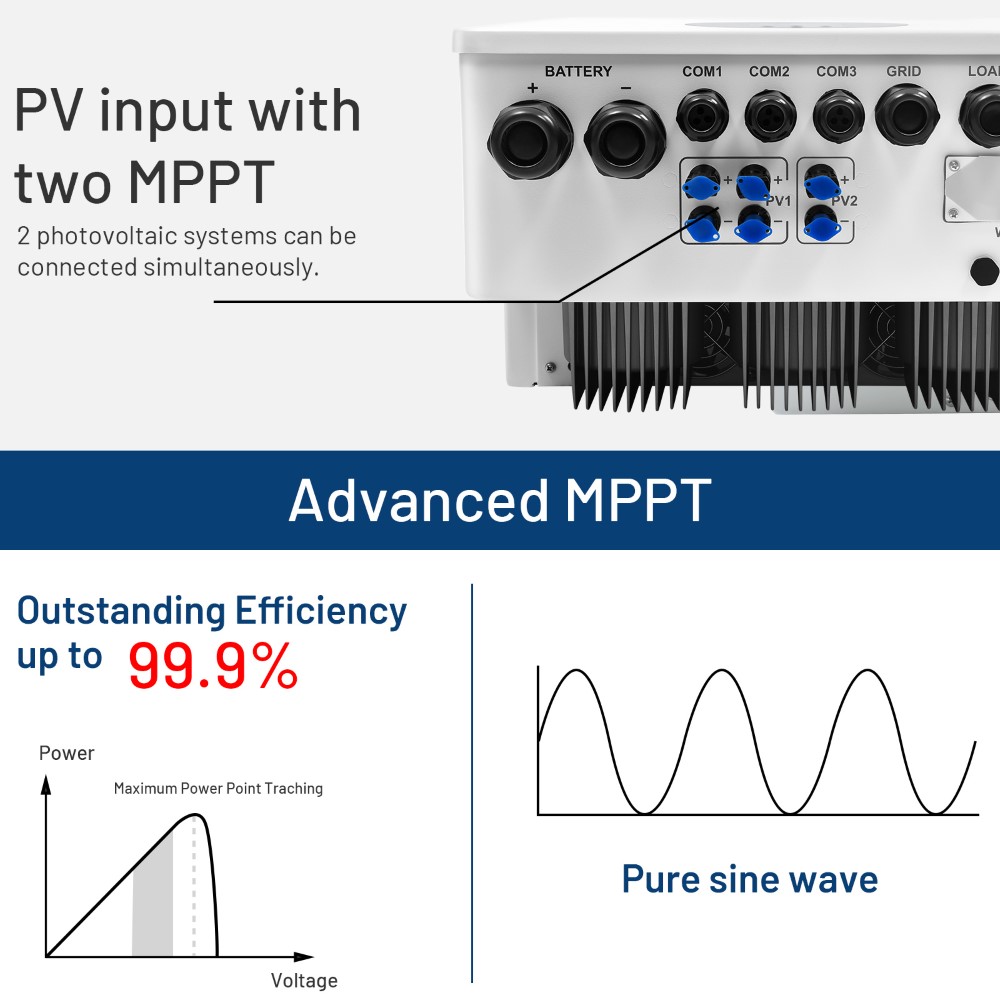

  • Number of MPPT / Strings per MPPT: 2/2+1


  • AC Output Data
  • Rated AC Output and UPS Power (VA): 10000
  • Max. AC Output Power (W): 10000
  • AC Output Rated Current (A):14.5
  • Max. AC Current (A):14.5
  • Max. Continuous AC Passthrough (A):45
  • Peak Power (off grid) :2 time of rated power, 10 S
  • Power Factor:0.8 leading to 0.8 lagging
  • Output Frequency and Voltage:50Hz; 3L/N/PE 400V/340V-440V 415V/353V-456.5V

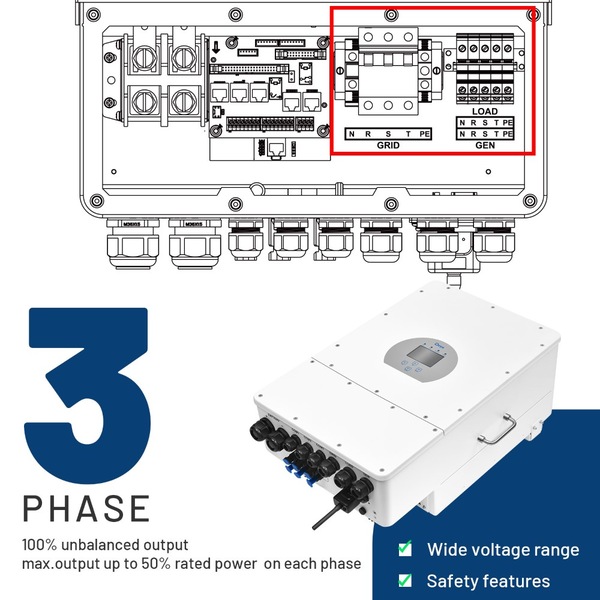

  • Grid Type: Three Phase
  • DC injection current (mA):THD<3% (Linear load<1.5%)
  • Efficiency:
  • Max. Efficiency:97.60%
  • Euro Efficiency:97.00%
  • MPPT Efficiency: 99.90%


  • Certifications and Standards
  • Grid Regulation : AS/NZS 4777.2
  • Safety EMC / Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2


  • General Data
  • Operating Temperature Range (°C):-40~60°C, >45°C derating
  • Cooling : Smart Cooling
  • Noise (dB): <45 dB
  • Communication with BMS:RS485; CAN
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 5 Years


  • Dimensions & Weight
  • Weight (kg):33.6
  • Size (mm):422W x 702H x281D


  • If that's not enough, check out "Deye Hybrid Inverter.pdf" to find out more about this Hybrid Inverter.

    Deye Hybrid Inverter.pdf
