5pcs DC/DC Non-isolated Regulated Converter 5-40 Wide Input 1-30V OUT

5pcs DC/DC Non-isolated Regulated Converter 5-40 Wide Input 1-30V OUT

Price	$35.32
	Collect 35 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

Input voltage 4.75~40V,Adjustable output 0.9~30V
Long time maximum output current 0.8A(12V to 5V)
Short time maximum output current 1A(12V to 5V)
Quiescent current: about 1.5MA
DC-DC Step-Down Converter module working frequency 550KHz. efficiency is 75-90% .
Overtemperature shutdown, input under-voltage protection, BS-voltage protection, and short circuit protection.

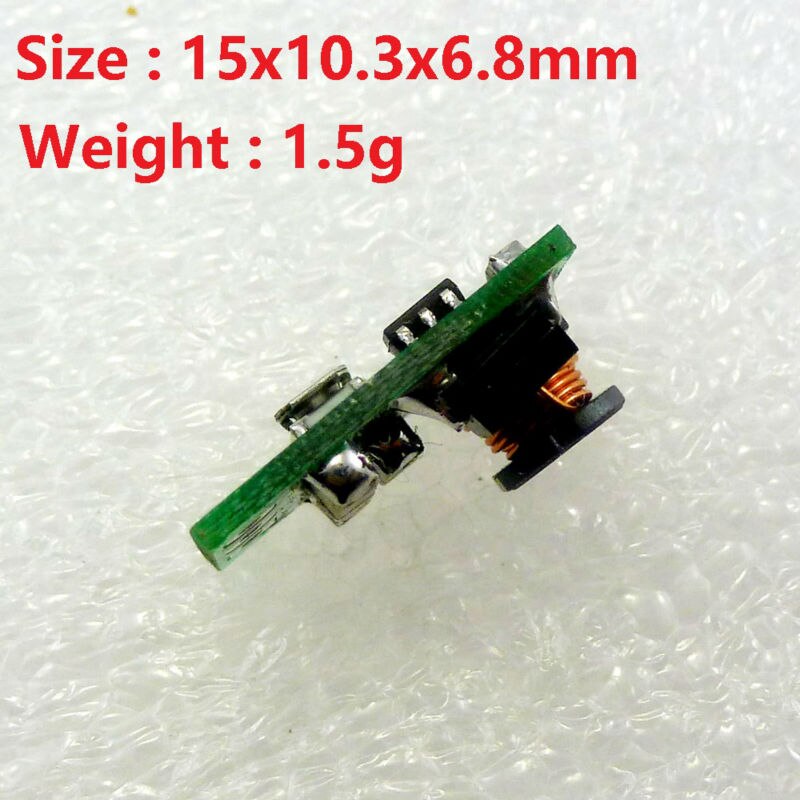

Excluding Pin Size 15mm x 10.3mm x 6.8mm(Very small)
Weight : about 1.5g(Very light)

Attention :

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

12V 5V TO 3.7V lithium battery-powered systems
12V 9V 6V 5V 3.3V Motor
WIFI esp8266 Module
Bluetooth Board HC-05 HC-06
CCTV camera
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems

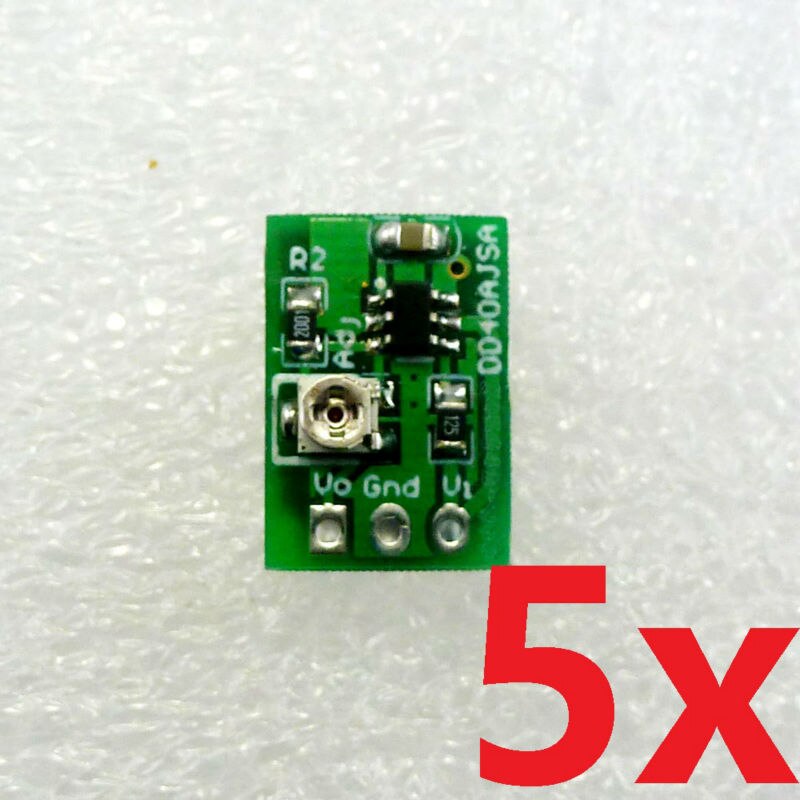

Packing list:5 PCS DD40AJSB mini 5W DC DC Converter Step Down 4.75V-40V to 0.8-30V Adjustable output Module

GTIN: 774048925907
