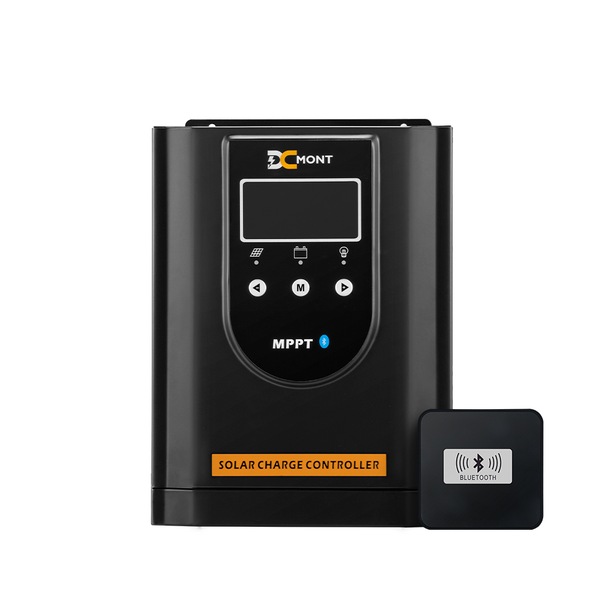

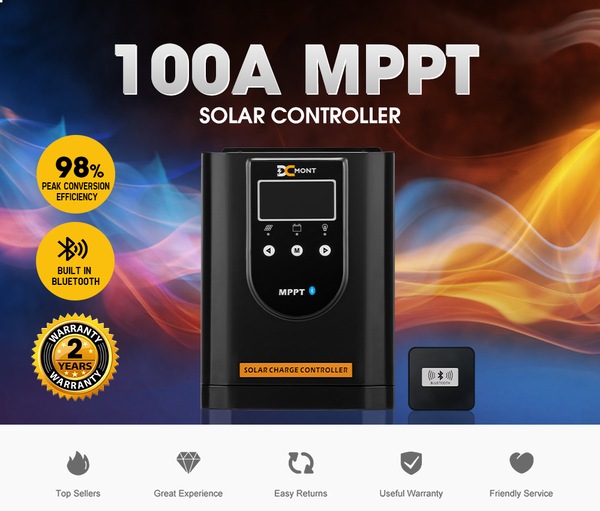

DC MONT 100A MPPT Solar Charge Controller 12/24/36/48V Battery Regulator Bluetooth LiFePO4 Battery Compatible

DC MONT 100A MPPT Solar Charge Controller 12/24/36/48V Battery Regulator Bluetooth LiFePO4 Battery Compatible

Be the first to review this product

Hurry! 12 items left!

Price	$241.95
	Collect 241 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

DESCRIPTION
An MPPT solar charge controller enables the panel to operate at the optimum voltage & current for maximum power output and is 30% more efficient than a PWM solar charge controller. This DC MONT 100A Bluetooth MPPT solar controller features a high tracking efficiency of up to 99.5% & peak conversion efficiency of 98%.The solar controller is compatible with various lead acid & lithium-ion batteries. And the solar regulator features 4-stage charging (bulk, absorption, float & equalization) of lead acid batteries and 2-stage charging (bulk & absorption) for lithium batteries & lithium reactivation, thus prolonging battery’s lifespan. With the backlit LCD display, you can easily view the charge status, progress & discharge of your setup. The Bluetooth module allows you to monitor your system & change parameters from your cell phone. The MPPT solar controller can harvest more power out of your panel especially when the sky is partially clouded and is ideal for camping, boating, RV use, etc.

FEATURES
Innovative MPPT Tech: This 100A MPPT solar charge controller features a high tracking efficiency of up to 99.5% and peak conversion efficiency of 98%.
Temperature Monitoring & Compensation: The remote temperature sensor measures battery temperature in real-time for accurate temperature compensation.
Automatic Voltage Detection: This Bluetooth MPPT solar controller automatically detects 12V / 24V / 36V / 48V DC system voltages.

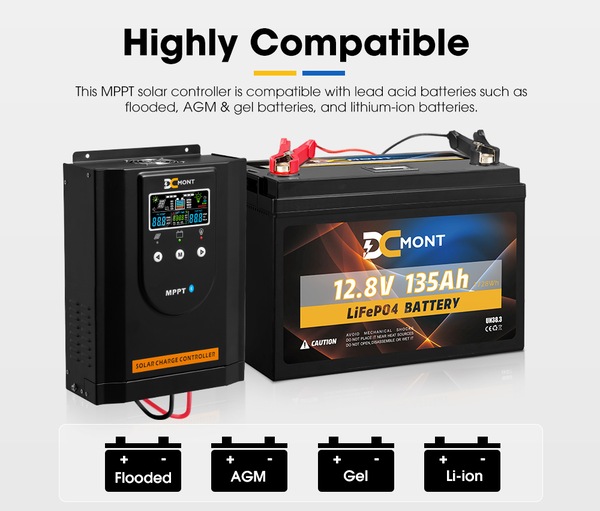

Highly Compatible: This MPPT solar controller is compatible with lead acid batteries such as flooded, AGM & gel batteries, and lithium-ion batteries.

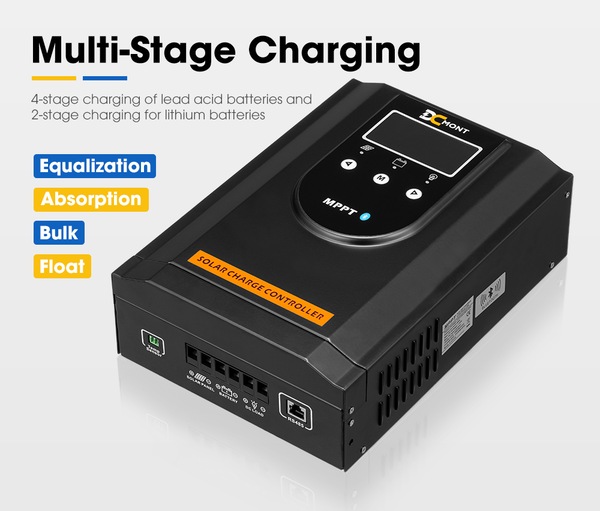

Multi-Stage Charging: This solar regulator features 4-stage charging of lead acid batteries and 2-stage charging for lithium batteries as well as lithium reactivation.

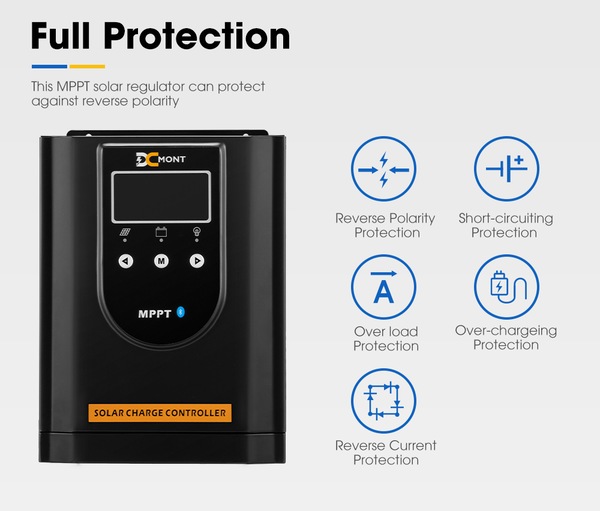

Full Protection: This MPPT solar regulator can protect against reverse polarity, over-charge/discharge, over load/temperature, short circuit & reverse current.

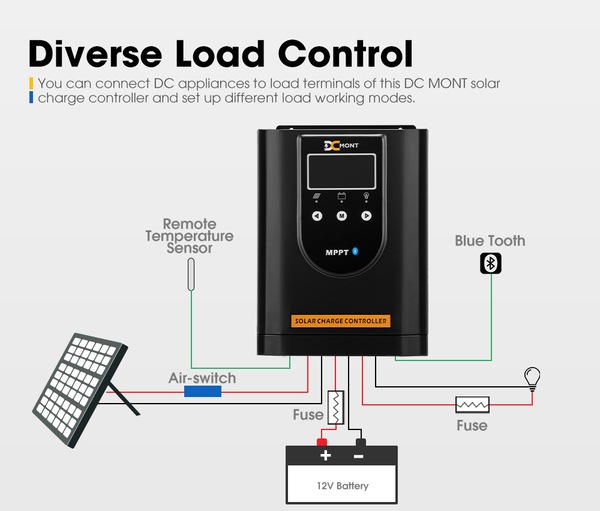

Diverse Load Control: You can connect DC appliances to load terminals of this DC MONT solar charge controller and set up different load working modes.

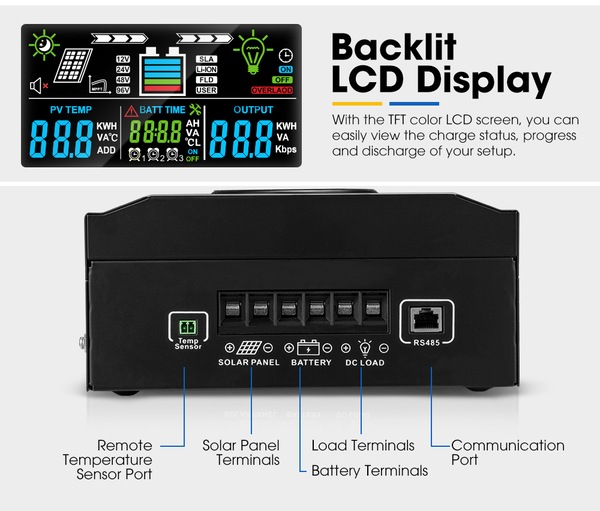

Backlit LCD Display: With the TFT color LCD screen, you can easily view the charge status, progress and discharge of your setup.

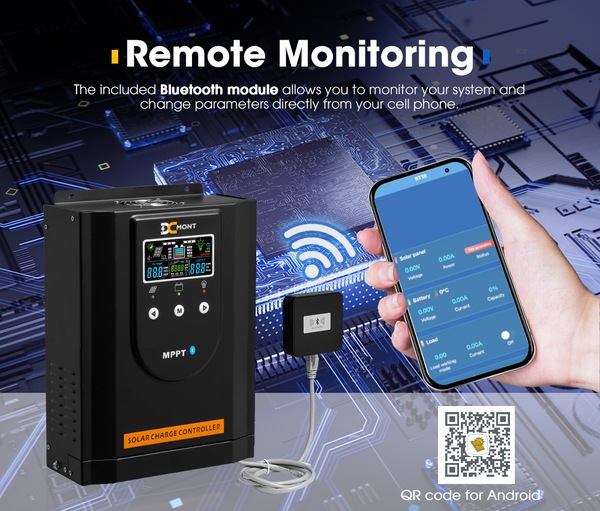

Remote Monitoring: The included Bluetooth module allows you to monitor your system and change parameters directly from your cell phone.
Rapid Heat Dissipation: This solar controller features a fan and ventilation openings which ensure excellent heat dissipation for smoother operation. Note: For Bluetooth Connection, set the baud rate to 9.6kbps, see manual for more info.

SPECIFICATIONS
System Voltage:12V/24V/36V/48V Auto Recognition
Rated Battery Current:100A
Rated Load Current:50A
Max. Battery Voltage:57.6V
Max Solar Input Voltage:150V
Max Solar Input Power:12V / 1300W, 24V / 2600W, 36V / 3900W, 48V / 5200W
Self-Consumption:35mA @ 12V/24V/36V/48V
Temp Compensation:-4mV/C/2V
Max Terminal Size:25mm / 3AWG
Working Temperature:-20~+55C
Storage Temperature:-30~+80C
Humidity Range:10%~90% No Condensation
Enclosure:IP32
Altitude: 3000m
Communication:RS485, RJ45 Port
Network Cable Type:Cat5
Certification:FCC Part 15 Class B; CE; RoHS
Package Size:41x29x17cm
Gross Weight:5.22kg

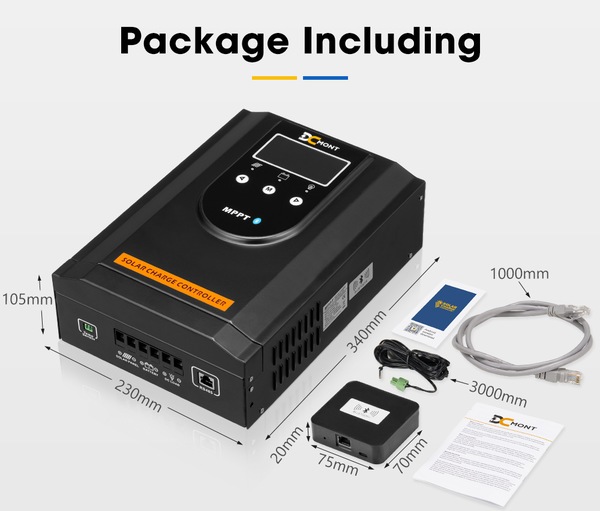

PACKAGE INCLUDES
1 x MPPT Solar Controller
1 x Bluetooth Module
1 x Remote Temperature Sensor
1 x User Manual

WARRANTY
2 Years Warranty
