Description:

6-25V 900mA Step-down High Brightness LED Driver with 5000:1 Dimming
Working voltage : DC 6-25V(Perfect for 6V 9V 12V 18V 24V? LED Driver)

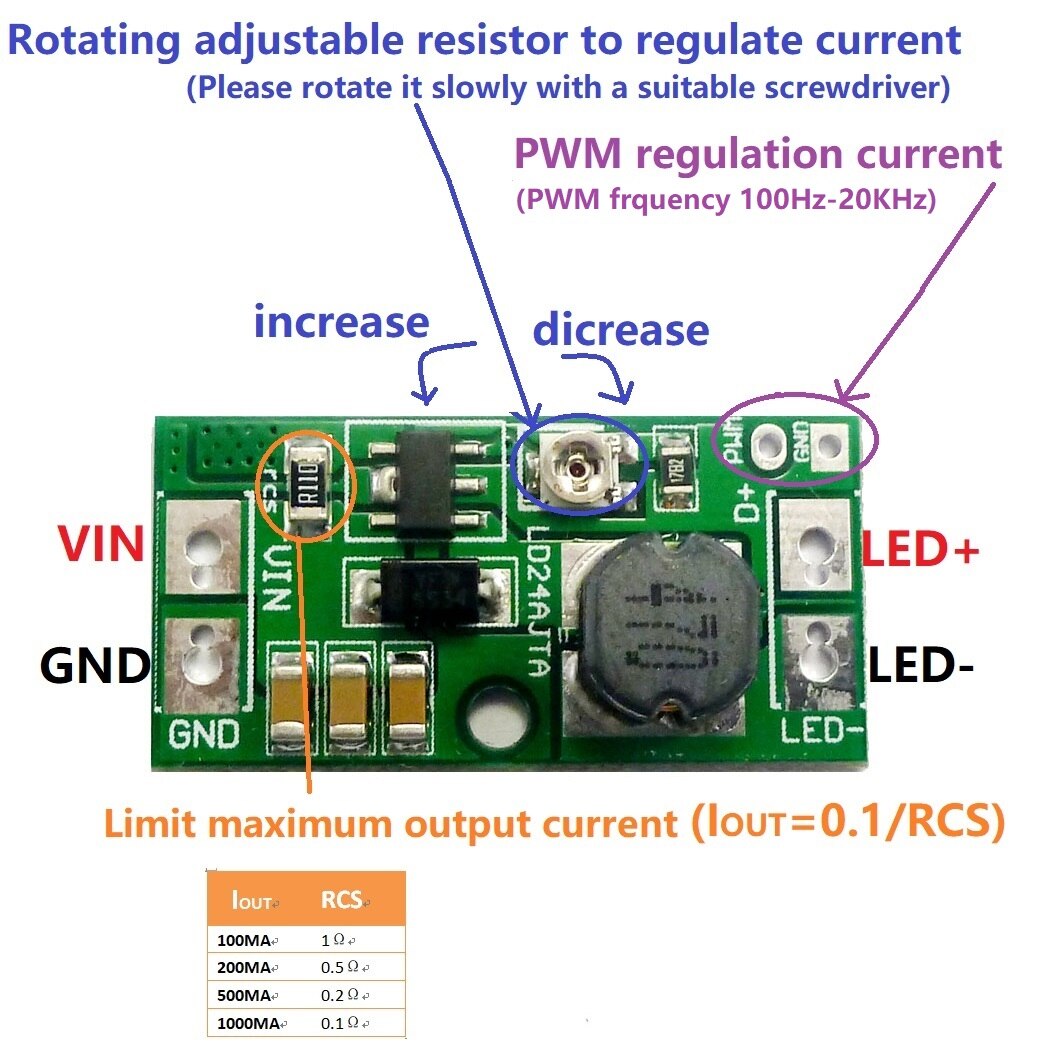

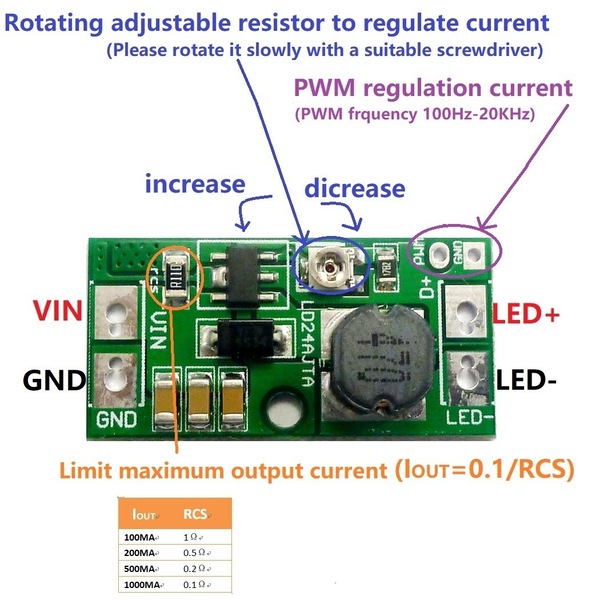

Output Current: 30-900MA;By changing the RCS resistance, the maximum current can reach 1200MA
Maximum output power: 20W

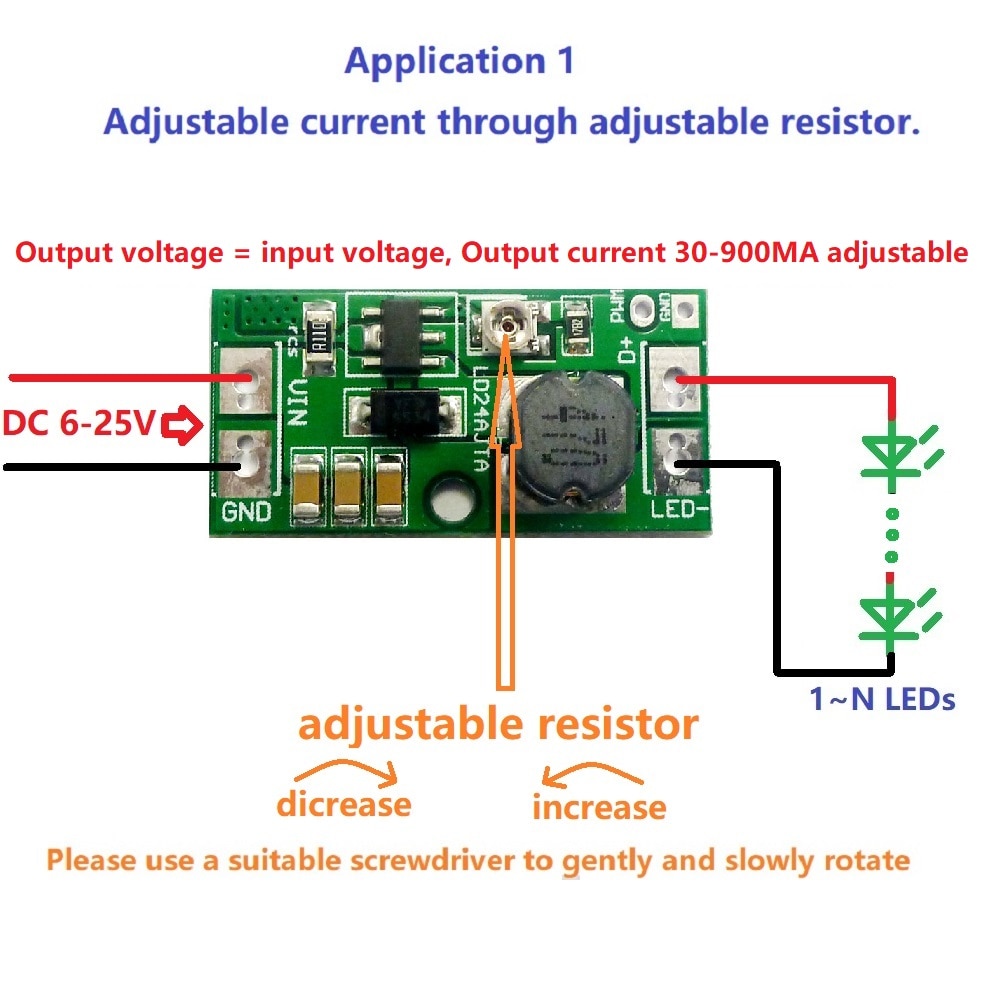

Current regulation: 1 through adjustable resistance; 2 through PWM control

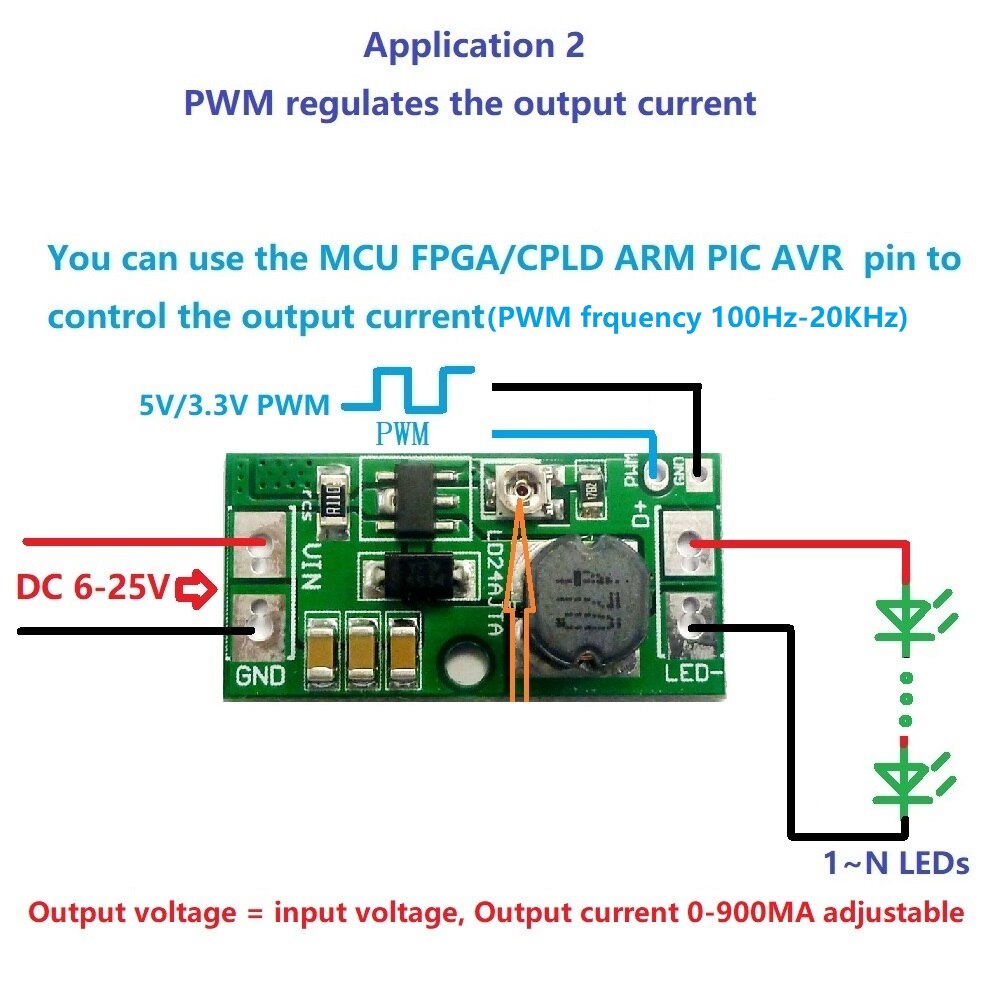

Single pin on/off and brightness control using DC voltage or PWM
Up to 1MHz switching frequency
Typical 5% output current accuracy
Inherent open-circuit LED protection
High efficiency (up to 97%)
High-Side Current Sense
Hysteretic Control: No Compensation
Adjustable Constant LED Current

Size : 30mm x 15mm x 6.3mm
Weight : 2.5g
