DC 12V 8 Channels Power Conditioner/Sequencer Switch Interlock Latch

DC 12V 8 Channels Power Conditioner/Sequencer Switch Interlock Latch

Price	$42.27
	Collect 42 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Specifications:

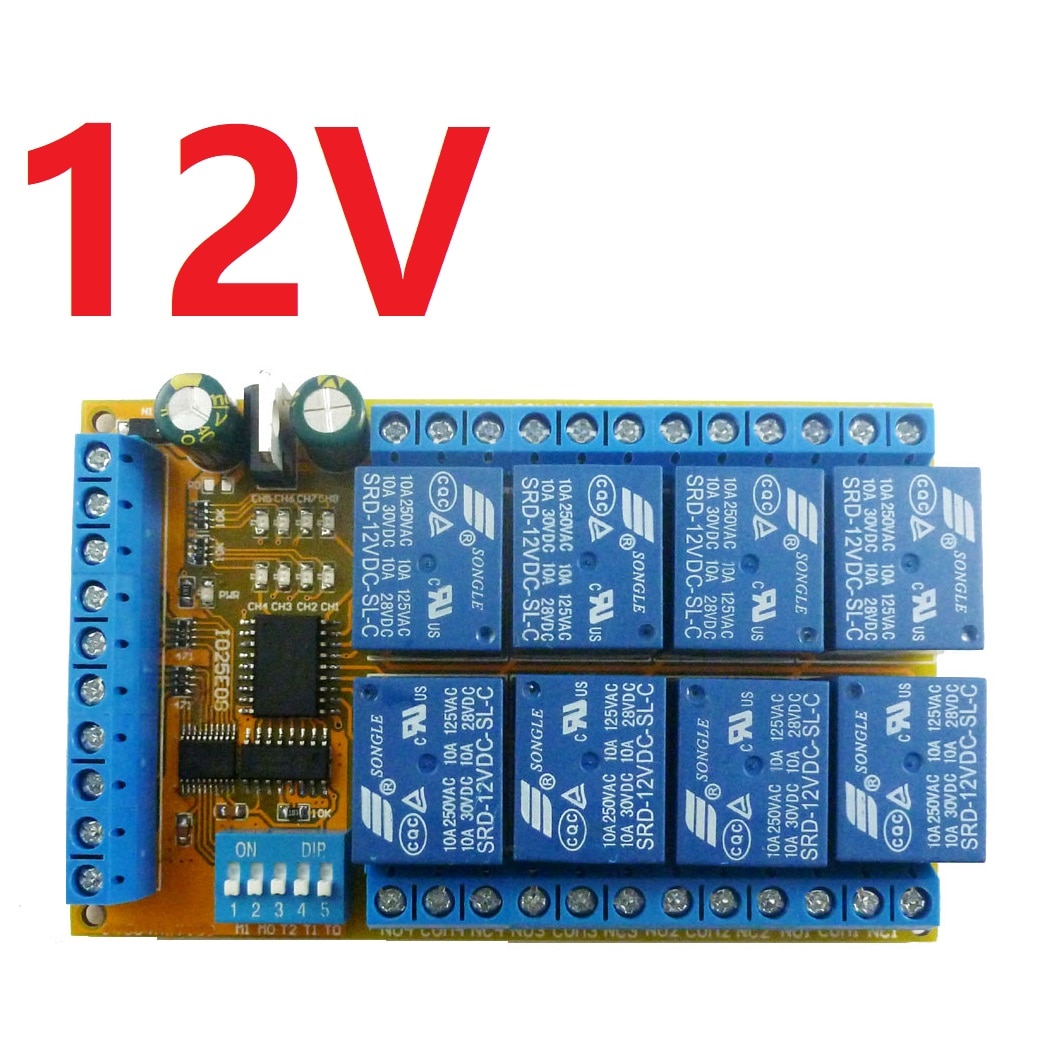

1 Operating voltage: DC 12V
2 Operating Current(DC 12V) : Standby current 6MA, 1 relay open 35MA, 2 relays open 64MA, 3 relays open 92MA, 4 relays open 120MA, 5 relays open 148MA, 6 relays open 176MA, 7 relays open 204MA, 8 relays open 231MA
3 Size: 99 x 62 x 20 mm
4 Weight : 119g
5 Relay maximum load capacity: DC 1-110V/5A; AC 85-265V/6A

Product Features:
8 channel relay, each channel independently triggered independent delay, do not interfere with each other.

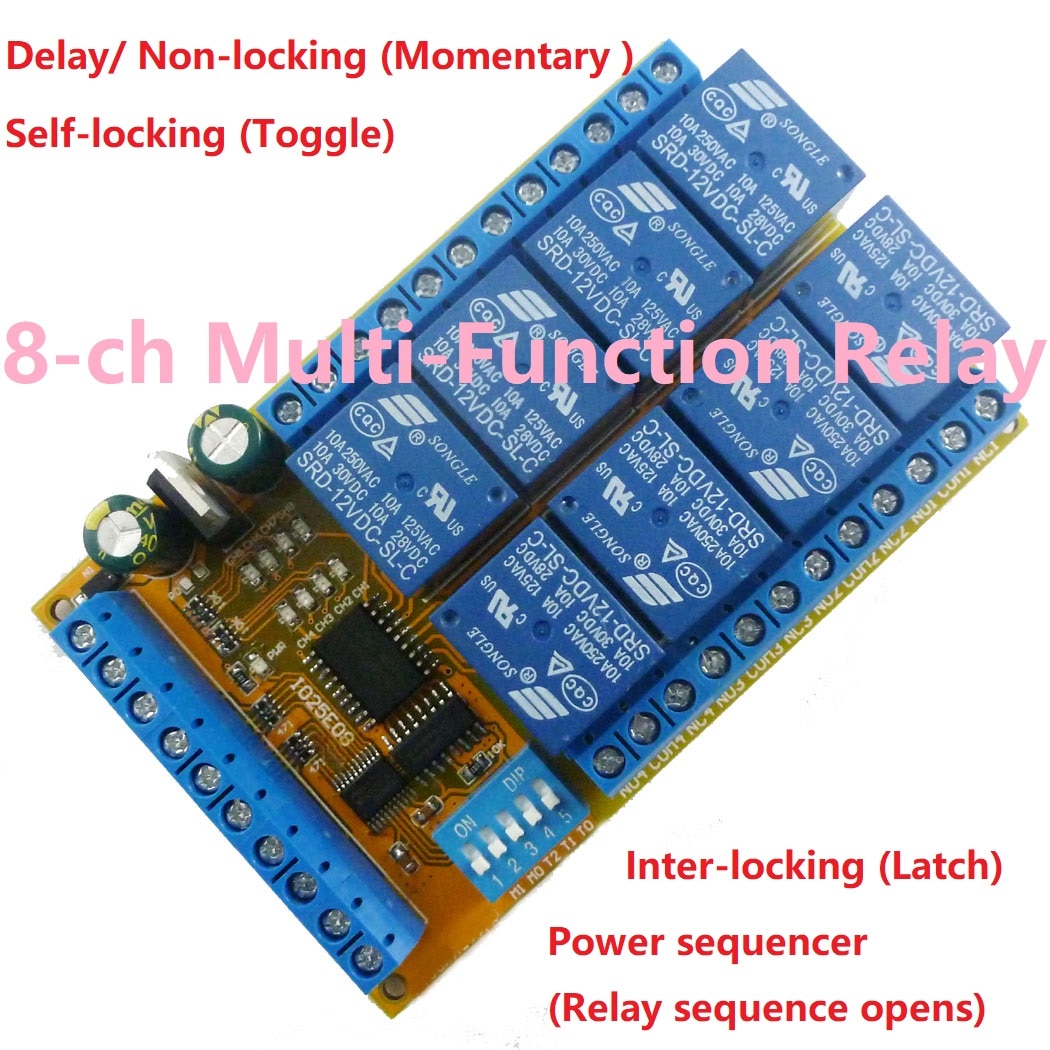

4 kinds of Functional mode: Delay/ Non-locking (Momentary ); Self-locking (Toggle); Inter-locking (Latch); Power sequencer(Relay sequence opens)

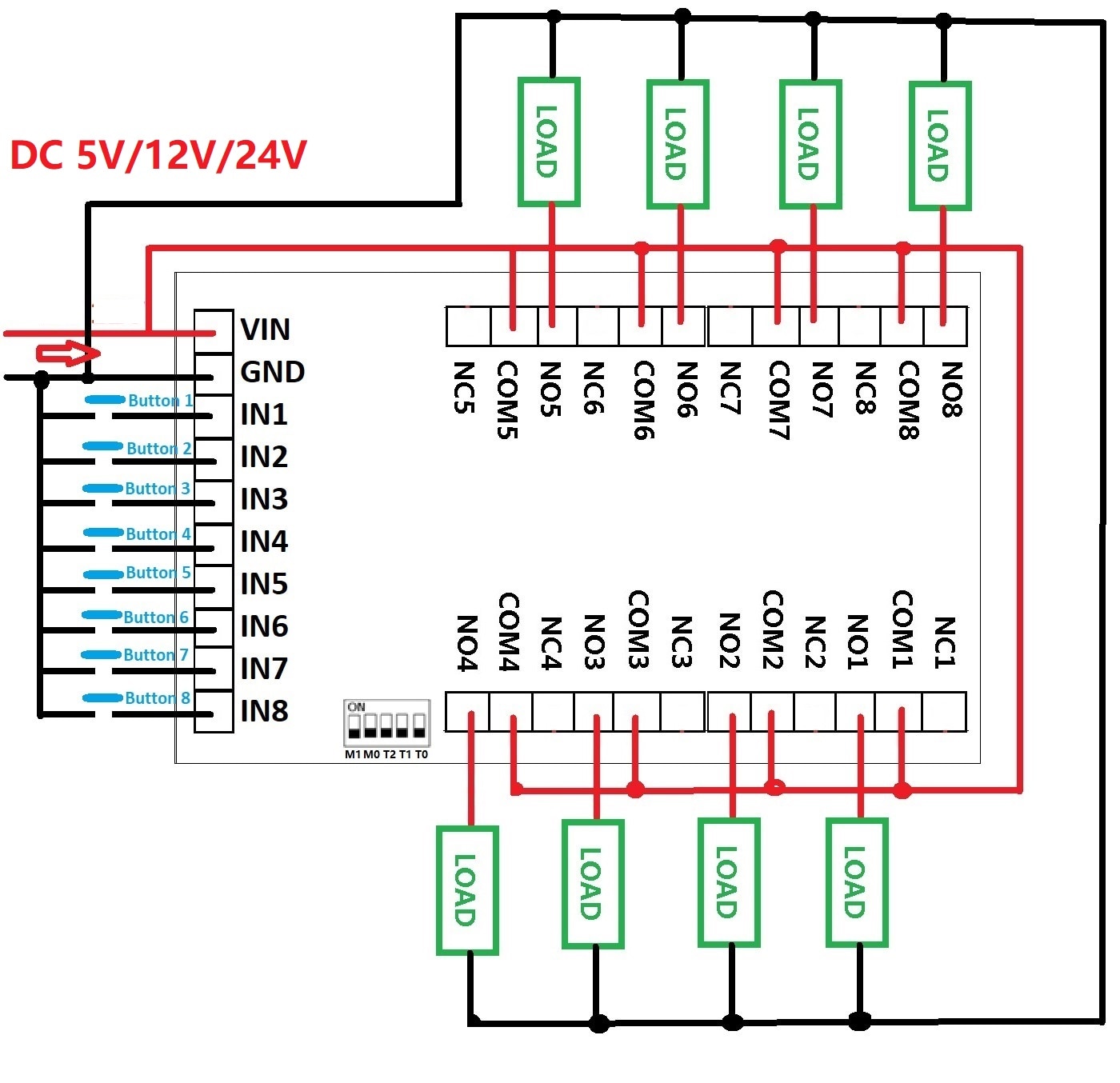

Low pulse trigger(Connect to the power supply GND via the trigger button or low level control via the MCU IO port)
The function mode and delay time are selected by the DIP switch.

Noun resolved:
NO : Relay normally open contact
COM: Relay common contact
NC: Relay normally closed contact
Relay open: COM connect NO.
Relay close: COM disconnect NO.

Typical applications:

Automotive electronics
AC DC Motor
Audio amplifier power supply.
Power Conditioner/Sequencer
LED
Smart Home
Emergency lighting
MCU development board
Toy car
UNO MEGA2560
PLC

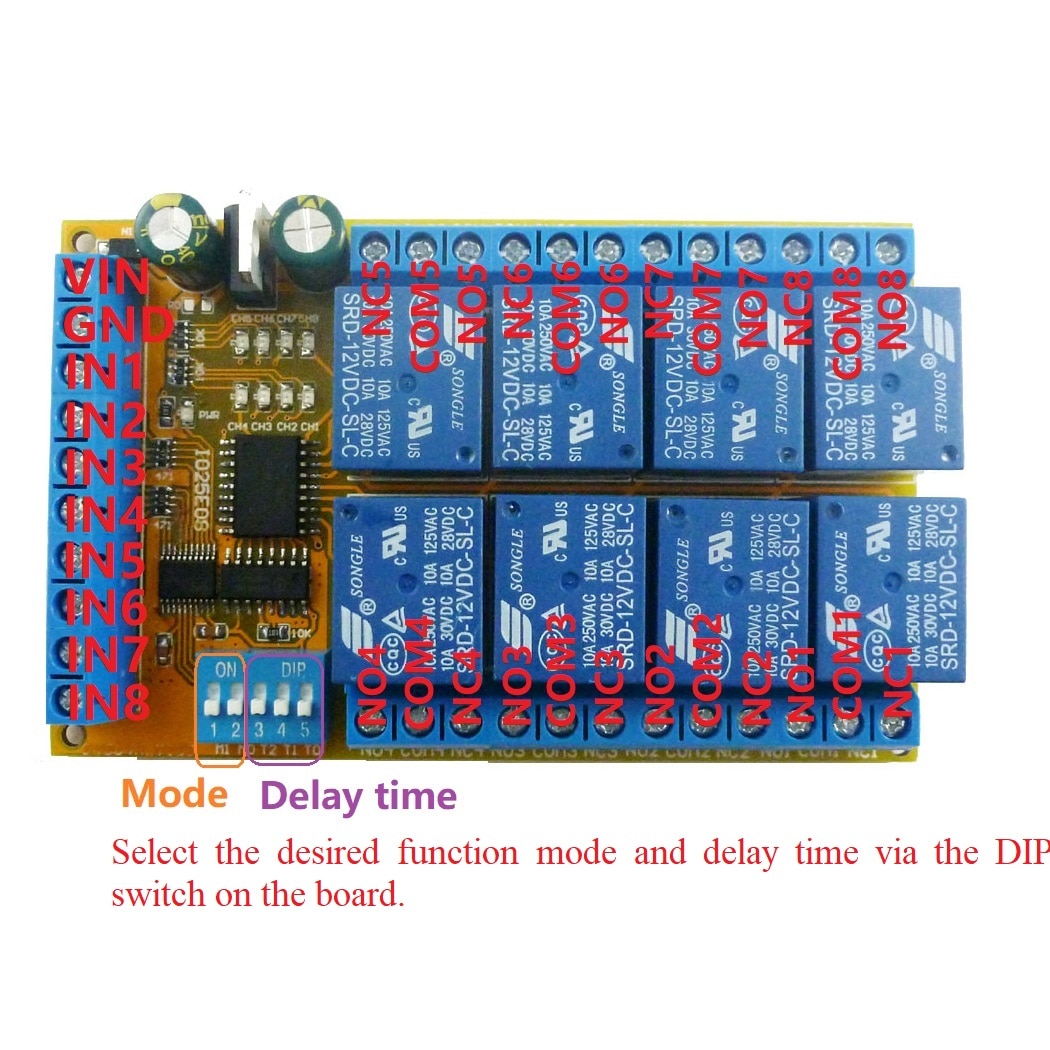

how to use:Select the desired function mode and delay time via the DIP switch on the board.
Note: Re-power up after changing the Dip switch

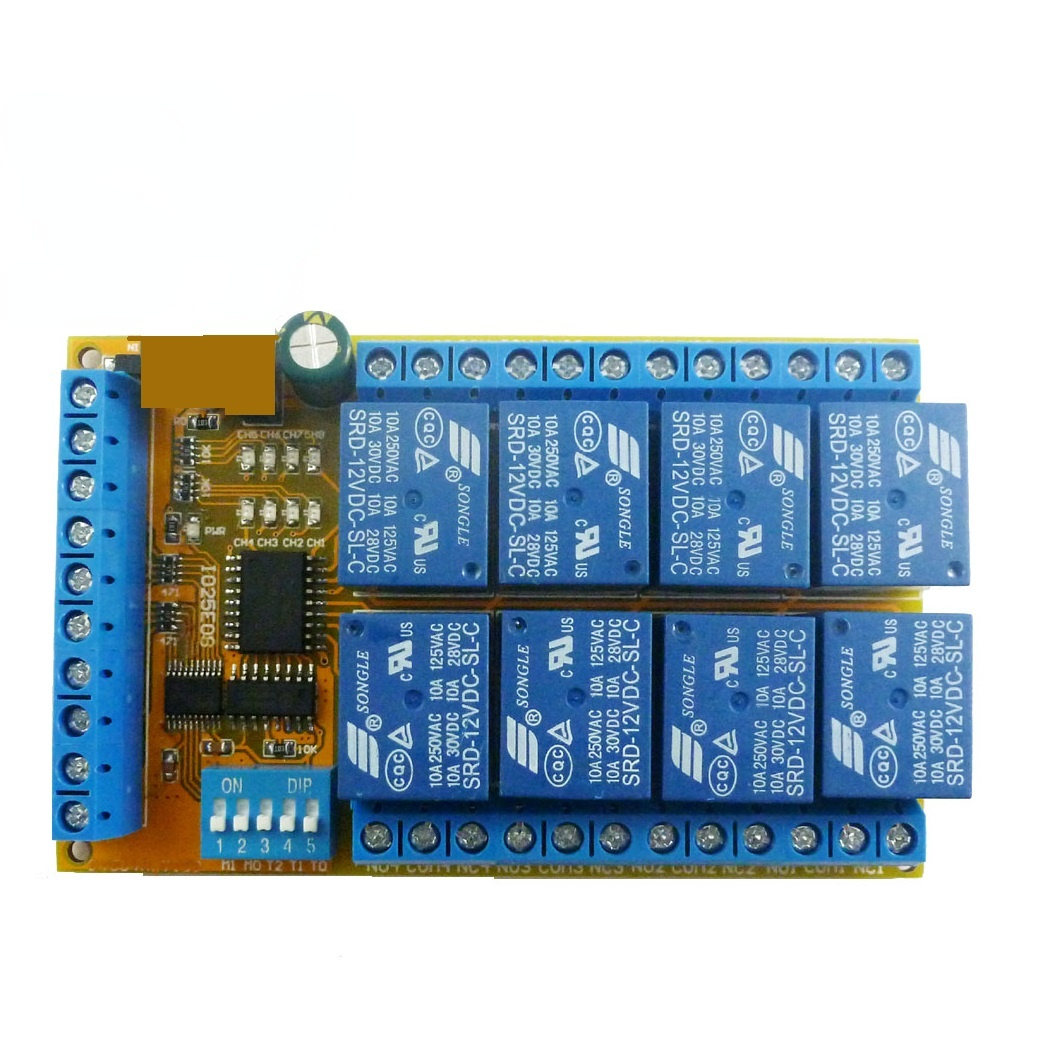

Package inlcuded:1 PCS IO25E08 DC 12V 8 ch multifunction relay module
