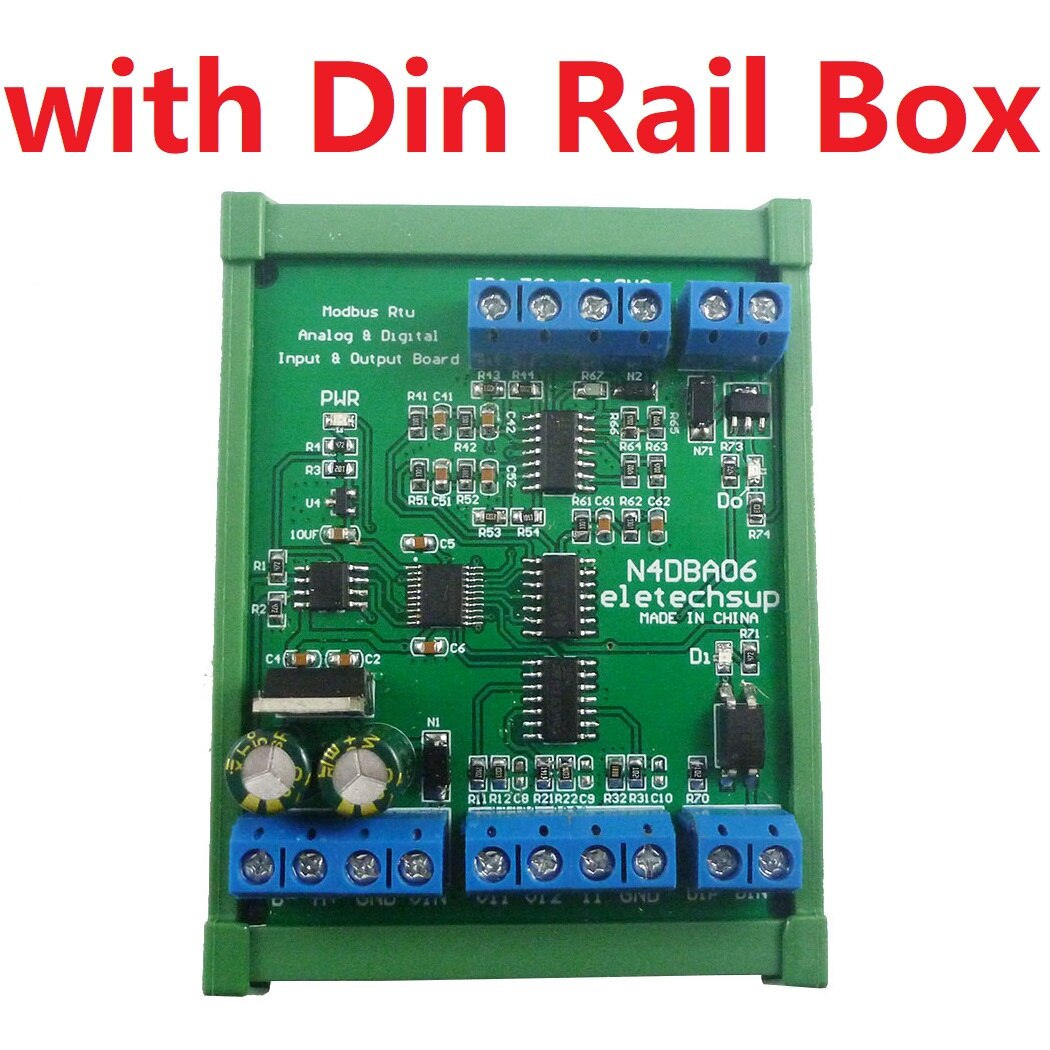

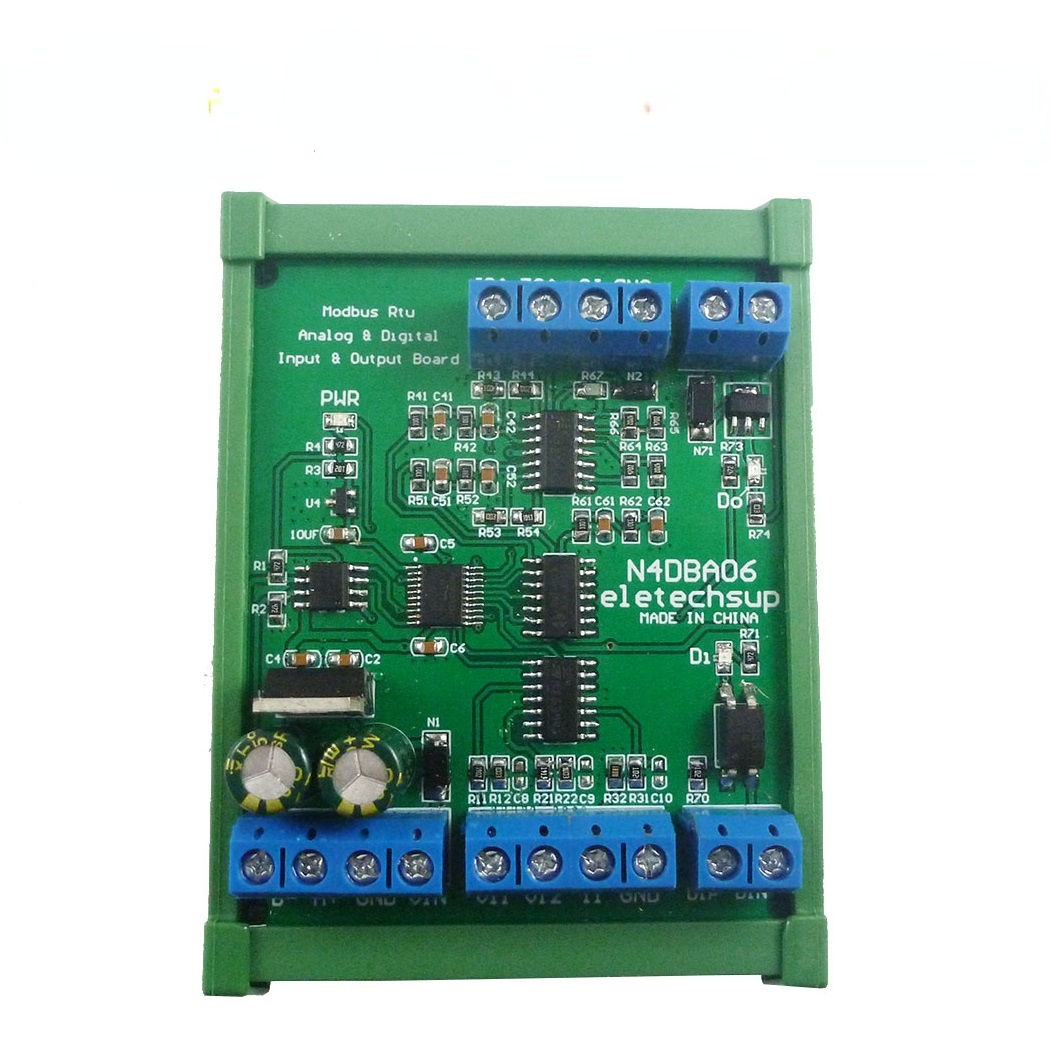

DC 12V 8CH Analog Digital Input Output Devices RTU Board with Box

DC 12V 8CH Analog Digital Input Output Devices RTU Board with Box

Price	$46.56
	Collect 46 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?
1Working voltage: DC 12 (DC 12-25V recommended power supply with small ripple)
2 Working current: 14-34MA (Related to the output current)
3 MODBUS RTU instruction support 03 06 function code
4 3 analog input channels, 1 switch input channel: Vi1 is 0-5V voltage input, Vi2 is 0-10V voltage input, Ii is 0-20MA current input; DiP DiN is switch input port (NPN/PNP Photoelectric isolation input)
5 3 analog output channels, 1 switch output channel: Vo1 is 0.05-5V voltage output (<20MA), Vo2 is 0.1-10V voltage output (<20MA), Io is 0.5-20MA current output; DoP DoN is Switch output port (maximum drive current 500MA, can directly drive relays and solenoid valves)
6 Voltage resolution is 0.01V, measurement accuracy is 1%; Current resolution is 0.01MA, measurement accuracy is 1%; if the error is greater than 1%, it can be calibrated
7 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR PLC Enter;
8 Under the MODBUS command mode, it can support up to 247 devices in parallel
9 Size: 63 * 87 * 42mm (with Din Rail Box)
10 Weight: 85g (with Din Rail Box)
?
Instruction manual Please ask us after the purchase
?

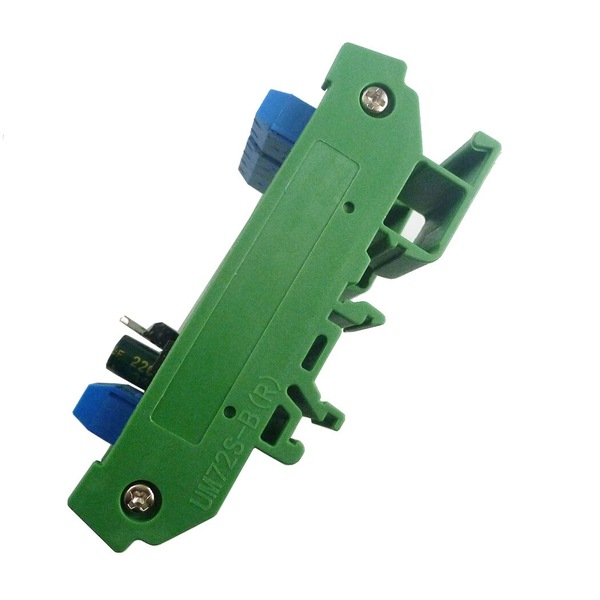

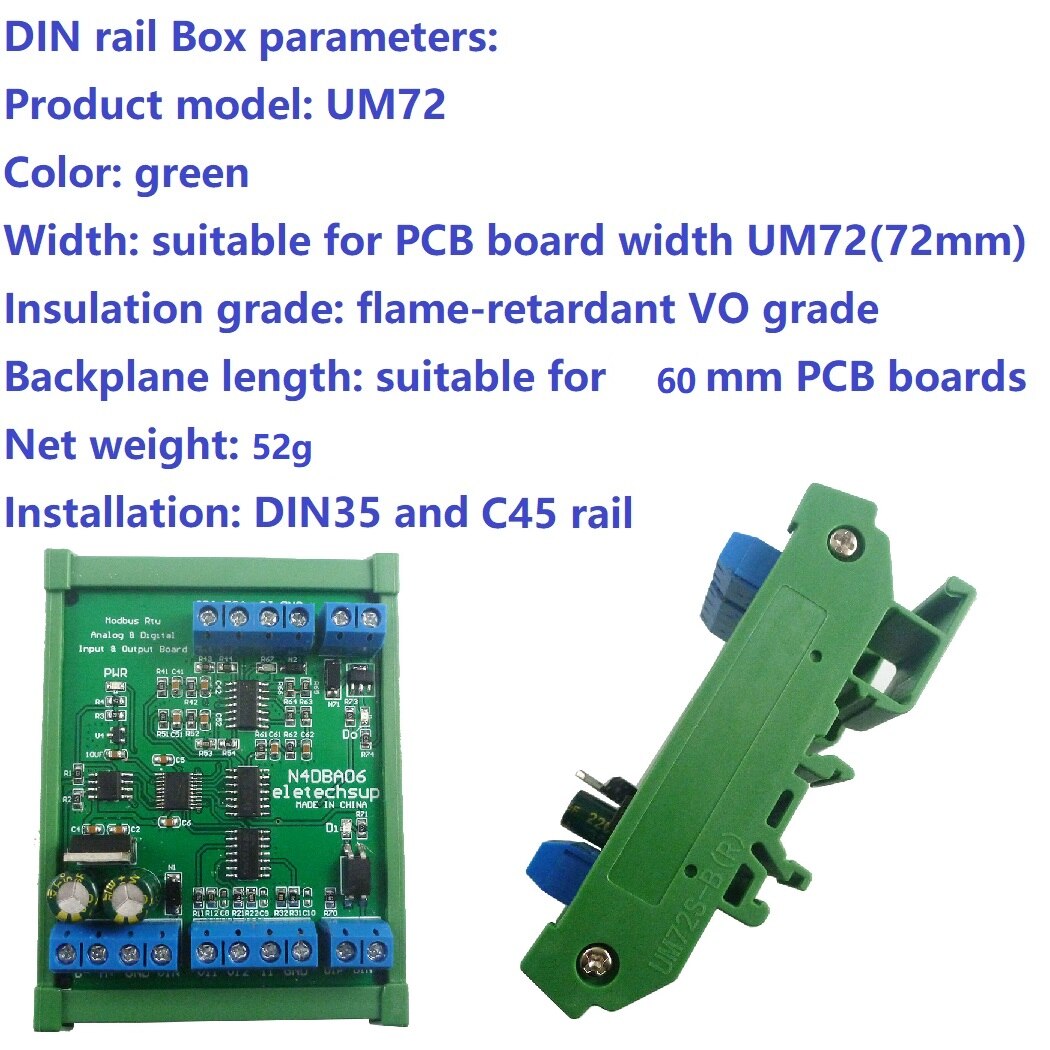

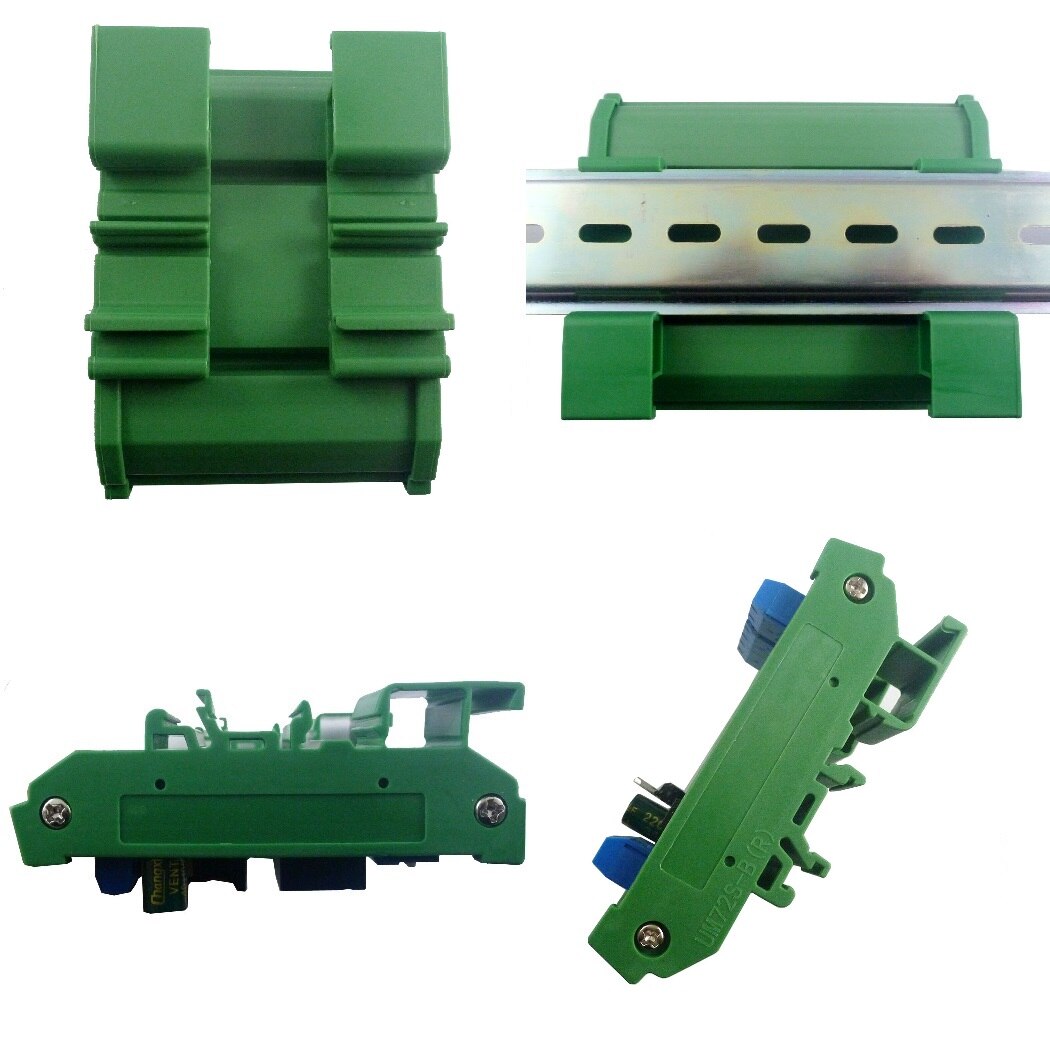

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 60 mm PCB boards
Net weight: 52g
Installation: DIN35 and C45 rail
?
Note:
1 Channel 1 (Vo1) output voltage range is 0.05V-5V, channel 2 (Vo2) output voltage range is 0.1V-10V, channel 3 (Io) output current range is 0.5-20MA???
2 At the moment of power-on, the current and voltage output ports have 10-20MS high pulses?????
3 DiP DiN is a passive switch input port (see the figure below for wiring)???
4 DoP DoN is a passive switch output port (see the figure below for wiring)
