DC 12V 24V 32-Channels DIN35 C45 Rail Box RS485 PLC IO Expansion Board

DC 12V 24V 32-Channels DIN35 C45 Rail Box RS485 PLC IO Expansion Board

Price	$44.70
	Collect 44 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
1: Working voltage: DC 6.5-30V (9V 12V 24V)
2: Standby current All channels are closed) 5MA,All channels open 57MA.
3: ''Open'' ''Close''? ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands
4: MODBUS RTU command
5: Under the ''Delay'' command ,the maximum delay is 255 seconds
6 MODBUS commands can be made serial HyperTerminal (serial assistant)? OR ''Modbus Poll'' Enter;

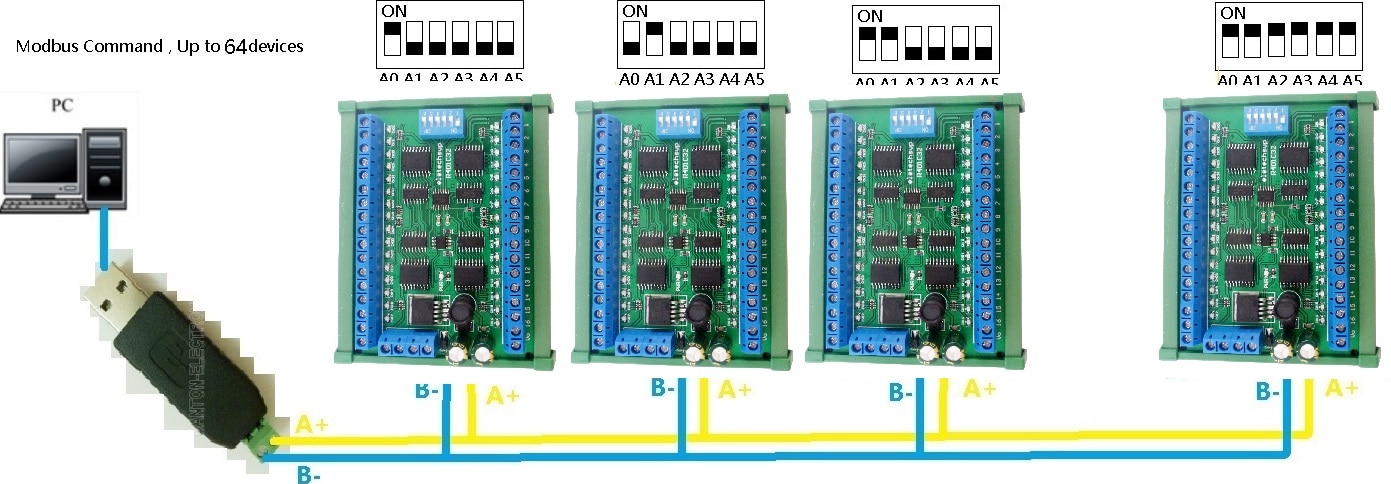

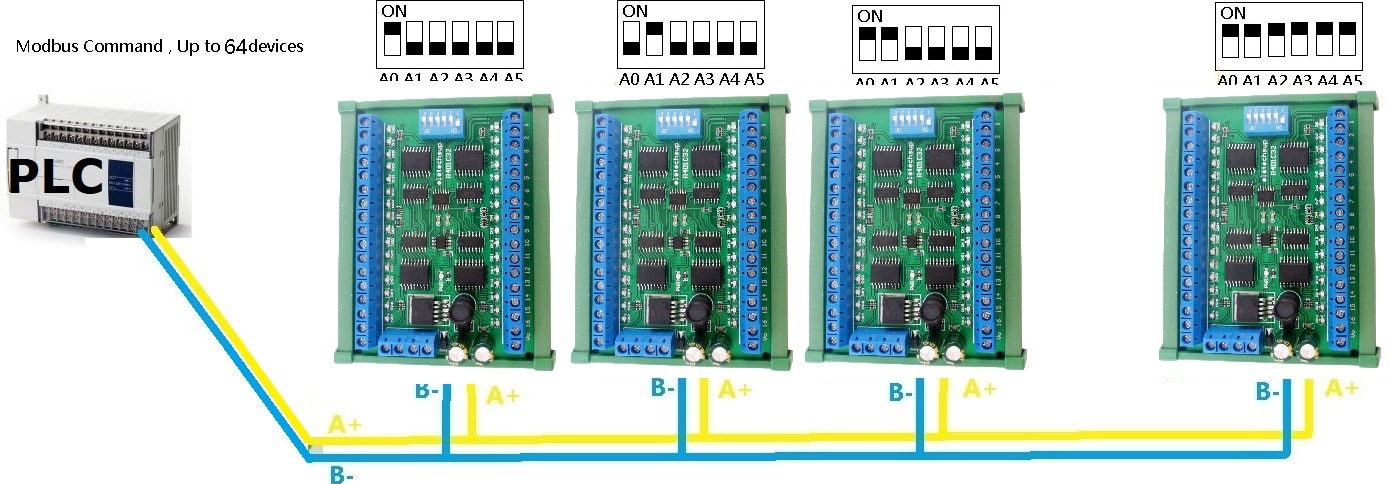

7 Under the MODBUS command mode, it can support up to 64 devices in parallel
8 The default baud rate is 9600BPS. The baud rate can be modified by instructions: 1200 2400 4800 9600 19200BPS

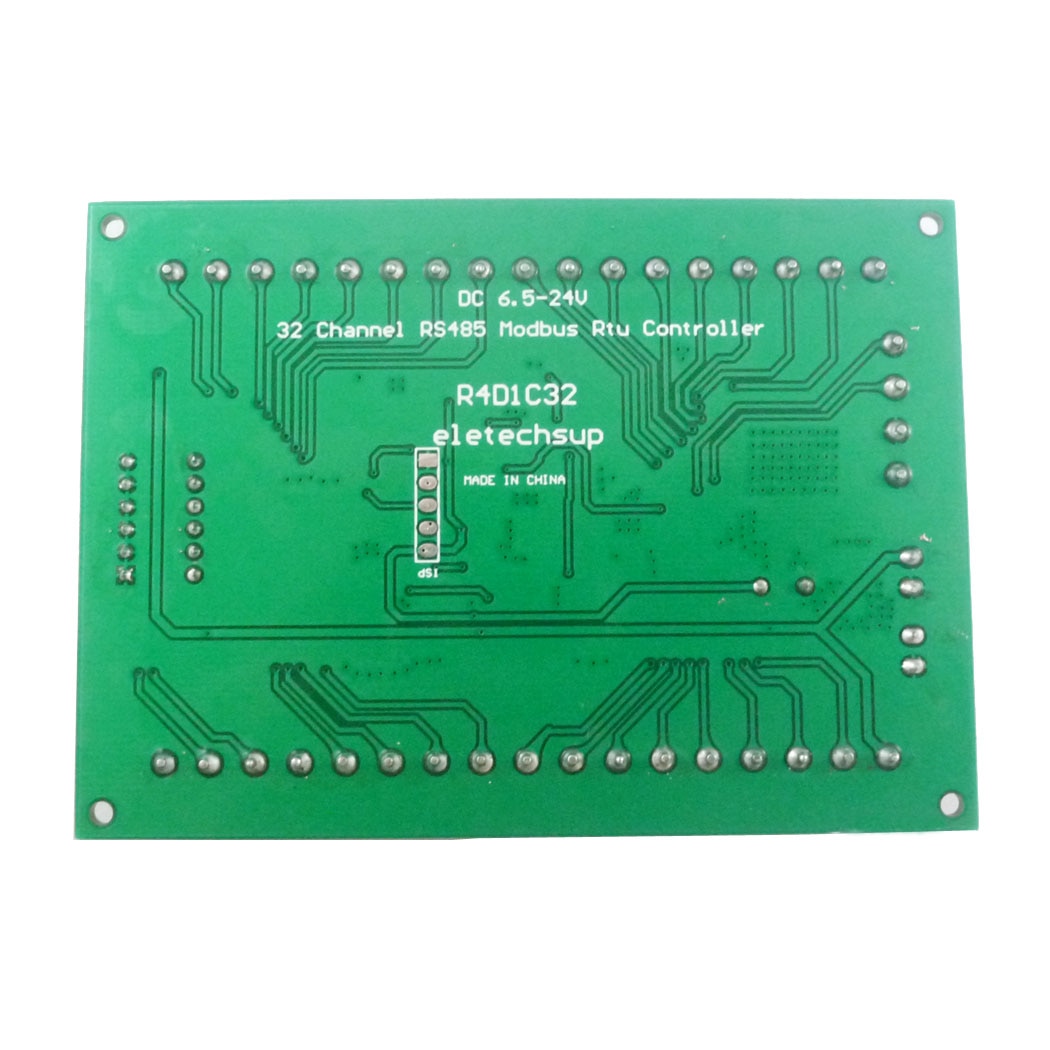

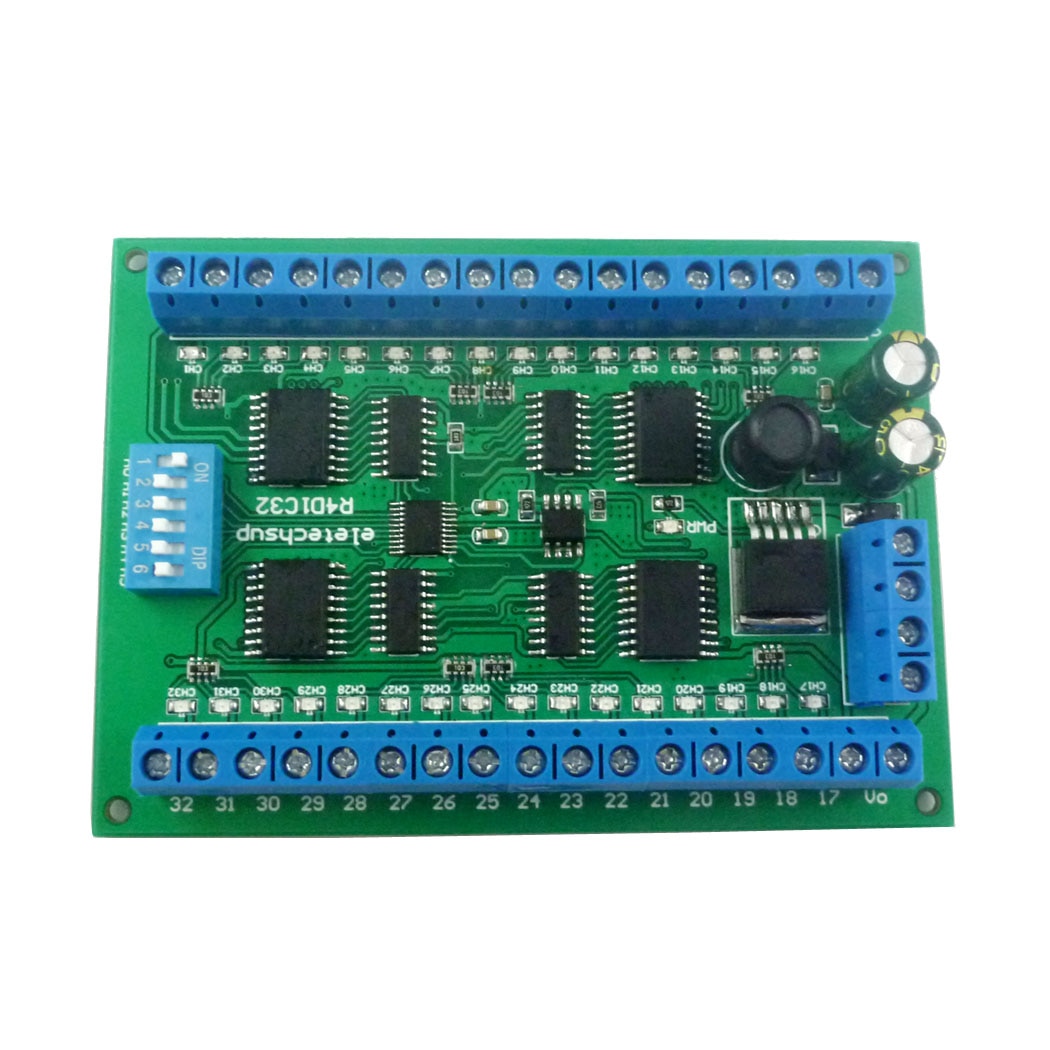

9? Size: 100 * 72 * 20mm(Only PCB Board)
10 Weight: 65g(Only PCB Board)
11 Maximum load: The maximum drive current of each channel is 300MA

DIN rail Box parameters:
Product model: UM72
Color: green
Width: suitable for PCB board width UM72(72mm)
Insulation grade: flame-retardant VO grade
Backplane length: suitable for 100 mm PCB boards
Net weight: 72g
Installation: DIN35 and C45 rail

GTIN: 774048923644

Shipping Details

Please note it will need about 12~20days for the delivery!

Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.

Thank you for your understanding!

Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.

Warranty policies: Our products have 180 days warranty.
