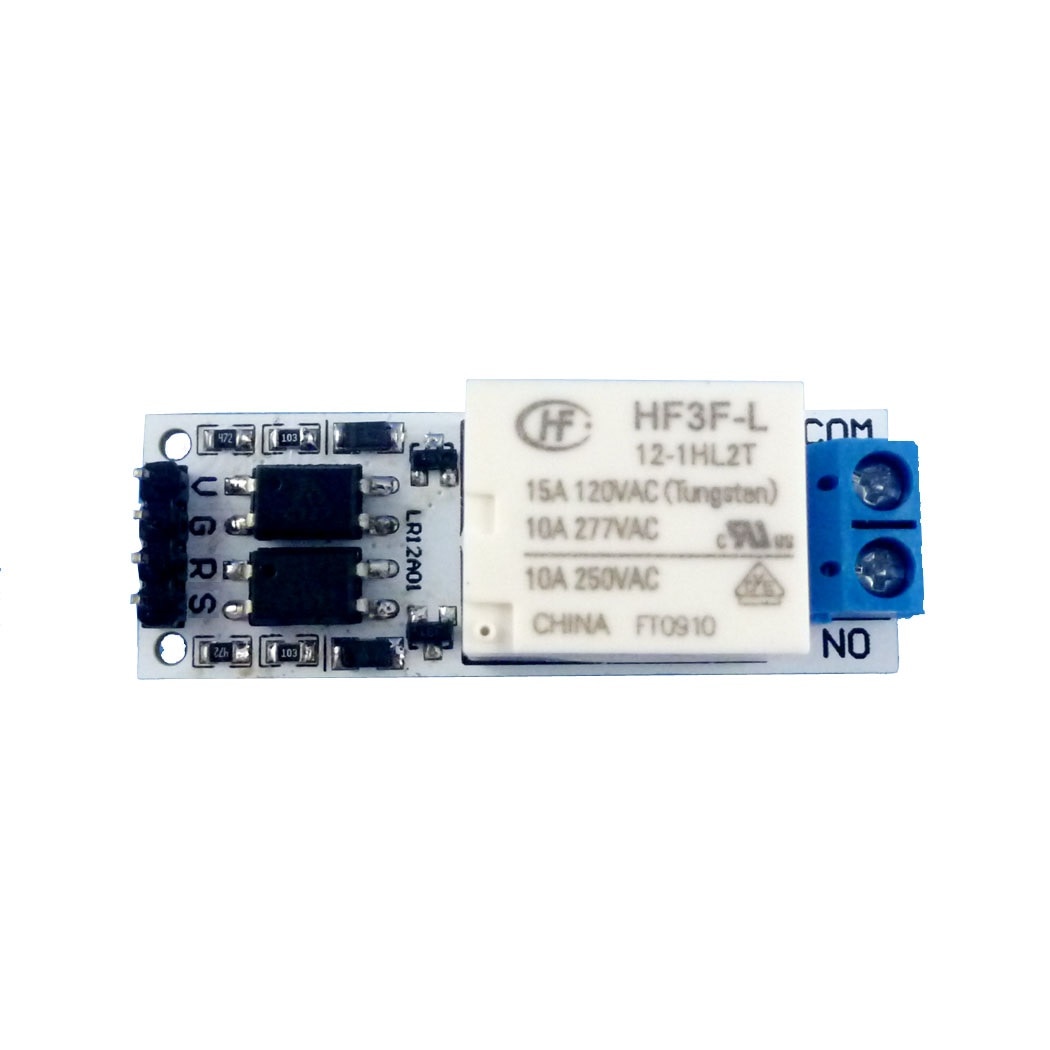

DC 12V 10A Magnetic Latching Relay Module Zero Power Hold Switch Bistable

DC 12V 10A Magnetic Latching Relay Module Zero Power Hold Switch Bistable

Price	$25.10
	Collect 25 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

Working voltage: DC 12V(8-18V)
Working current: 60MA(Provide current only when switching states)
Standby current: 20uA(ORzero power consumption standby)
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 17mm? * 17.5mm (L * W * H),? Small size
Weight: 12.5g

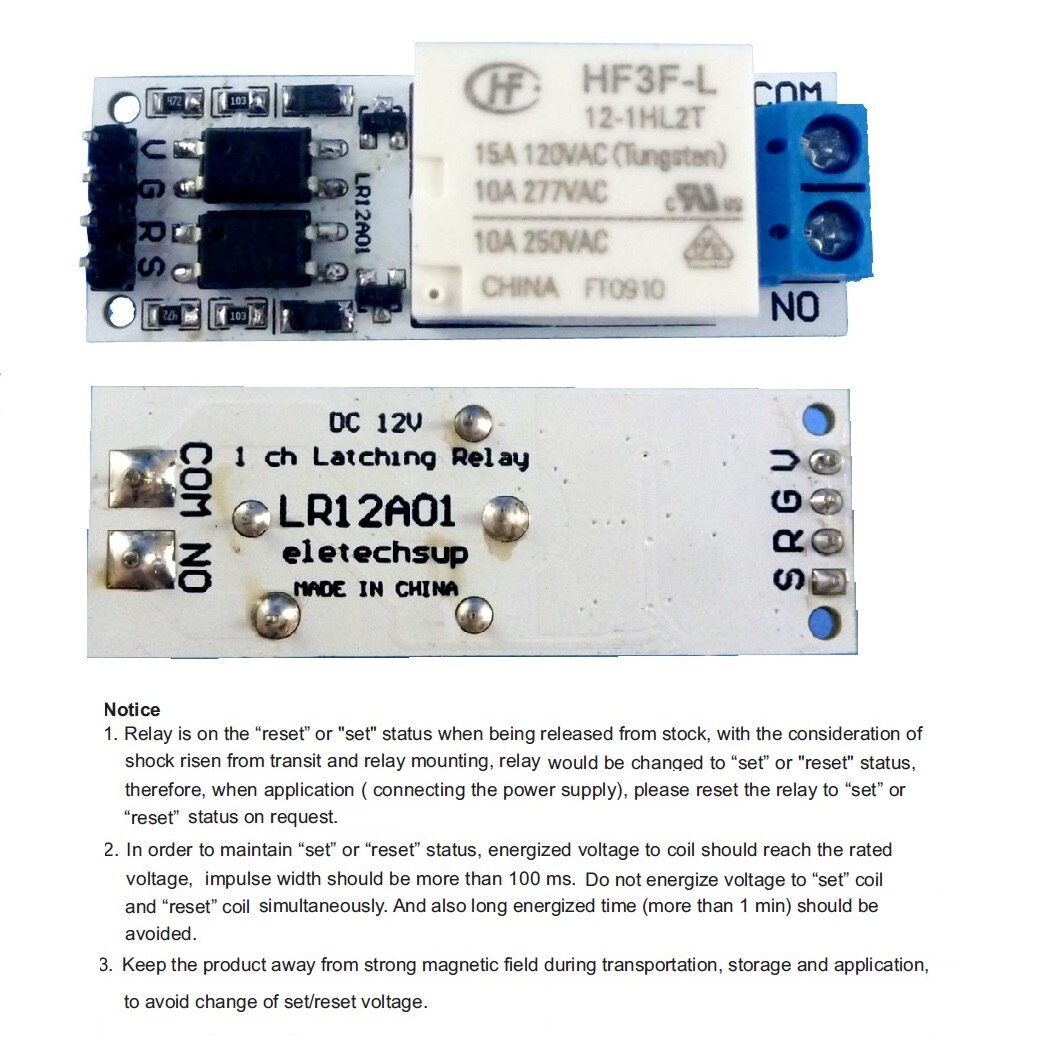

Module interface:
1. V: Positive power supply (VCC)
2. G: Negative power supply (GND)
3. R : Reset(Relay OFF)
4. S : Set(Relay ON)

Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays

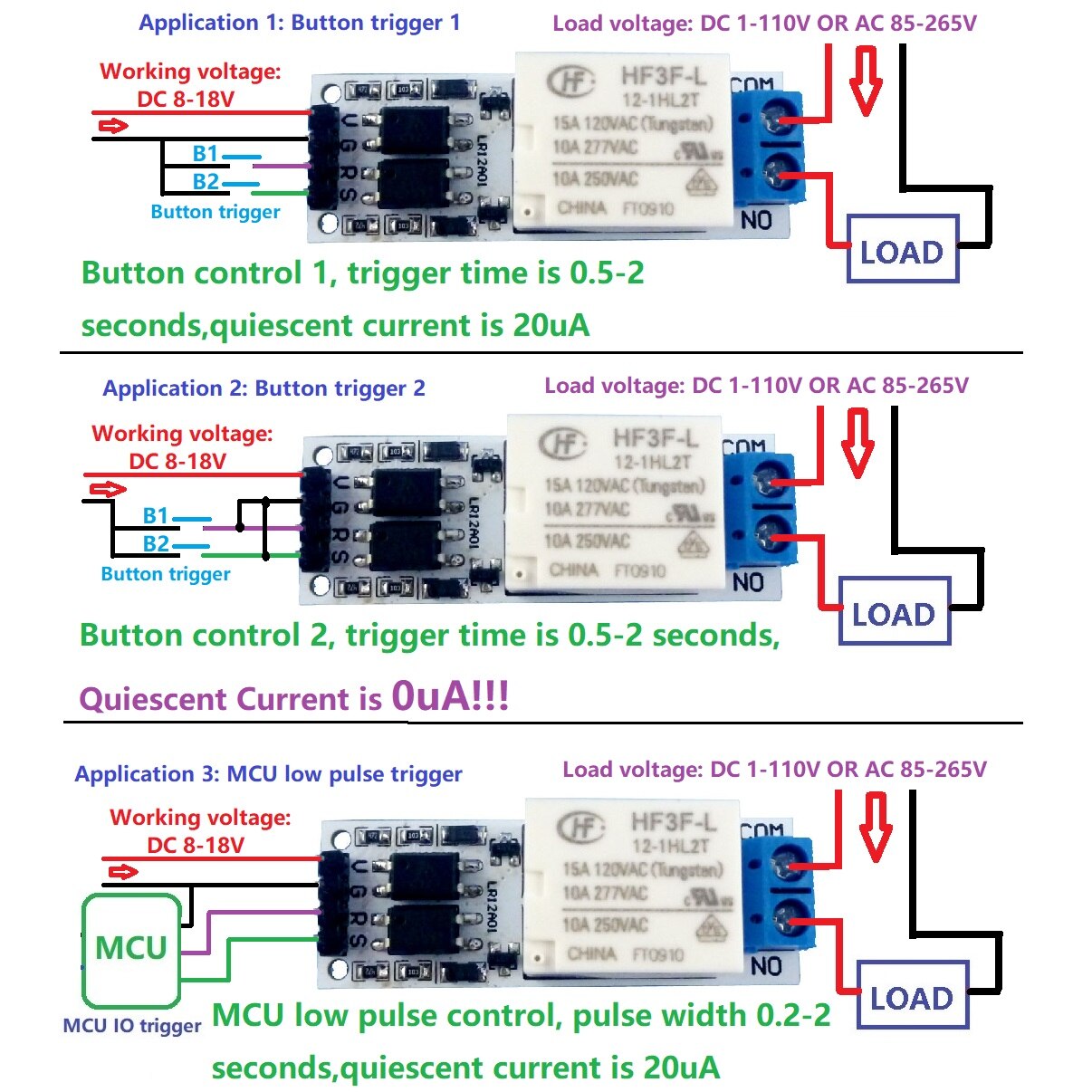

This is a latching(keep) relay module,Trigger S port , the relay pull (and holds);Trigger R port, the relay releases (and holds)
The trigger duration is 0.5-2 seconds, it is recommended not to exceed 1 minute.

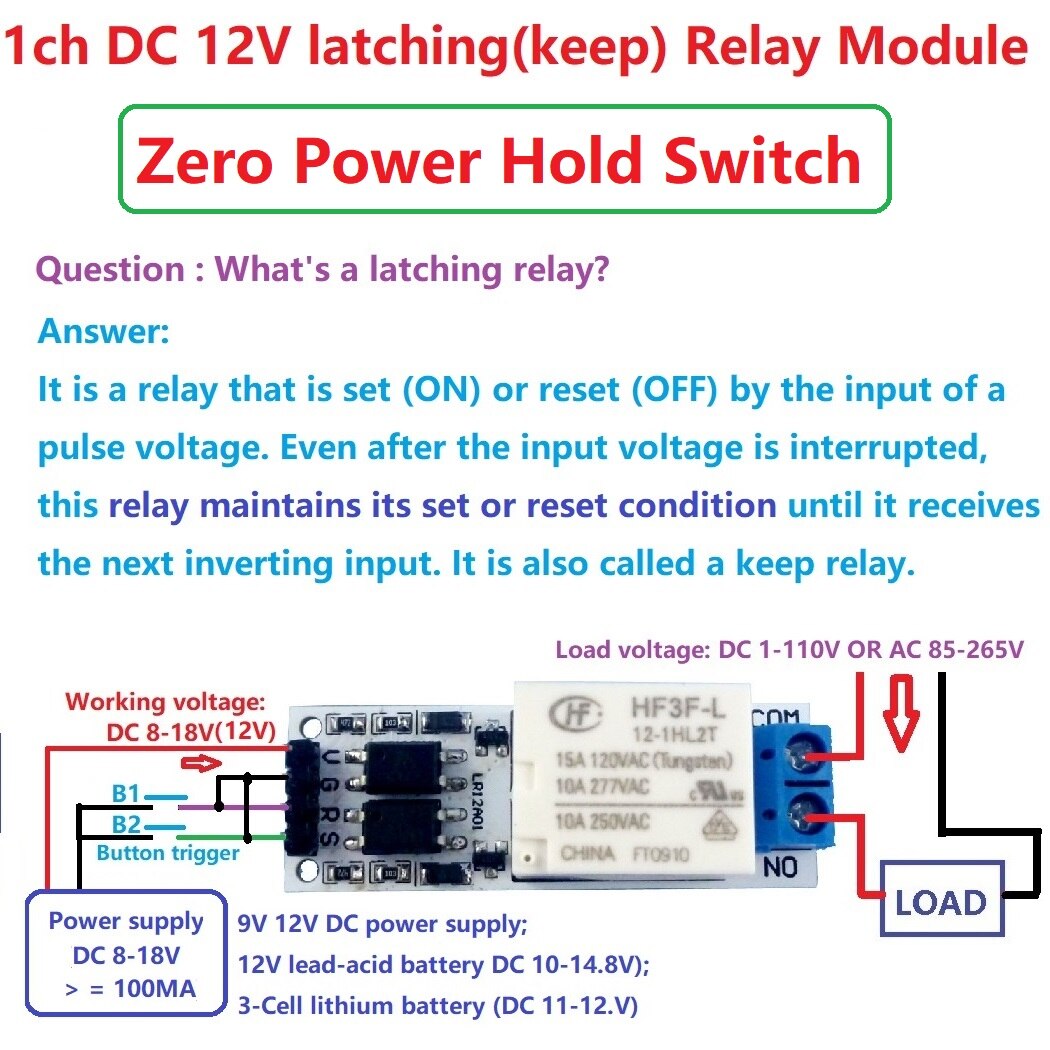

Question:What's a latching relay?
Answer:It is a relay that is set (ON) or reset (OFF) by the input of a pulse voltage. Even after the input voltage is interrupted, this relay maintains its set or reset condition until it receives the next inverting input. It is also called a keep relay.

Typical applications:

Automotive electronics
Industrial equipment
Motor LED PLC
Camera PTZ CCTV
UPS Uninterruptible power supply
Smart Home
Emergency lighting
MCU development board
Toy car

Packing list:1 pcs1 ChannelDC 12V magnetic latching(keep) relay Module
