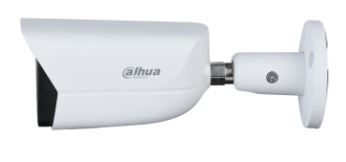

DAHUA WIZSENSE HFW3466EP 4MP BULLET CAMERA, FIXED 2.8MM, IR 30M
Camera |
|||||
Image Sensor |
1/3" CMOS |
||||
Max. Resolution |
2688 (H) Ã 1520 (V) |
||||
ROM |
128 MB |
||||
RAM |
512 MB |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
Auto/Manual 1/3 sâ1/100,000 s |
||||
Min. Illumination |
0.005 lux@F1.4 (Color, 30 IRE) |
||||
S/N Ratio |
>56 dB |
||||
Illumination Distance |
50 m (164.04 ft) |
||||
Illuminator On/Off Control |
Auto/Manual |
||||
Illuminator Number |
1 (IR LED) |
||||
Pan/Tilt/Rotation Range |
Pan: 0°â360°; Tilt: 0°â90°; Rotation: 0°â360° |
||||
Lens |
|||||
Lens Type |
Fixed-focal |
||||
Lens Mount |
M12 |
||||
Focal Length |
2.8 mm; 3.6 mm; 6 mm |
||||
Max. Aperture |
F1.4 |
||||
Field of View |
2.8 mm: Horizontal:107°; vertical: 56°; diagonal: 127° |
||||
Iris Control |
Fixed |
||||
Close Focus Distance |
2.8 mm: 0.7 m (2.30 ft) |
||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
63.6 m |
25.4 m |
12.7 m |
6.4 m |
|
3.6 mm |
85.4 m |
34.2 m |
17.1 m |
8.5 m |
|
6 mm |
124 m |
49.6m |
24.8 m |
12.4 m |
|
Intelligence |
|||||
IVS (Perimeter Protection) |
Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
||||
AI SSA |
Yes |
||||
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
||||
Smart Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
||||
Video |
|||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
||||
Smart Codec |
Smart H.265+ |
||||
AI Coding |
AI H.265 |
||||
Video Frame Rate |
Main stream: 2688 Ã 1520 @ (1â25/30) fps *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
||||
Stream Capability |
3 streams |
||||
Resolution |
4M (2688 Ã 1520); 3.6M (2560 Ã 1440); 3M (2048Ã1536); 3M (2304Ã1296); 1080p (1920 Ã 1080); 1.3M(1280 Ã 960); 720p (1280 Ã 720); D1 (704 Ã 576/704Ã480); CIF (352 Ã 288/352 Ã 240); VGA (640 Ã 480) |
||||
Bit Rate Control |
CBR/VBR |
||||
Video Bit Rate |
H.264: 3 kbpsâ8192 kbps |
||||
Day/Night |
Auto (ICR)/Color/B/W |
||||
BLC |
Yes |
||||
HLC |
Yes |
||||
WDR |
120 dB |
||||
Scene Self-adaptation (SSA) |
Yes |
||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||
Gain Control |
Auto |
||||
Noise Reduction |
3D NR |
||||
Motion Detection |
OFF/ON (4 areas, rectangular) |
||||
Region of Interest (RoI) |
Yes (4 areas) |
||||
Defog |
Yes |
||||
AFSA |
Yes |
||||
Image Rotation |
0°/90°/180°/270° (support 90°/270° with 2688Ã1520 resolution and lower) |
||||
Mirror |
Yes |
||||
Privacy Masking |
4 areas |
||||
Audio |
|||||
Built-in MIC |
Yes |
||||
Audio Compression |
G.711a; G.711Mu; PCM; G.726; G.723 |
||||
Alarm |
|||||
Alarm Event |
- AS: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; external alarm; SMD; safety exception -S: No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
||||
Network |
|||||
Network Port |
RJ-45 (10/100 Base-T) |
||||
SDK and API |
Yes |
||||
Network Protocol |
IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||
Cyber Security |
Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
||||
User/Host |
20 (Total bandwidth: 64 M) |
||||
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
||||
Browser |
IE: IE11 |
||||
Management Software |
Smart PSS; DSS; DMSS |
||||
Mobile Client |
IOS; Android |
||||
Certification |
|||||
Certifications |
CE-LVD: EN62368-1; |
||||
Port |
|||||
Audio Input |
1 channel (RCA port) (Only - AS supports) |
||||
Audio Output |
1 channel (RCA port) (Only - AS supports) |
||||
Alarm Input |
1 channel in: 5 mA 3â5 VDC (Only - AS supports) |
||||
Alarm Output |
1 channel out: 300 mA 12 VDC (Only - AS supports) |
||||
Power |
|||||
Power Supply |
12 VDC/PoE (802.3af) |
||||
Power Consumption |
Basic: 3.8 W (12 VDC); 4.6 W (PoE) |
||||
Environment |
|||||
Operating Temperature |
â40 °C to +60 °C (â40 °F to 140 °F) /Less than 95%RH |
||||
Storage Temperature |
â40 °C to +60 °C (â40 °F to 140 °F) |
||||
Protection |
IP67 |
||||
Structure |
|||||
Casing |
Metal |
||||
Product Dimensions |
192.7 mm à 70.5 mm à 66.4 mm |
||||
Net Weight |
590 g (1.30 lb) |
||||
Gross Weight |
780 g (1.72 lb) |
