Description:

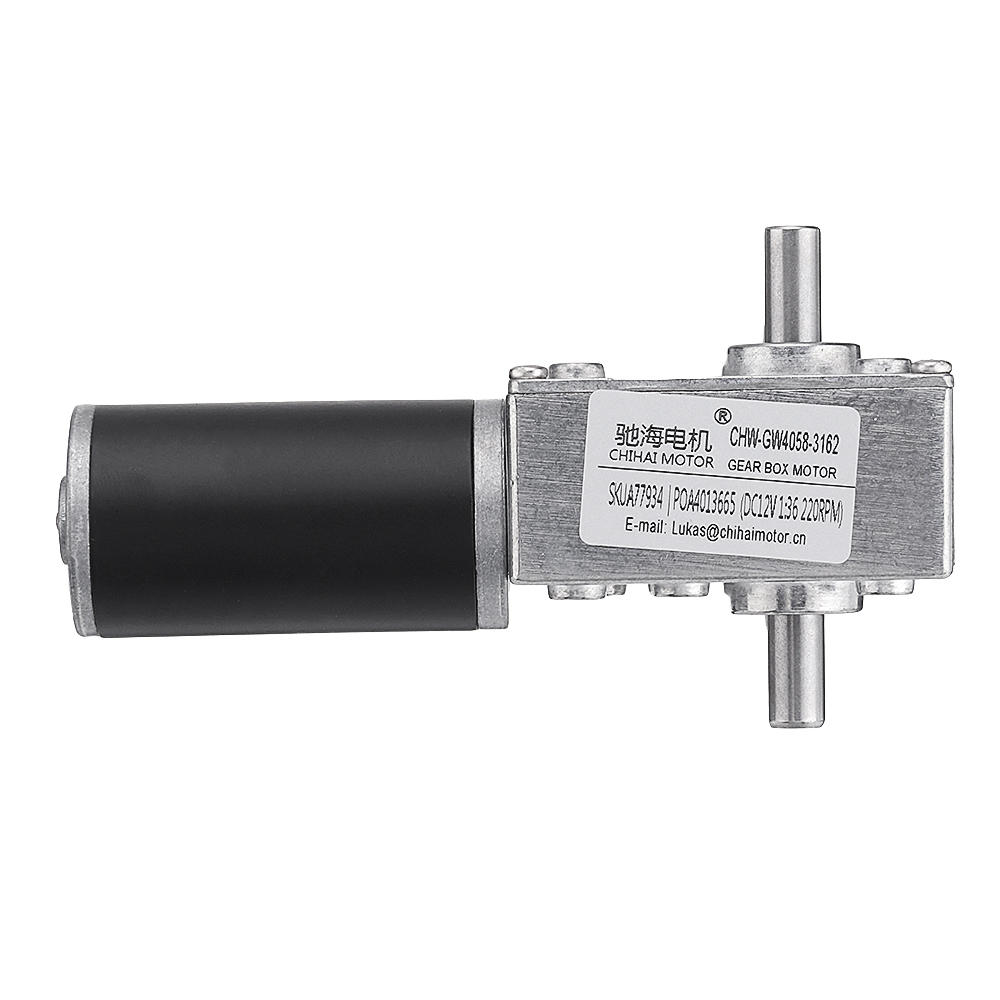

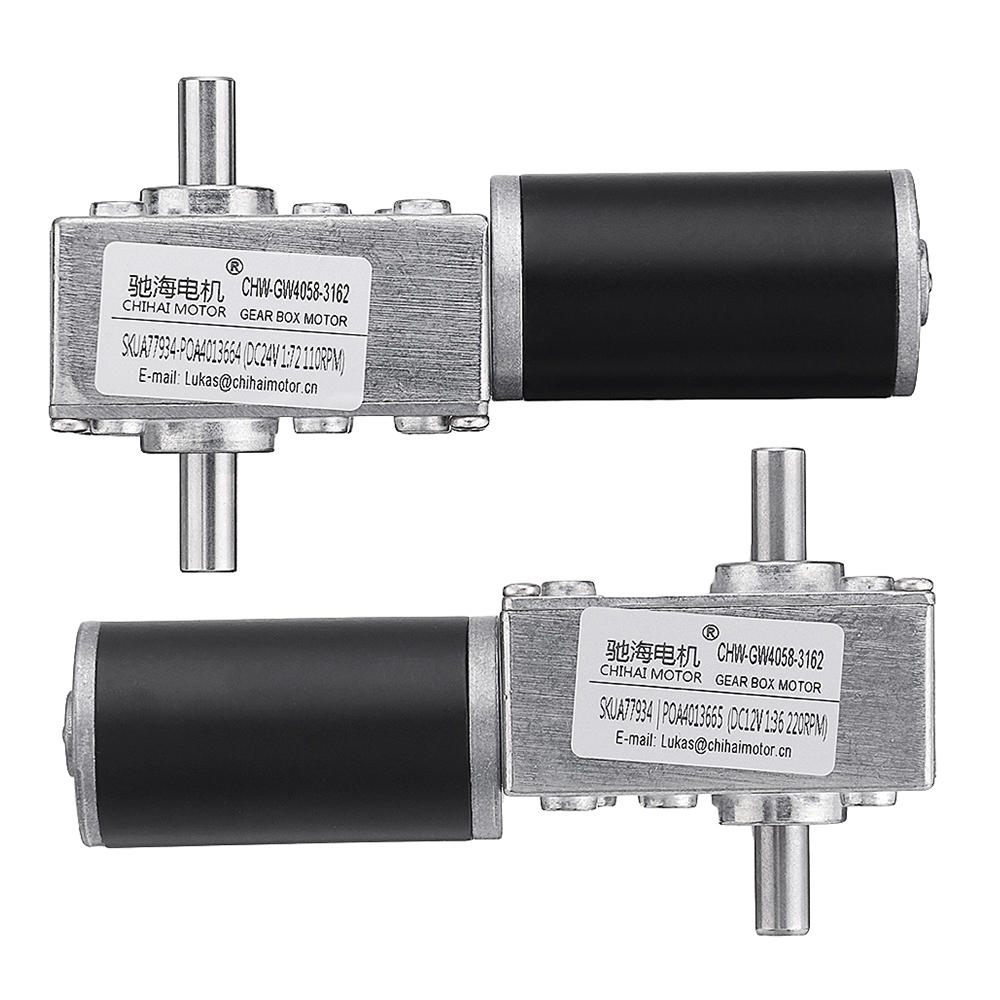

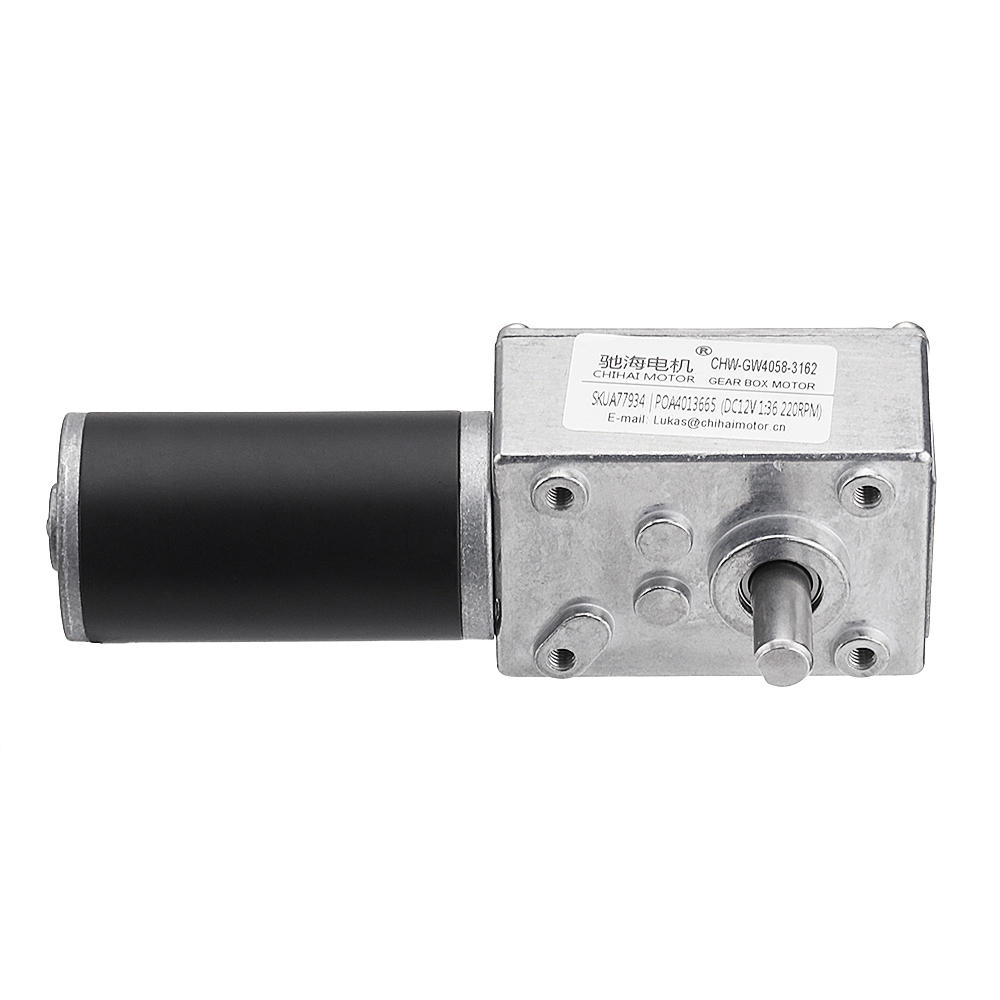

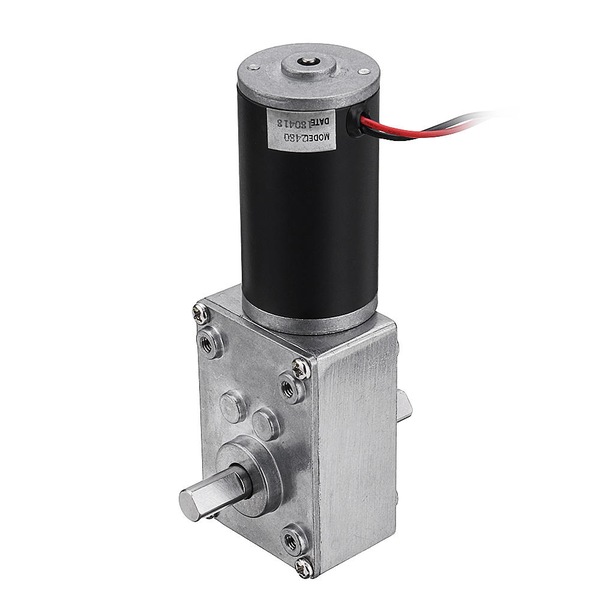

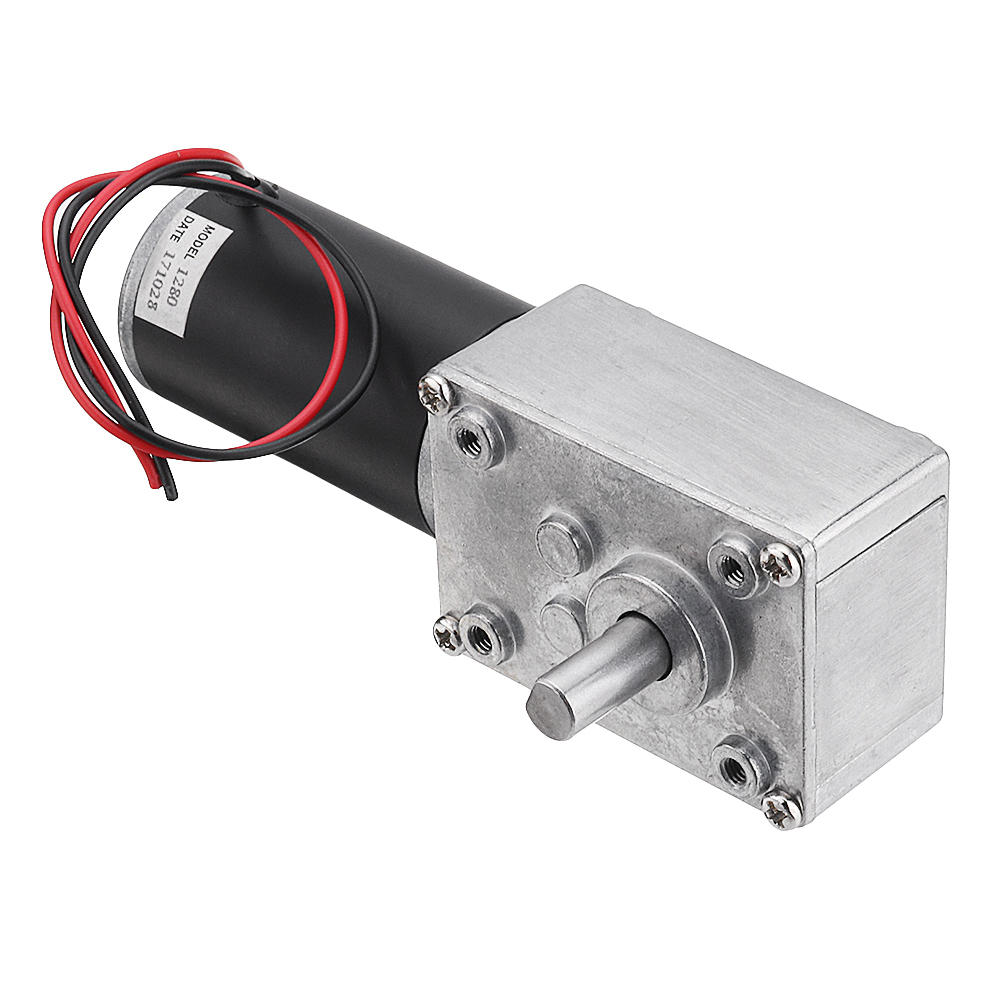

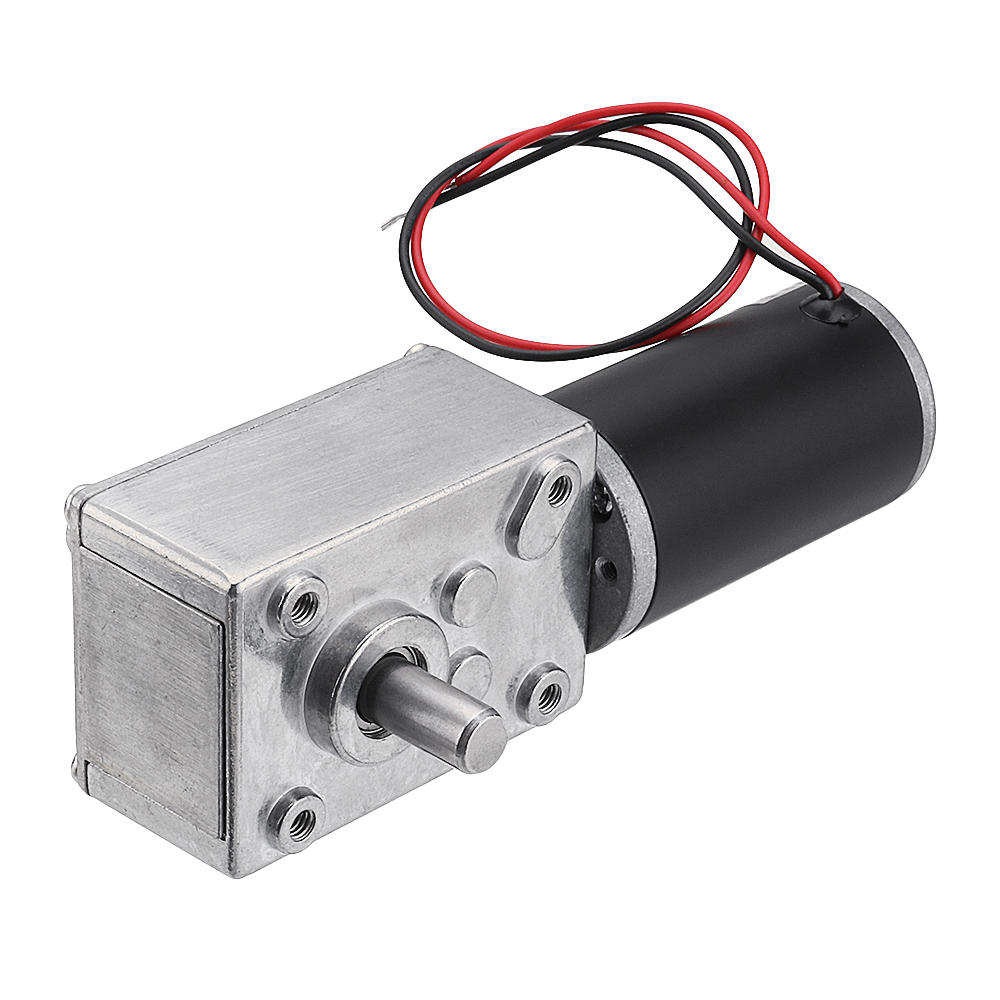

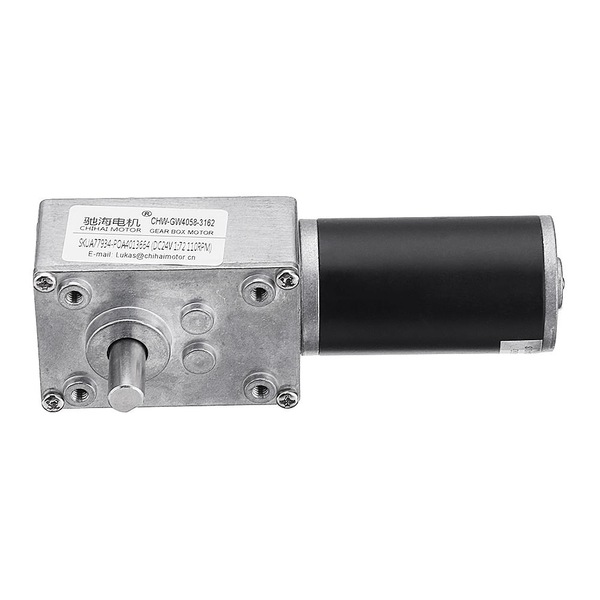

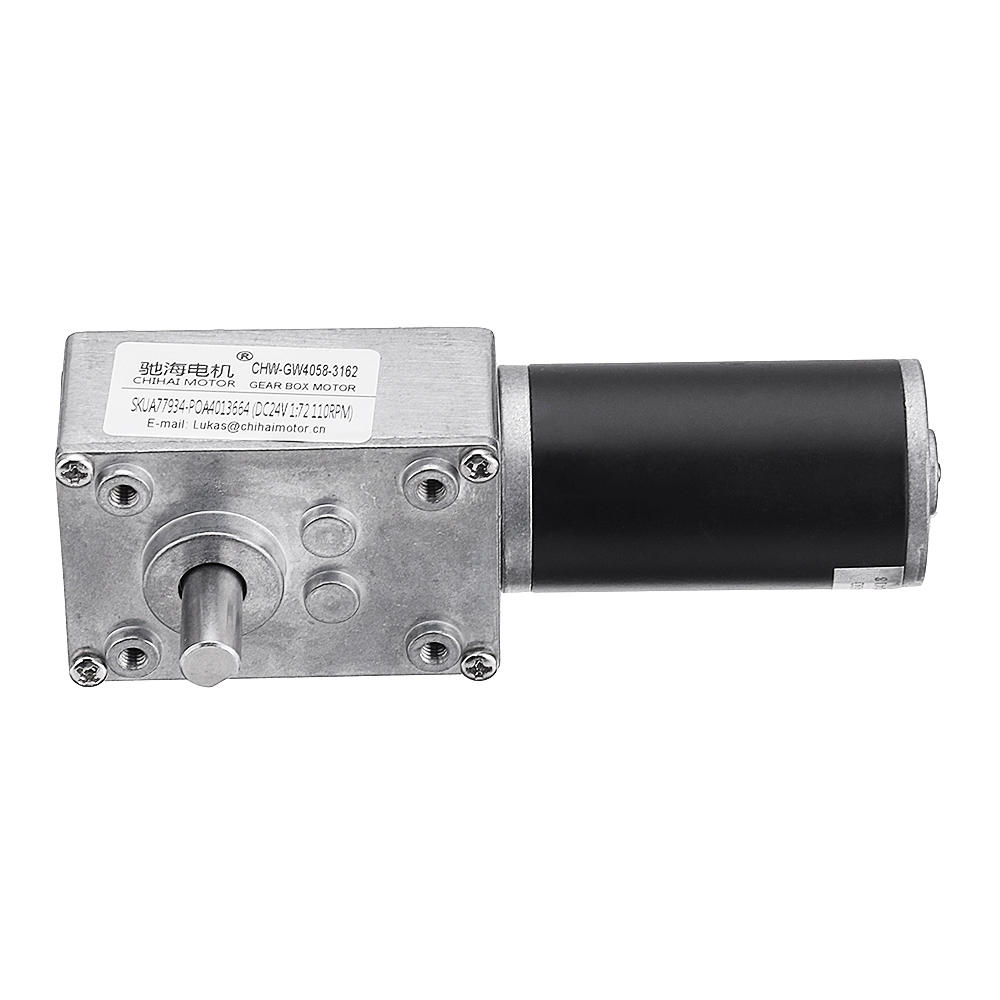

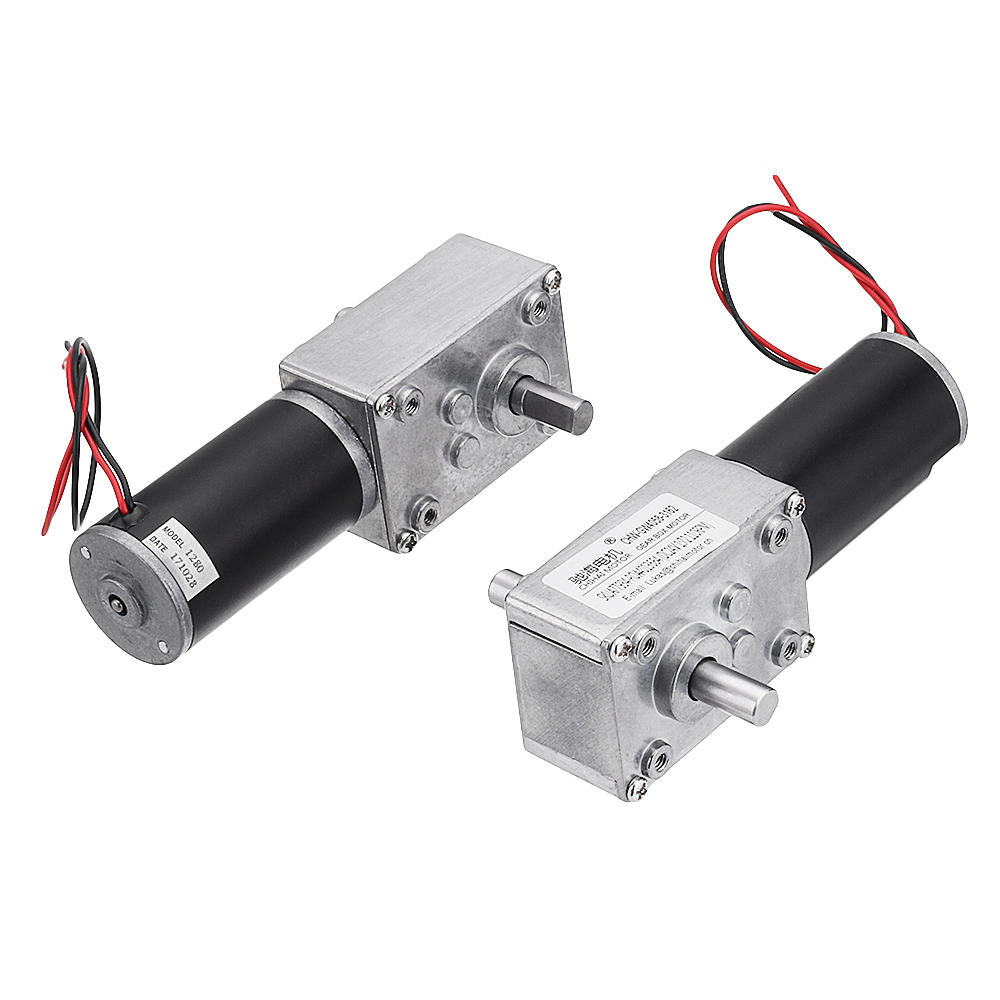

CHW-4058-3162(31ZY) DC 12/24V 110/220RPM permanent magnetic worm gear reducer motor fits for intelligent car engine.
Specification:
Model: CHW-4058-3162(31ZY)
Outer Diameter Size: 40 x 36 x 117mm (excluding axle and wiring terminals)

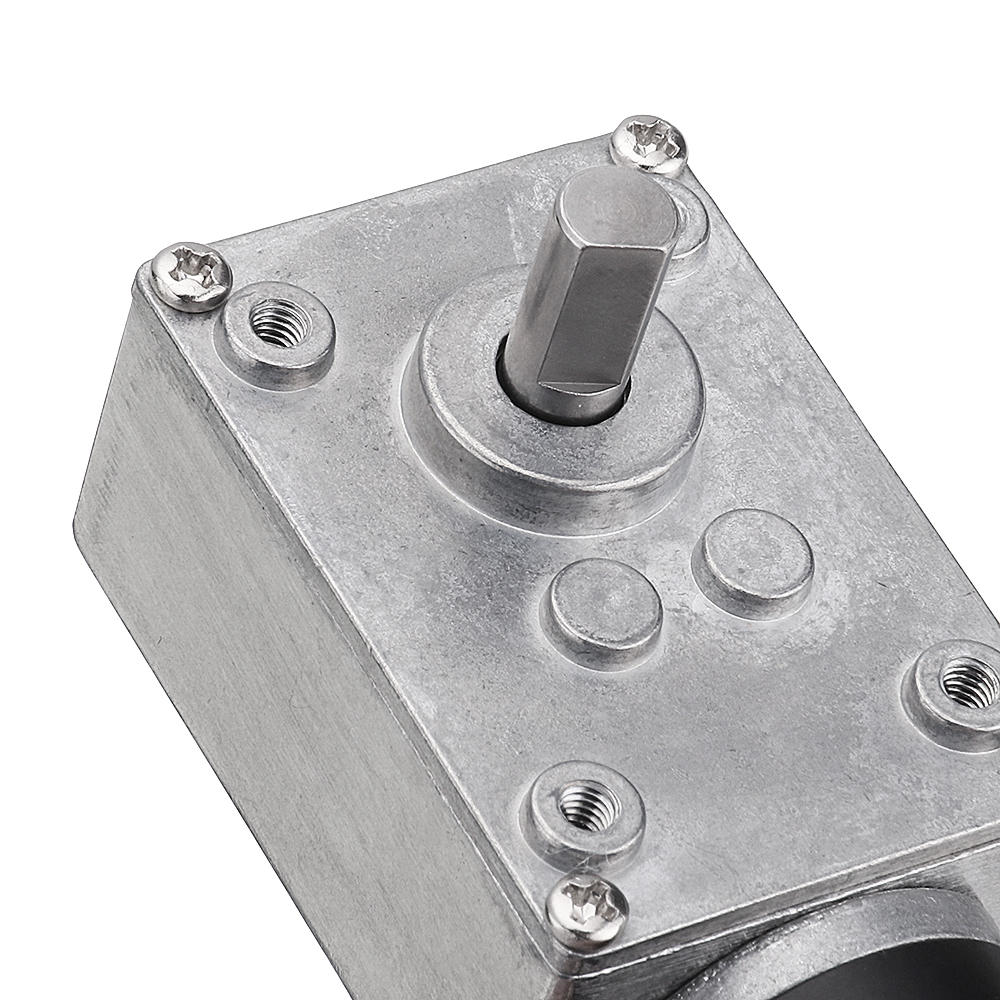

Axle Diameter: Axle Output Diameter 8mm, D Type, D Thickness 7.0mm

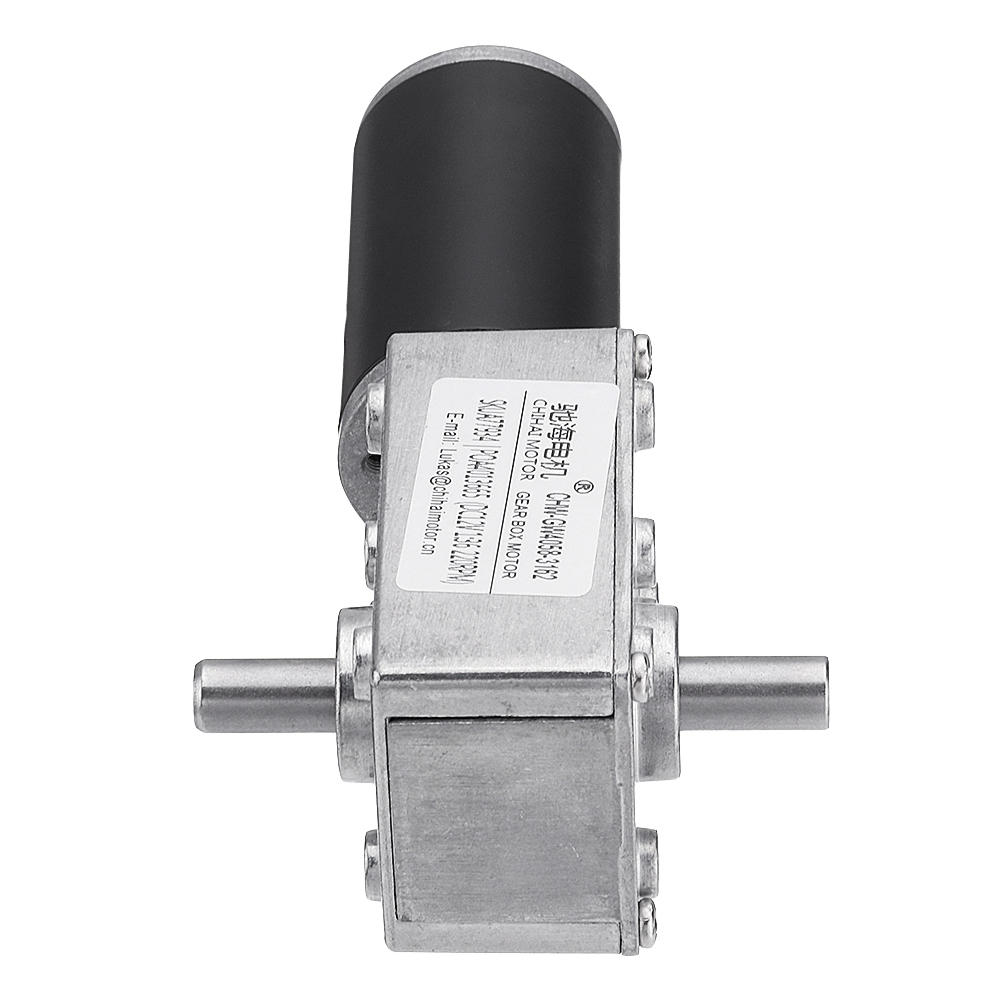

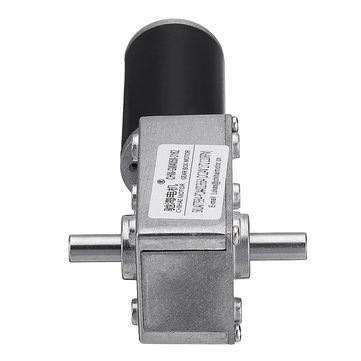

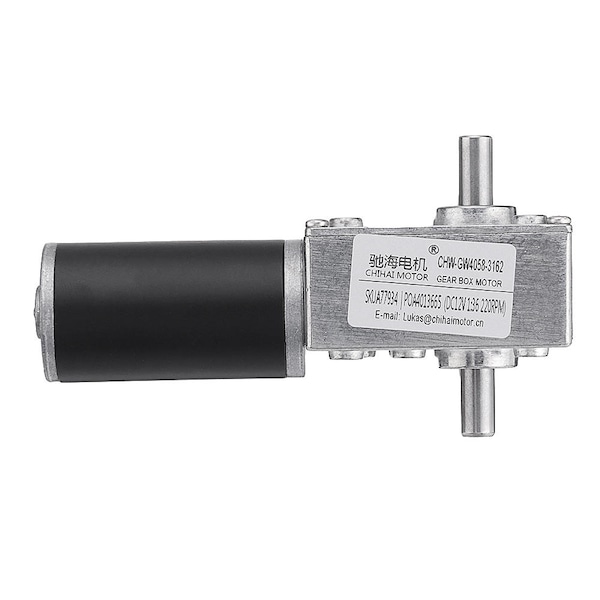

Output shaft length: 15mm D length, 13mm long, both sides output shaft

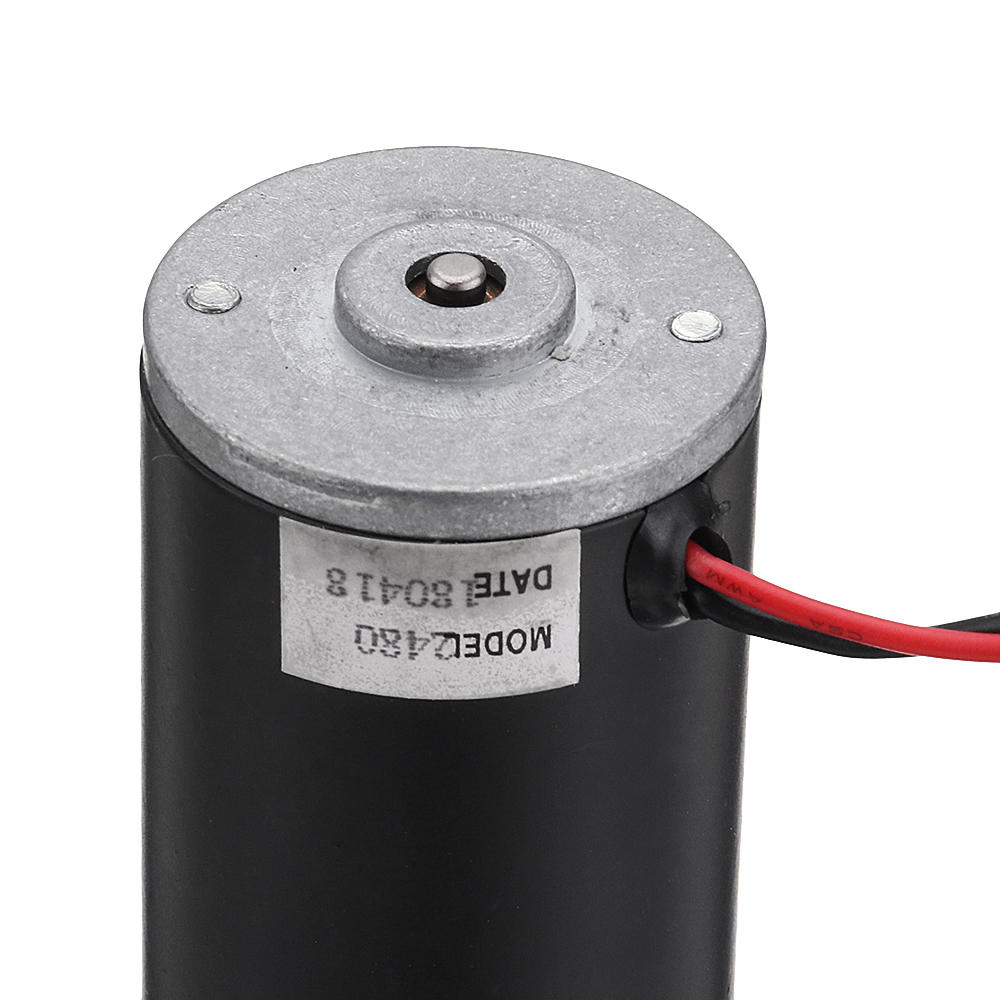

Type | 80 Type input motor | |
Working Voltage (V) | DC 12.0 | DC 24.0 |
Max. power (W) | 20 | 35 |
Reduction ratio | 1:36 | 1:72 |
No-load current (mA) | ≤400 | ≤200 |
No-load speed (RPM) | 220 | 110 |
Rated torque (kg.cm) | 8.0 | 16.0 |
Rated speed (RPM) | 175 | 87 |
Rated current (A) | ≤1.6 | ≤1.2 |
Plugging torque (kg.cm) | ≥25.0 | ≤50 |
Blocking current (A) | ≤6.5 | ≤5.0 |
Package Included:
1 X CHW-4058-3162 DC Motor
