Descriptions:

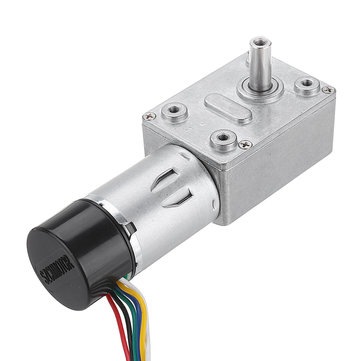

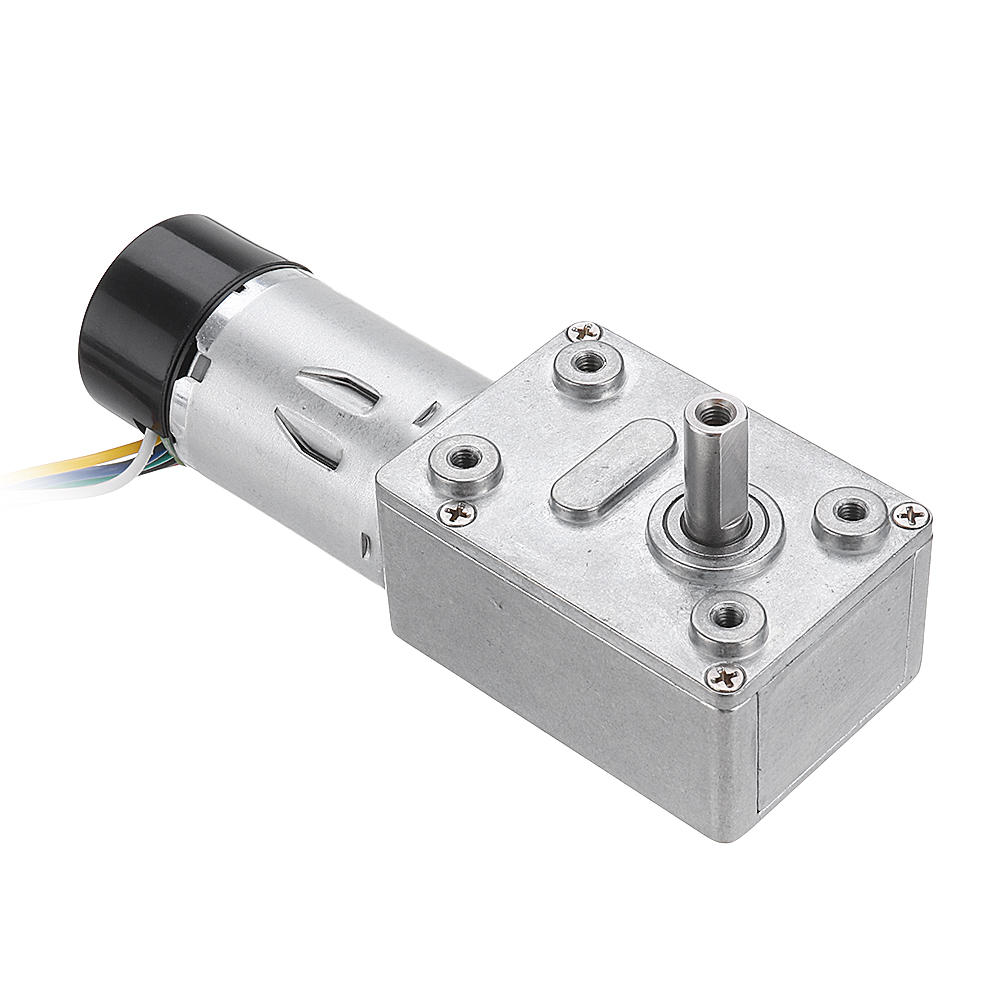

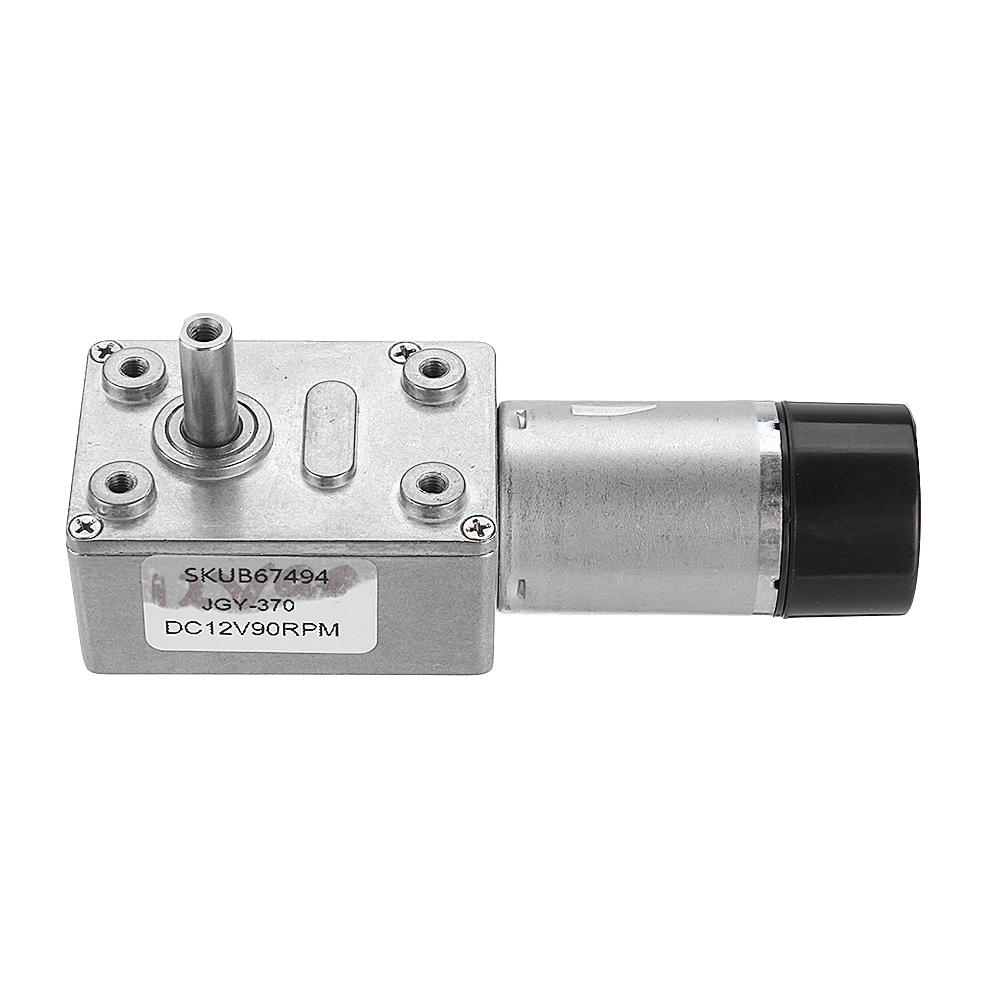

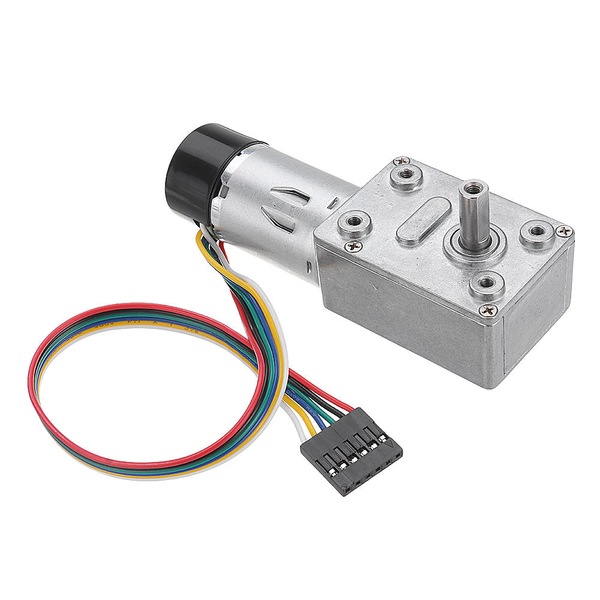

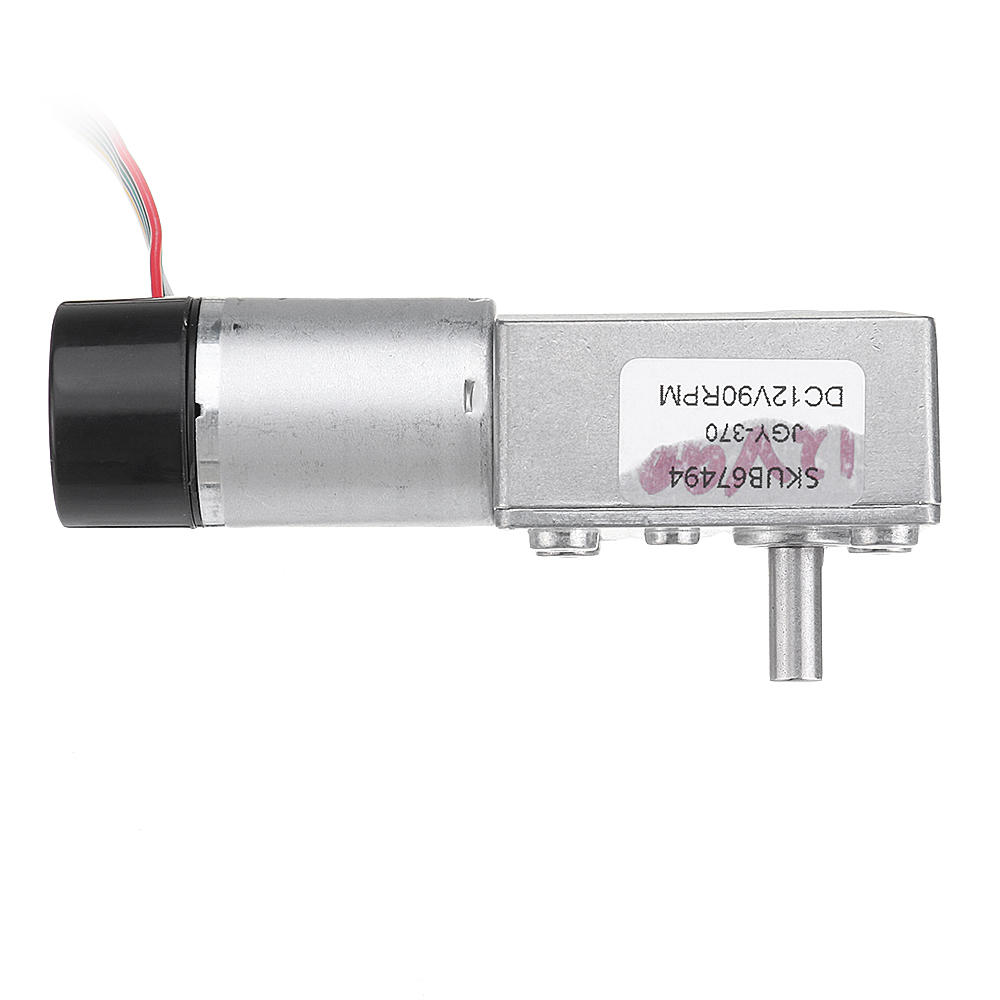

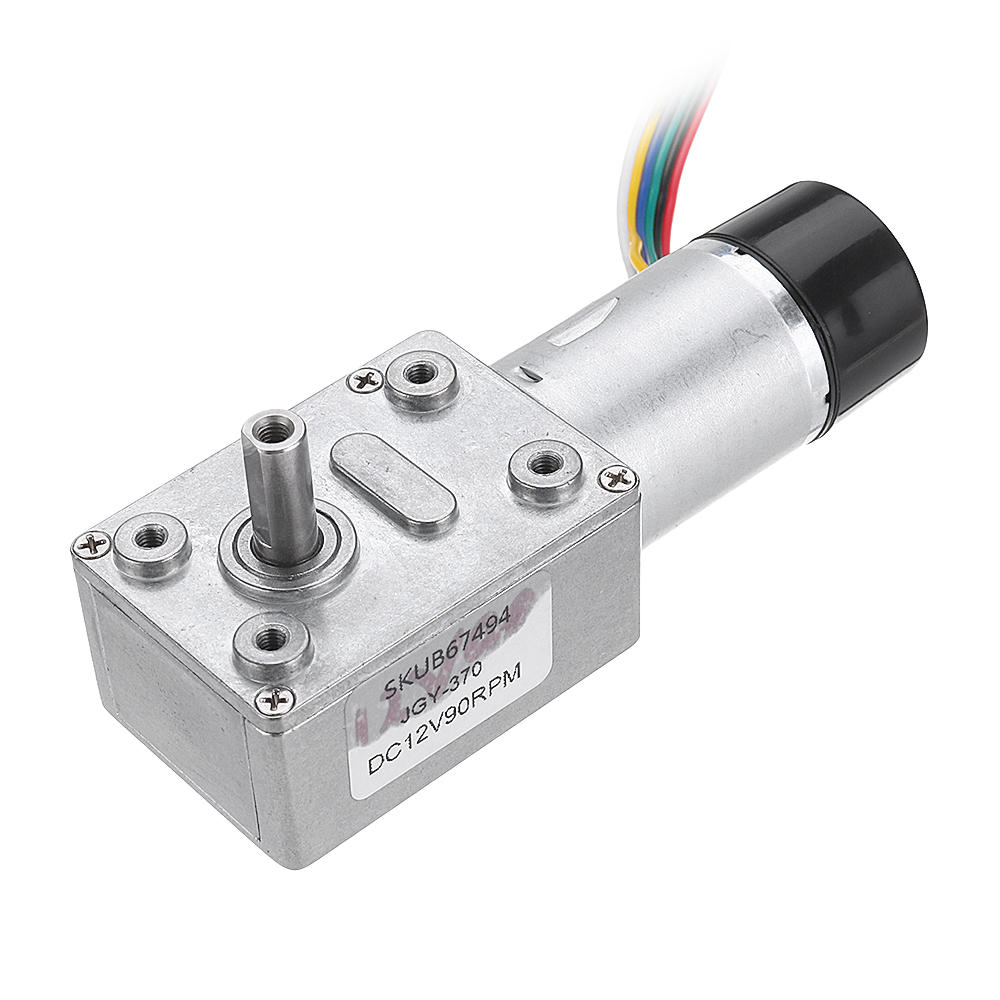

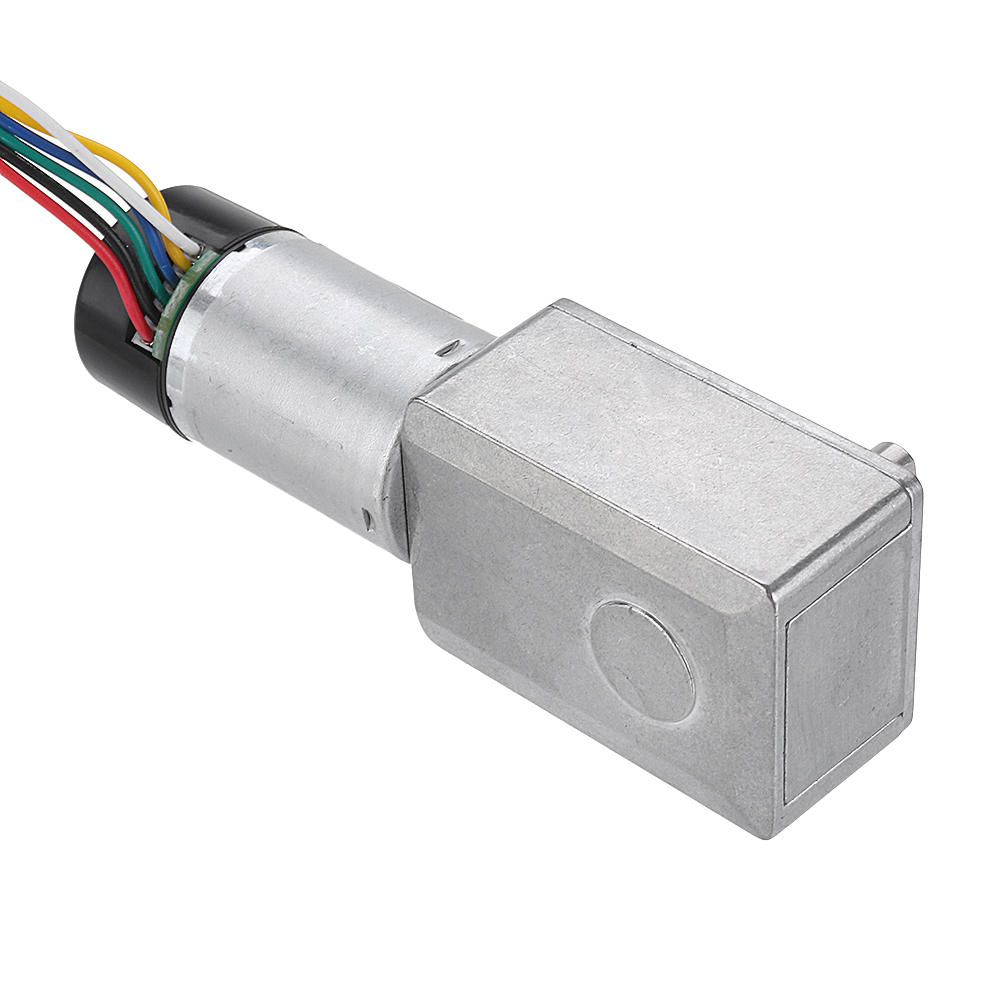

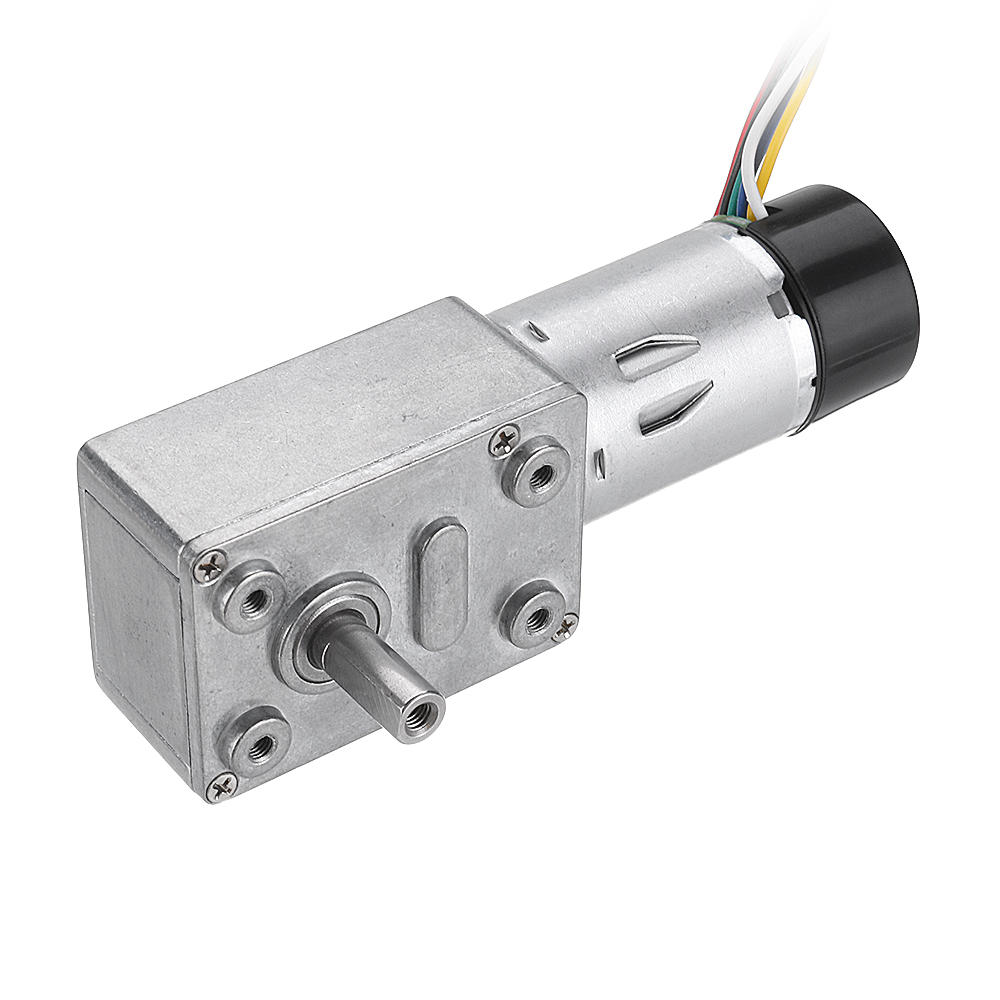

JGY-370 12V Reduction Gear Turbine Worm Self-locking Low Speed Motor Encoder Signal Feedback
Specifications:
Type: Reduction Motor
Material: Metal
Voltage: DC 12V
Weight: 167g
Power: 3W
Rated Voltage: 3 - 24V
Speed Regulation: Yes
Rotation In Both Directions: Yes
Size:
Outer Dia.: 6mm
Motor: 46 x 32mm(without shaft)
Line Length: 230mm
Reduction Ratio 65
No-load Current (MA)≤60
No-load Speed (rpm)
90
Rated Torque (Kg.cm)
0.5
Rated Speed (rpm)
70
Rated Current (A)≤0.6
Maximum Torque (Kg.cm)
1.6
Stop Current (A)1.7
Wiring:
Red: red motor + positive
Black: black motor - negative
Green: Green sensor ground wire - (5-12V)
Blue: blue sensor power + (5-12V)
Yellow: Signal A output point (11 pulses)
White: Signal B output point (11 pulses)
Package Included:
1 Pc x 12V Reduction Gear Motor
