Description:

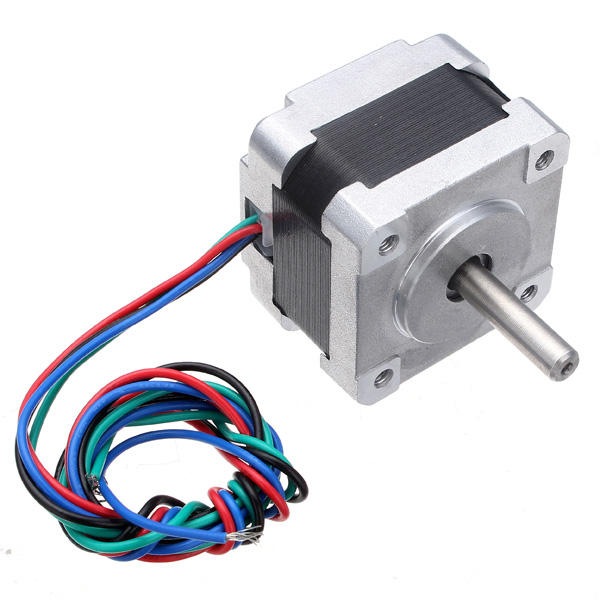

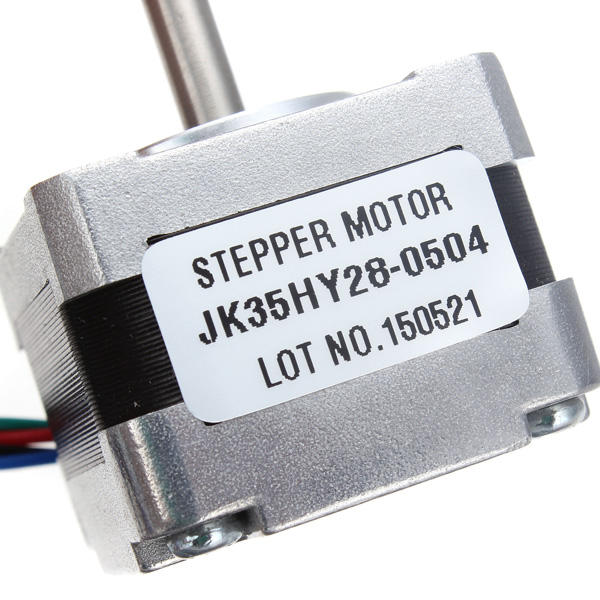

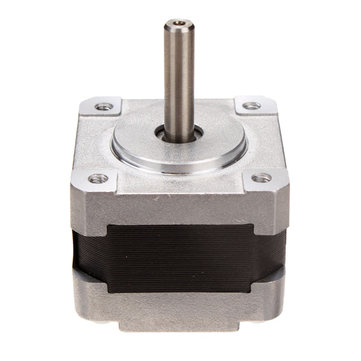

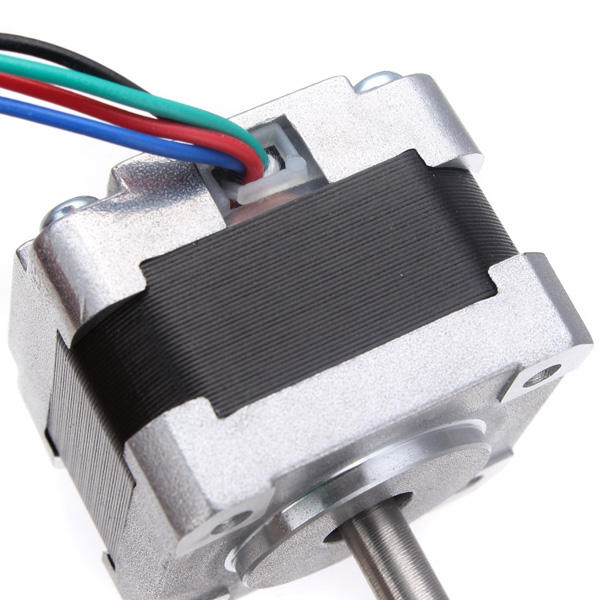

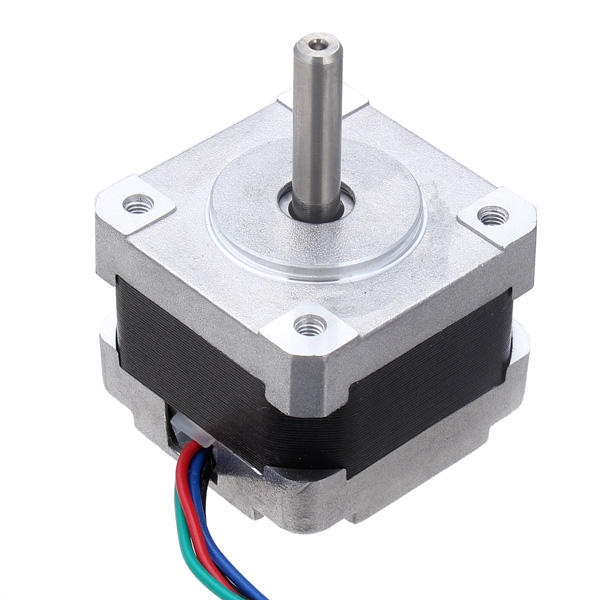

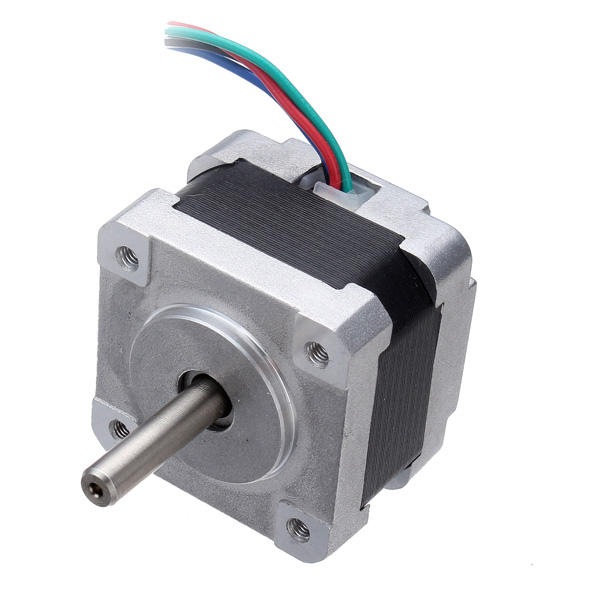

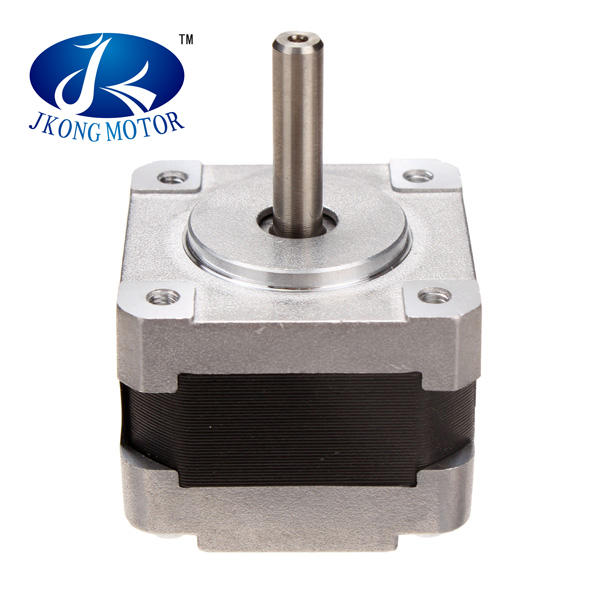

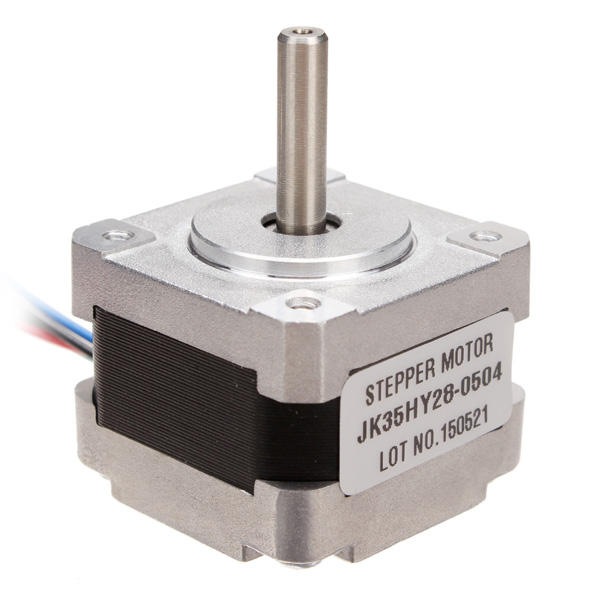

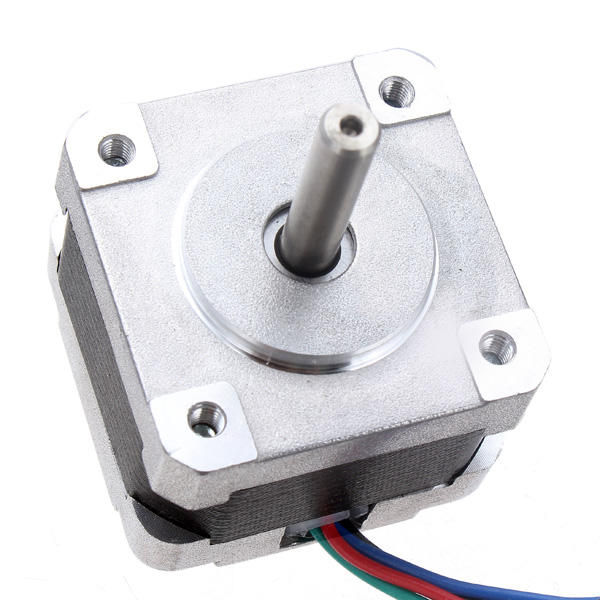

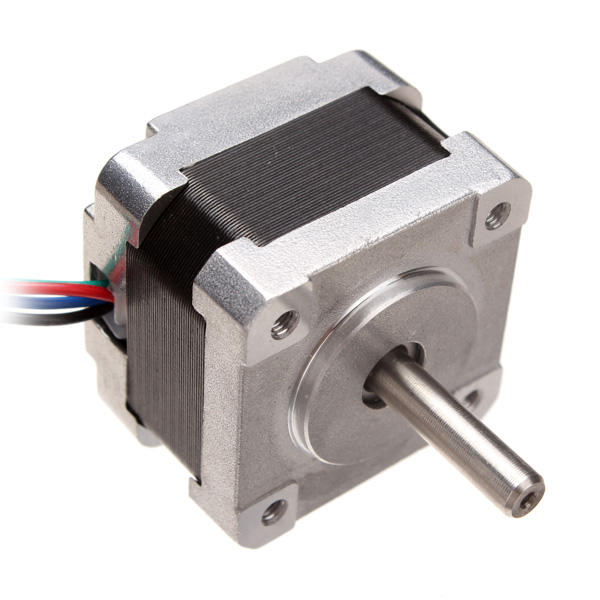

NEMA14 1.8°35 Hybrid Stepper Motor Two Phase 28mm Motor 1000g.cm 0.5A
Specification:
Motor length: 28mm
Diameter of axle: 5mm
The front shaft length: 21mm
Size: 35mm x 35mm x 28mm
Outgoing line: 300mm (Plug is not included)
Certification: CE
Scope: 3D Printers, Monitor Equipment, Medical Machinery, Textile Machinery, Packaging Machinery, Stage Lighting, ect.
Genaral Specification:
Item | Specifications |
Step Angle | 1.8° |
Temperature Rise | 80�b??ax |
Ambient Temperature | -20�b??+50�b?/td> |
Insulation Resistance | 100 MΩMin., 500VDC |
Dielectric Strength | 500VAC for 1 minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Max. radial force | 28N (20mm from the flange) |
Max. axial force | 10N |
Package Included:
1x Hybrid Stepping Motor
