AMPLIFi HD MESH POINT AFI-P-HD
3x
AFI-P-HD AmpliFi High Density Home Mesh Point
Features

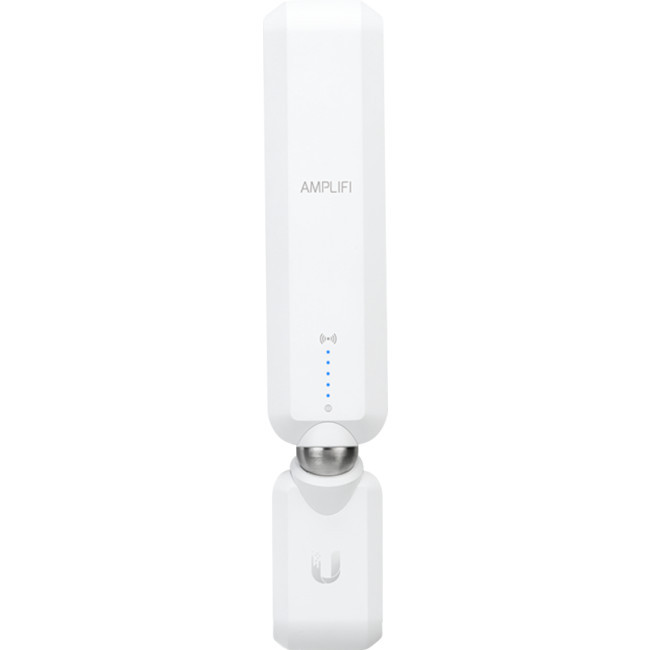

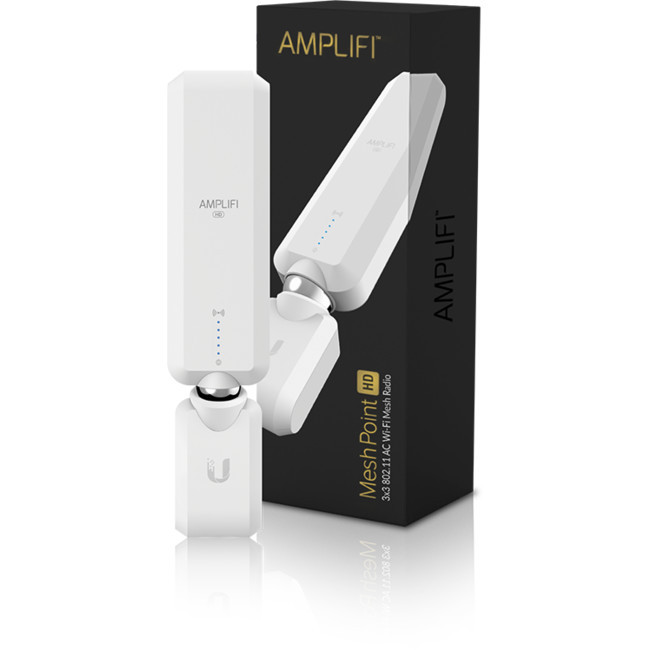

Extend the reach of your AmpliFi mesh network with the AFI-P-HD AmpliFi High Density Home Mesh Point from Ubiquiti Networks. This antenna features dedicated signal LEDs that indicate signal strengthin relation to the base unit and a magnetic connector from which the top portion of the antenna can be adjusted for optimal signal reception. This AmpliFi extender operates onthe 2.4 GHz band supporting data rates of up to 450 Mbps and the 5 GHz band supporting data rates of up to 1300 Mbps,and comes compatible with 802.11a/b/g/n/ac Wi-Fi standards.In addition to enhanced Wi-Fi data rates, the AFI-P-HD supports 3x3 MIMO technology along with a maximum transmit power of up to 26 dBm.
Intuitive Wi-Fi System
AmpliFi is more than a common home router: it's the ultimateWi-Fi system. With turbocharged 802.11ac Wi-Fi, AmpliFi utilizes multiple self-configuring radios and advanced antenna technology to bring ubiquitous Wi-Fi coverage to any home.
Perfected User Experience
One intuitive app allows instant setup, powerful reporting metrics, and guest access. Out of the box, the AmpliFi router and extenders are pre-paired to work seamlessly as aWi-Fi system. The smart touchscreen display combined with the Bluetooth capabilities of the router provide an instant setup experience using any Android or iOS smartphone.
AmpliFi High Density
The AmpliFi HD (High Density) Router and Extender Kit includes a router base station and two wireless HD extendersfor ultimate Wi -Fi performance and coverage throughout your home. The HD Kit provides enhanced wireless performance in an innovative design. The router features an intuitive touchscreen display and the extenders feature a unique adjustable Super Antenna.
Specifications
| Enclosure Characteristics | White color PC materials with soft touch paint |
| Management Interface | Wi-Fi |
| Networking Interface | Wi-Fi, BLE 4.0 |
| Power Consumption | 11 W (max.) |
| Power Method | AC input |
| Power Supply | 9 V, 1.5 A |
| ESD/EMP Protection | 24 kV air/contact |
| Buttons | Reset |
| Antennas | 1 x Dual-band antenna |
| LEDs | 5 Blue LEDs (link/signal strength1-4) |
| Power Save | Supported |
| Wireless Security | WPA2-PSK AES/TKIP |
| Temperature & Humidity | Operating Temperature: 14 to 131oF / -10 to 55oC Operating Humidity: 5 to 95% non-condensing |
| Certifications | FCC / CE / IC |
| Suggested Max. TX Power | 26 dBm |
| MIMO | 3x3 |
| Data Rates | 2.4 GHz: 450 Mbps 5 GHz: 1300 Mbps |
| Wi-Fi Standards | 802.11a/b/g/n/ac |
| Supported Data Rates | 802.11ac 6.5 Mbps to 1300 Mbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80) 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Dimensions | Base Dimensions: 1.65 x 3.02 x 1.04" / 42.0 x 76.7 x 26.5 mm Body Dimensions: 1.81 x 7.05 x 1.06" / 46 x 179x 27 mm |
| Weight | Base Weight: 3.52 oz / 100 g Body Weight: 3.70 oz / 105 g |
