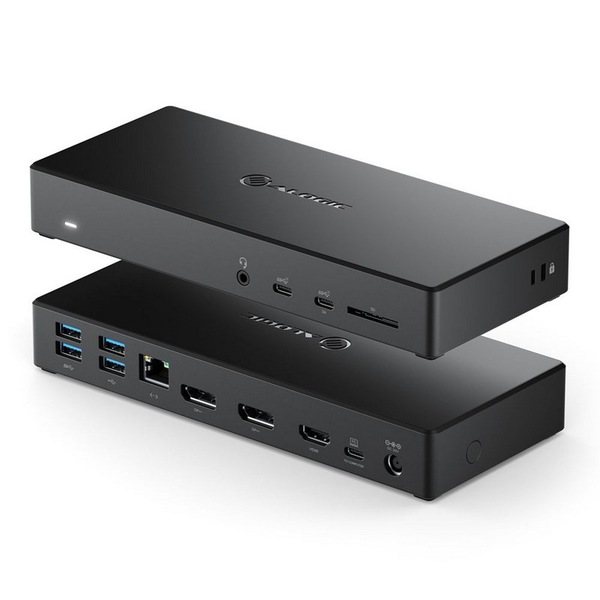

Alogic DUCMA3 USB-C Triple Display DP Alt. Mode Docking Station MA3 100W PD DP/HDMI 4K

Alogic DUCMA3 USB-C Triple Display DP Alt. Mode Docking Station MA3 100W PD DP/HDMI 4K

Be the first to review this product

Limited Stock!

Price	$245.18
	Collect 245 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

The ALOGIC USB-C MA3 Triple Display Dock is designed to enhance the capabilities of your USB-C laptop. Engineered for compatibility across all Windows (7 & above) USB-C enabled laptops, the Dock MA3 provides access to all the popular ports required for use at a work from home set up or at an office desk. The dock allows you to add up to three external monitors*, Gigabit Ethernet, 4 x USB-A (2 x USB 3.1 Gen 1/5G 2 x USB 2.0), 2 x USB-C (USB 3.1 Gen 2/10G) with Fast Charging, 3.5mm Combo Headphone Jack and SD Card Reader. The dock will also charge your USB-C laptop with up to 100W of power when in use making it the perfect companion to your laptop.

Features:

Triple Display
The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

*Refer to the resolution support table for details on different resolutions supported with the dock.

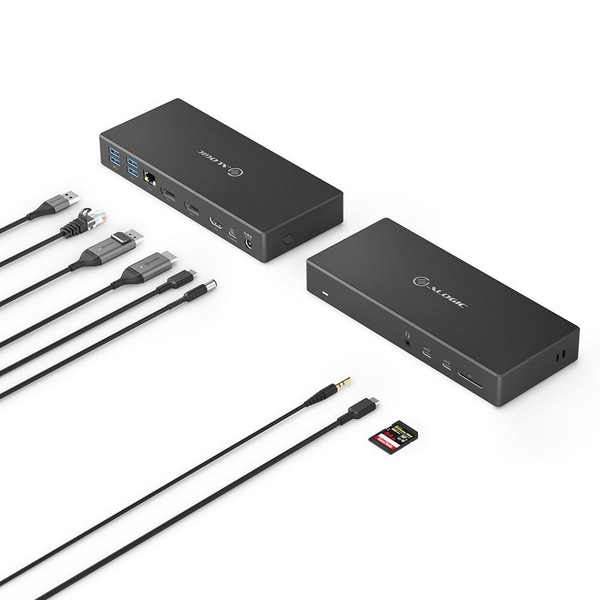

Comprehensive Connectivity
The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card
The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
*Refer to the resolution support table for details on different resolutions supported with the dock.
100W Laptop Charging/Power Delivery
The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Plug and Play: Driverless
With a plug-and-play design, the MA3 dock becomes an extension of your laptop without the need for software or drivers.

SPECIFICATION:

Physical Characteristics
Product Dimensions: 2100 x 880 x 290mm (L x W x H)
Colour: Black
Weight (product): 360g
Materials: ABS

Warranty
2 Years

Output

2 x DisplayPort, 1 x HDMI
2 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support
2 x USB-A 3.1 Gen1 (5G)
2 x USB-A 2.0
1 x Audio / Microphone Jack
1 x RJ45 Ethernet 1Gbps
1 x SD Card

Input
1 x USB-C Port

Power
Up to 100W Power Delivery for Laptop Charging (170W AC Power Adapter Included in the box)
Resolution Up to 2 x 4K UHD 60Hz or 3 x 4K UHD 30Hz with DP 1.4 HBR3 with DSC enabled host*
*See resolution support tables below for maximum outputs

Device Compatibility
Compatible with all computers with a USB-C port
Requires computer operating Windows 7 and above

Compliance
FCC, CE, RoHS

Package Includes
1 x Dock
1 x 170W AC Power Adapter
1 x AU Power Cord
1 x User Manual

Resolution support table

Host Bandwidth

(2 Lane)

Single Display

Dual Display

Triple Display

MST Host (Independent/Extended)

MST Host (Independent/Extended)

HBR3 DP1.4 with DSC

5120x2880@60Hz

2*3840x2160@60Hz

3*3840x2160@60Hz (with reduced blanking)

HBR3

DP1.4 without DSC

3840x2160@60Hz

2*3840x2160@30Hz

1*3840x2160@30Hz+
2*1920x1080P@60Hz

HBR2

DP1.2

3840x2160@30Hz

2*1920x1080P@60Hz

3*1920x1080P@30Hz

SKU: DSD-ALO-DUCMA3
