Alloy SCR460ST-1 RS-232/422/485 Serial DB-9 to Multimode Fibre Converter. Max. range 2Km

Alloy SCR460ST-1
Serial to Fibre Standalone/Rack Converter

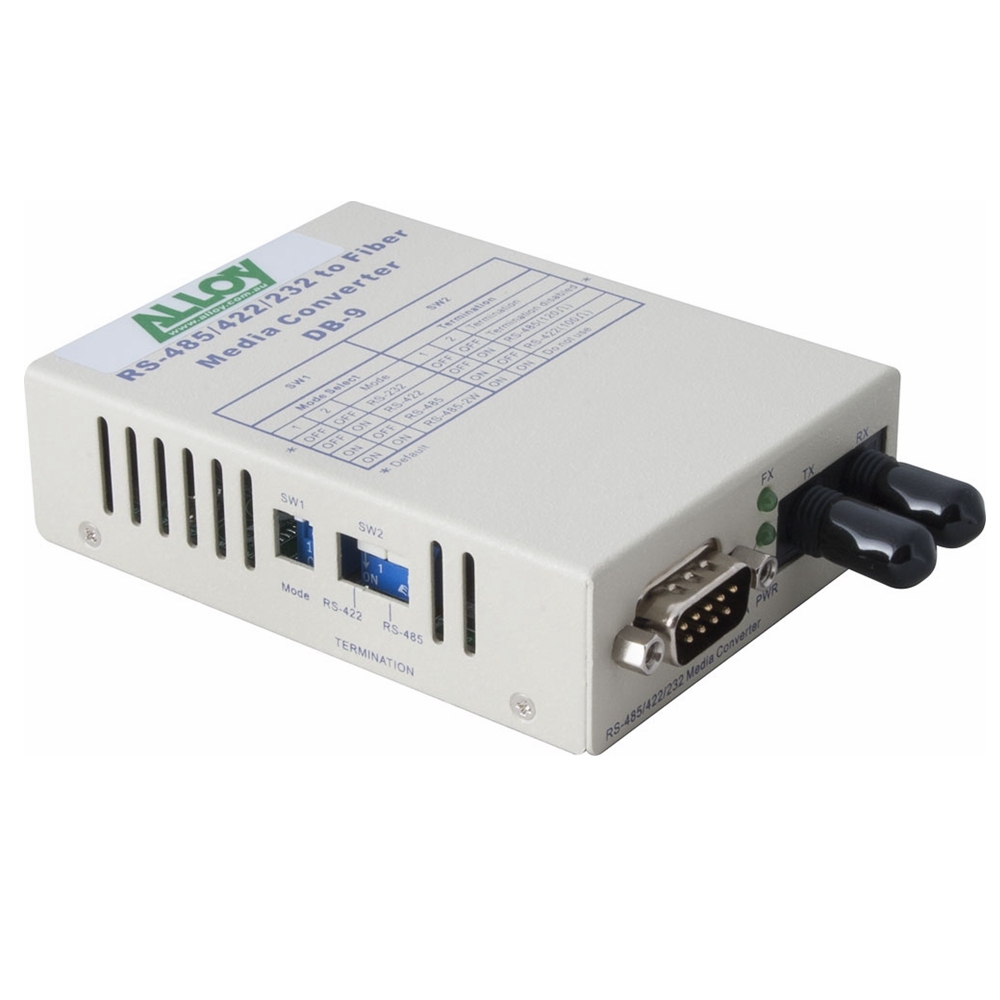

The SCR460ST-1, an SCR Series Media Converter, is used standalone or installed in a DCR12 Series Converter Chassis. This RS232/422/485 Serial to Fibre Converter has a DB-9 port and a ST terminated multimode fibre port with a range of up to 2Km.

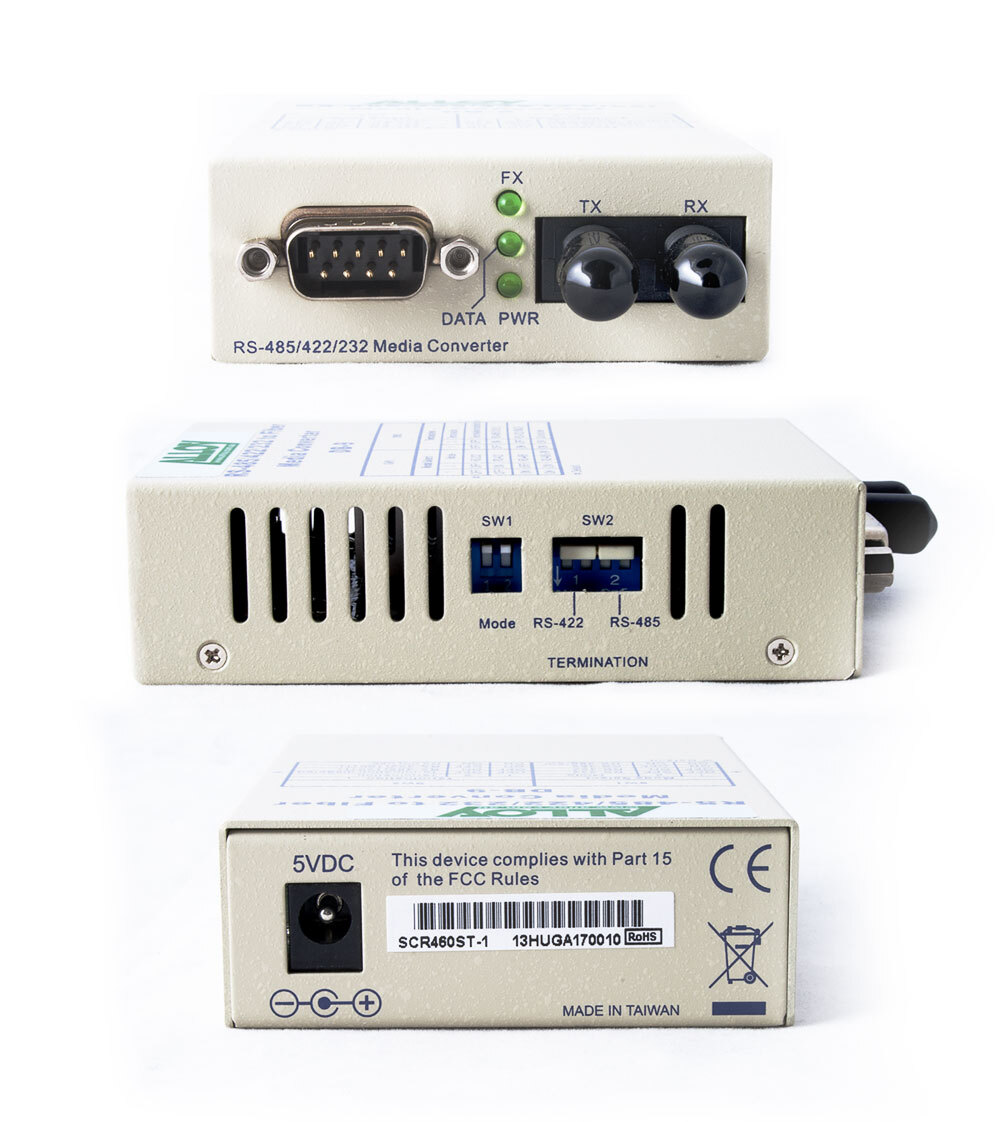

The SCR460ST-1 is a dual purpose Serial over Fibre Media Converter. It can be used as a standalone device, or can be installed as a Media Converter Module into any Alloy DCR12 Series 12-slot Media Converter Rackmount Chassis. The SCR460ST-1 has one triple mode circuit RS-232/RS-422/RS-485 Serial DB-9 copper port and an ST terminated multimode fibre port, enabling the Converter to extend data and control signaling over a fibre cable segment up to a maximum range of 2 kilometres. With auto baud rate (up to 460.8K) and direction control functions, the Converter automatically detects serial signal characteristics to operate automatically in RS-232, RS-422 or RS-485 mode.

Features

• SCR460ST-1 Converter: RS-232/422/485 serial (DB-9) to serial over ST multimode fibre (ST) - 2Km range
• SCR Series Converters for all types of serial over fibre media conversion - up to 20Km range
• DB-9 or Terminal Block options for copper serial cabling, ST or SC fibre connectors

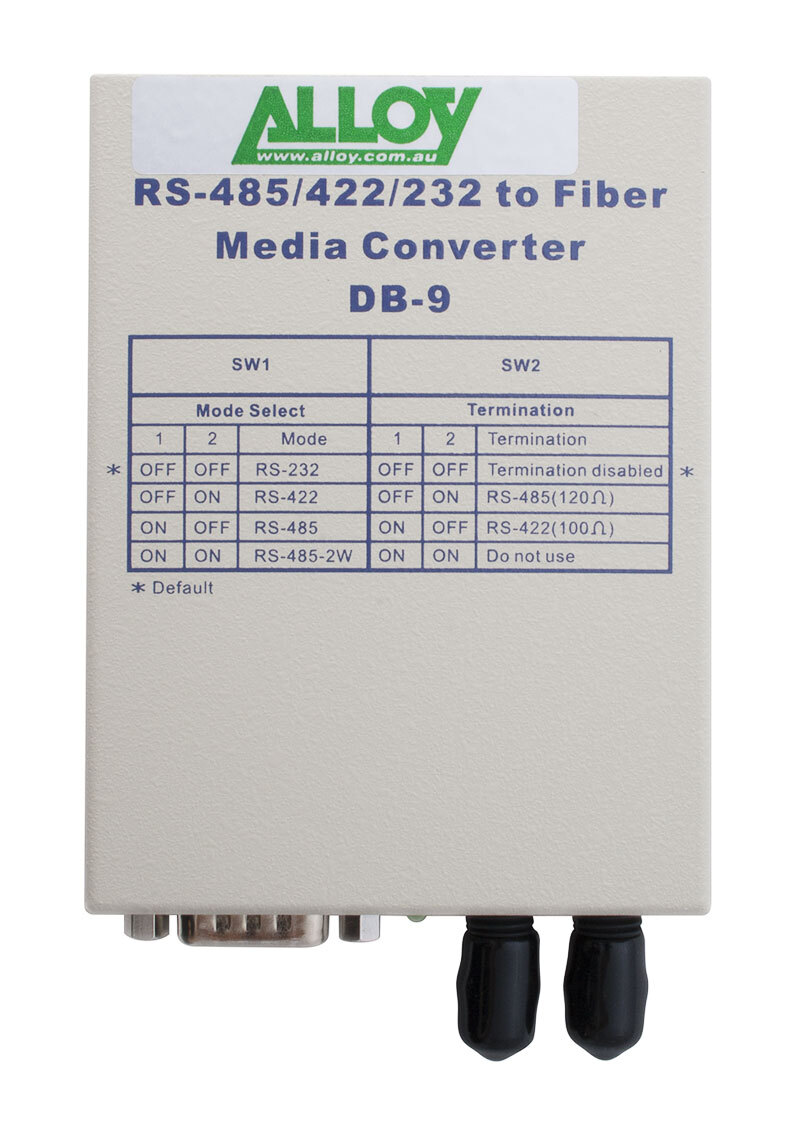

• Triple mode circuit support for Plug-and-play RS-232triple mode circuit RS-232/RS-422/RS-485, RS-422 or RS-485
• Auto baud rate (up to 460.8K) and Direction Control functions
• High EMI and EMS immunity
• Dual Purpose ACR Series - use 'standalone' or install in a DCR12 Series Media Converter Chassis
• Easy 'Slide-in, Hot Swap' installation into DCR12 Media Converter Chassis systems
• Compact, rugged all-metal case
