Description:
?
1 Dual power supply (two power supplies cannot be powered at the same time): Power supply 1, DC 6.5-25V; Power supply 2, DC 5V
2 Working current: (Normal Mode) standby current 41mA, working current 82mA;(Energy-Saving mode) Standby current 7mA, working current 44mA.
3 There are three input control ports: forward control(FWD), reverse control(REV), and stop control(STOP).
4 Two input trigger modes, Low-Pulse trigger mode, Low-Level trigger mode
5 Delay time: 0.1-999.9 seconds, 1-9999 seconds, 1-9999 minutes.
6 Cycle times: no cycle, 2-99 cycles, always cycle.
7 Three indicators: forward indicator(F LED), reverse indicator(R LED), stop indicator(S LED).
7 6 functional modes.
8 Relay load current, recommended less than 5A.
7 Size: 80*50*19mm
8 Weight: about 50 grams
?
This is a multi-function DC/AC motor forward and reverse controller with multiple control modes. Many control functions can be derived through reasonable settings.
?

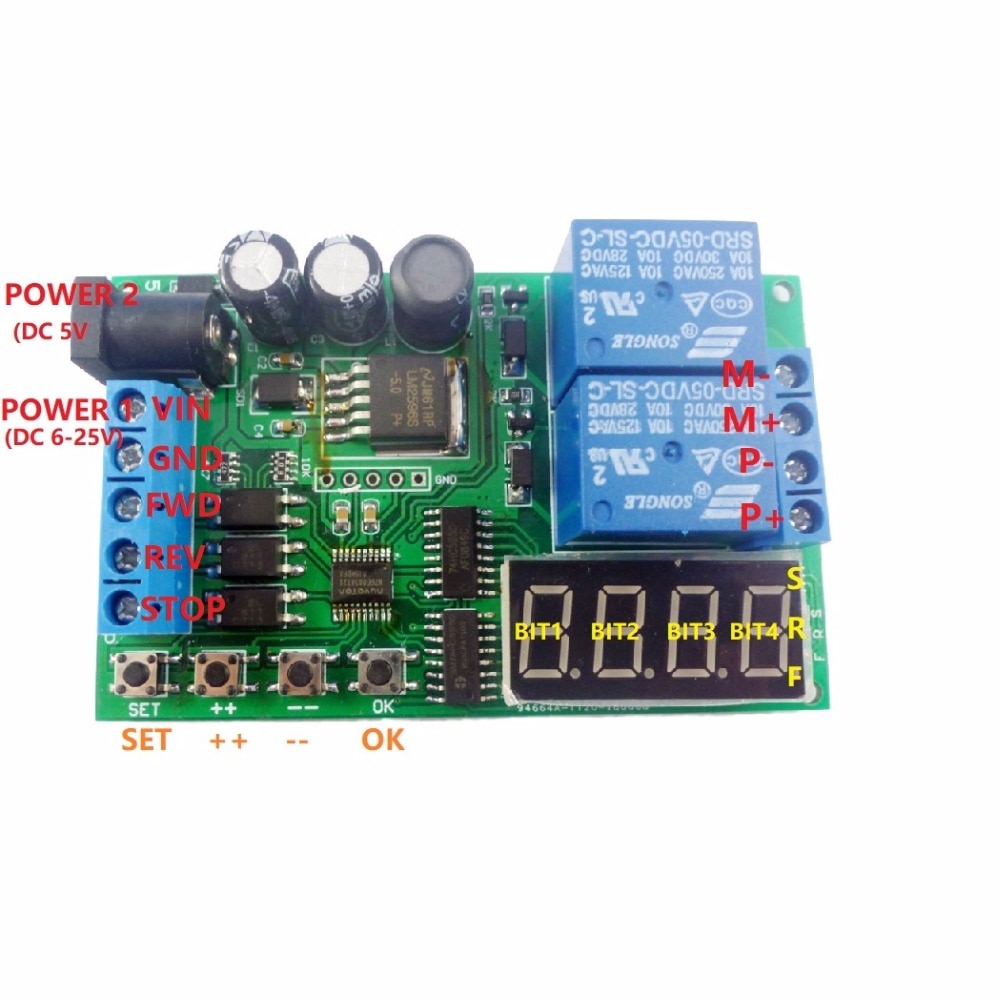

Port:
?

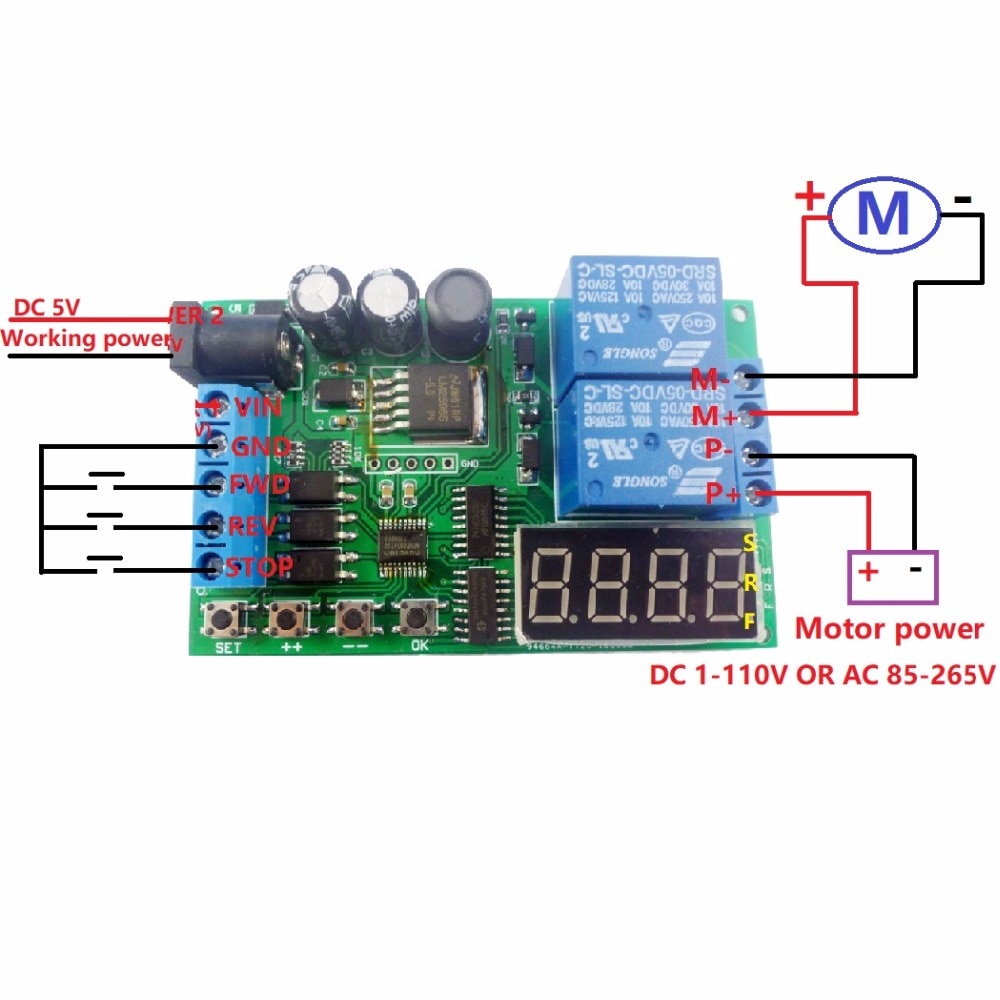

DC 5.5MM female : Power supply 1, DC 5V power supply.

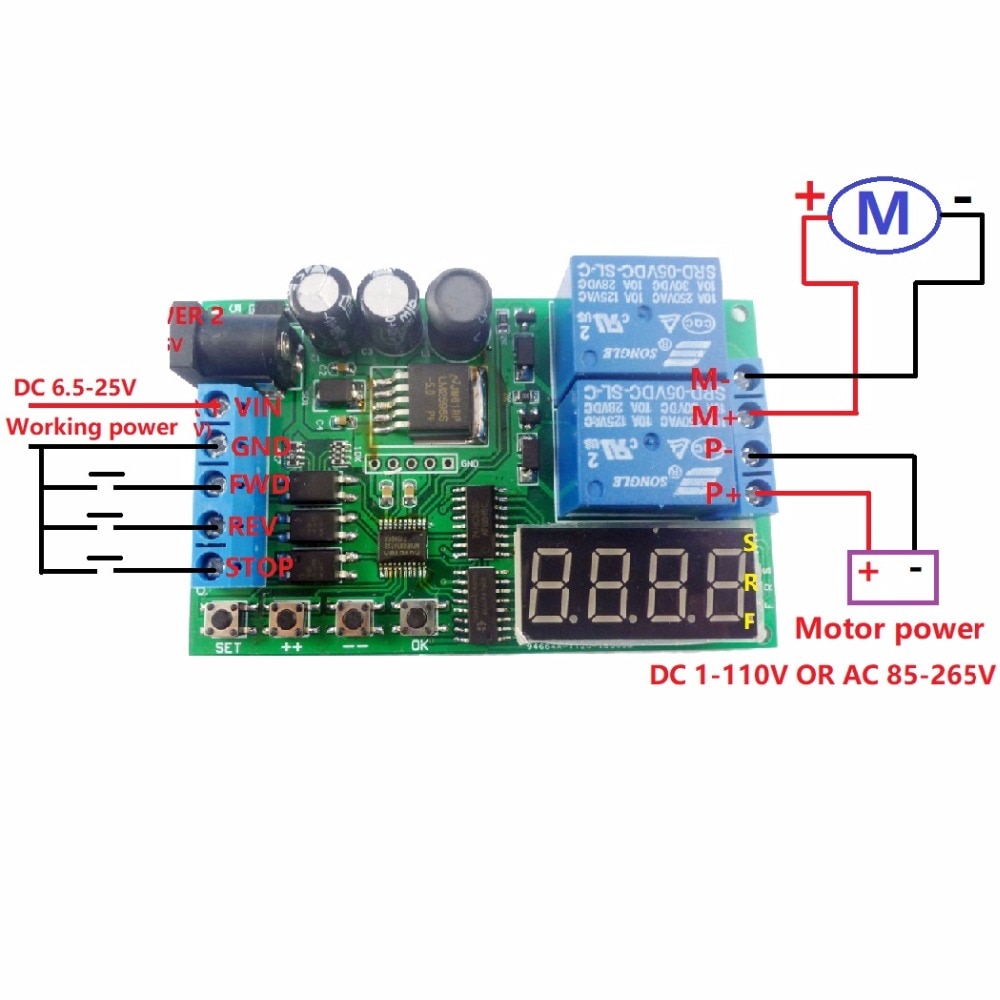

VIN? : Power 2 positive, DC 6.5-25V power supply
GND : Power supply 2 negative
FWD: Forward input control (partial Function-Mode is invalid)
REV: Reverse input control (partial Function-Mode is invalid)
STOP : Stop input control (partial Function-Mode is invalid)
M+ : Motor positive
M-? : Motor negative
P+: Positive motor power supply
P- : Negative motor power supply

Package inlcuded:1 PCS Multifunction AC/DC motor Reversible controller
