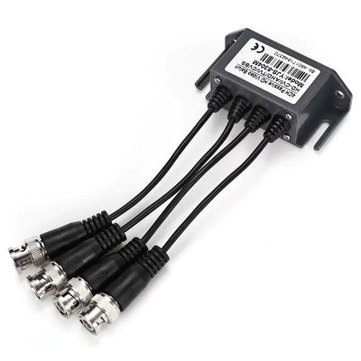

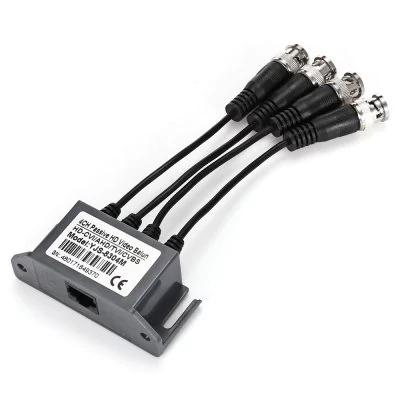

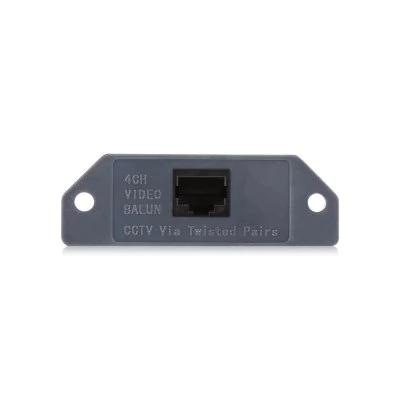

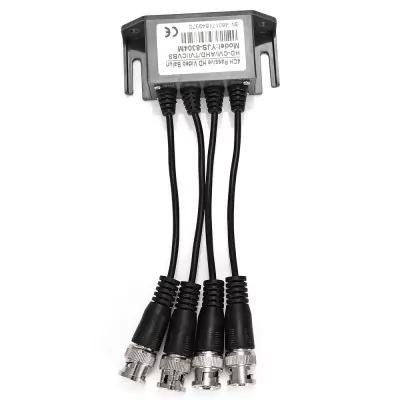

4CH HD Passive UTP Video Balun

4CH HD Passive UTP Video Balun

Price	$35.86
	Collect 35 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Supperstore (Direct Import) products only. Expires 11.59pm 29/04/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 3LARN

Quantity

Add to wishlist

Features :

Convert video signal into balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect.
Adapt differential signal transmission with excellent anti-jamming ability.
Save project cable expand, each twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal.

Full-motion CCTV video at distance up to 350m when used with any passive UTP video transceiver.
Up to 1500m with any active UTP video receiver.
No power required.
Built-in transient suppression protection.

Specification :

Material: Plastic
Product weight: 0.0800 kg
Package size (L x W x H): 12.00 x 9.00 x 6.00 cm / 4.72 x 3.54 x 2.36 inches
Frequency response: DC - 8MHz
CMRR: 60dB
Impedance: BNC: 75 ohm, RJ45: 100 ohm
Working temperature: -10 - 70 Deg.C
Storage temperature: -30 - 70 Deg.C
Applicable to NTSC, PAL, SECAM and CCIR systems

Package Includes :

1 x Passive UTP Video Balun

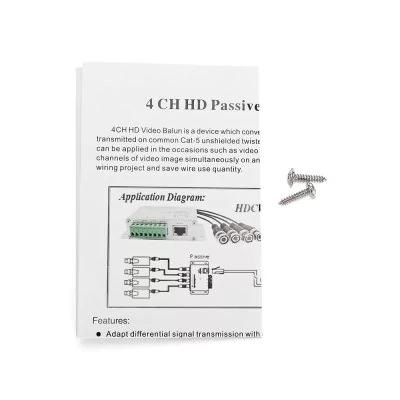

1 x English User Manual
2 x Screw

GTIN: 4151093699186
