?Backup Camera with Monitor?The back up camera systems for car is
designed to eliminate blind spots and avoid obstacles when reversing.
Ultra HD picture shows a clear image for the driver. No more annoying
blurry discoloration screen and picture, and displays the most ideal
road condition, Night Vision function ensures the car driving safety
when backup or parking at night, help to avoid incidents, accidents
abrasion and ensure your safety.
?HD 4.3in Monitor ?Backup camera for car with HD 4.3 Inch 800x480
Resolution LCD display monitor, High definition resolution that offers
clear picture quality even at night, The monitor of back up camera is

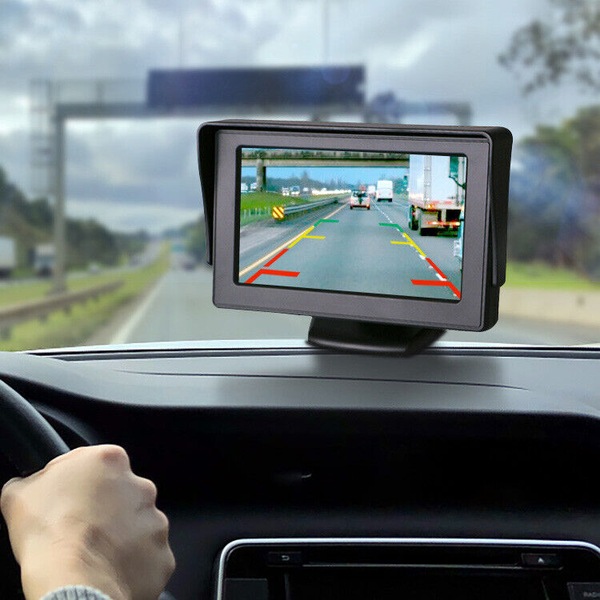

equipped with bracket,You can rotate it 360 degrees,can be mount the
monitor on dash or windshield.

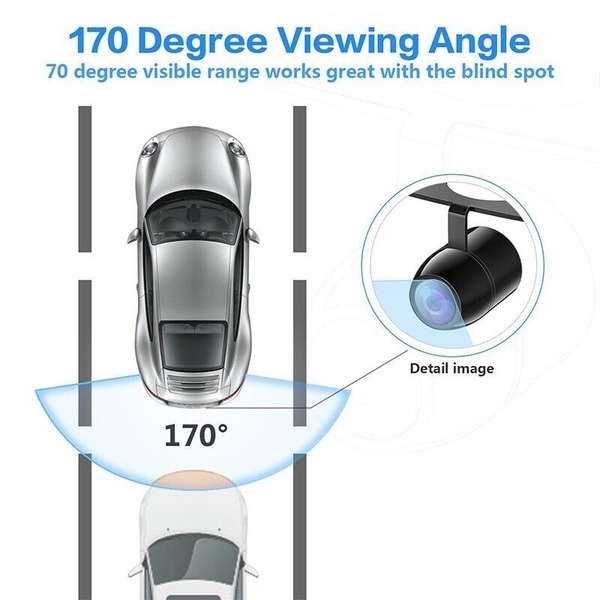

?170 Degrees Wide Viewing Angle?170� perfect viewing angle. night
vision with sharp images, help you see blind area where your eyes can't
reach,Whether it is day or night. Support NTSC/PAL video system, back
up camera systems for truck will let your driving easier and safer.
?Easy Installation?Backup camera and monitor are connected directly to
the reverse lights via a AV cable and 2 power cord. Vehicle backup
cameras housing is aluminium alloy, small size, rear view camera for
car use great-quality Chip and anti fog glass, make vivid and clear
images. car backup camera can fit most types of DC 12-24V different
length vehicles. Such as Cars, Pickup Trucks, SUVs, small Vans, etc.
?IP67 Waterproof Level?Backup camera with IP67 waterproof IP rate, It
designed with fully sealed glue filling craft, absolutely no need to
worry about water, fog or mist inside, Travel on rainy days without
worry.

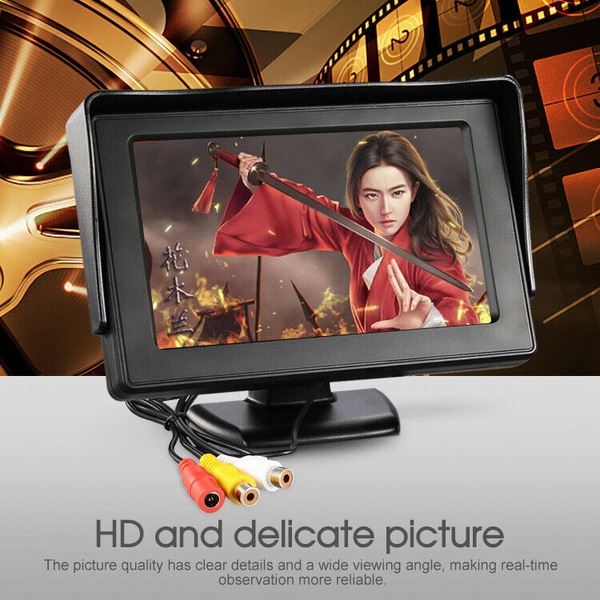

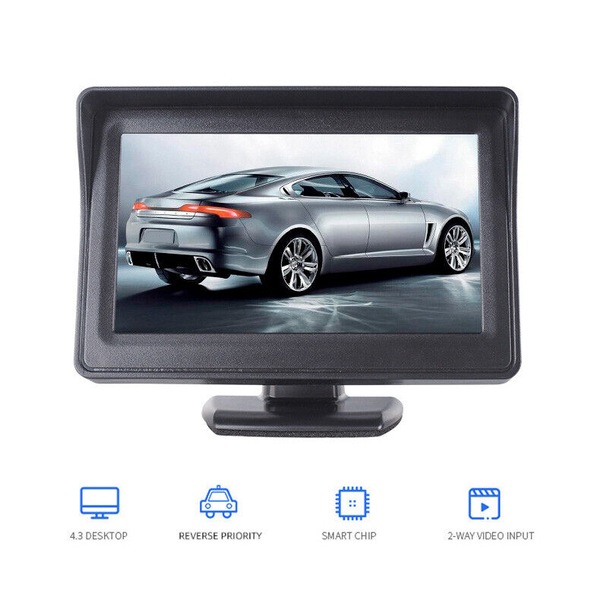

4.3" TFT LCD MONITOR
- 100% brand new,High quality
- Screen Size:4.3 inch(16:9)
- Resolution:320(H) x RGB x 240(V)
- Model: PAL/NTSC (Automatic throw-over)
- Power Supply:DC 12V
- Visible Area:96mm x 54mm
- Power Consumption:2W
- 2-channel video input:V1/V2 auto switching(V1 display first)
- Note:please Connect the Rearview camera's power cable with Reversing
lamp,and connect camera's video cable with LCD's yellow cable(Video
V1),then the LCD will show Camera's video when you are Reversing,and
stop playing movie(auto switching)
-Display blace screen on no signal.

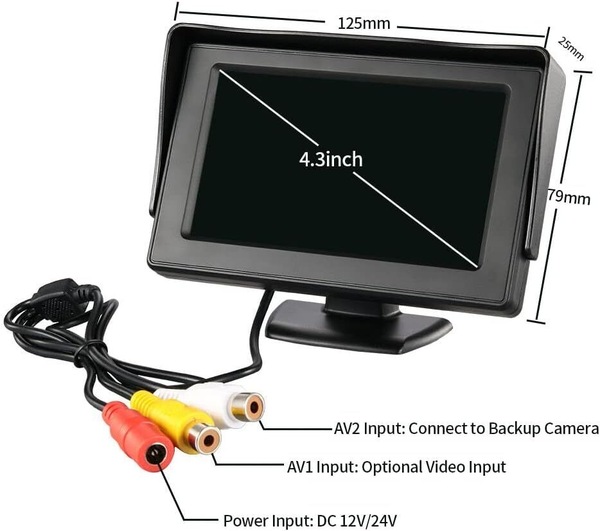

- Dimensions:120mm(L) x 75mm(W) x 15mm(H)

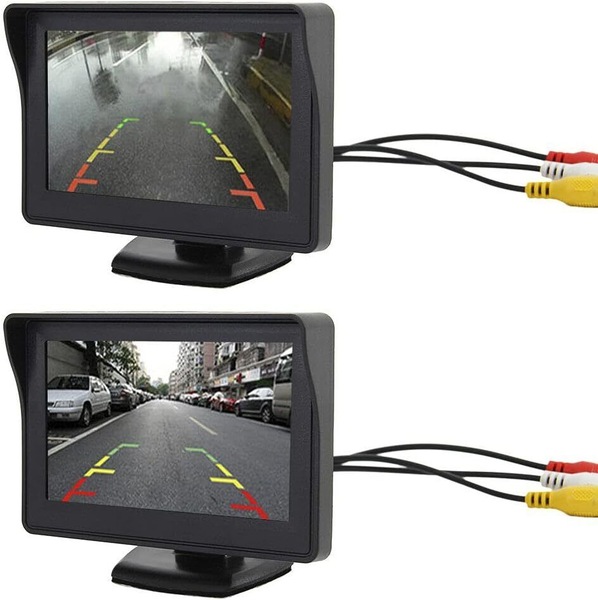

- 4.3" Car Rear View Monitor helps in preventing accidents while
driving in reverse by avoiding children, traffic, pedestrians, toys and
pets while backing out of the driveway or parking space.
- Fit all CCTV camera,car Reversing camera,car DVD player
WIDE REVERSE CAR CAMERA
Features
- Water-proof day/night Reversing camera
- Easy installation for DIY usage
- Real-time rear view while back up
- IR Reverse camera with wide view angle
Specifications
- Image device 1/4-inch colour
- TV system PAL or NTSC
- Resolution 420 TV lines
- Electric Shutter PAL:625 Lines.25 Field /sec NTSC :720 Lines.25
Field/sec
- Effective pixels PAL: 720X 576 NTSC: 720X 480
- Minimum illumination 0.3Lux
- S/N ratio >48dB (AGC-OFF)
- Video output RCA connector, 1.0vp-p, 75ohm
- Current consumption ?120mA
- Power supply DC8V-12V
- Operating temperature -30 to 65 degrees centigrade, RH95% Max.
- Storage temperature -35 to 70 degrees centigrade, RH95% Max.
- Other items automatic white balance, AGC and BLC
- Water-proof Yes, to IP68 standard

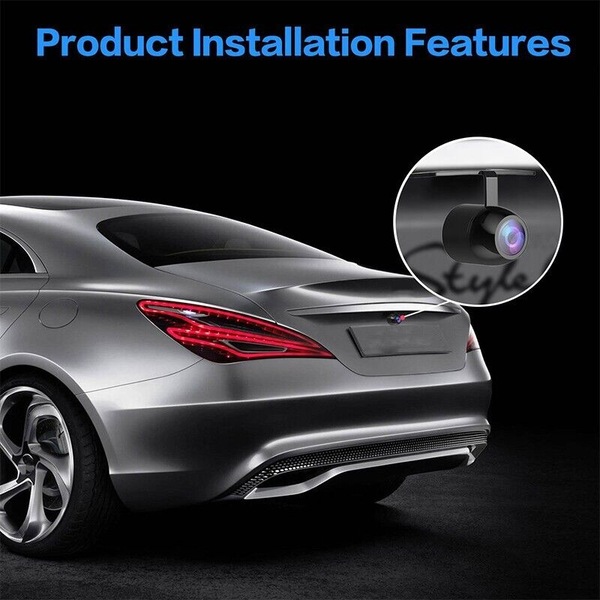

EASY INSTALLATION
- Mount the camera to your car's license plate area, back window, or
any other suitable place
- Adjust the lens of the camera to its best position.
- Connect power wire (red and black) to your vehicle DC 12V power
system.
- Connect the video output (yellow wire) of the camera to the display
in your vehicle.
PACKAGE INCLUDED
- 1 x Car reversing camera
- 1 x 4.3'' Digital TFT LCD Monitor
- 1 x Power Cable for monitor
- 1 x 6m Video cable
- 1 x Power cable for camera
- 1 x User manual
