3A DC Step-Down Buck Converter Module LM2596 AMS1117 7805 7812 MP2307 MP1584

3A DC Step-Down Buck Converter Module LM2596 AMS1117 7805 7812 MP2307 MP1584

Price	$33.94
	Collect 33 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?

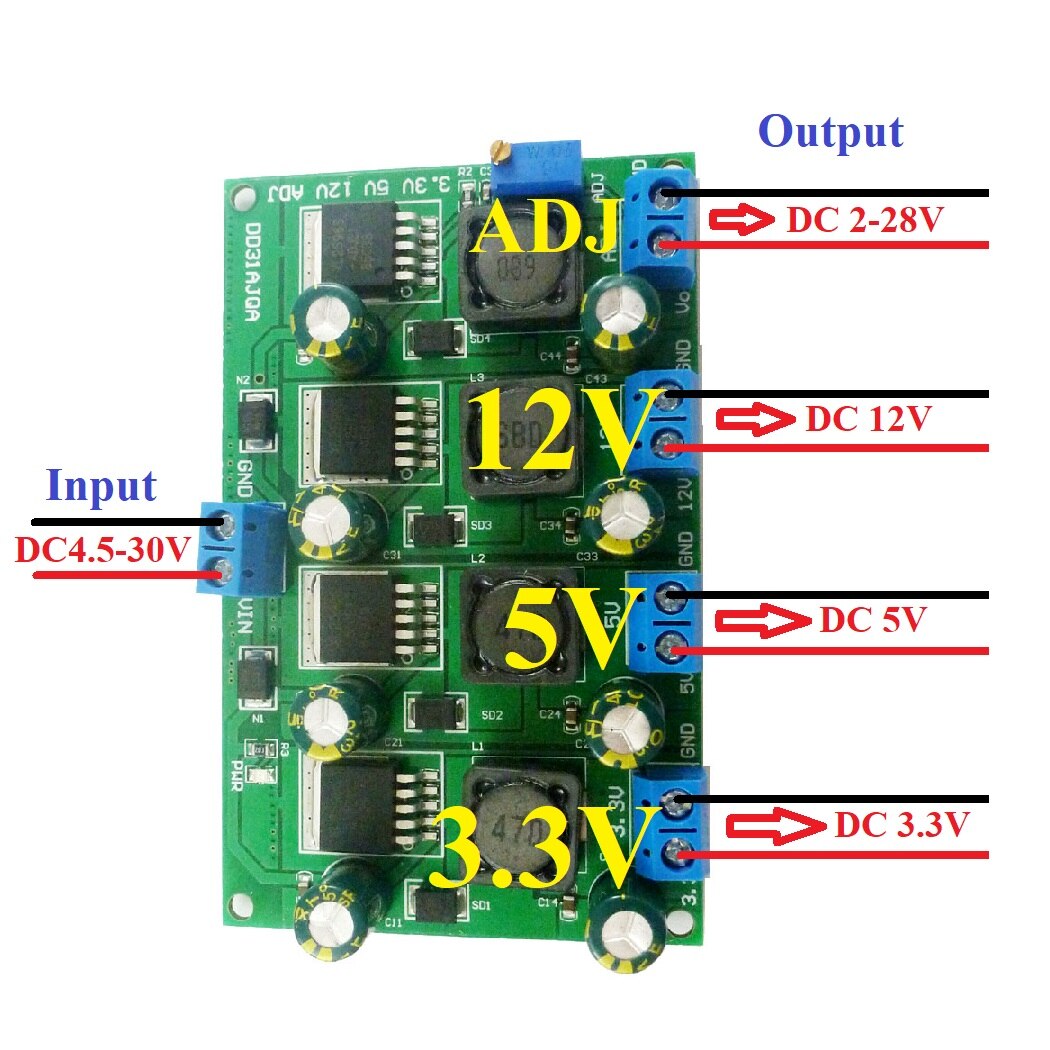

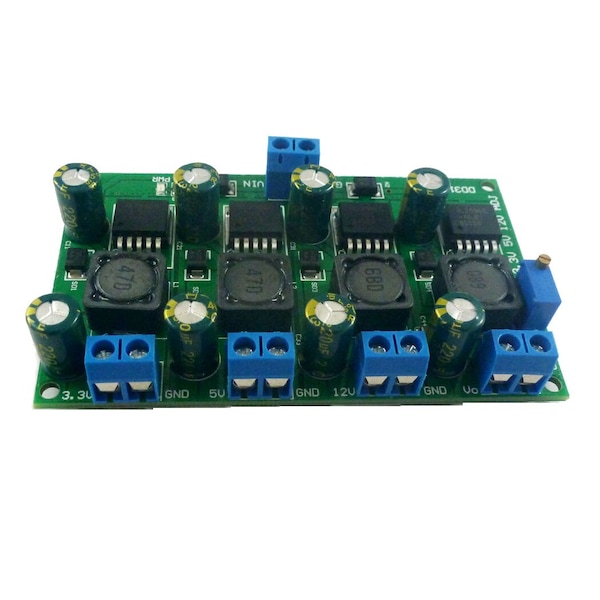

4-channels Step-down Buck DC-DC Converter power module

3.3V output: Input 4.5-30V, Output 3.3V (��3%)
5V output?? : Input 6.5-30V, Output 5V (��3%)
12V output : Input 13.5-30V, Output 12V (��3%)
AJD output : Input 4.5-30V, Adjustable Output 2-28V
Maximum output current per channel : 3A;
Overall maximum load power: 50 watts

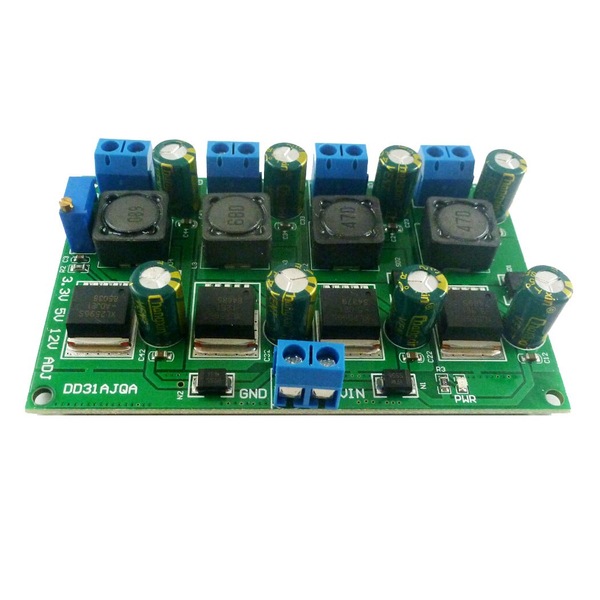

Master chip : XL2596(compatible LM2596)
Working frequency 150KHz.

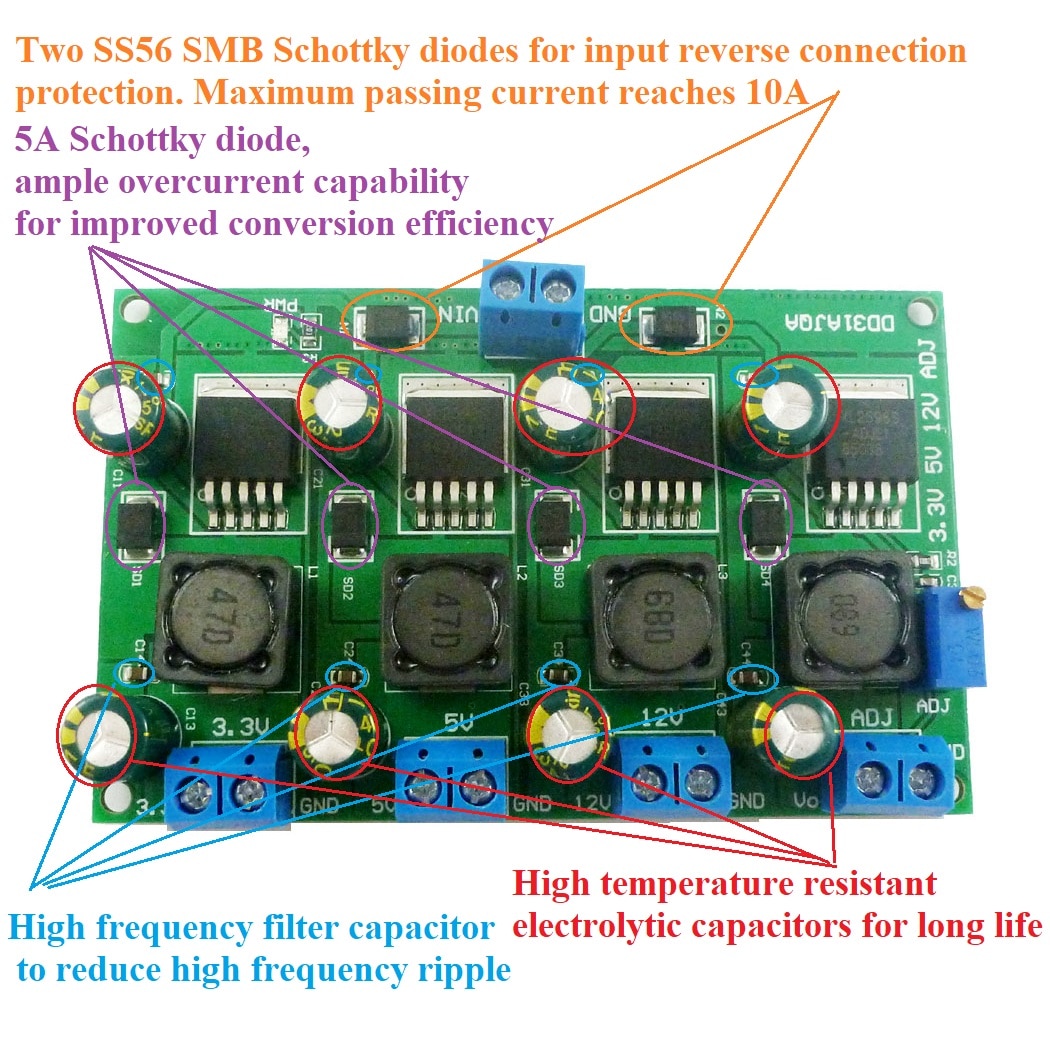

Input reverse connection protection

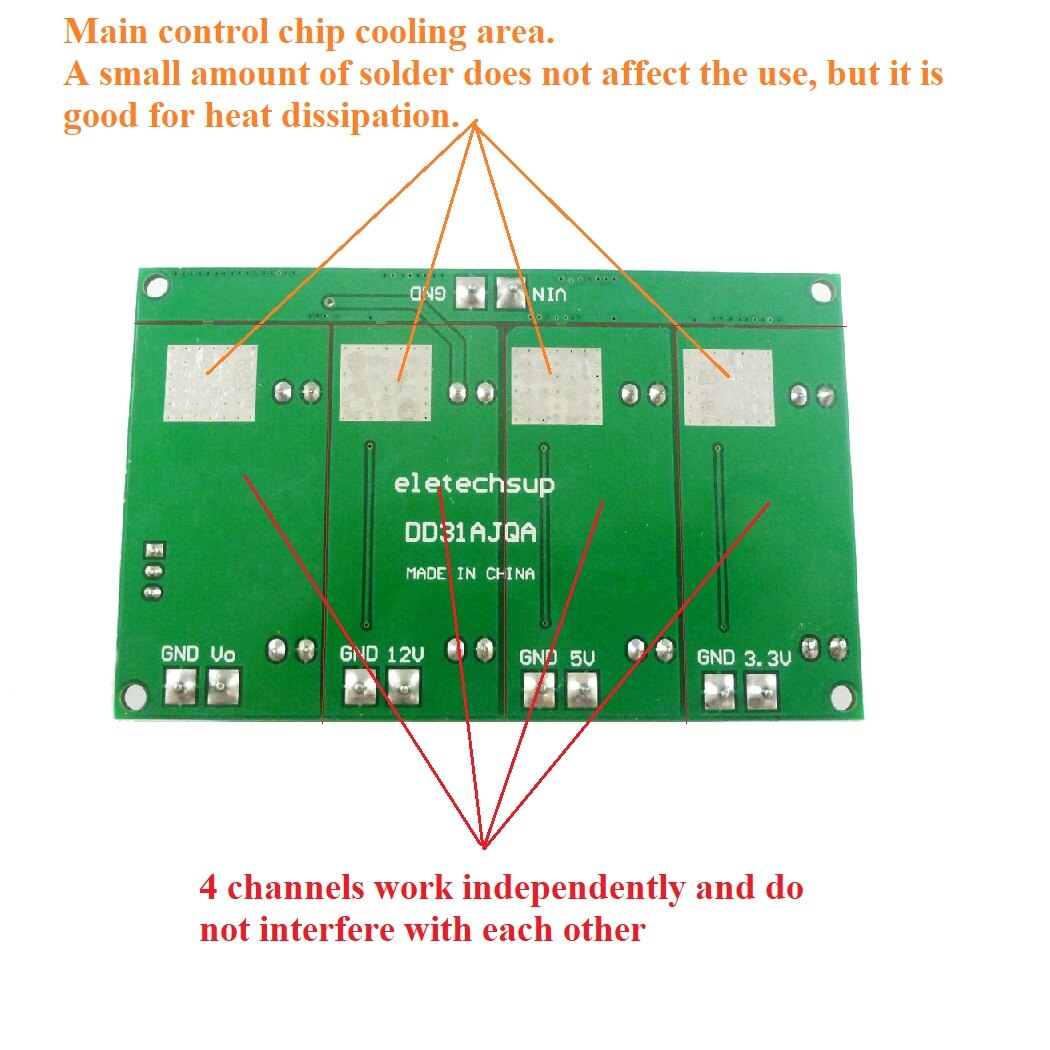

Built in thermal shutdown function,Built in current limit function,Built in second current limit function

Operating Temperature :�C40��C to +85��C
Storage Temperature : �C65��C to +150��C
Size : 88 x 55 x 15mm
Weight : 57g
?
Attention :
This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Applications:
?
MCU ARM STM32 CPU FPGA/CPLD UNO MEGA3560
PTZ CCTV IP camera
Smart home / home automation
WIFI Router Switch Network equipment
LED Motor
Lead-acid batteries
Battery powered equipment
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
