9V-24V 8A Isolation Flip-Flop Latch Switch Module Bistable Single Button LED

9V-24V 8A Isolation Flip-Flop Latch Switch Module Bistable Single Button LED

Price	$24.84
	Collect 24 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
????
Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power,Optical Isolation.
?
Electrical parameters:
Power supply voltage:DC 9-24V(H9-24V Version)
Standby current:less than 0.11-1mA

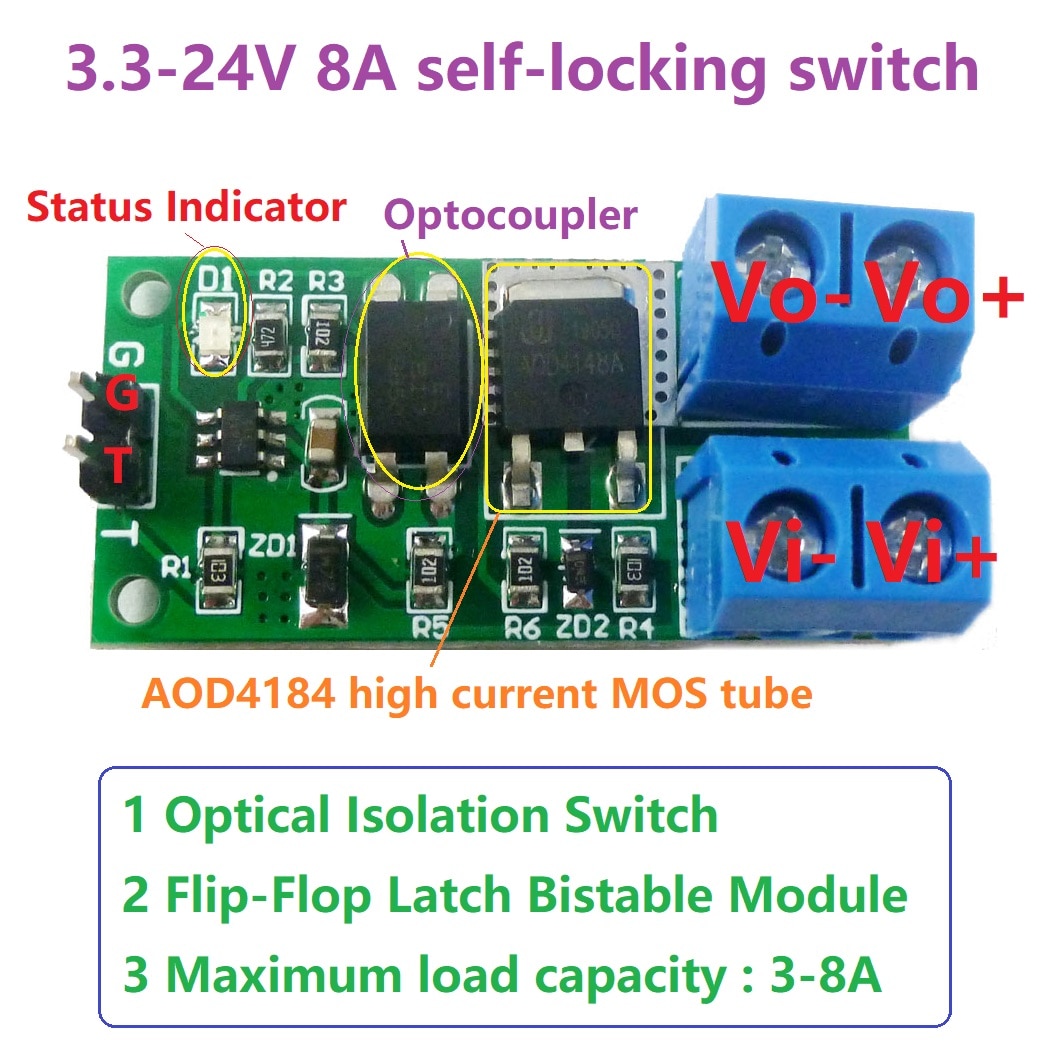

Driver IC is N-channel MOSFET AOD4184,Maximum drive current is 8A
Allowing continuous output current:
L3.3-12V Version? : 3A(3.3V-3.7V);5A(3.7V-5V);6A(5V-9V);8A(9V-12V)
H9-24V Version??? : 8A(9V-15V);6A(15V-24V)

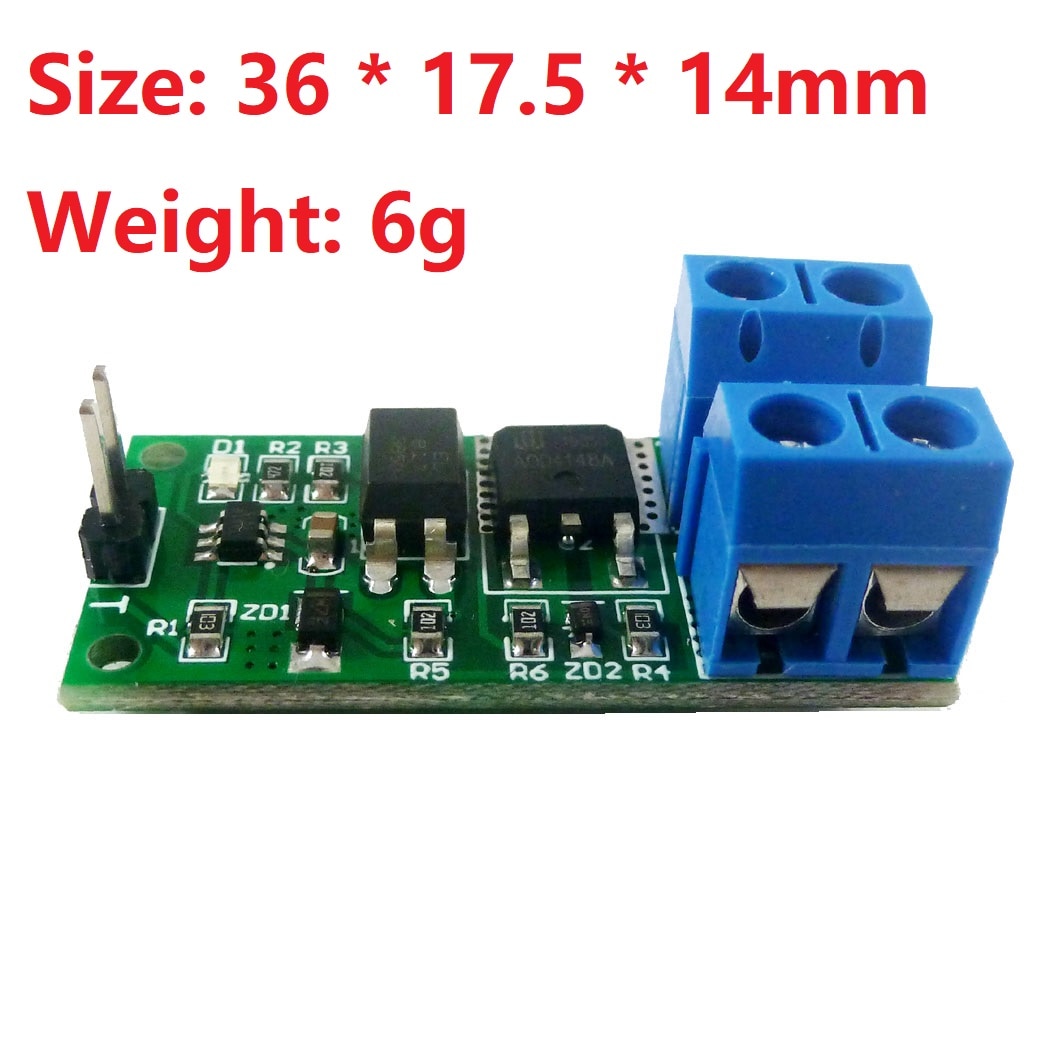

Size: 36 * 17.5 * 14mm
Weight: 6g

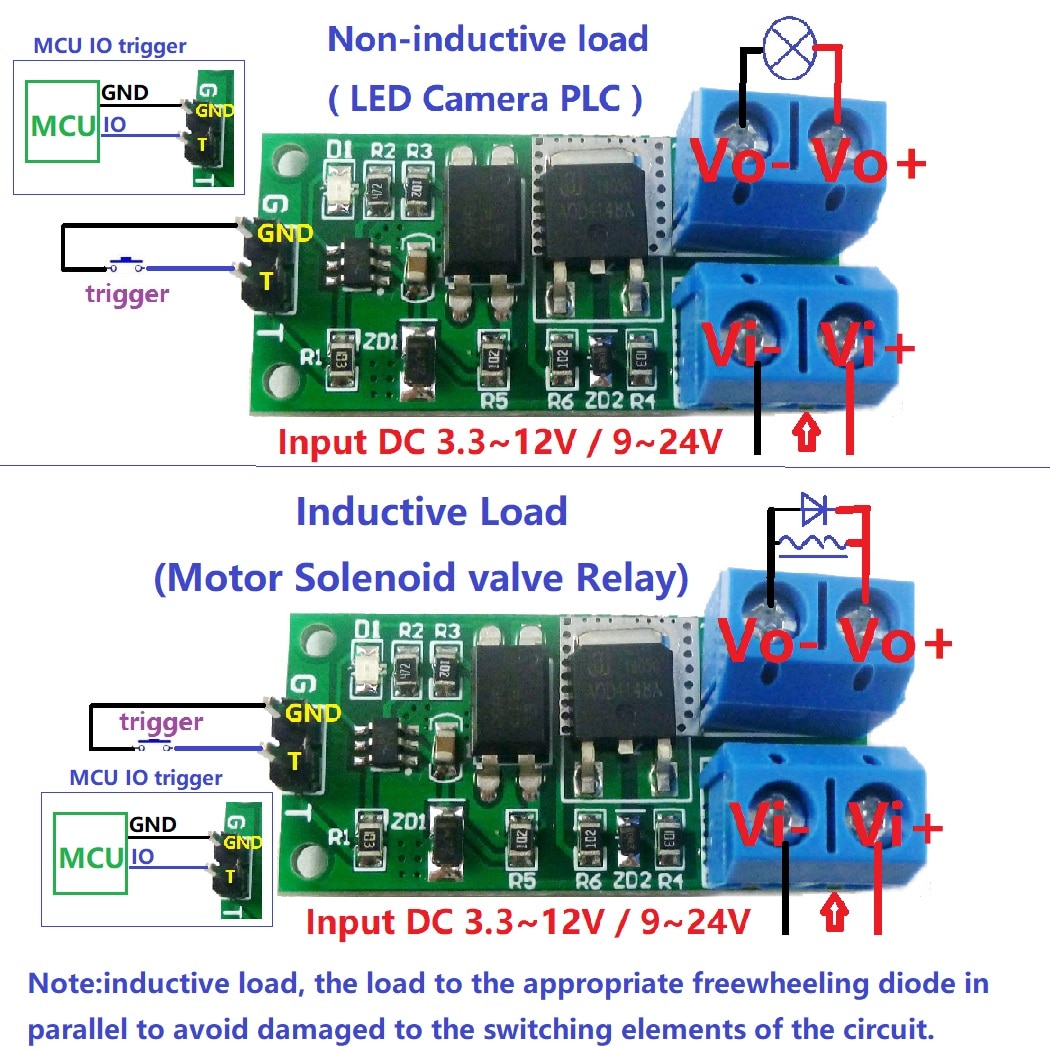

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.
?
Pin description:
?
Vi+:Power Input +;
Vi- :Power Input -;
Vo+:Power Output +;
Vo- :Power Output -;
G:trigger signal input? ground;
T:trigger signal input terminal(0.2-2 second low pulse trigger).
?
Applications:
?
Self-locking electronic switch
ARM MCU Development Board
Motor/Relay /Solenoid valve
IP PTZ camera
esp8266 WIFI Router MODULE
315M 433M Wireless remote controller
PLC MODBUS Device

Packing list:1 PCS?? IO95A01 9-24V 8A LED Motor Flip-Flop Latch Switch Module
