2PCS DC 6V-24V Flip-Flop Latch Relay Module Bistable Self-locking Switch

2PCS DC 6V-24V Flip-Flop Latch Relay Module Bistable Self-locking Switch

Price	$29.51
	Collect 29 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:
?
Working voltage: DC 6-24V
Working current: 60-71MA
Standby current: 2UA
Load current : AC 250V/10A, DC 30V/10A
Trigger mode: Low pulse trigger
Size: 48mm * 16mm? * 18.5mm (L * W * H),? Very small size
Weight: 14.3 g
?
This is a bistable (self-locking) relay module,Trigger once, the relay pull (and holds);Trigger again, the relay releases (and holds)
?

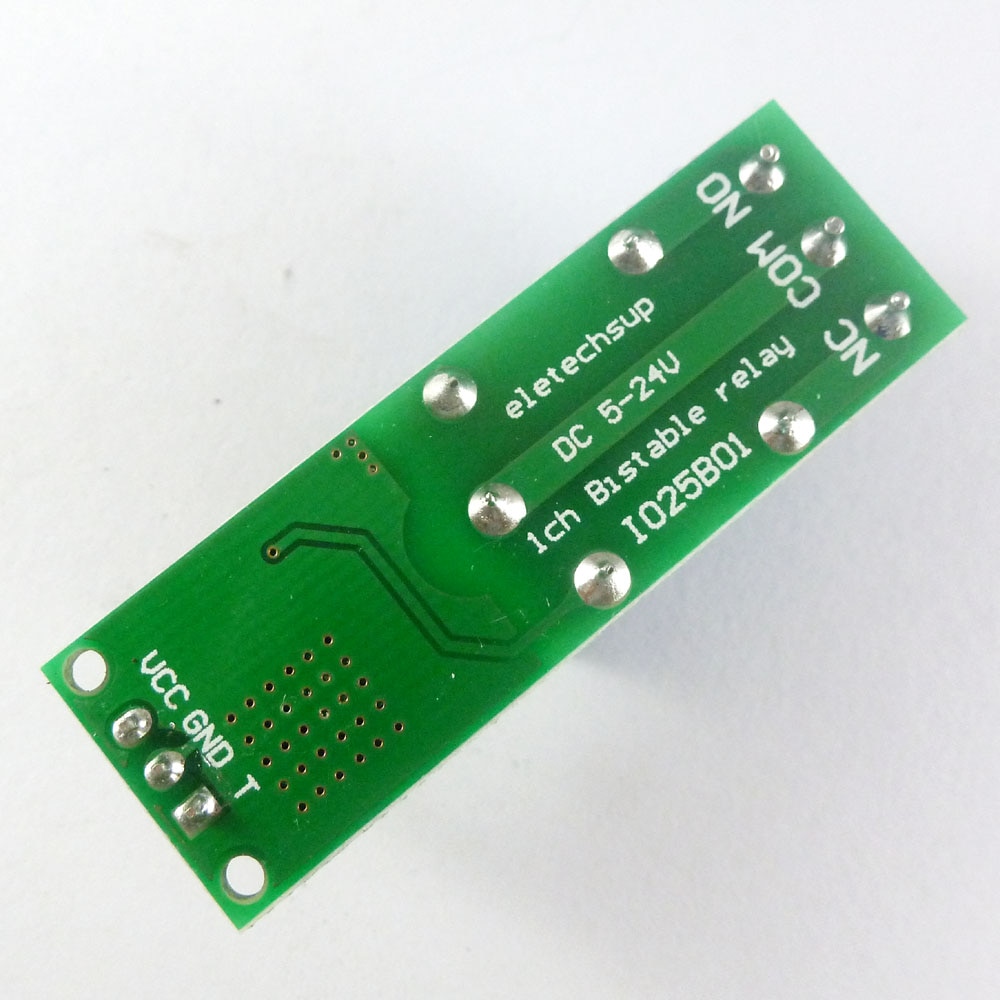

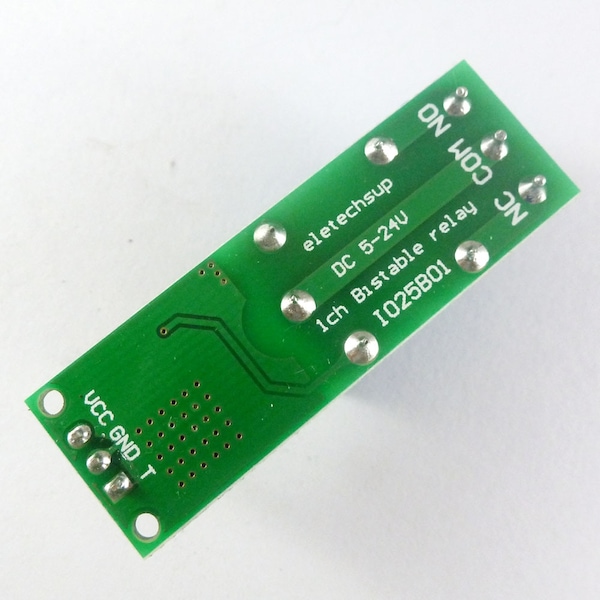

Module interface:
1. VCC: positive power supply (VCC)
2. GND: negative power supply (GND)
3. T? : Low pulse trigger
?
Relay outputs:
1. NO: normally open relay interface
2. COM: Common Interface Relays
3. NC: normally closed relay interface
?

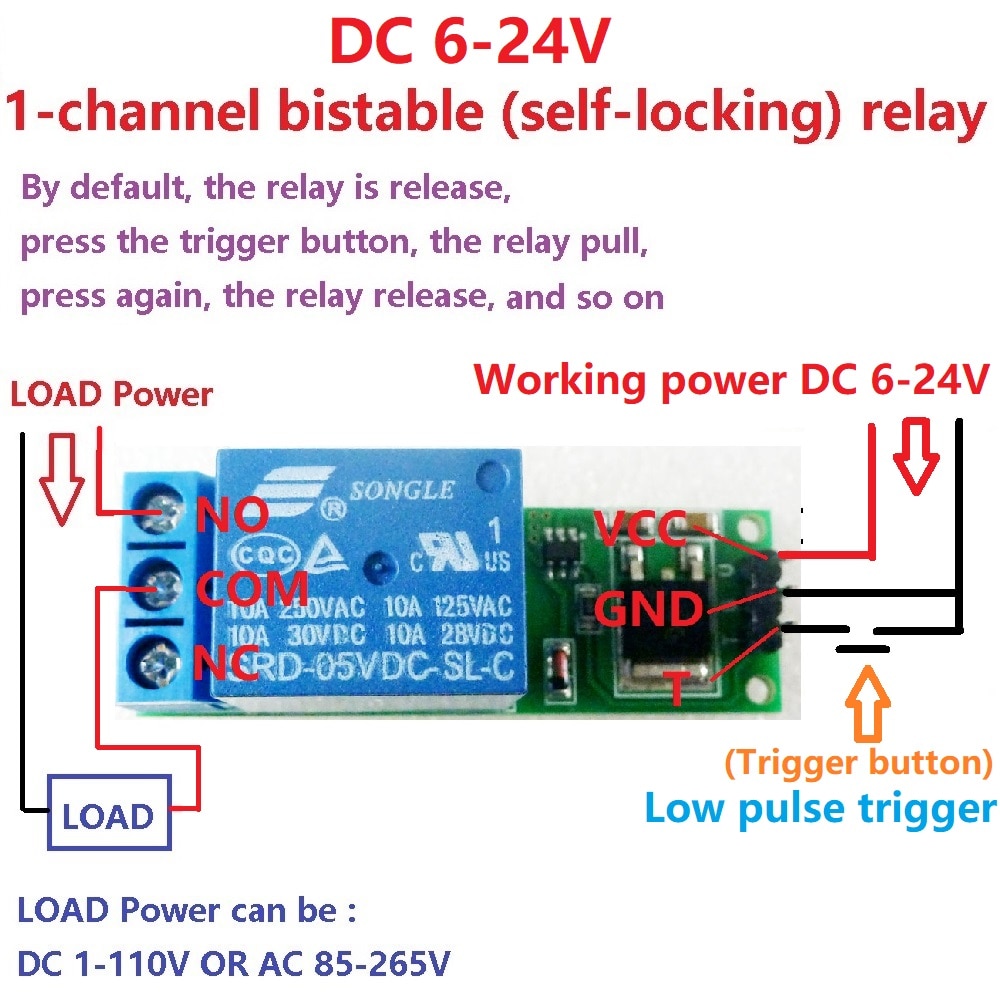

USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on
?
Typical applications:
Automotive electronics
Industrial equipment
Motor
LED
Smart Home
Emergency lighting
MCU development board
Toy car

Packing list:2 pcs1 Channel DC 6V 9V 12V 24V Self-locking Relay Module
