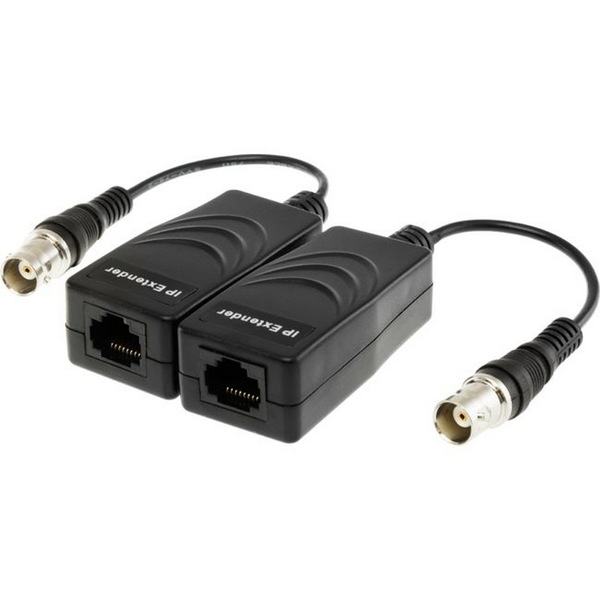

DOSS IP Single Over Coaxical Extender Passive Pair Bandwidth 10Mbps 200m Range

DOSS IP Single Over Coaxical Extender Passive Pair Bandwidth 10Mbps 200m Range

Price	$53.90
	Collect 159 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	See delivery details

Quantity

Add to wishlist

Product Features:

1-CH IP extender over coax cable
Transmit Ethernet signal over coax cable
Transmission distance max up to 2 00m
Access Control Method and Physical Layer Specification Comply with IEEE802.3,10BASE-T and 100BASE-T
Passive device, no power required
Real-time transmission
Built-in TVS for surge protection
Compact size, easy to install
ABS engineering housing

Product Overview:

IPOC200 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal200 meters over coax cable without extra power provided. Built-in TVS for surge protection help IPOC200 can protect interior equipment when encounter badly thunderstorms from. As for the application area IPOC200 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the field of transmitting Ethernet signal over coax cable.

Applications:

Security Monitoring System
Triple-Play Transmission Solutions
Intelligent Home System
Industrial Control System
Banking Security
School Security
Store Security

Technical Specifications:

Model	IPOC200
Product Name	Single Channel IP Extender over Coax
Applied Devices	PoE Switch, Network DVR, Video Codec, Other Network Equipments
Video	Ethernet Port	10/100 Mbps
Impedance	UTP:100 ohm coax:75 ohm
Distance	Up to 200m(100Mbps)
Power	No Extra Power Needed
Connector	Video Port	RJ45 (Female)
Video Port	BNC (Female)
Protection Level	Surge Protection Type	RenewableSolid Surge Protection
Coaxial Surge Protection	2KV(Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Twisted Pair Interface Surge Protection	2KV(Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)
Operating Environment	OperatingTemperature	-20-85 ?
Storage Temperature	0~95%
Humidity	115mm82mm22mm
Physical Properties	Dimension(LengthWidthHeight)	ABS Engineering Plastic
Housing	Black
Color	90g
Weight	>20000h
Reliability	MTBF

Diagram:

Specifications:

12 Months

GTIN: 9328202016577
