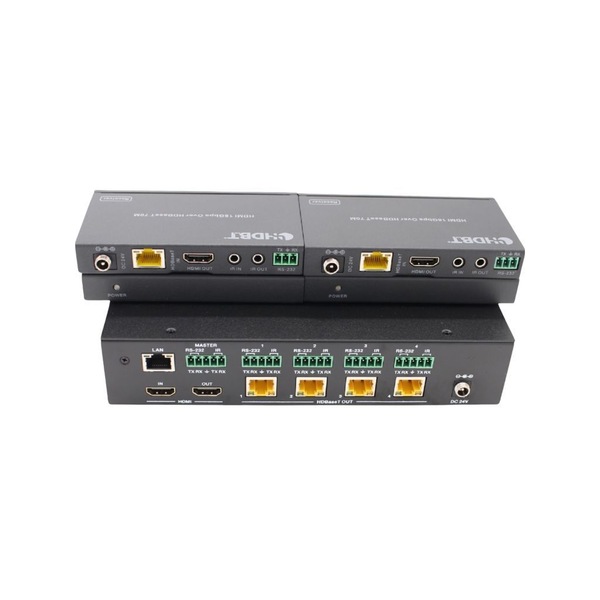

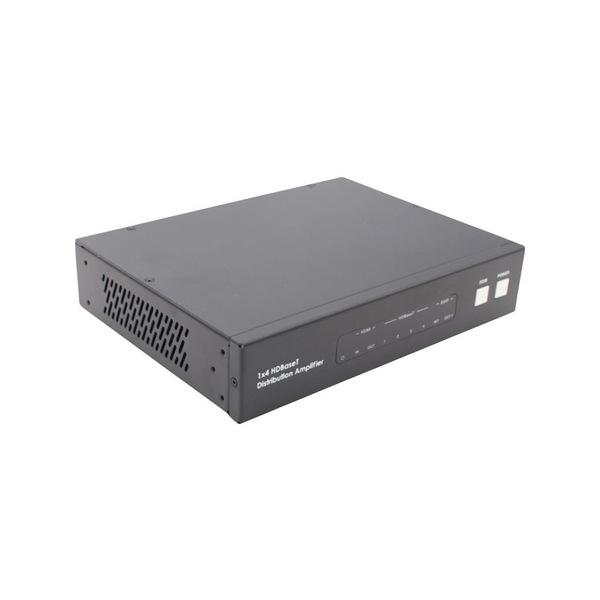

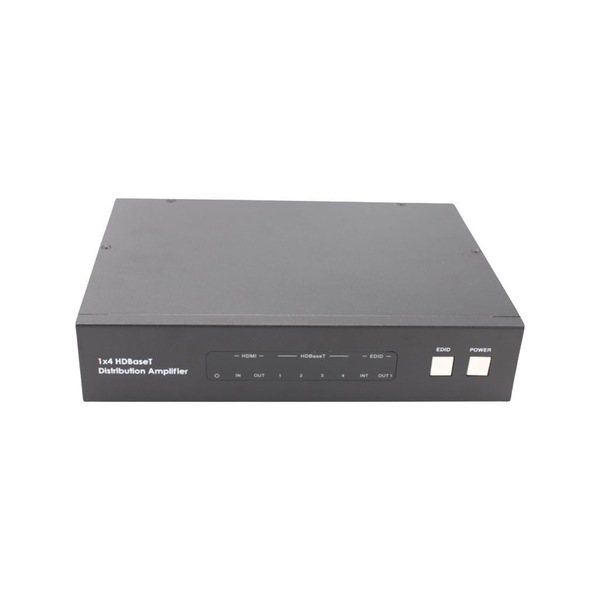

HDMI 2.0 18GBPS 4 Way HDBaseT Matrix Splitter Extender

Extends 4 x 18GBPS HDMI Outputs up to 70m in range

This 4 Way HDMI 2.0 18GBPS Splitter is capable of splitting an 18GBPS HDMI Signal to 4 HDMI displays via HDBaseT up to 70m in range. Perfect for Distributing 4K 2160p AV via Cat 6 cable through to other LCD/TV's around the house. Perfect for a high end AV set up in your home, office, pubs abd clus. Suitable for newer 4K HDMI devices such as PS4 Pro, XBOX S One, Foxtel IQ4, etc.

It supports the transmission of video resolution up to 4K×2K @ 60Hz Ultra HD YUV4:4:4 and supports high resolution digital audio formats such as LPCM 7.1CH,Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio.

Features

- HDMI 2.0b, HDCP 2.2 compliant.

- Up to 4K2K @ 60Hz (4:4:4) 18Gbps.

- Supports all HDMI audio formats pass-through.

- HDBaseT up to 230ft/70m through a single Cat6/6a cable

- RS-232 and two-way IR supported

- Local HDMI loop out for cascading usage

- 24V POC on all HDBaseT ports

- Transmission distance: ※Over CAT6 cable

70 meters: 1080P @ 60Hz 36bit;

40 meters: 1080P @ 60Hz @ 48bit; 1080P @ 120Hz @ 24bit;

4K2K @ 50/60Hz (YUV420), 4K2K @ 50/60Hz (YUV444)

- POC (Power over Cable), either TX or RX is powered by one 24V@2.7A power supply.

※ See the description 1

- Bi-directional infrared control signal transmission.

※ See the description 2

- Bi-directional RS-232 signal transmission.

※ See the description 3

Specifications:

HDMI Compliance - HDMI 2.0b

HDCP Compliance - HDCP 2.2

Video Bandwidth - 594MHz[18Gbps]

Video Resolutions - up to 4K 60Hz, 1080P @ 60Hz

Color Depth - 10-bit, 12-bit

Color Space - RGB / YCbCr 4:4:4, YCbCr 4:2:2

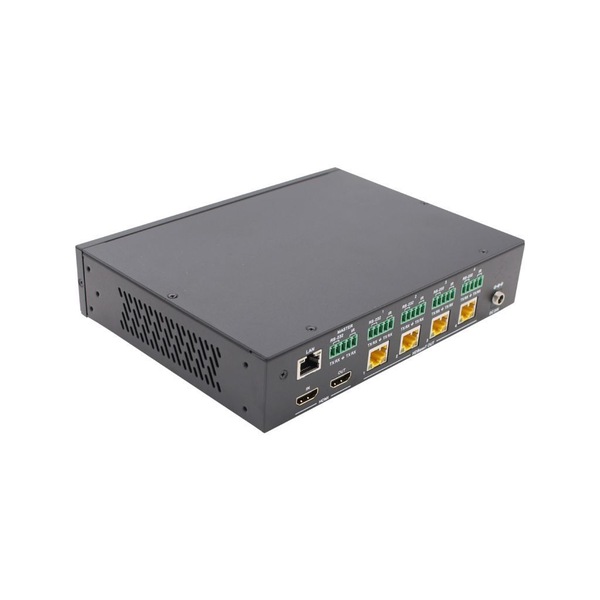

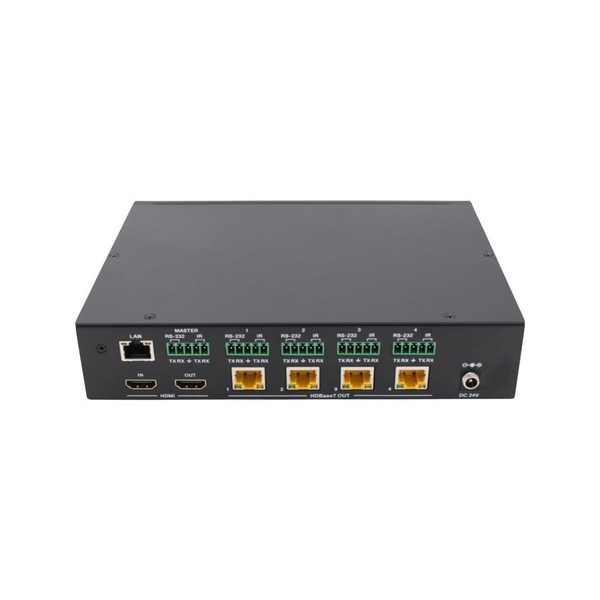

Transmitter - Input ports: 1 x HDMI Type A [19-pin female]

5 x IR INPUT [Phoenix jack]

Output ports: 1 x HDMI Type A [19-pin female]

5 x RS-232 [Phoenix jack]

5 x IR OUTPUT [Phoenix jack]

4 x HDBaseT Out [RJ45]

1 x LAN [RJ45, Control]

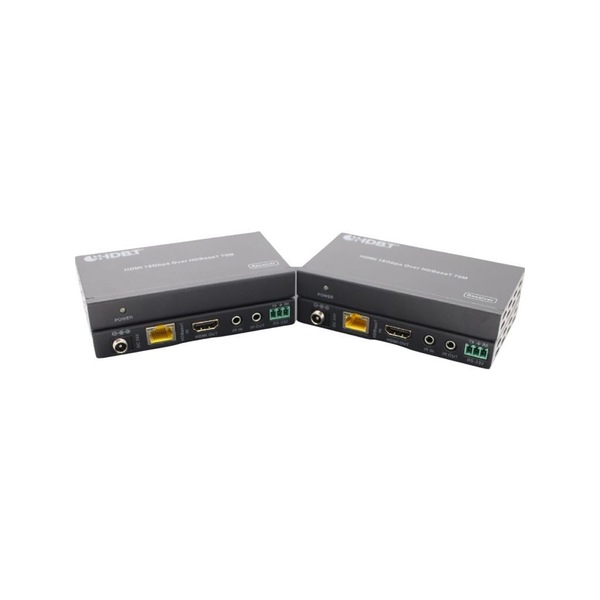

Receiver - Input ports: 1 × HDBaseT In [RJ45]

1 × IR In [3.5mm Stereo Mini-jack]

Output ports: 1 × HDMI Type A [19-pin female]

1 × IR Out [3.5mm Stereo Mini-jack]

1 × RS-232 [Phoenix connector]

Mechanical

Housing - Metal Enclosure

Color - Black

Dimensions TX: 210mm (W) × 159mm (D) × 44mm (H) , RX: 115mm (W) x 65mm (D) x 17mm (H)

Weight - TX: 1.19kg, RX: 206g

Power Supply - Input: AC100~240V 50/60Hz, Output: DC24V/2.7A

Power Consumption - 40W

Operating Temperature - 0°C ~ 40°C / 32°F ~ 104°F

Storage Temperature - -20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity - 20~90% RH (non-condensing)

Specifications:

12 Month Warranty

GTIN: 9351634014637
