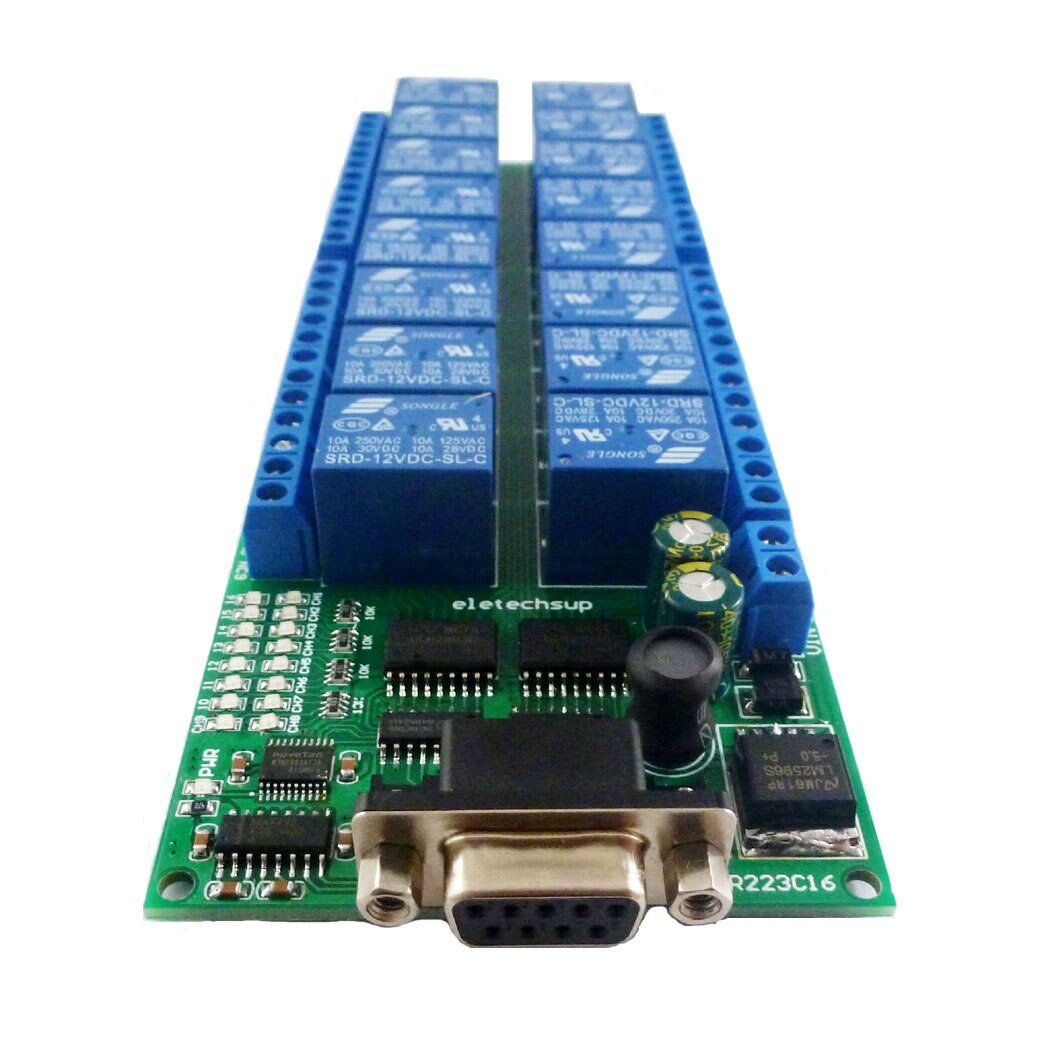

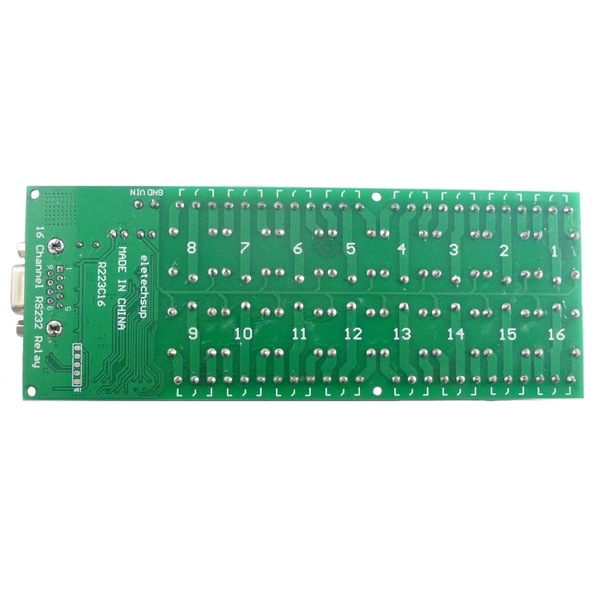

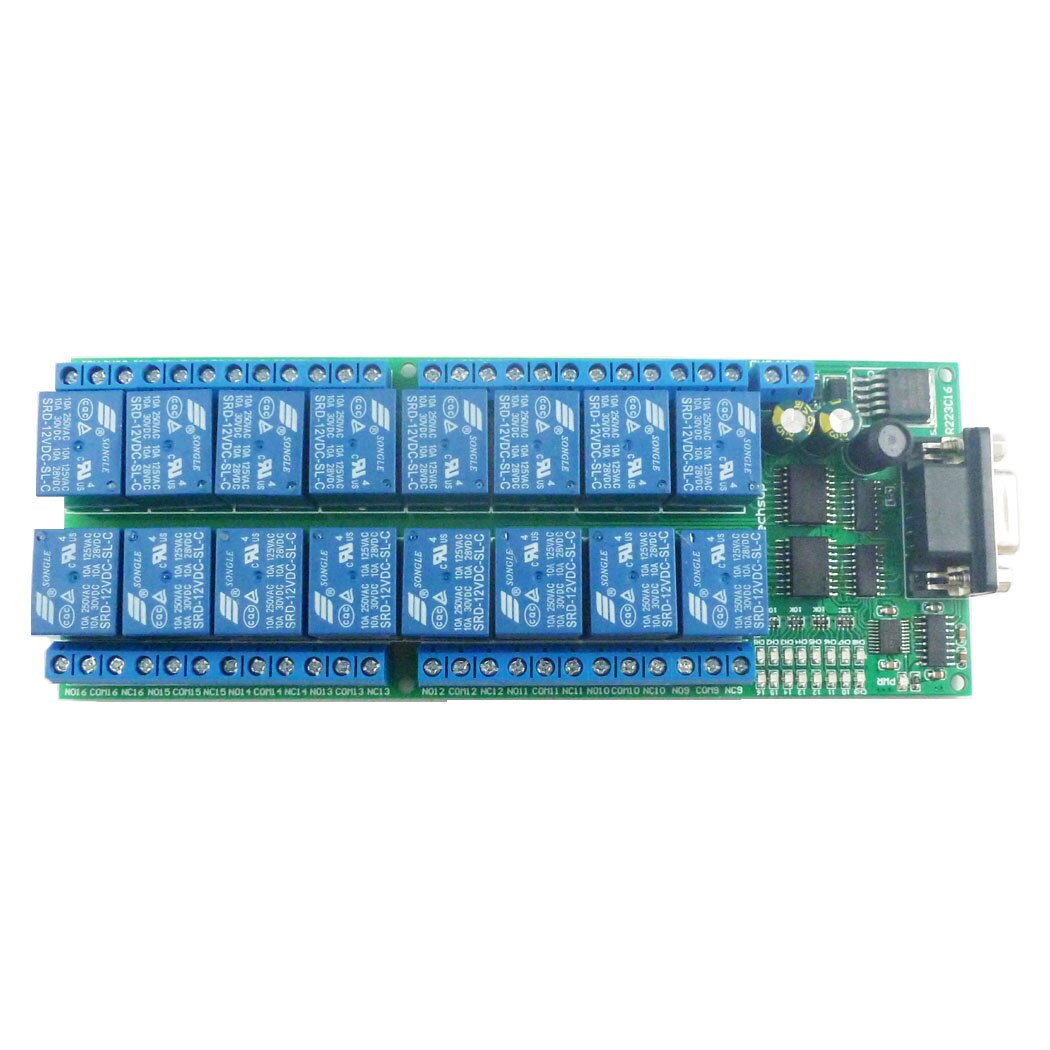

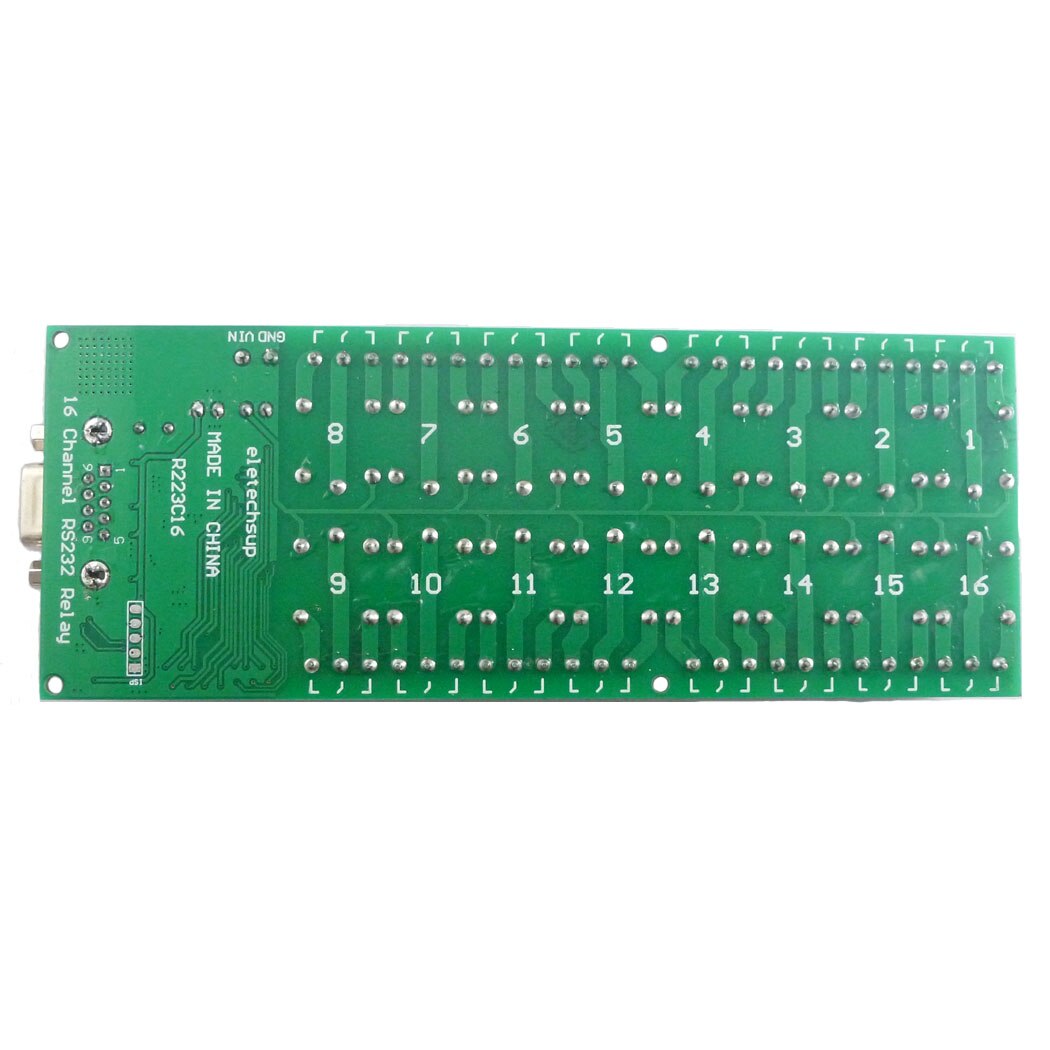

16ch DC 12V Serial Port DB9 UART RS232 Relay Module

16ch DC 12V Serial Port DB9 UART RS232 Relay Module

Price	$61.97
	Collect 61 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1: DC 12V power supply.
2: Standby current (all relays closed) 18MA, 1 relay open 46MA, 2 relays open 73MA, 3 relays open 100MA,4 relays open 126MA,5 relays open 153MA,6 relays open 179MA, 7 relays open 204MA,8 relays open 230MA��
3: ''Open'' ''Close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay''(Only AT command)? ''All Relays Open'' ''All Relays Close'' 8 Commands
4: Two kinds of commands: AT command and 8-byte command, the two commands are automatically recognized, no need to switch.
5: Under the ''Delay'' command ,the maximum delay is 9999 seconds(Only AT command)

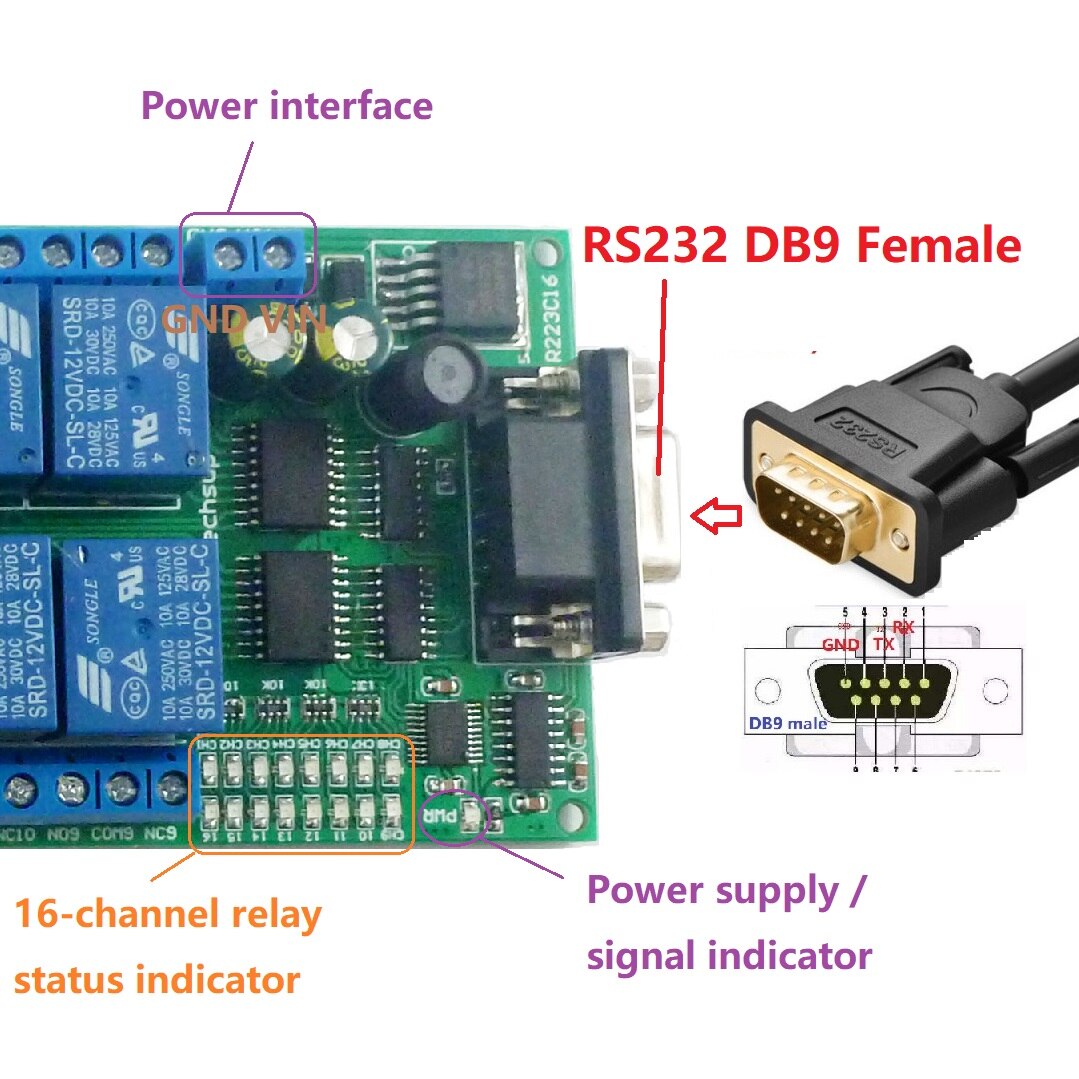

6:Output indication : relay output with LED indicators,easy to see working status of the relay;
7:Baud rate 9600kbps, 8 data bits, one stop bit, no parity.
8 Size: 172 * 65 * 19mm
9 Weight: 228 g

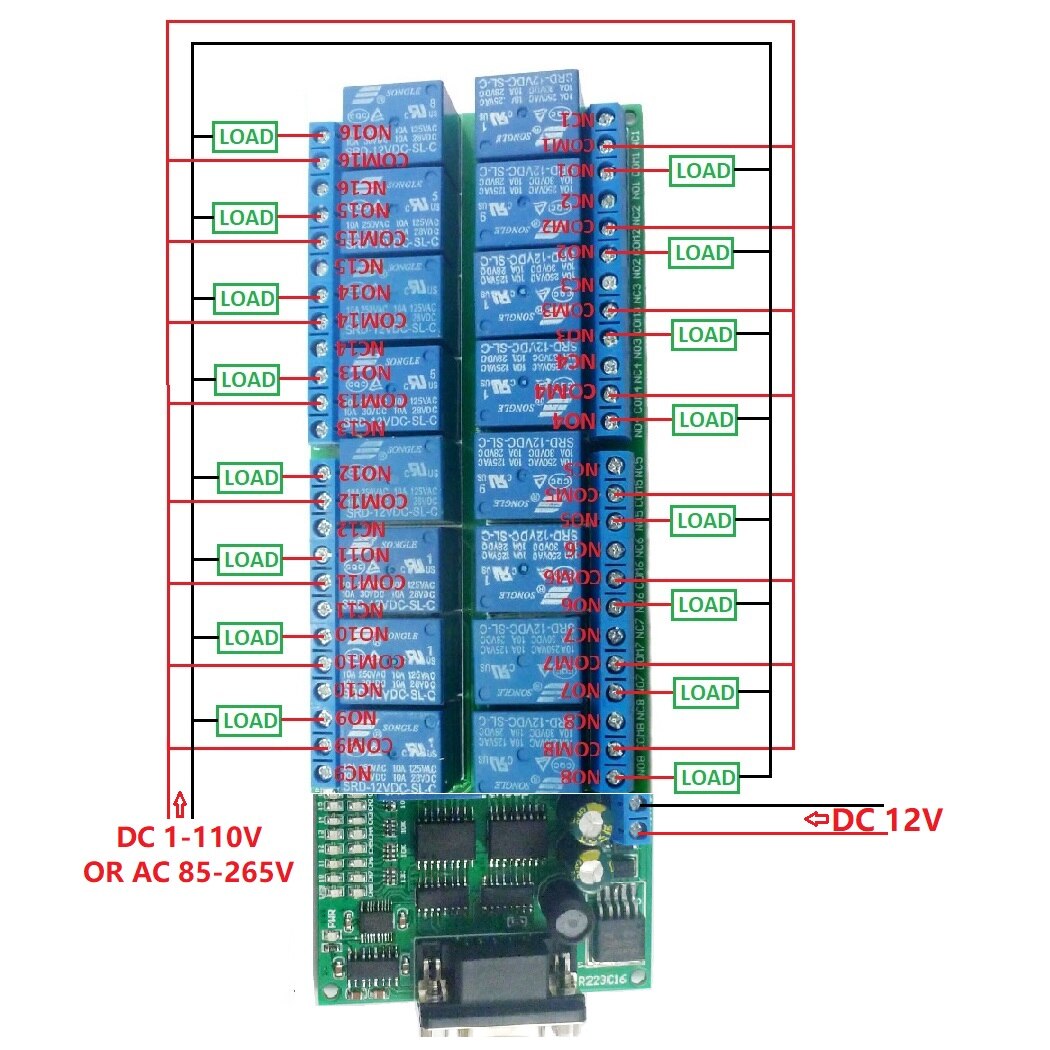

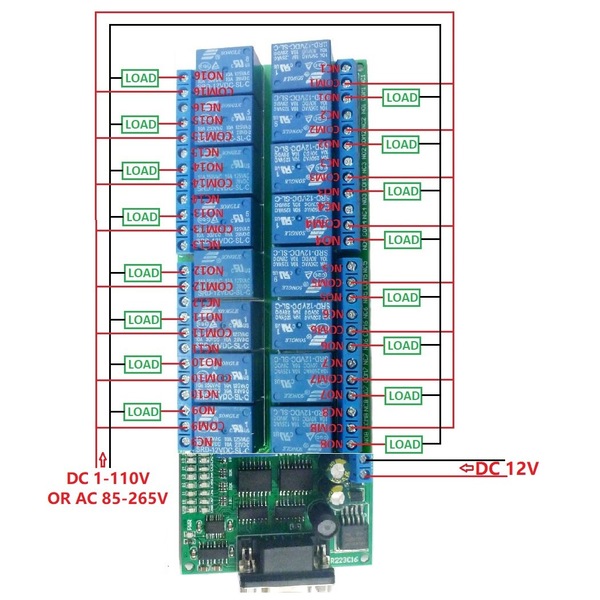

10 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Application

Remote control, remote measurement system;
Wireless meter;
Smart Home,Home Automation ,Wiser Home;
Access control;
Identification system;
Data collection;
IT household appliance;
Intelligence household appliance;
Baby monitoring system;

Package inlcuded:1 xR223C16DC 12V 16Ch RS232 Relay Board

GTIN: 774048924832

Shipping Details

Please note it will need about 12~20days for the delivery!

Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.

Thank you for your understanding!

Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.

Warranty policies: Our products have 180 days warranty.
