Description:

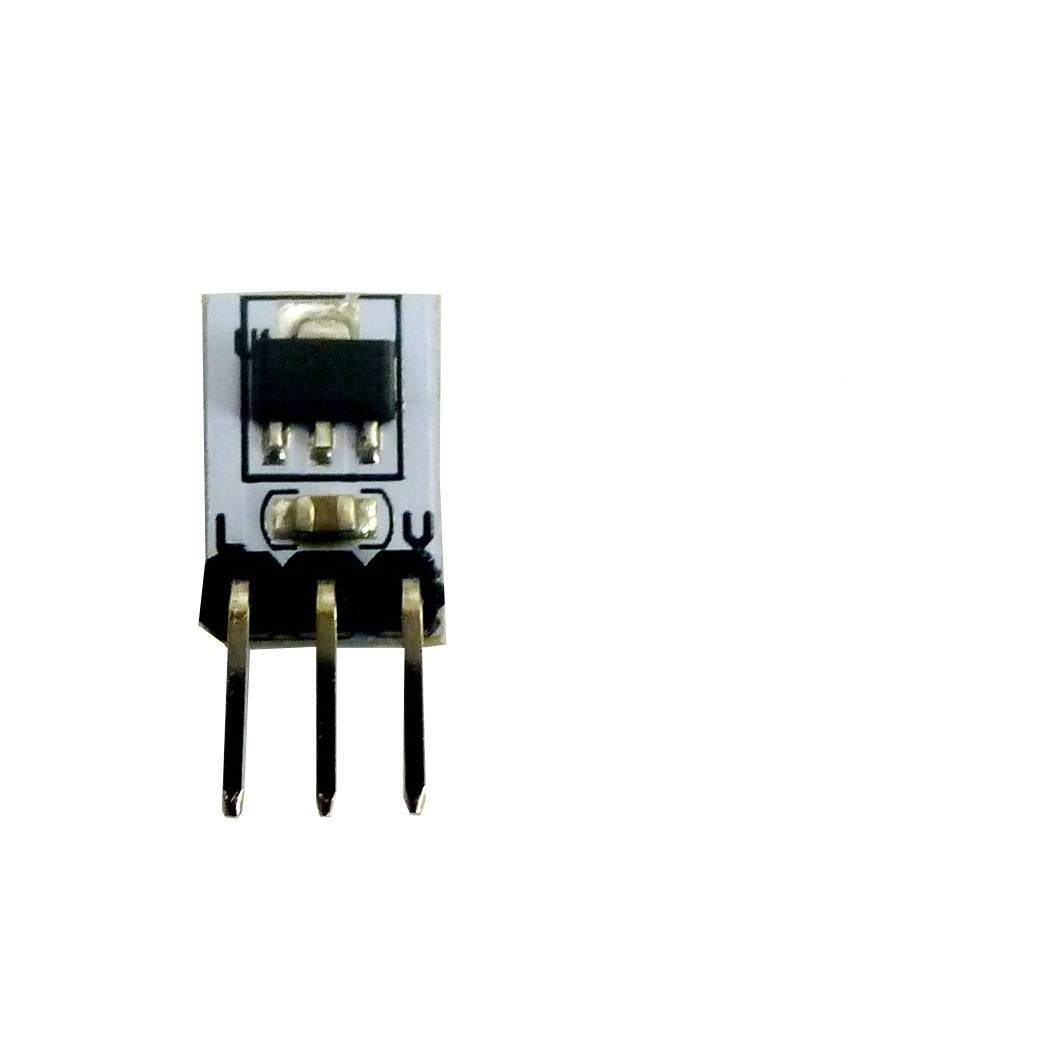

LDC350MA is a low dropout current regulator rated for 260mA constant sink current.
It is very small, very thin, and can be easily embedded in various electronic products.
Supply voltage range:2.7V~6.0V(With LDO or Zener diode, it can drive 6-24V LED) ;

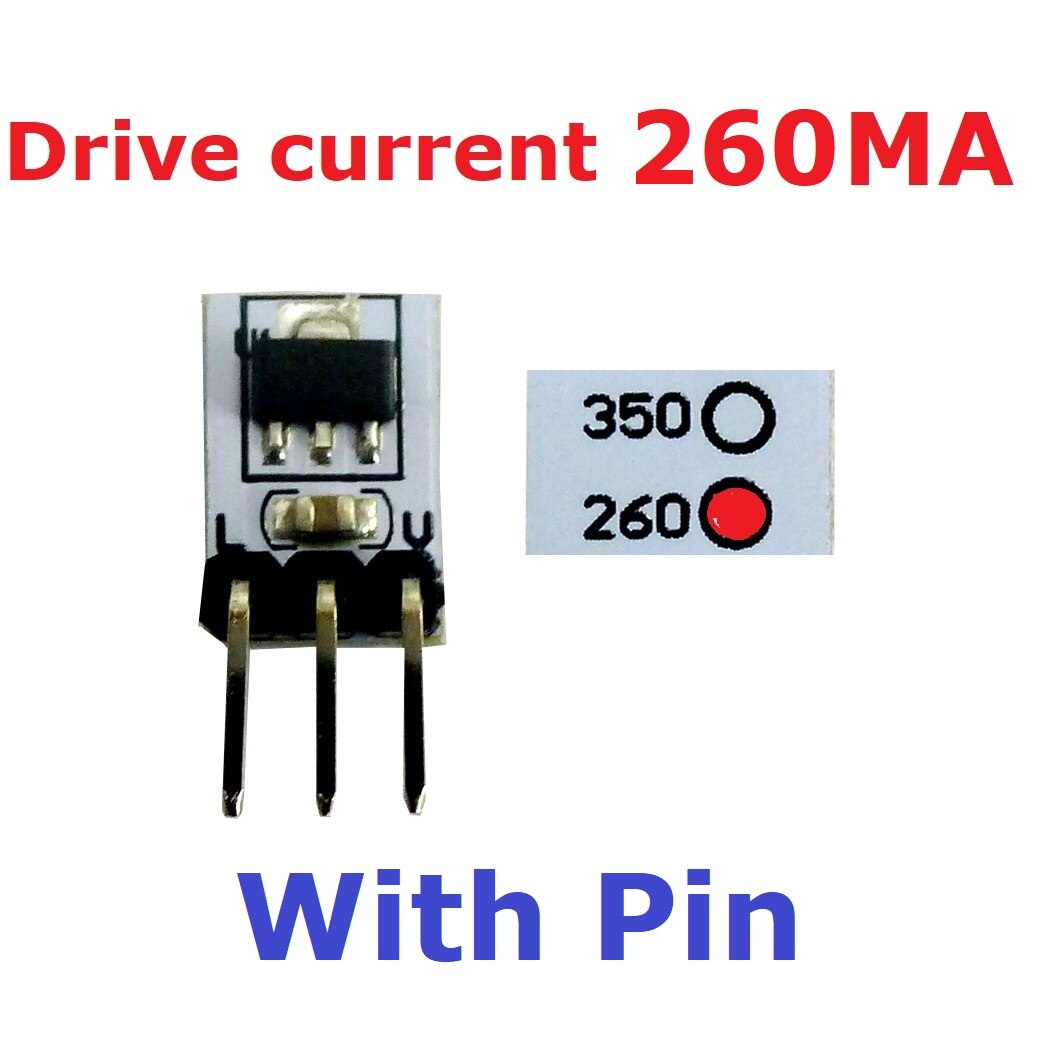

Output Current: 260mA(Can be used in parallel to drive 350-3500MA LED)
Quiescent current : 90uA
Low dropout voltage : 130MV
Output dropout voltage: 90% x Iout @Vout=200mv
Operating ambient temperature : -40�� to +85��
Storage temperature : -65�� to +125��
Does not include pin size : 11.5 x 7.62 x 2.6mm(Very small and very thin)
Weight : 0.5g(with Pin)

There are multiple wiring methods:

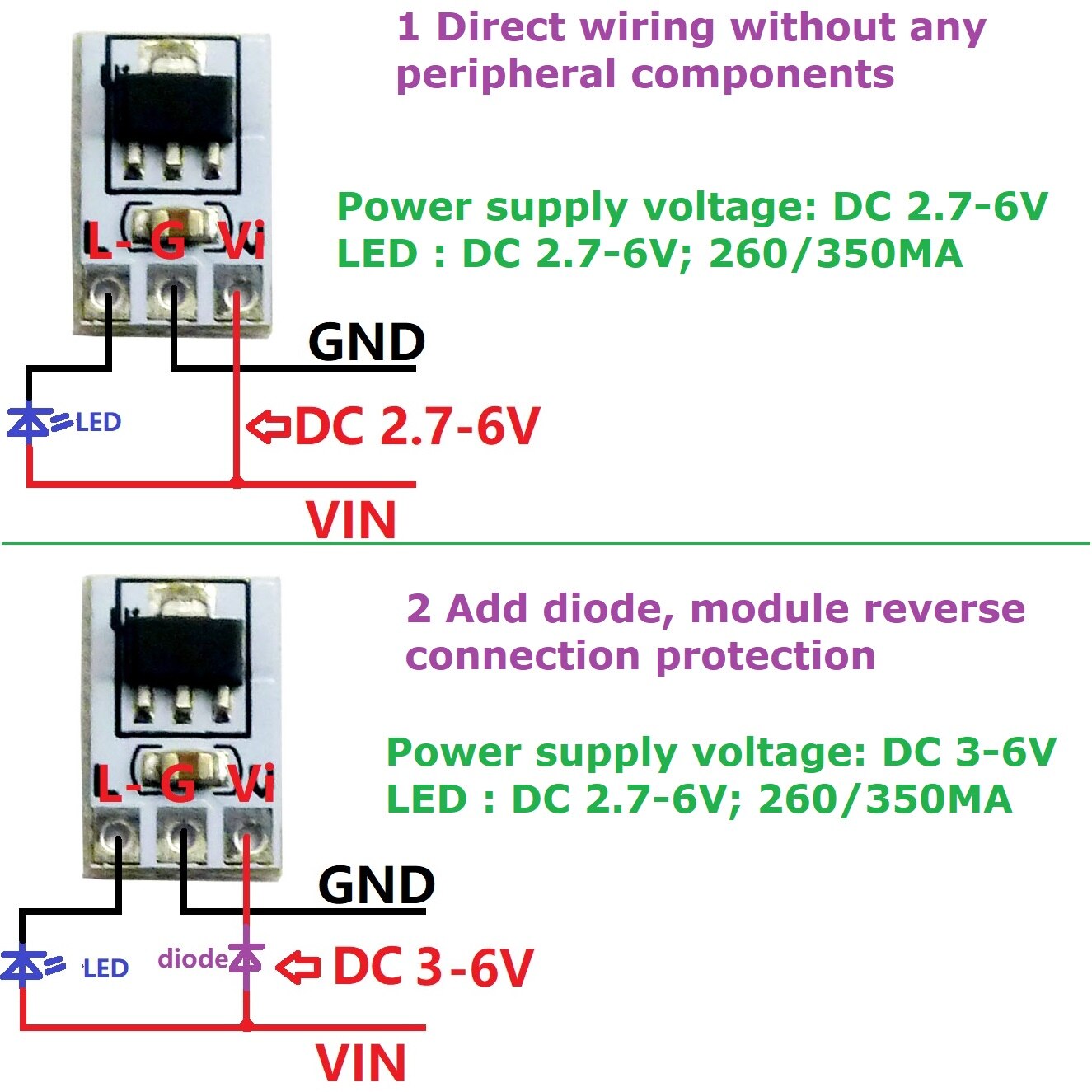

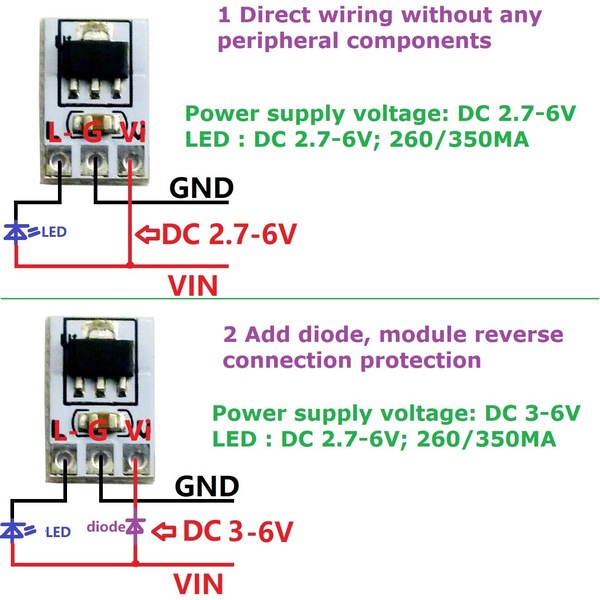

1 Typical application circuit without any components
2 Anti-reverse battery LED drive circuit

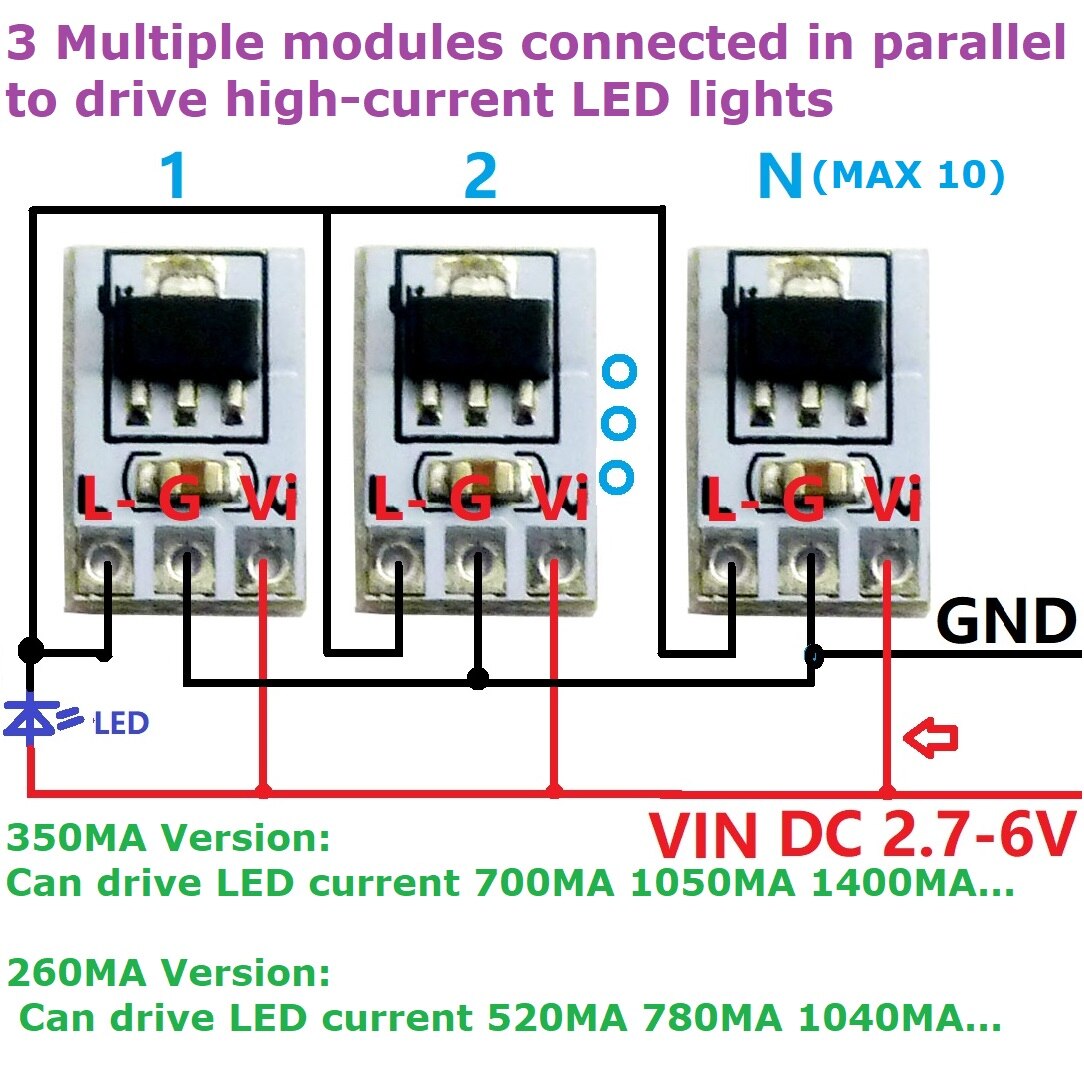

3 Multiple LDC350MA drive circuits in parallel(750-1050MA)

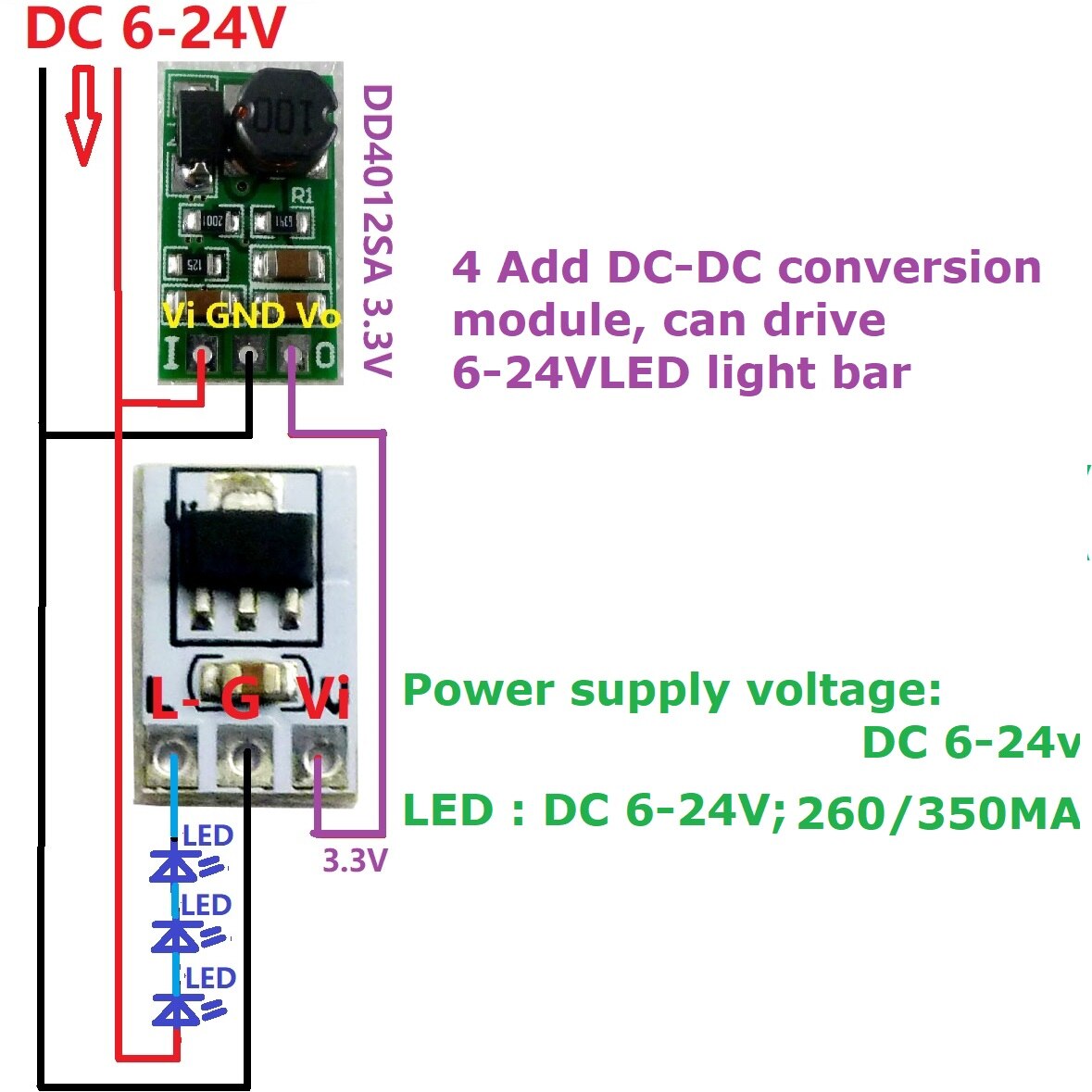

4 Input 12V to drive 3 white LEDs in series
5 Use in parallel and series.

Packing list:10 PCS2.7V~6.0V260mA constant sink current LED driverModule
