0.7-5V to 3.3 DC Boost Converter voltage Step-up Module no pin

0.7-5V to 3.3 DC Boost Converter voltage Step-up Module no pin

Price	$24.13
	Collect 24 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

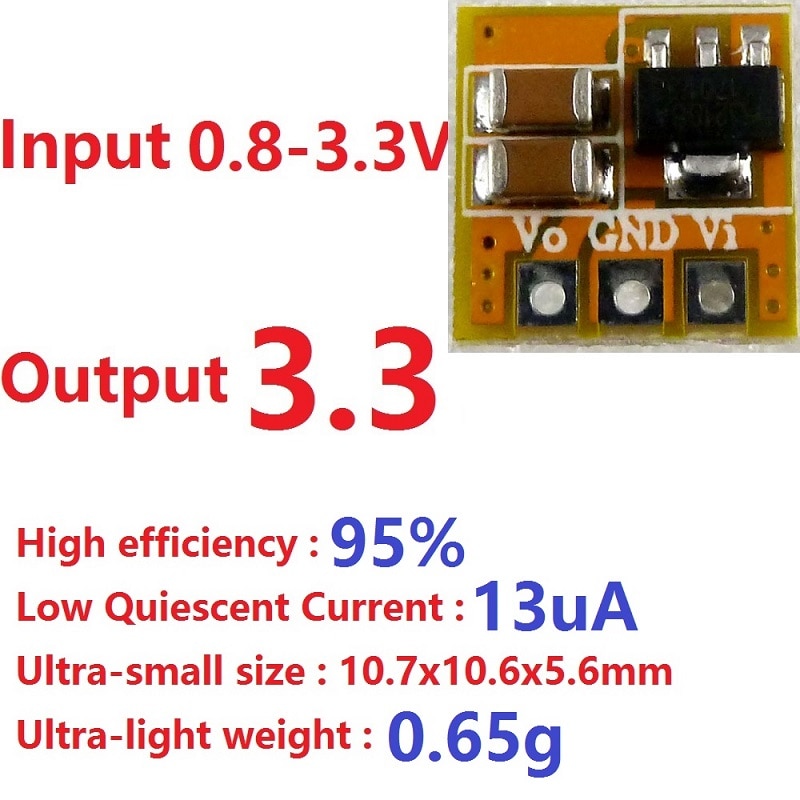

Description:

3.3V :?

Input voltage DC 0.8 ~ 3.3V,output DC 3.3V��2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : 95% (usually is 75%-93%)
Low Quiescent Current : 13uA
Low ripple and Low noise

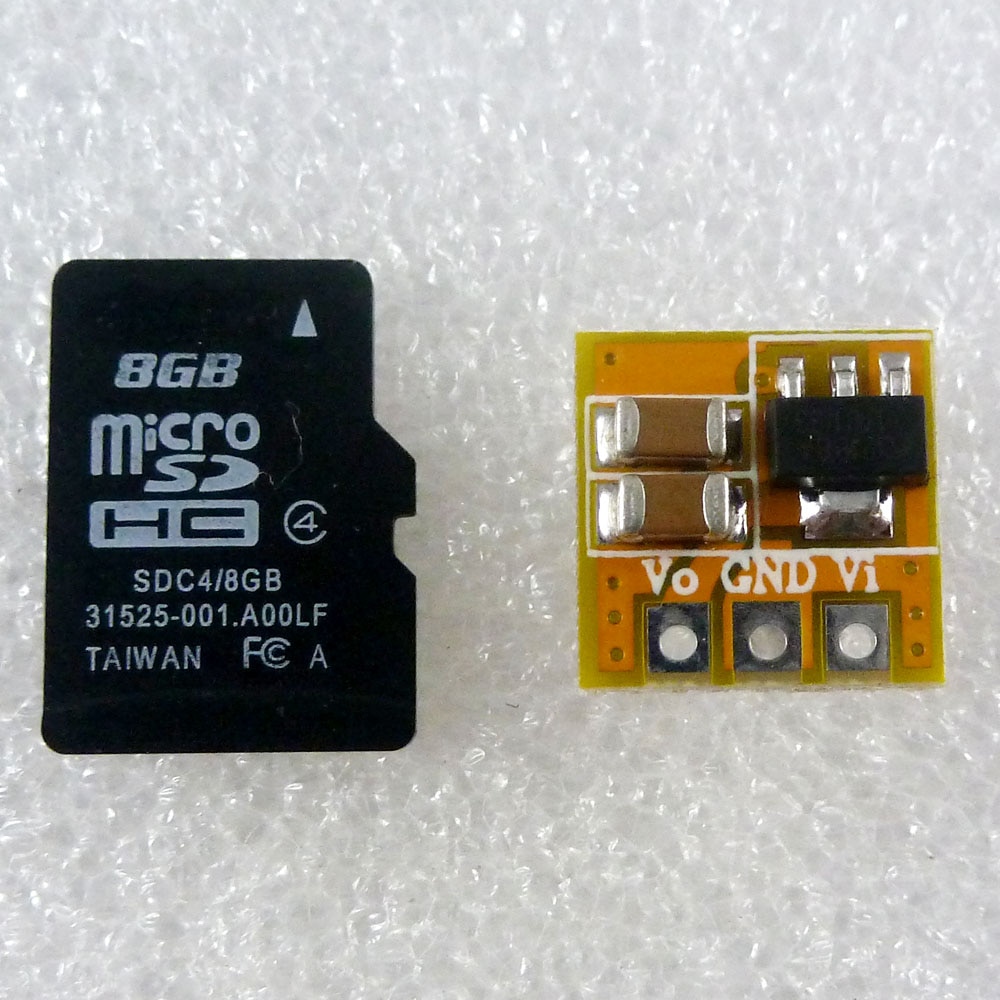

Ultra-small size (Not including pin): 10.7x10.6x5.6mm
Ultra-light weight :? with Pin is 0.9g,no Pin is 0.65g
DD0405MA_3V3_3

This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
??
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low

Applications:
AA AAA Dry cell powered equipment
Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
raspberry pi Arduino UNO MEGA2560
electronic diy kit
STM32 FPGA/CPLD PIC AVR Board
electronic diy kit
Wifi Module,ESP8266
Bluetooth Module,HC-05,HC-06,SPP-C

Shipping Details

Please note it will need about 12~20days for the delivery!

Delivery times are as provided by our carriers and are estimates only. Delays may occur during peak periods, and due to factors outside the carriers control.

Thank you for your understanding!

Return policies :We 100% support our customers, If you are not satisfied or you have any problem with our products, please CONTACT US at once. We will help you free return the goods.

Warranty policies: Our products have 180 days warranty.
