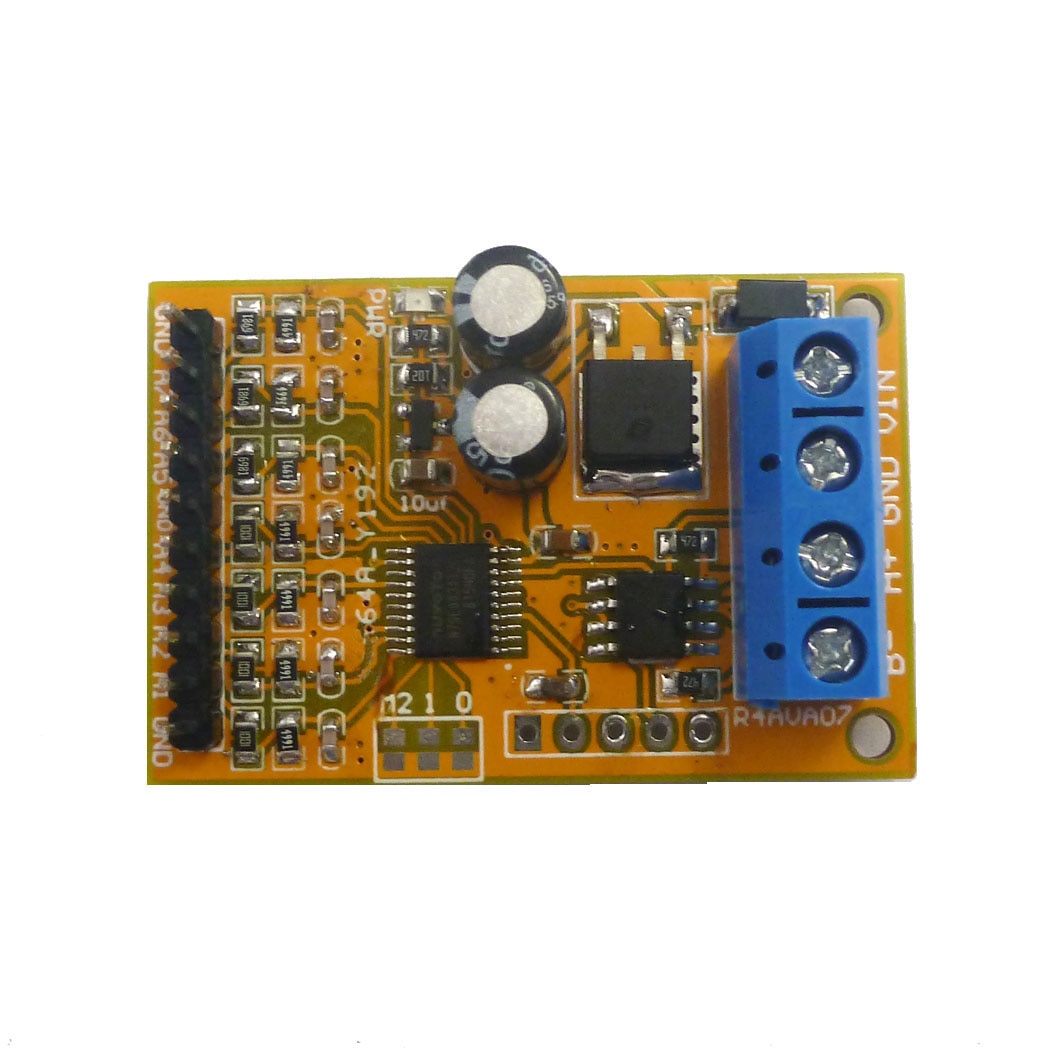

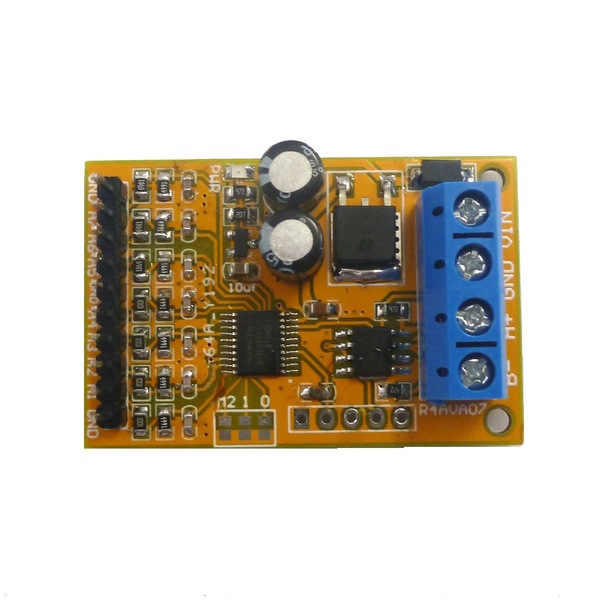

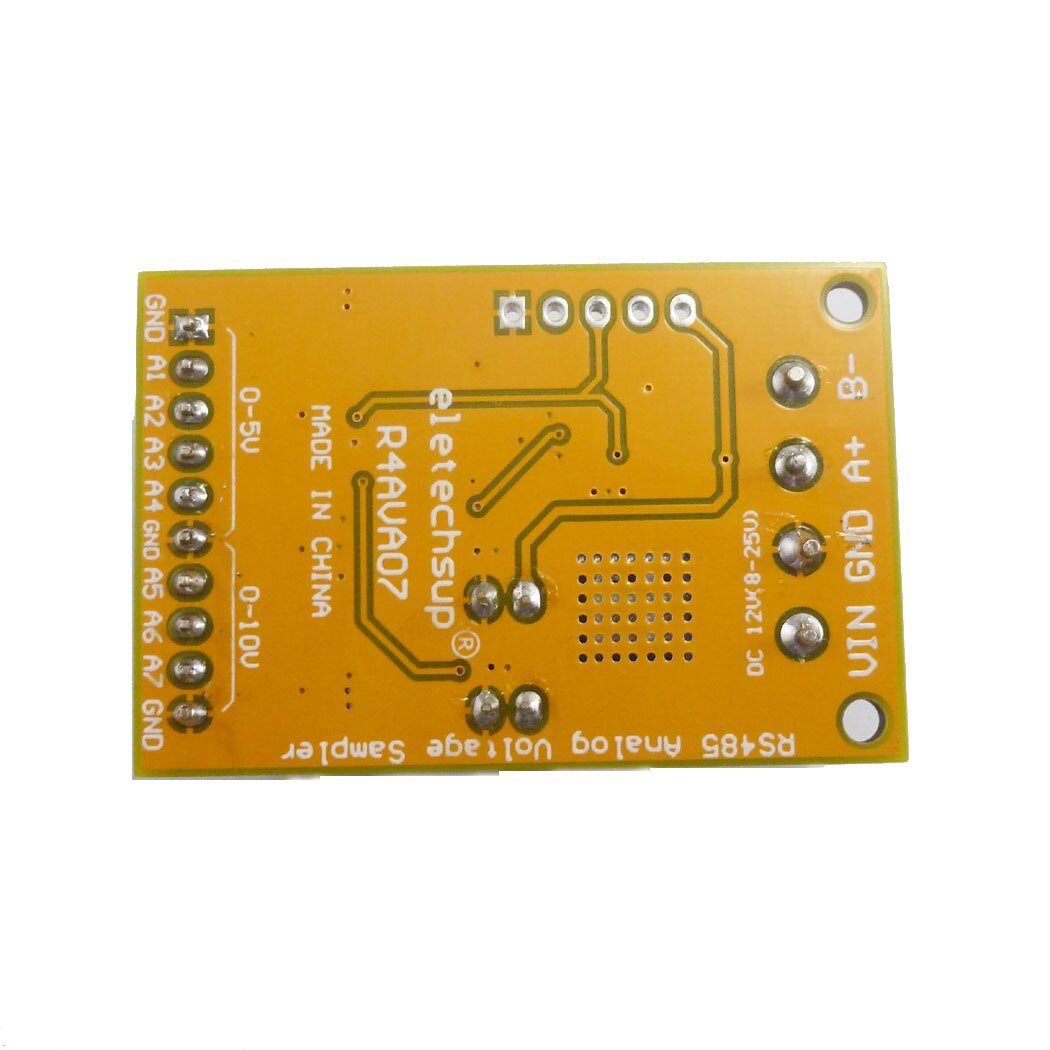

0-5V/0-10V 7ch Voltage Analog Acquisition RS485 Modbus RTU R4AVA07 Module

0-5V/0-10V 7ch Voltage Analog Acquisition RS485 Modbus RTU R4AVA07 Module

Price	$26.75
	Collect 26 Everyday Rewards points Plus get 2x points on every order when you spend $100+ Ends 11:59pm 26/03/2025. Exclusions & T&Cs apply Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 30/03/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 2BFLA

Quantity

Add to wishlist

Description:

1: Operating Voltage : DC 8-25V(DC 9V 12V 15V 24V)
2: Operating Current : 10-15MA
3: MODBUS RTU Command support 03 06 function code

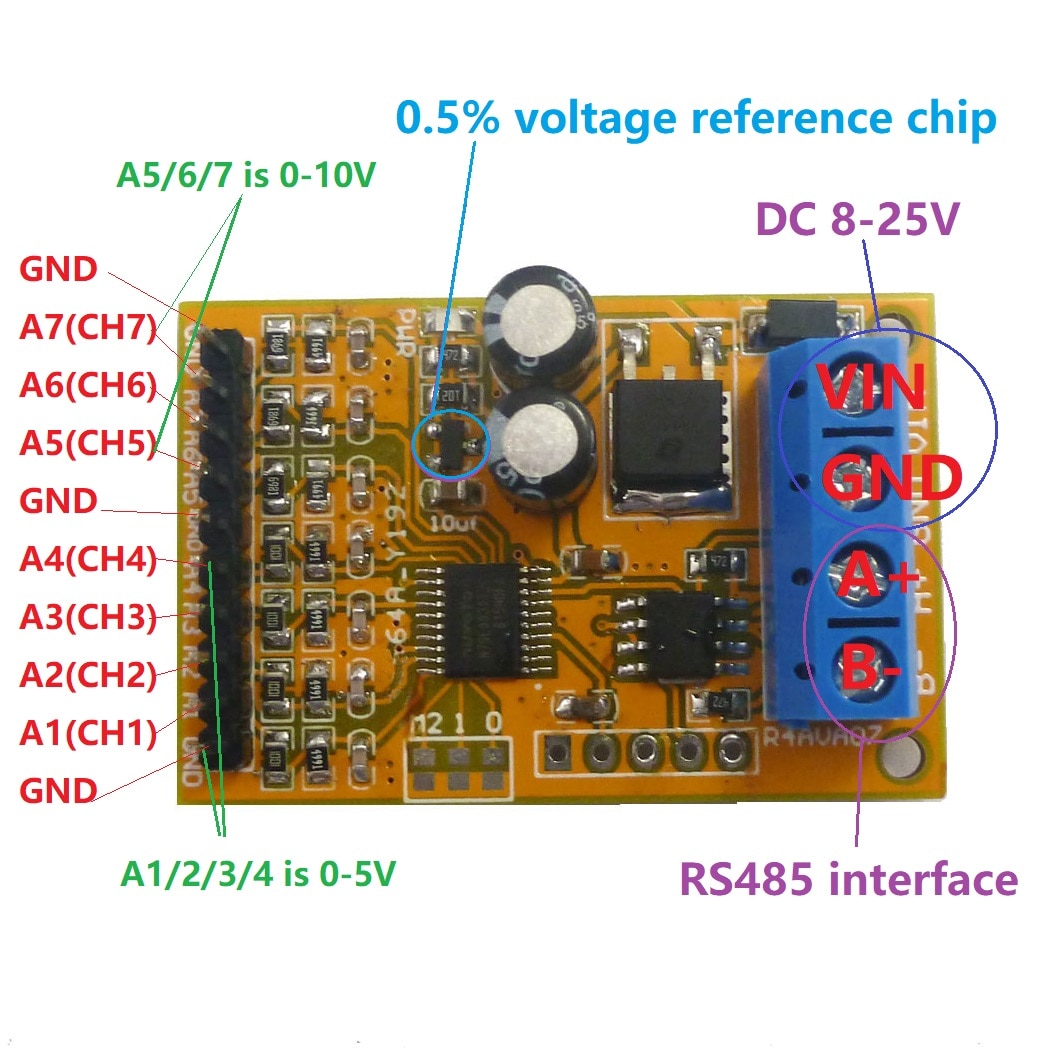

4: The A1/2/3/4 channel voltage measurement range is 0-5V, and the A5/6/7 channel voltage measurement range is 0-10V. The drive capability of the tested voltage source must be greater than 1MA, otherwise the measurement cannot be accurate (MCU IO voltage cannot be measuring)
5: Voltage measurement accuracy of 1%, calibration can be calibrated if the error is greater than 1%

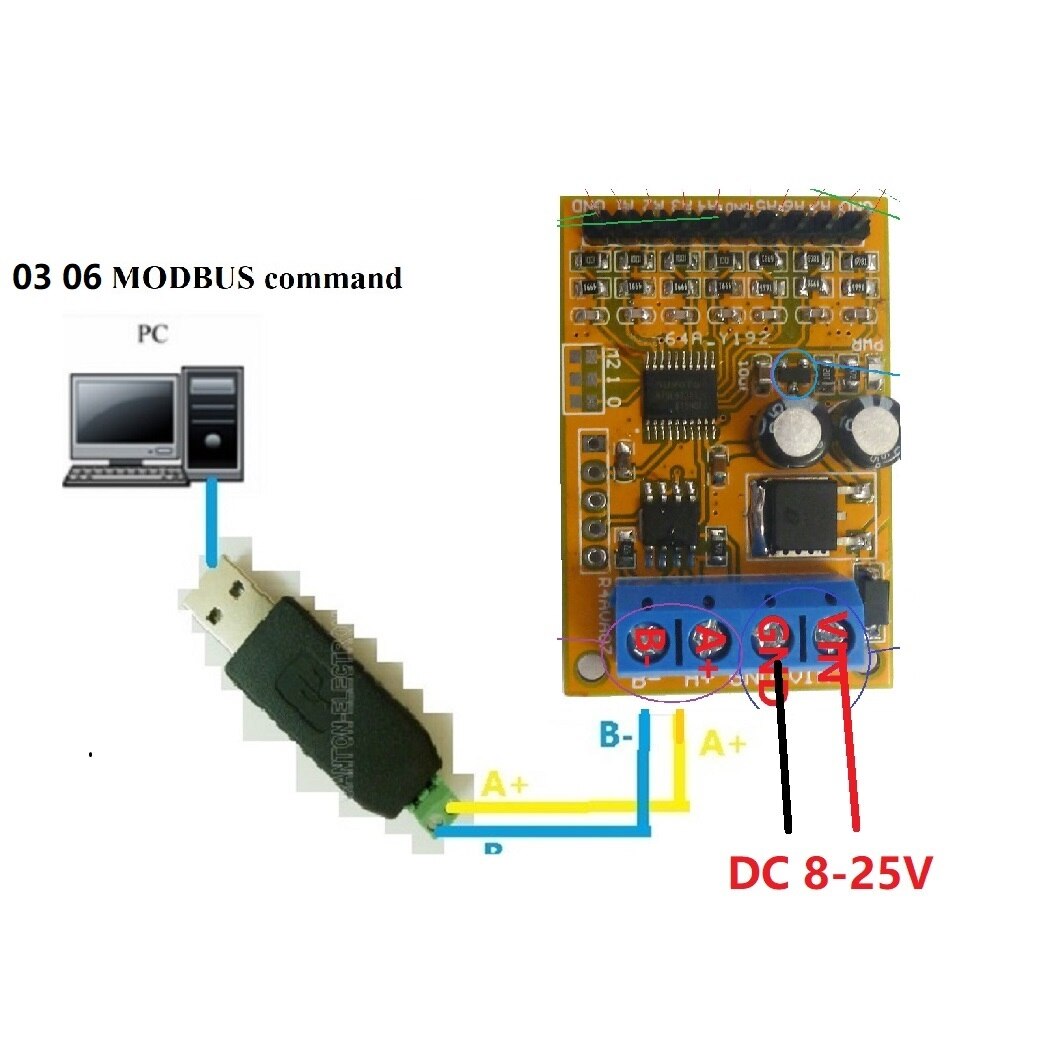

6 :MODBUS commands can be made serial HyperTerminal (serial assistant)? OR PLC Enter;
7 :Under the MODBUS command mode, it can support up to 247 devices in parallel
8 :Size: 45 * 30 * 15mm
9 :Weight: 10g

NOTE :

The drive capability of the tested voltage source must be greater than 1MA, otherwise the measurement cannot be accurate (MCU IO voltage cannot be measuring).

Application

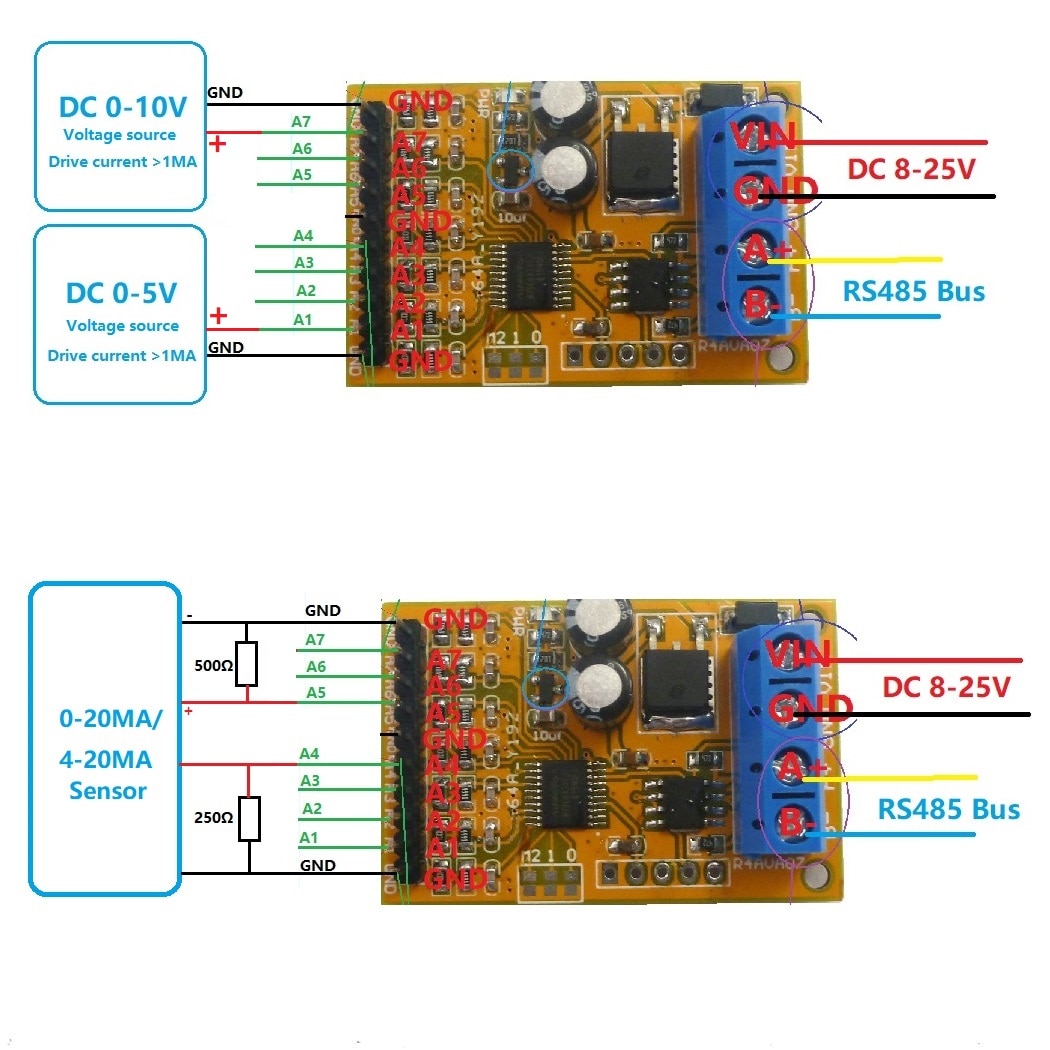

4-20MA/0-20MA Sensor
Voltage analog acquisition
Automated industry PLC
Smart Home,Home Automation ;
Identification system;
RS485 Remote monitoring;
Multimeter voltmeter
