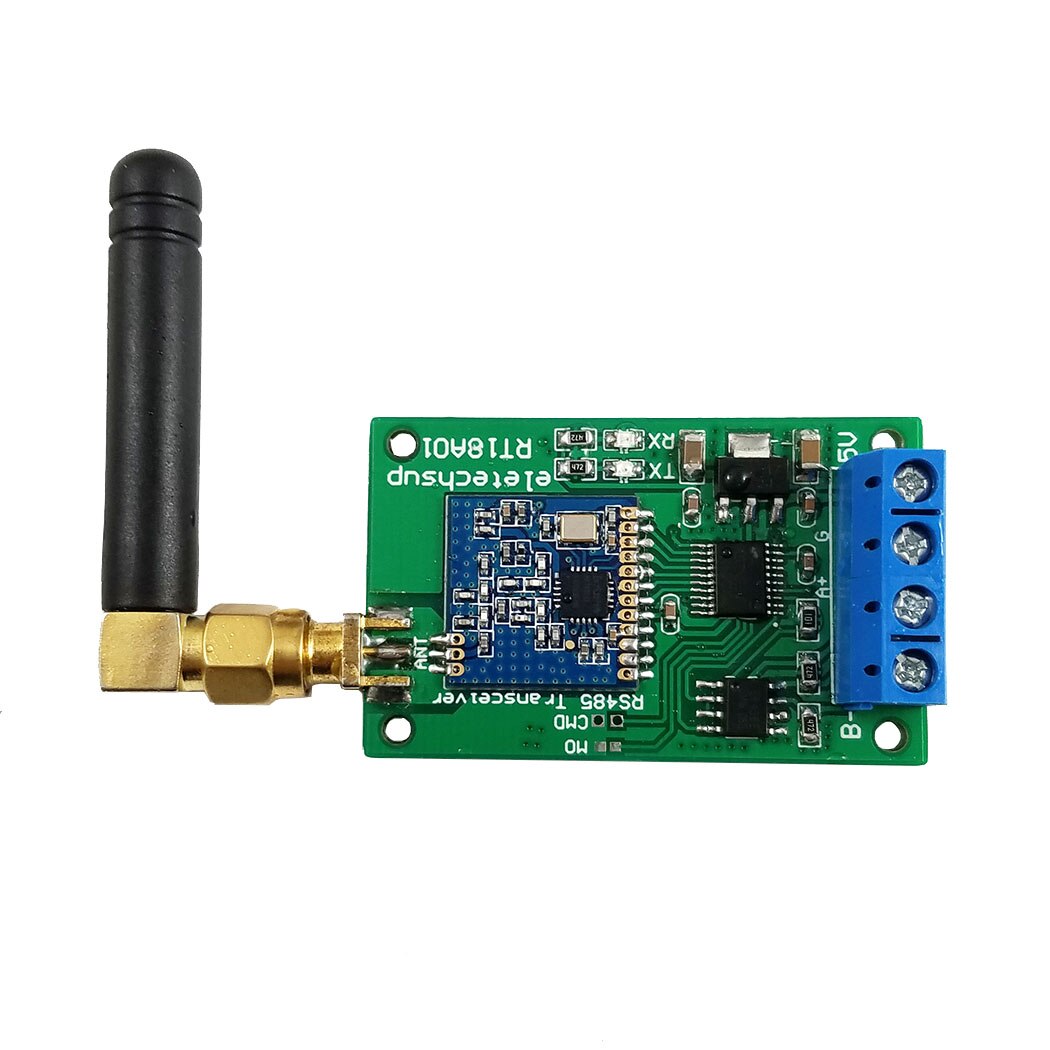

433M Wireless RS485 Bus RF Serial Port UART Transceiver Module DTU

433M Wireless RS485 Bus RF Serial Port UART Transceiver Module DTU

Be the first to review this product

Price	$33.20
	Collect 99 Everyday Rewards points Score 3x points on every order Ends 11:59pm 03/12/2024. Exclusions & T&Cs apply Log in to MyDeal to link your card
Size	Please select an option
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Zhongshan Junchang Mould Co Ltd (Direct Import) products only. Expires 11.59pm 28/11/2024. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code KMVGM

Quantity

Add to wishlist

Description:

Working voltage: 4.5V-5.5V;
Interface : RS485
Frequency: 433MHz
Transmit power: -40~+20dBm;
Receiver sensitivity: -114dBm;
Operating temperature: -25??~+75??;
Transparent transmission mode baud rate :1200 2400,4800,9600(Default),19200;
AT mode configured baud rate fix is: 9600BPS;
Open ground Transmission distance : 500M
Size(without antenna): 58.5x30x13.8mm
Weight(without antenna):17g
?

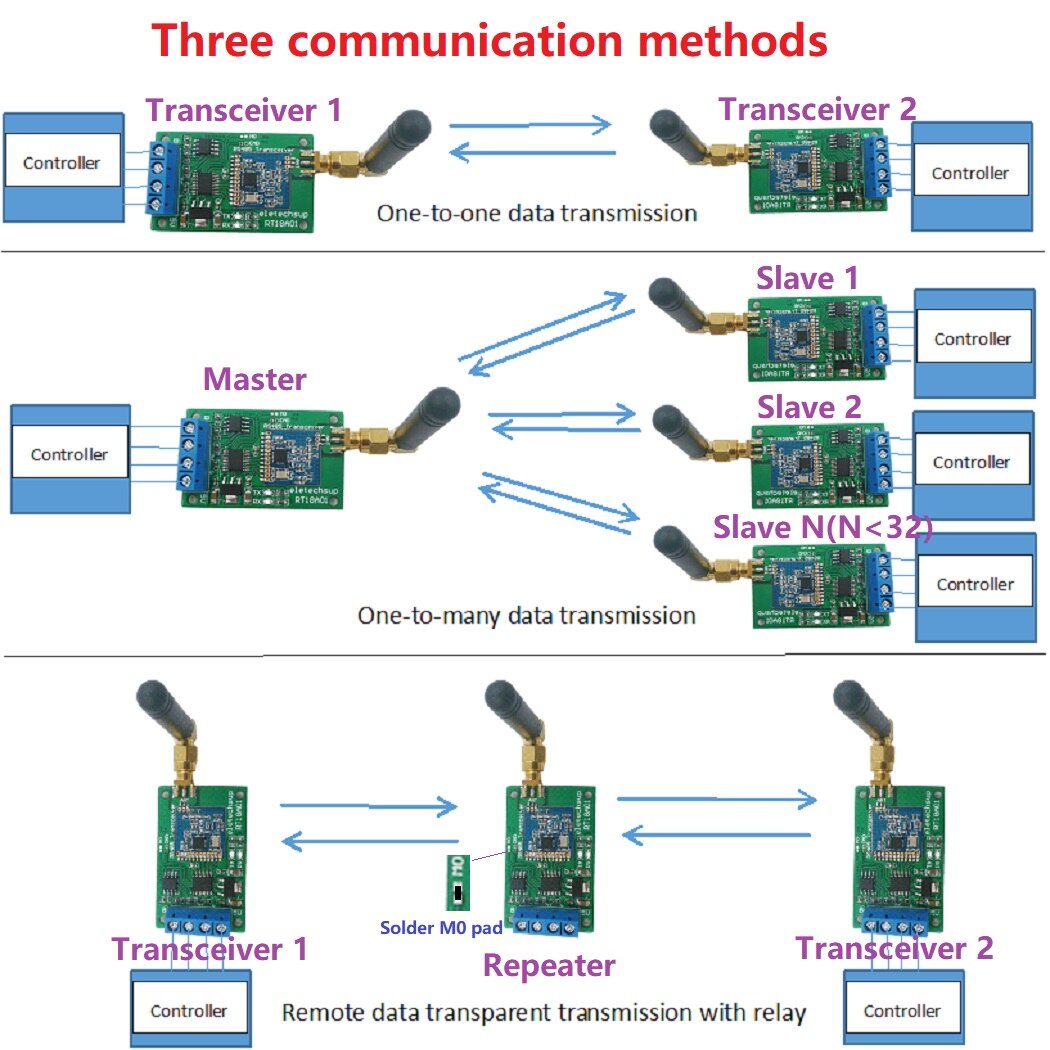

How to use (>=2pcs):
1 2PCS,Module 1 and Module 2 send data to each other.
2 3PCS,Module 1 sends data, module 2 acts as a repeater (multiple repeaters can be used), and module 3 receives data; delay sending and receiving distance.

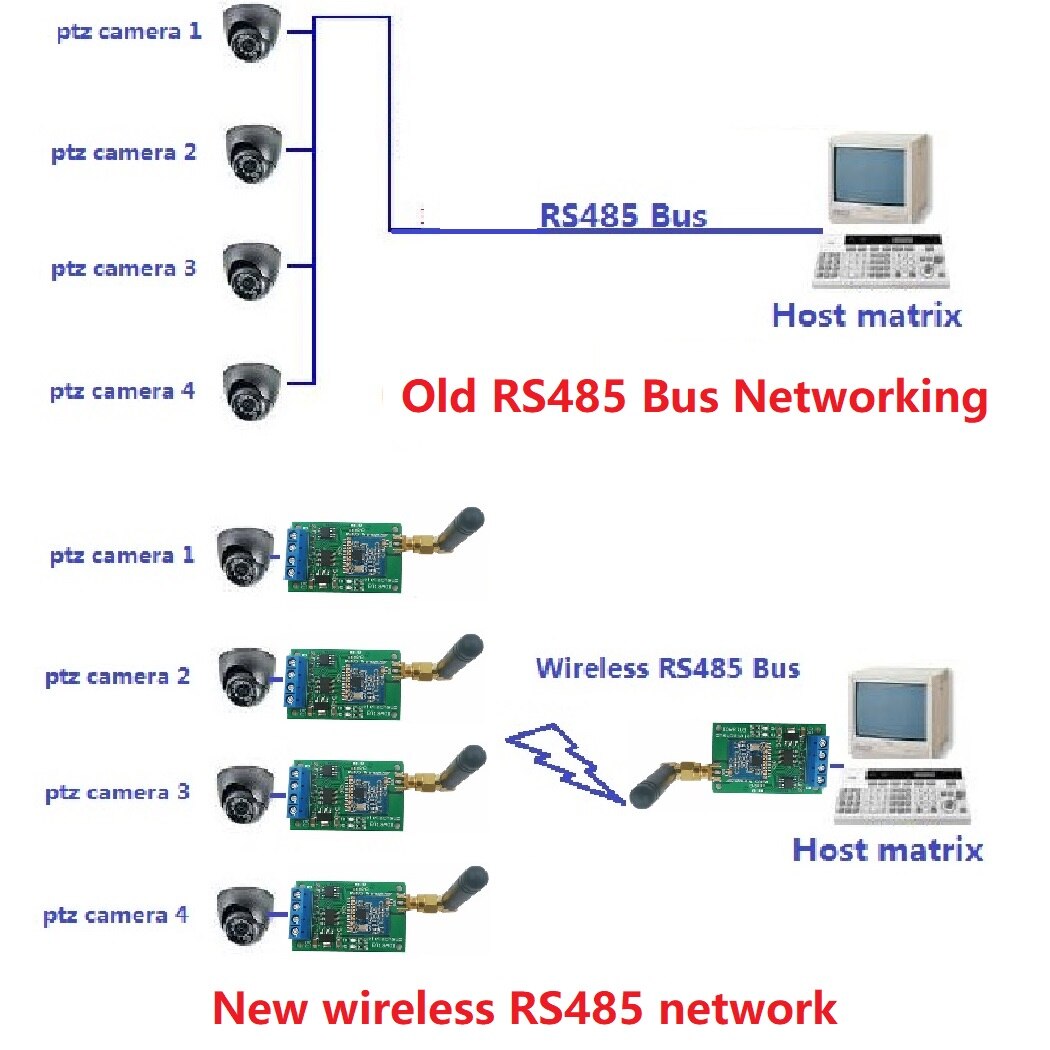

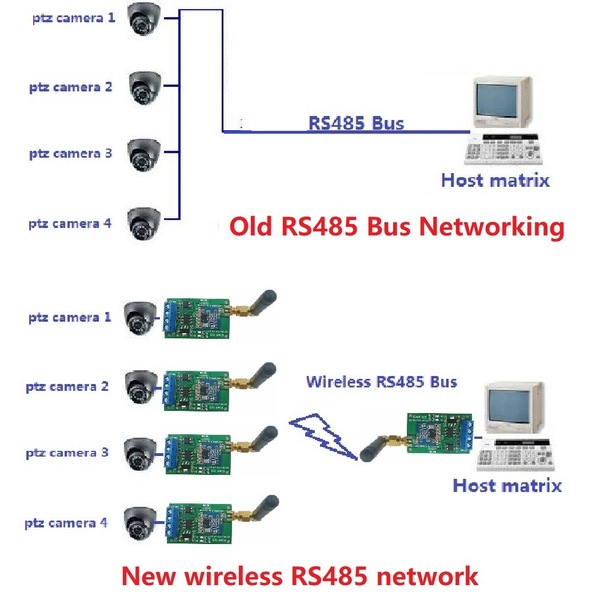

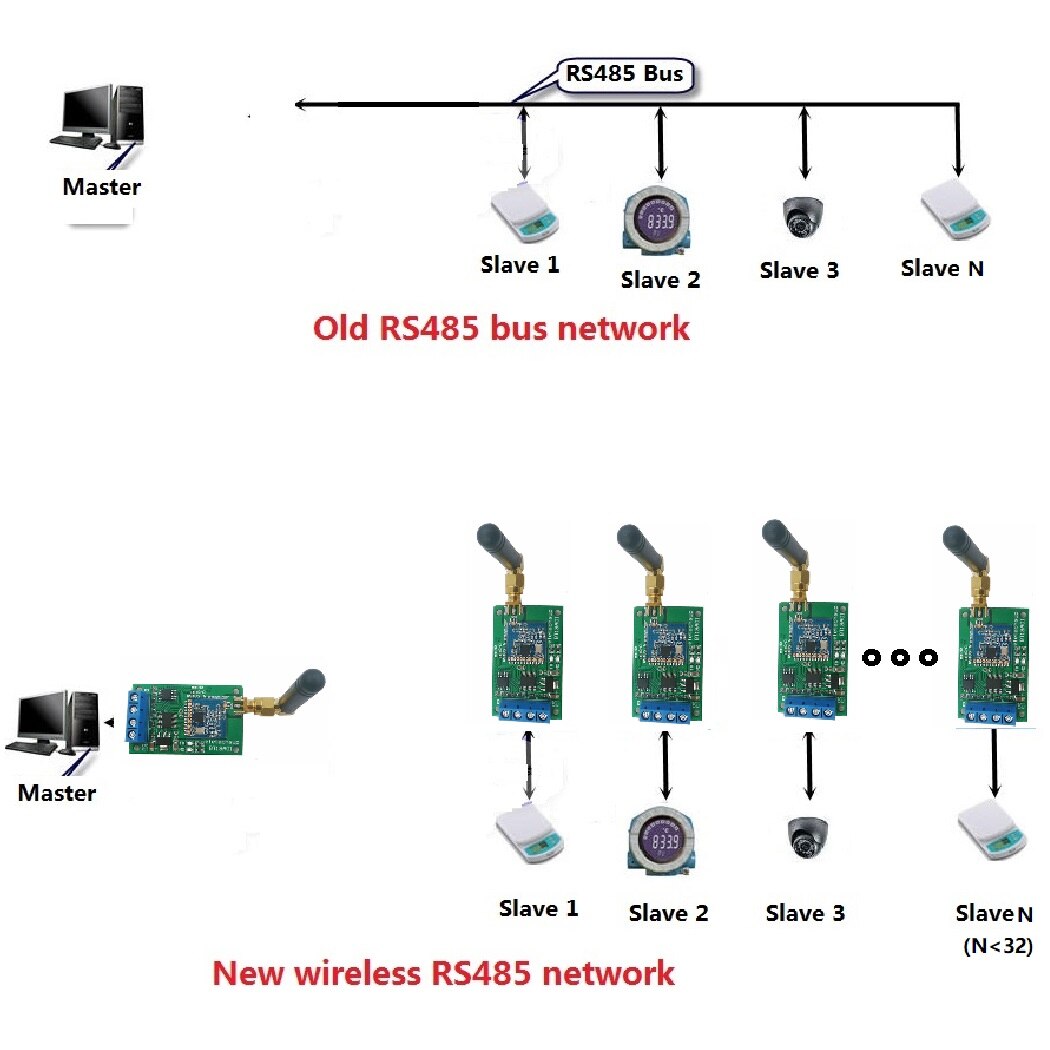

3 >=3PCS,One as master device, the other as will be as slave device.
the way they work as well as wired RS485 bus. Master device transmit data, Slave devices all receive data.Any slave device transmit data, master device and the other slave devices can receive .When ever only allowed one device (master or slave) to transmit data.

Application

PTZ Camera
Modbus modbus temperature sensor
LED Controller
RS485 Relay
Remote control, remote measurement system;
Wireless meter ;
Smart Home,Home Automation ,Wiser Home;
Access control ;
Identification system ;
Data collection;
IT household appliance ;
Intelligence household appliance;
Baby monitoring system;
Thermometer

Package inlcuded:1 PCS 433M Multifunctional wireless RS485 transceiver
