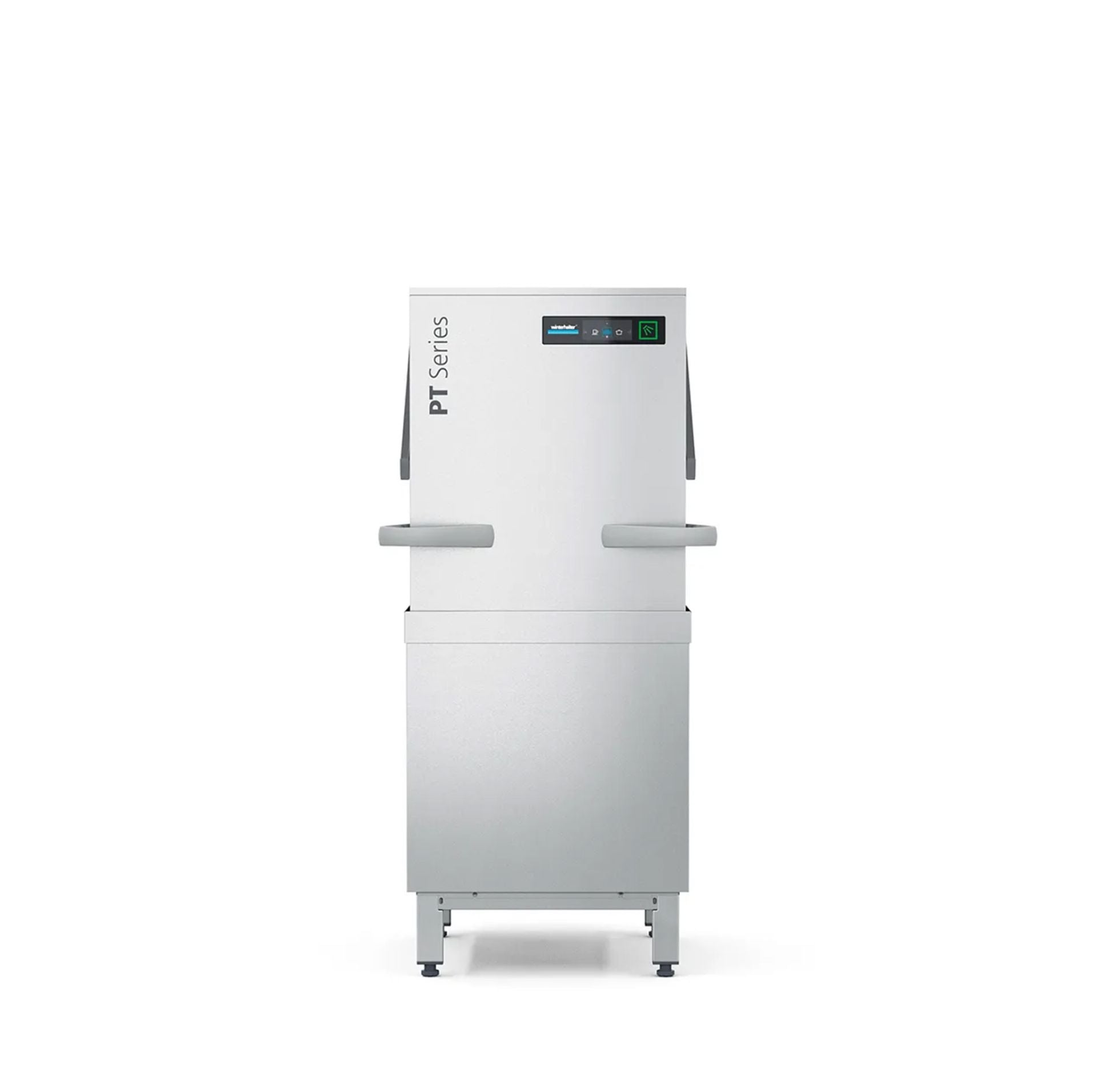

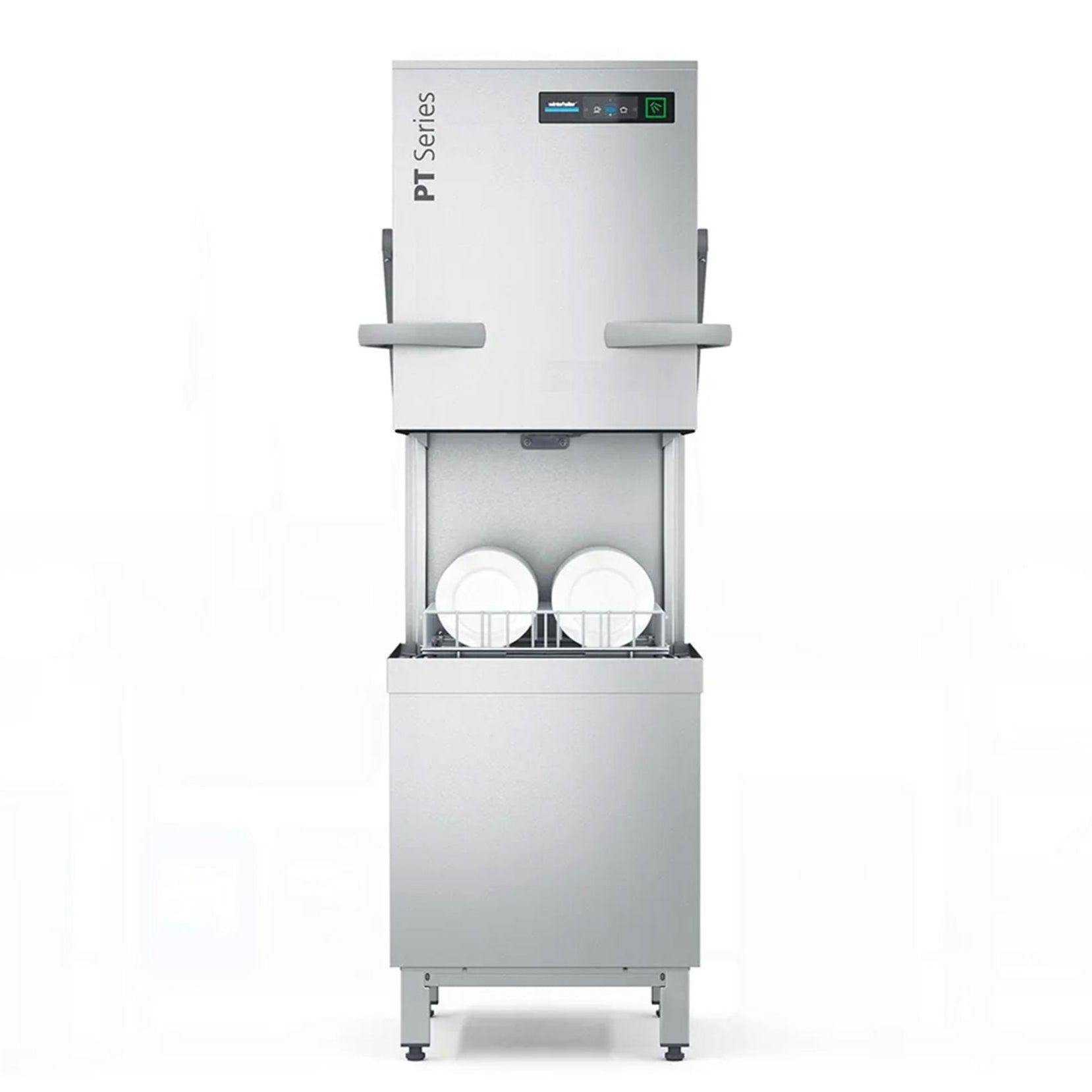

Winterhalter PT-M Pass-Through Dishwasher

The Winterhalter PT-M Pass-Through Dishwasher is built for efficiency, reliability, and cost-effectiveness. Designed for busy commercial kitchens, it provides fast and thorough cleaning while reducing water and energy usage. Available in three sizes, this powerful dishwasher is a must-have for high-demand environments.

Key Features
  • Smart Touch Display: Simple one-button operation for easy use.
  • Top & Bottom S-Shaped Wash Fields: Ensures thorough cleaning.
  • Variopower Washing Pressure Adjustment: Adapts to different washing needs.
  • Built-in Chemical Pumps: Automatically dispenses detergent and rinse aid.
  • Rinse Booster Pump: Provides consistent rinse pressure.
  • Drain Pump: Efficient water drainage.
  • EnergyLight System: Uses waste water heat recovery for energy efficiency.
  • Quadruple Filtration System: Ensures clean water for every wash.
  • Clouding Sensor: Detects and manages water quality.
  • Connected Wash: Smart connectivity for monitoring and optimization.
  • Automatic Timer: Schedule start-up and shutdown times.
Optional Features
  • Automatic Hood System: Reduces manual effort.
  • Driven Rinse System: Enhances rinsing performance.
  • EnergyPlus: Uses exhaust air heat recovery to reduce steam and energy costs.
  • TwinSet: Connects two PT Series machines for higher capacity.
Why Choose the PT Series?
Outstanding Cleaning Performance

Even tough stains and grease are no match for the PT Series, ensuring hygienic and spotless results every time.

Reliable and Durable

Designed for heavy-duty use, the PT Series features high-quality components and advanced technology to ensure long-lasting performance.

Cost-Efficient Operation

With optimized water, energy, and detergent usage, the PT Series keeps running costs low while maintaining high performance.

User-Friendly Design

Simple controls, ergonomic design, and automated features make the PT Series easy to use, reducing staff workload.

Technical Specifications
  • Clear Entry Height: 440 mm
  • Dimensions (WxDxH): 635 x 750 x 1585-2060 mm
  • Rack Dimensions: 500 x 500 mm
  • Rinse Water Consumption: 2.2L per cycle
Water Connection
  • Connection Point: 3/4 inch (19mm)
  • Flow Pressure: Min. 1.0 bar
  • Flow Rate: 4 L/min
  • Max Inlet Temperature: 60°C
  • Wastewater Connection: 23.6 mm
Electrical Specifications
  • Standard (3 Phase): 415V 3P 50Hz - 20A (9.7kW)
  • Optional (Higher Power): 415V 3P 50Hz - 25A (11.5kW), 32A (15.7kW)
General Data
  • Cycle Times: 50/80/110 seconds (adjustable)
  • Noise Level: 62dB(A)
  • Tank Capacity: 35L
  • Weight (Net/Gross): 137/151 kg
Included Accessories
  • 1x 1m Flexible Waste Hose
  • 1x 1m Flexible Water Connection Hose
  • 1x 3-phase Lead
  • 2x 500 x 500 Racks (1x Flat, 1x Plate)
