TECHNOLOGICALLY ADVANCED AND AFFORDABLE PRICE
The front loading dishwashers are specifically designed for the catering sector and can be installed under the counter. Perfectly suited to the needs of restaurants, hotels, bars and cafes for the reliable and simple washing of dishes, cutlery and glassware.
The front loading dishwashers from Fagor Industrial are based on the EVO Generation idea to create a single base body that contains benefits across its three ranges and by selecting the appropriate technology to meet the needs of each segment. Thus, we offer a wide range of solutions to meet the requirements of different users.
The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 185oF thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the main water of the installation does not reach the minimum recommended pressure of 25 psi. The green EFFI-RINSE light shows when the machine rinses at 185oF.
It provides a strong mechanical action combined with optimum clean water and the perfect hygienic temperature. It is a powerful system that assures the promised productivity while saving high quantities of chemicals.
SOFT-START assures a low noise level of the bar or restaurant where it is installed and prevents the glasses and ware from moving inside the basket, protecting them from breaking and improving the washing cycle of all the ware. It consists of a wash-pump power control during its first stage.
This new thermostatic tank water filling system enables the user to speed up the machine start-up time because the wash tank is filled with water previously heated in the boiler.
A body and structure made entirely of stainless steel to withstand the most intensive use. The internal design, basket rails, and an embedded wash tank reduce cleaning time and daily maintenance costs and, at the same time, increases the lifespan of the machine.
- Hourly production: 40 baskets/hour - 720 dishes/hour.
- Clearance (max ware height): 380 mm.
- Valid for GN-1/1 trays.

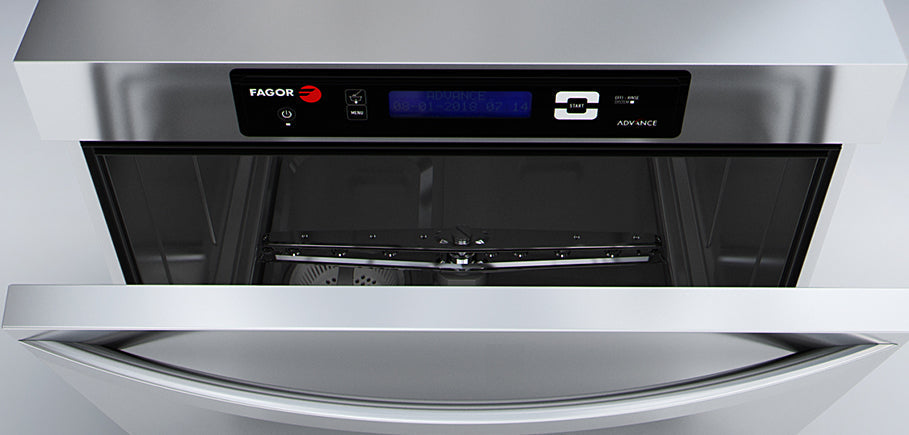

- Electronic control.
- Wash cycles: 90"-180".
- Made of stainless steel.
- Full Double skin body to isolate machine's noise from the environment . The door has double skin with special pressed isolation material, and stamped finishing to improve noise isolation and to keep the heat inside the machine. Rock counterbalanced door. Double spring and stainless steel hinge system. The case allows the placement of the machine under surfaces of 850 mm height.

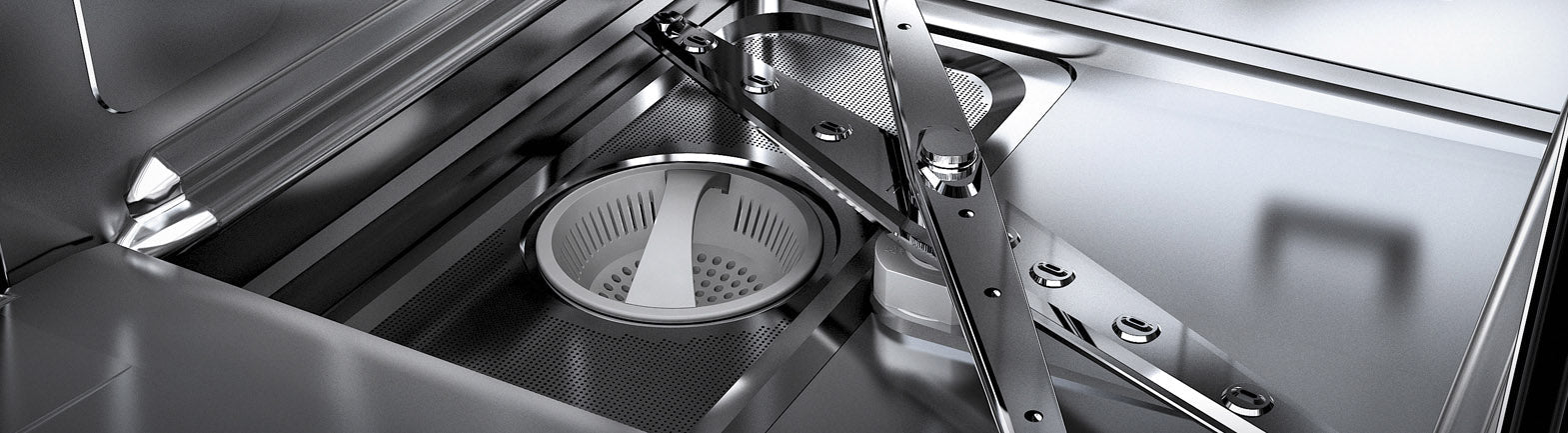

- Double rotating wash and rinse systems, above and below, made of stainless steel.

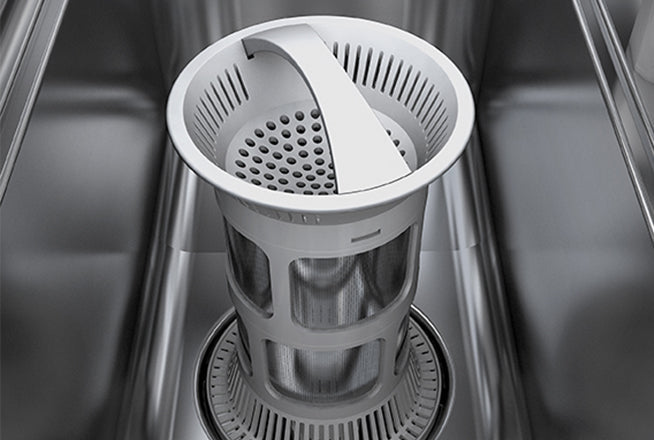

- Tray filters on the tank, made of AISI-304 stainless steel.
- Supplied with 1 dish rack and 1 glass rack.
- Wash pump: 600 W.
- Drain pump: 30 W. Drainage cycle.
- Tank with 2.8 kW heating element.
- Tank capacity: 20 litres.
- Boiler with multipower heating elements: 1,8 / 2,8 / 3,7 / 5,6 kW, 15Amp
- Boiler capacity: 7 litres.
- Water consumption: 2.4 litres/rinse.
- Thermostatic temperature control: washing at 60oC and rinsing at 90oC.
- Thermostop.
- Security thermostats.
- Built-in automatic rinse dispenser.
- Built-in detergent doser.
- Built-in non-return valve.
- Safety magnetic switch for door opening.
- Adjustable legs.
- WaterMark approved
Water protection rating: IPX4
Total power: multipower 2,4 / 3,4 / 4,3 / 6,2 kW.

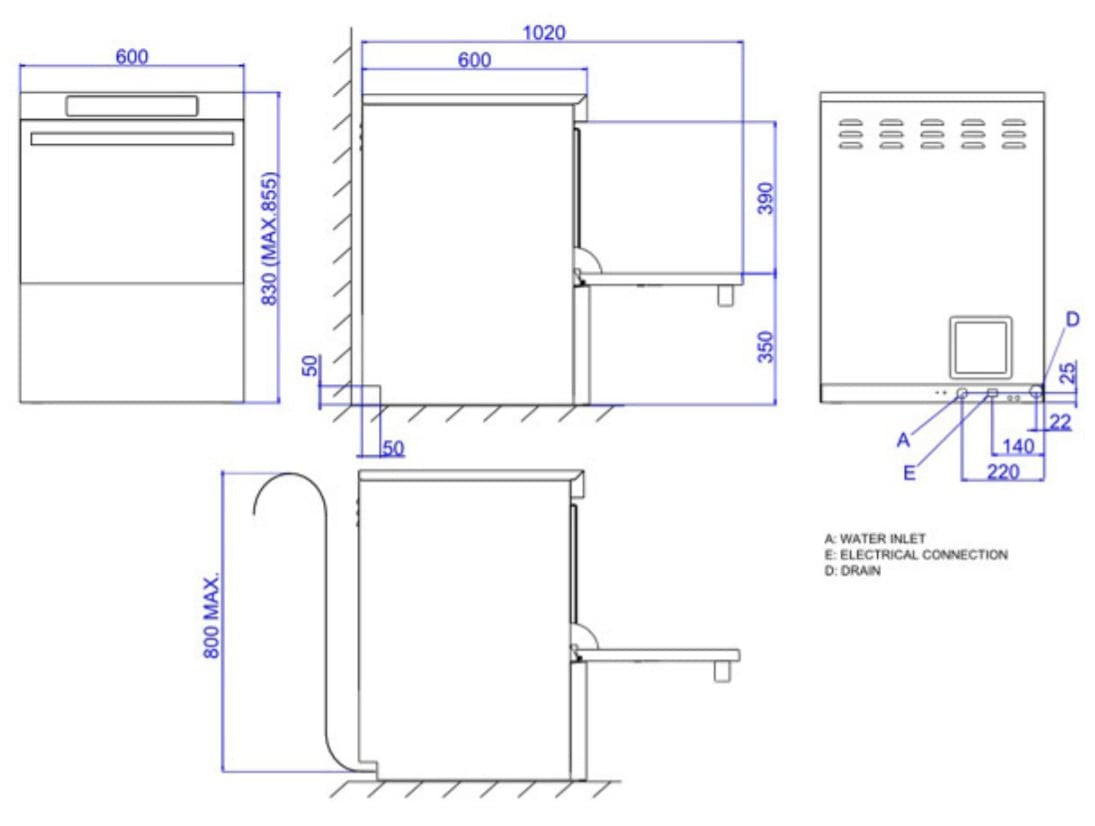

Dimensions: 600 x 600 x 830 mm.
Baskets equipment: 1 x CT-10, 1 x CP-16/18 and 2 cutlery containers.
Power: Multipower 2;4 / 3;4 / 4;3 / 22.32 MJ; 15Amp
