TECHNOLOGICALLY ADVANCED AND AFFORDABLE

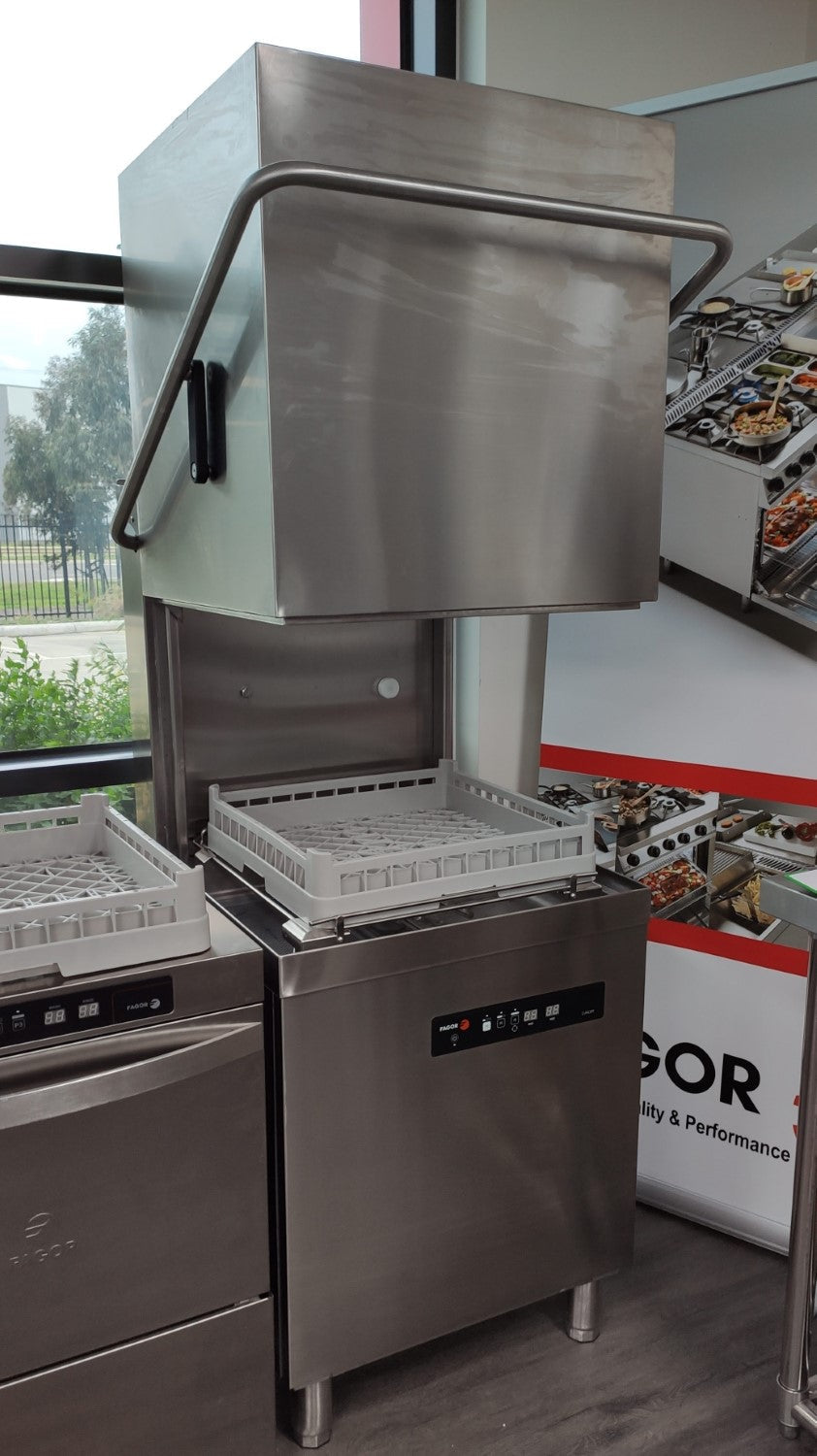

Commercial hood-type dishwashers or pass-thru dishwashers are ideal for heavy use in restaurants and catering businesses. Hood-type dishwashers allow linear washing of the dishes at a comfortable working height with the support of the prewash table and exit basket. With a hood-type machine, you can achieve a perfectly coordinated washing process. Just lift the hood to insert a new basket; lower the hood, and the machine does its job; lift the hood to extract the clean utensils, and load the next basket.

The Concept Plus range offers a highly efficient and effective washing and rinsing system (EFFI-WASH & EFFI-RINSE), becoming the perfect solution for those sites with low water pressure networks and high demands.

EFFI-RINSE

The EFFI-RINSE system guarantees a perfect, hygienic result with a complete, linear rinse cycle at 185oF thanks to the built-in rinsing pump and the Air Break system design. It also works with low input water pressure, making it the perfect system when the main water of the installation does not reach the minimum recommended pressure of 25 psi.

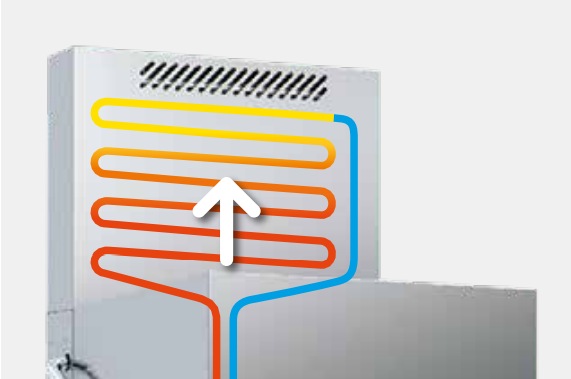

ECO FILL
This new thermostatic tank water filling system enables the user to speed up the machine start-up time because the wash tank is filled with water previously heated in the boiler.

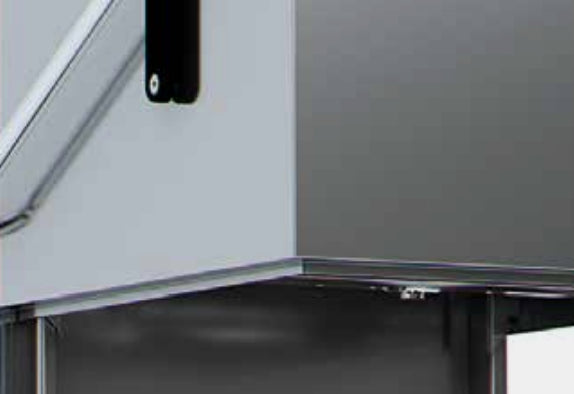

STAMPED PHILOSOPHY
The body and structure are made entirely of stainless steel to withstand the most intensive use. A dishwasher that has evolved with a new hood design, new basket rails, and an embedded wash tank. We support this philosophy because it makes it possible to reduce cleaning time and daily maintenance costs and, at the same time, increases the lifespan of the machine.

Hood type dishwasher - EVO Generation - Concept range.
Hourly production: 60 baskets/hour - 720 dishes/hour

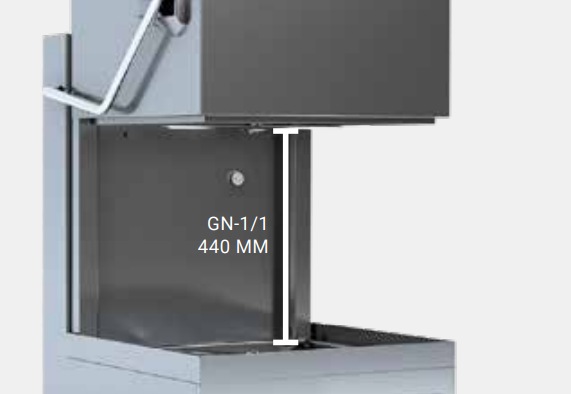

Clearance (max ware height): 440mm
Electronic control
Wash cycles: 55-75-120 seconds
Stainless steel
Counterbalanced hood
Double rotating wash and rinse systems, made of AISI-304 stainless steel
Wash pump, 600W each
Drain pump: 70W drainage cycle
Tank with capacity: 33 litres
Boiler heating power: 6kW
Boiler capacity: 9 litres
Water consumption: 2.4 litres/rinse
Thermostatic temperature control: washing at 60oC and rinsing at 90oC
Thermostop
Safety thermostats
Built-in automatic rinse dispenser and detergent doser
Built-in non-return valve
Safety magnetic switch for hood opening
Adjustable legs
Supplied with 1 base basket; 1 plate basket and 2 cutlery containers
Watermark approved
Can be converted to single phase
415V / 50Hz

1 Year Parts and Labour Warranty

Power: 11.1/3~N kW/A
