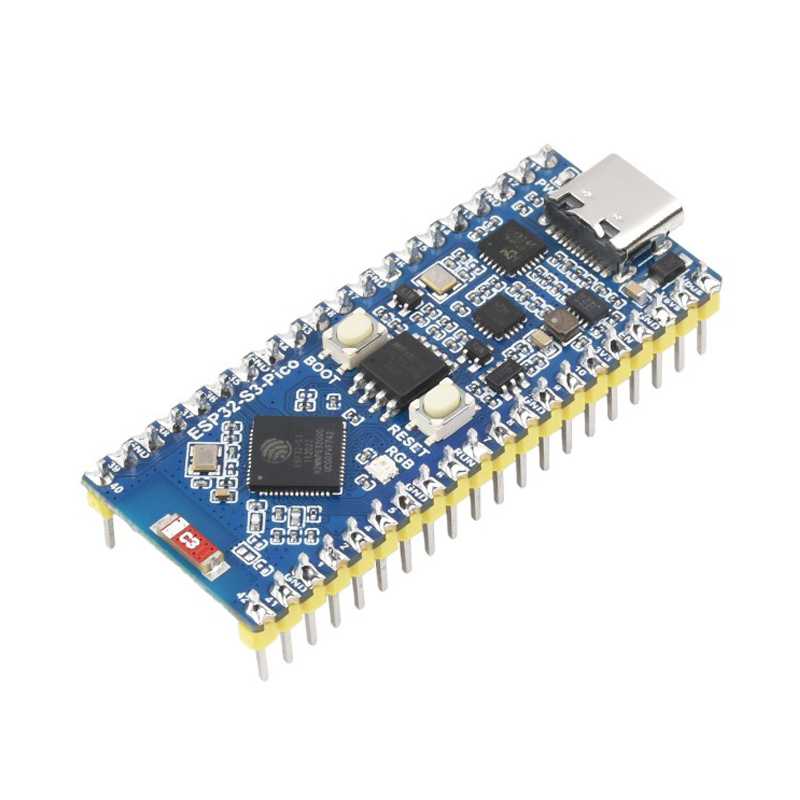

Waveshare ESP32-S3 Microcontroller 2.4 GHz Wi-Fi Development Board Dual-core Processor

Waveshare ESP32-S3 Microcontroller 2.4 GHz Wi-Fi Development Board Dual-core Processor

Price	$60.36
	Collect 60 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Free Shipping
	24-48 hour dispatch See delivery details

Take 10% Off Purchases Over $29

Exclusive to Supperstore (Direct Import) products only. Expires 11.59pm 29/04/2025. Excludes Shipping. Everyday Rewards points will be collected on your total purchase less any discounts. T&C's apply.

Copy code 3LARN

Quantity

Add to wishlist

1. Support development environment, such as ESP-IDF, Arduino, MicroPython, etc.
2. 240MHz Xtensa 32-bit LX7 dual-core processor
3. Easy to integrate, 32-bit LX7, 2MB PSRAM, wireless network, dual-core processor
4. Using ESP32-S3R2 chip, Xtensa 32-bit LX7 dual-core processor, running frequency 240mhz
5. Integrated 512KB SRAM, 384KB ROM, 2MB PSRAM, 16MB flash memory
6. Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance
7. Type-C connector, more convenient to use
8. The onboard CH343 and CH334 chips can meet the needs of USB and UART development through the Type-C interface
9. Onboard DC-DC chip MP28164, high-efficiency DC-DC step-down boost chip, the load current can reach 2A
10. 27 x multi-function GPIO pins, configurable pin functions, allowing flexible development and integration
11. Abundant external interfaces, including full-speed USB OTG, SPI, I2C, UART, ADC, PWM and DVP (8-16-bit camera interface), LCD interface (8-16-bit parallel RGB, 18080, MOTO6800), etc., Flexible realization of various functions
12. Castellated modules allow direct soldering to the carrier board
13. Support a variety of low-power working states, adjustable communication distance, data rate and power consumption balance, to meet the power consumption requirements of various application scenarios
14. Support the ecosystem of Raspberry Pi Pico expansion board, suitable for artificial intelligence loT application development
15. Support ESP-IDF, Arduino, MicroPython comprehensive SDK, development resources, tutorials, help you get started easily
16. ESP32-S3 is specially designed for AloT applications, using Xtensa 32-bit LX7 dual-core processor with a frequency up to 240 MHz, powerful aluminum computing capability and reliable security features
17. WIFI and BLE 5 support, ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 B/G/N) and 40mhz bandwidth to support its Bluetooth low energy subsystem to support Bluetooth 5 (LE) and Bluetooth Mesh

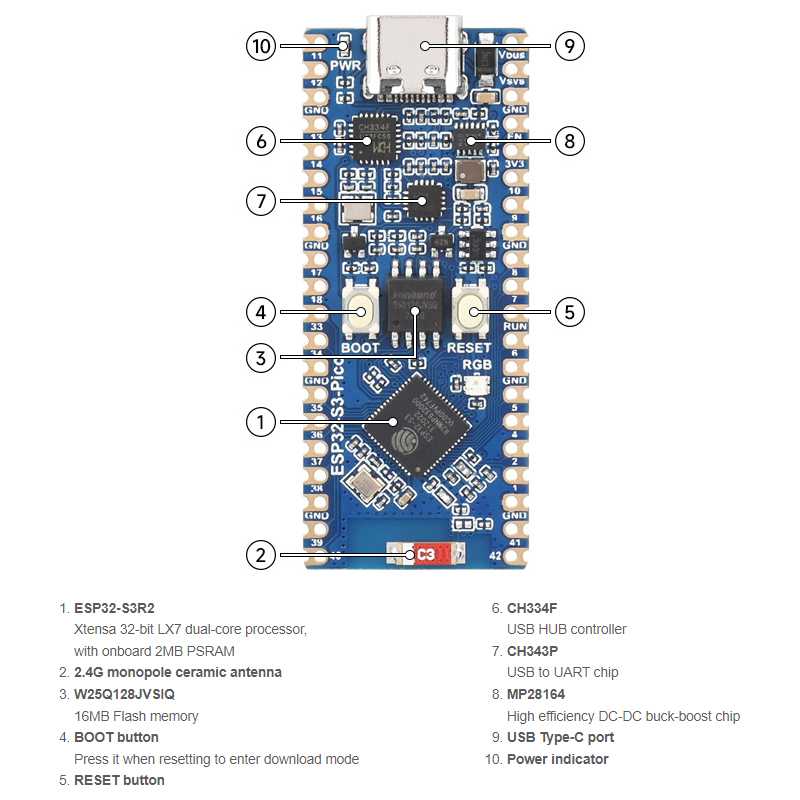

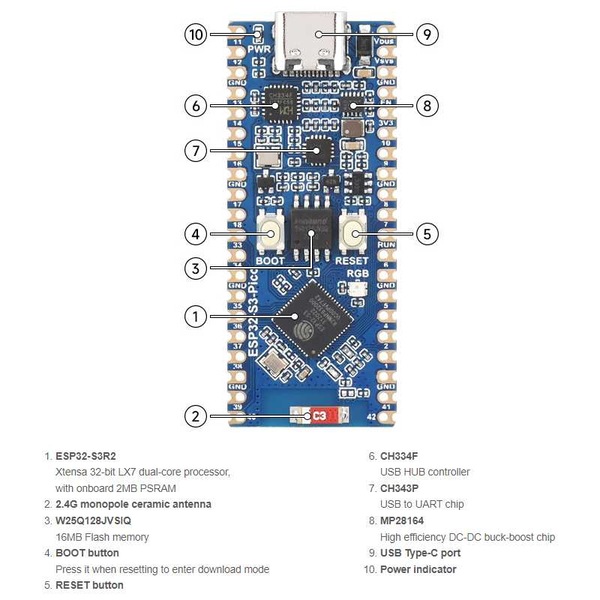

18. ESP32-S3: Xtensa 32-bit LX7 dual-core processor
19. 2.4G monopole ceramic antenna
20. W25Q128JVSIQ: 16MB Flash
21. Start button: press to enter download mode when reset
22. CH334F: USB HUB controller
23. CH343P: USB to UART chip
24. MP28164: High-efficiency DC-DC step-down boost chip
25. Support more Pico expansion modules: Eval-Board, 3.5-inch LCD, 1.3-inch OLED, 8-segment LED, e-paper, NB-IoT module, GPIO expander, sensor module, RTC module, UPS module

SKU: HS6557124023
