Raspberry Pi Pico SC0915 Microcontrollers Board - Pico, Single Pack [SC0915]

Raspberry Pi Pico SC0915 Microcontrollers Board - Pico, Single Pack [SC0915]

Limited Stock!

Price	$20.21
	Collect 20 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

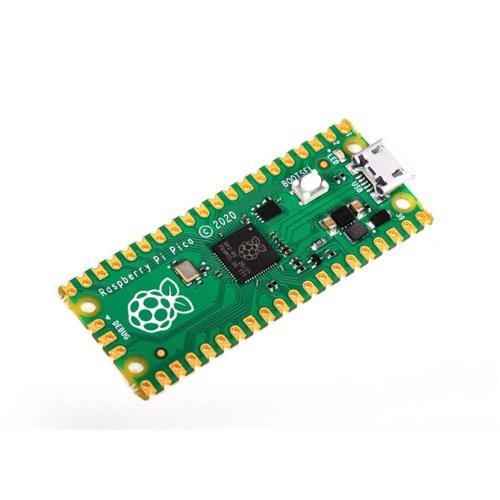

Raspberry Pi Pico SC0915 Microcontrollers Board - Pico, Single Pack

Raspberry Pi Pico is a tiny, fast, and versatile board built using RP2040, a brand new microcontroller chip designed by Raspberry Pi in the UK.

The best place to find everything you need to get started with your Raspberry Pi Pico is HERE.
Specification:
- 21 mm x 51 mm form factor
- RP2040 microcontroller chip designed by Raspberry Pi in the UK
- Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
- 264KB on-chip SRAM
- 2MB on-board QSPI Flash
- 26 multifunction GPIO pins, including 3 analogue inputs
- 2 x UART, 2 x SPI controllers, 2 x I2C controllers, 16 x PWM channels
- 1 x USB 1.1 controller and PHY, with host and device support
- 8 x Programmable I/O (PIO) state machines for custom peripheral support
- Supported input power 1.8-5.5V DC
- Operating temperature -20°C to +85°C
- Castellated module allows soldering direct to carrier boards
- Drag-and-drop programming using mass storage over USB
- Low-power sleep and dormant modes
- Accurate on-chip clock
- Temperature sensor
- Accelerated integer and floating-point libraries on-chip
Documents:
- Raspberry Pi Pico product brief
- Raspberry Pi Pico datasheet
- Getting started with Raspberry Pi Pico: C/C++ development
- Raspberry Pi Pico C/C++ SDK
- API-level Doxygen documentation for the Raspberry Pi Pico C/C++ SDK
- Raspberry Pi Pico Python SDK
- Raspberry Pi RP2040 datasheet
- Hardware design with RP2040
- Raspberry Pi Pico design files

Dimensions
21mm(W) x 51.3mm(L) x 3.9mm(H)
Weight
3g
- MPN: SC0915

MPN: SC0915
