Effortlessly Monitor Your Battery's Health with the Votronic 400A Battery Monitor

Votronic Battery Computer S - Simple and Intuitive Fuel Gauge for Your Battery

The Votronic Battery Monitor is your go-to solution for keeping tabs on your battery's status. Designed with a bright, white-illuminated display, it serves as a user-friendly 'fuel gauge' for your battery, giving you clear insights into its health and charge status.

Versatile Compatibility and Display (LCD) Features

This device is a perfect fit for various battery types including lead-acid, gel, AGM, and LiFePO4, suitable for both 12V and 24V systems. It displays remaining battery capacity in both ampere-hours (Ah) and percentage (%), ensuring you always know how much power you have left.

Real-Time Monitoring and Control

Stay informed about the current battery status with displays for charge/discharge currents and the voltage of a secondary battery, such as your vehicle’s starter battery. The monitor also includes a programmable switching output for control and supervision, adaptable for any charging state.

Automatic Protection and Manual Control

With the Votronic Battery Monitor, you can protect your battery from harmful total discharge. Set it to automatically switch off your devices when the battery falls below a certain percentage, like 25%. There's even an EMERGENCY-ON button for continued power supply in urgent situations.

Easy Installation and Robust Design

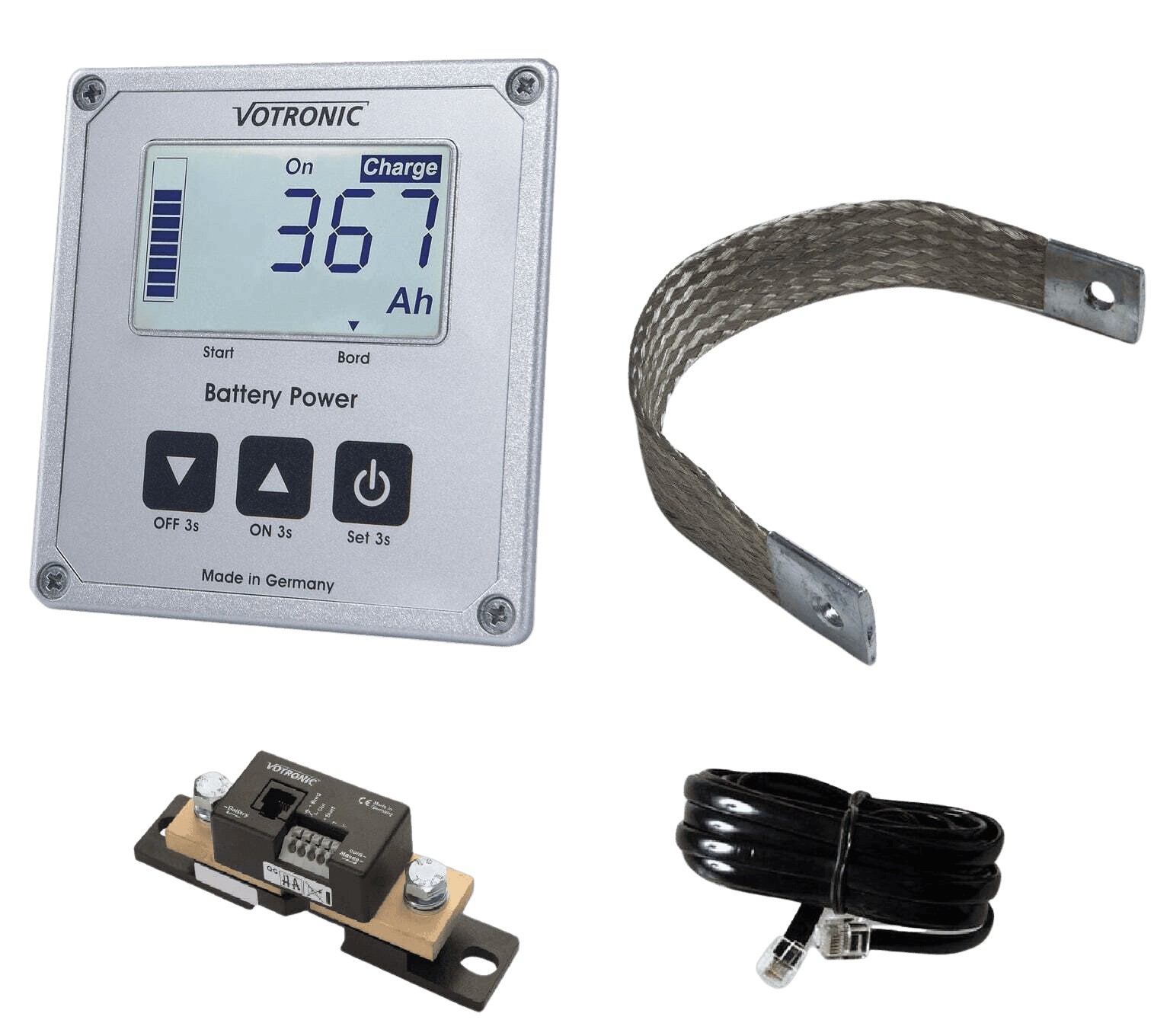

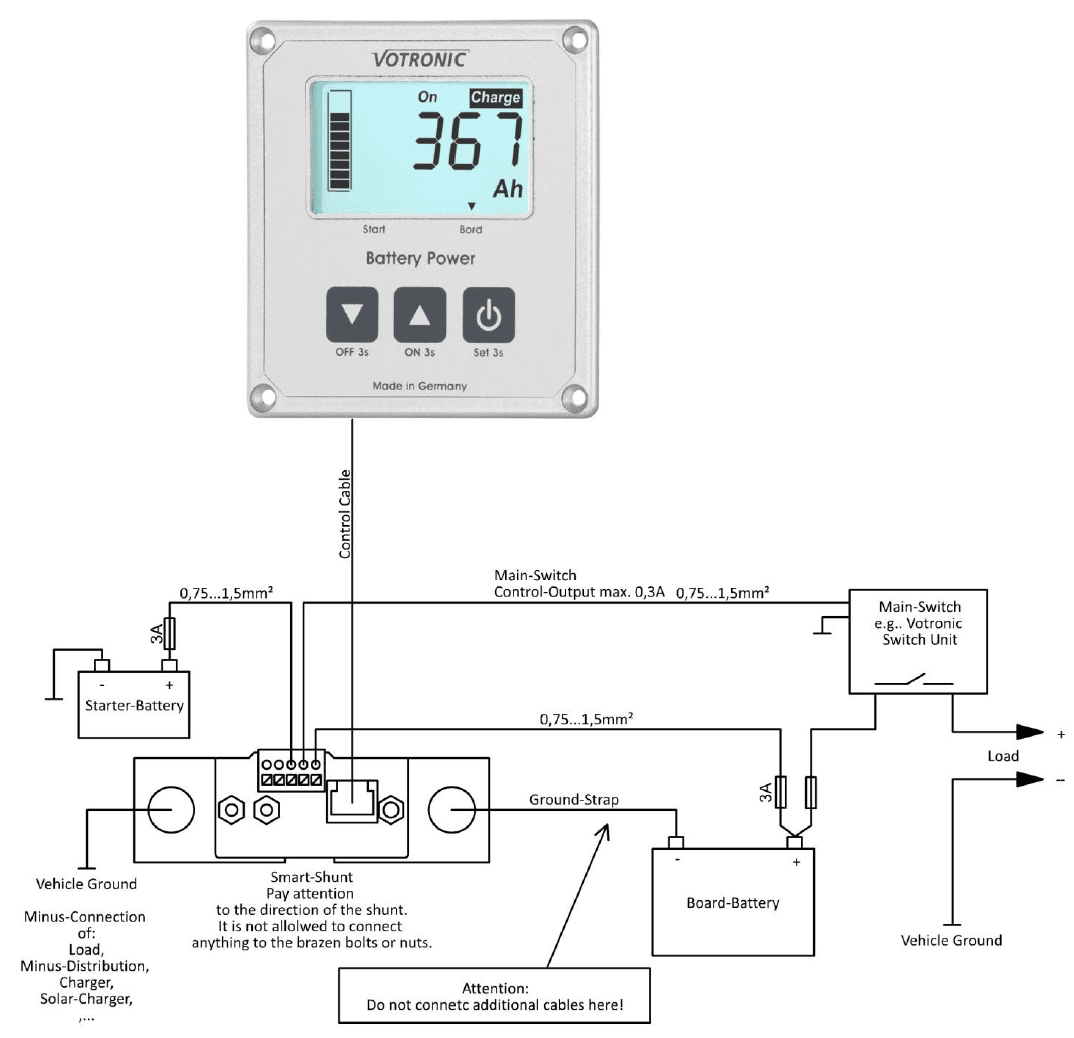

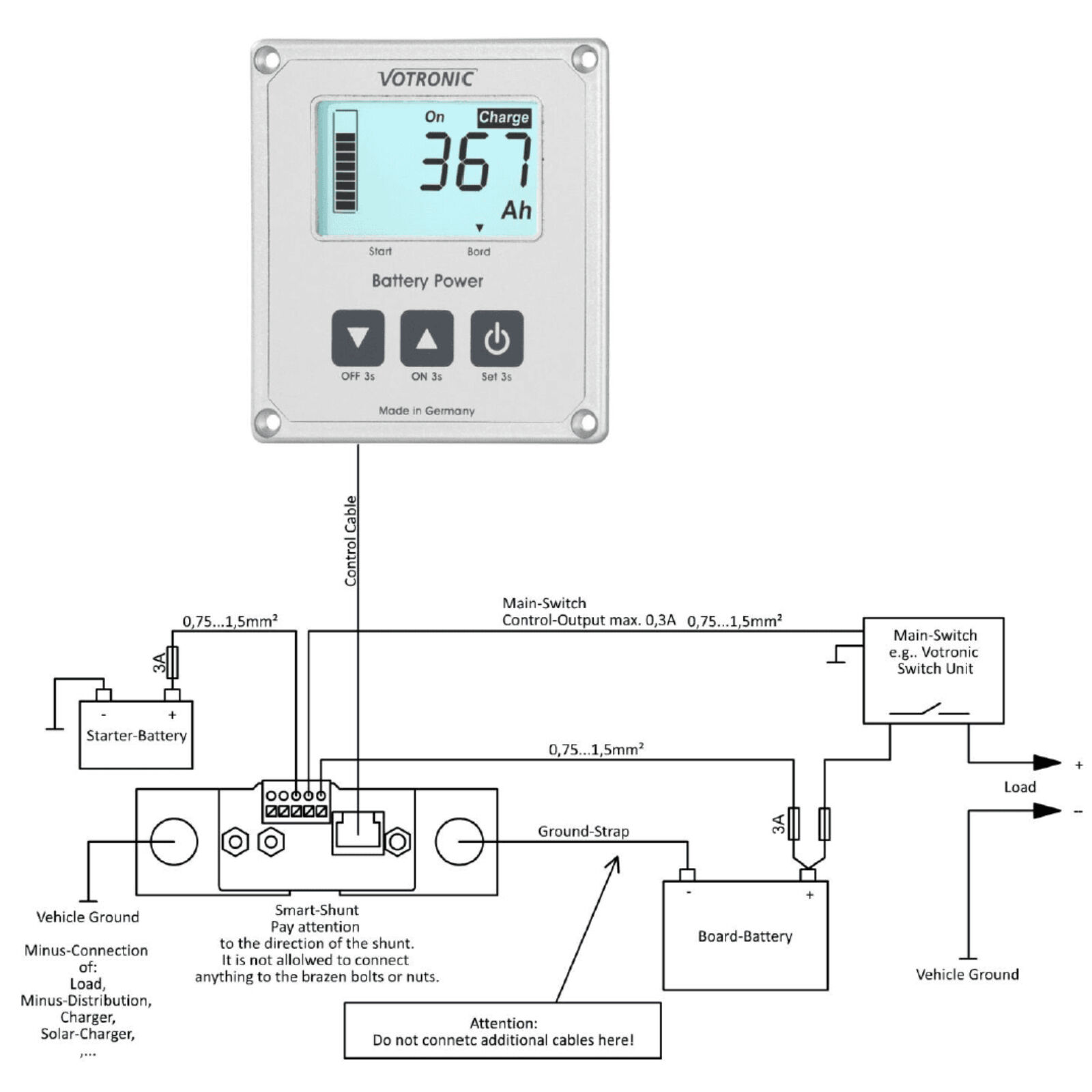

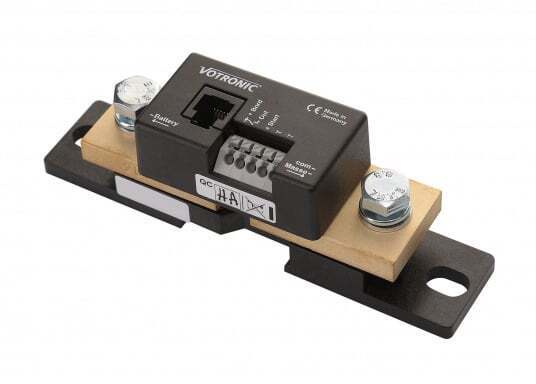

A plug-and-go cable links the display with a robust Precision Measuring Resistor (Smart-Shunt), ensuring precise readings. Its compatibility with the VOTRONIC modular system and small mounting depth allows for easy installation in various locations.

Key Features at a Glance:

Bright, white-illuminated display for easy readability.
Adjustable battery charge status for multiple battery types.

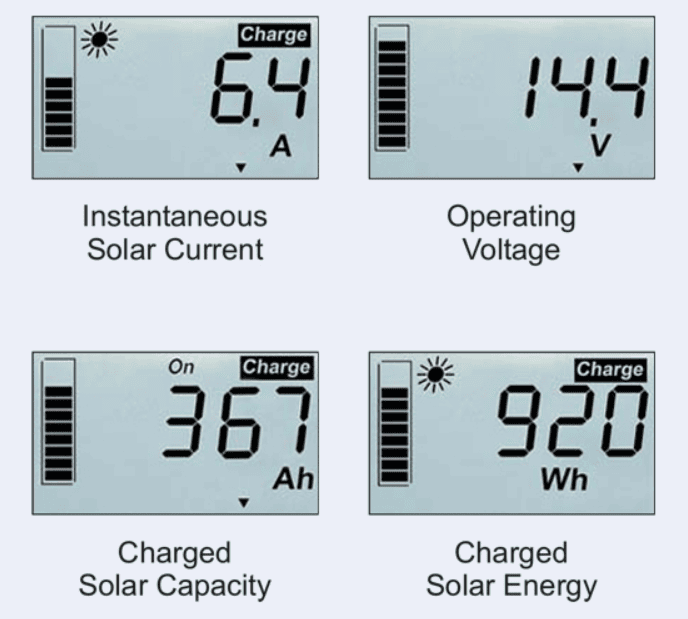

Displays for remaining capacity, running time, charge/discharge currents, and secondary battery voltage.
Programmable switching output for various control functions.
Microprocessor-controlled measurements for accuracy and reliability.
Compact design for flexible installation.

Whether you're on a road trip, managing a solar power setup, or just ensuring the health of your battery system, the Votronic Battery Monitor is an essential tool. It’s more than just a battery monitor; it's peace of mind, ensuring your battery is always in top condition.

Specifications:

Specifications

Specification	400A Model
Model No.	1269
Shunt Model No.	5793
Battery nominal voltage	12 and 24 V
Current consumption max	~5mA
Switching current switching output main switch max.	0.3A
Current carrying capacity rated current	400A
Current carrying capacity 15 minutes	600A
Current carrying capacity 7 minutes	800A

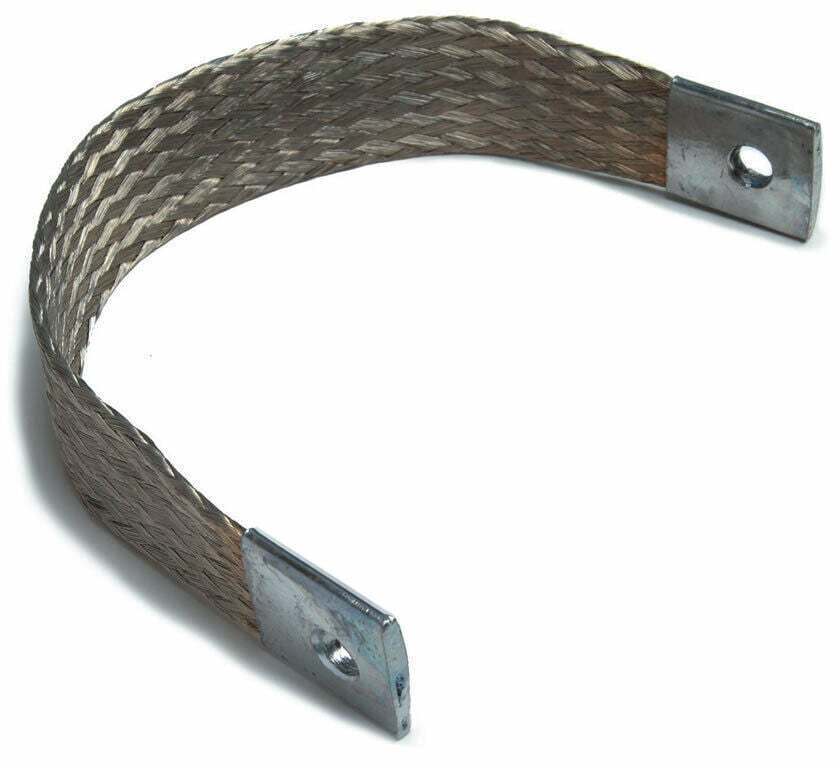

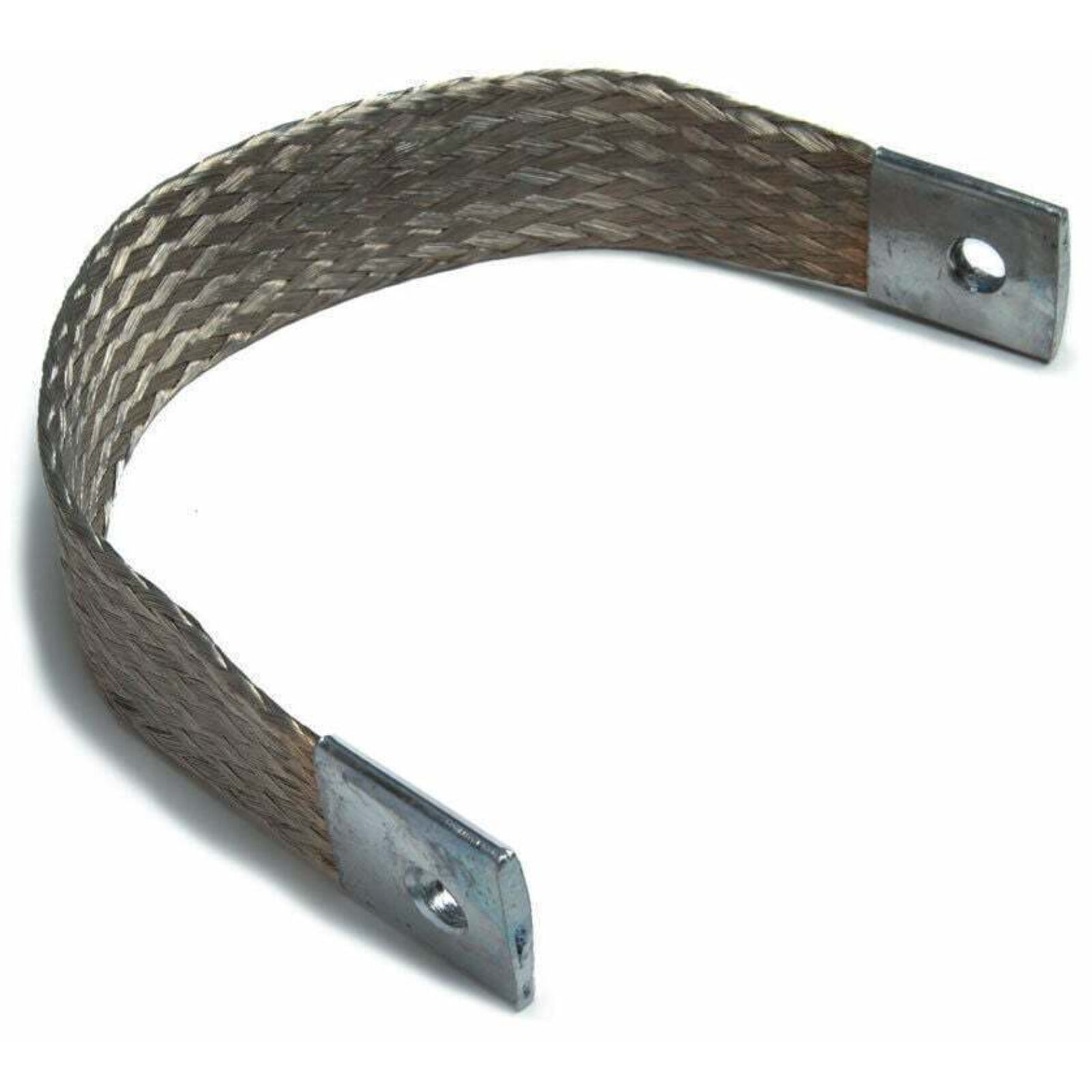

Cross section of ground strap	75mm²
Dimensions (L x W x H)	135x32x44mm
Weight	360g

Votronic Warranty Statement

We are liable for material defects of all our products within 36 months from the purchase date against representation of the sales slip or of the invoice, proper handling, intended use and consideration of the installation and operating manual provided. If the buyer or third execute modification and repair tasks to the product (external intervention) or will the electronic or the entire product damaged by moisture, any claims for defects for these tasks and the results being involved will be void. Claims will also be void for any service being performed by third, which has not been ordered by us in writing. Service is exclusively allowed to be performed by Votronic GmbH & Co. KG Lauterbach.

GTIN: 4250683614742
