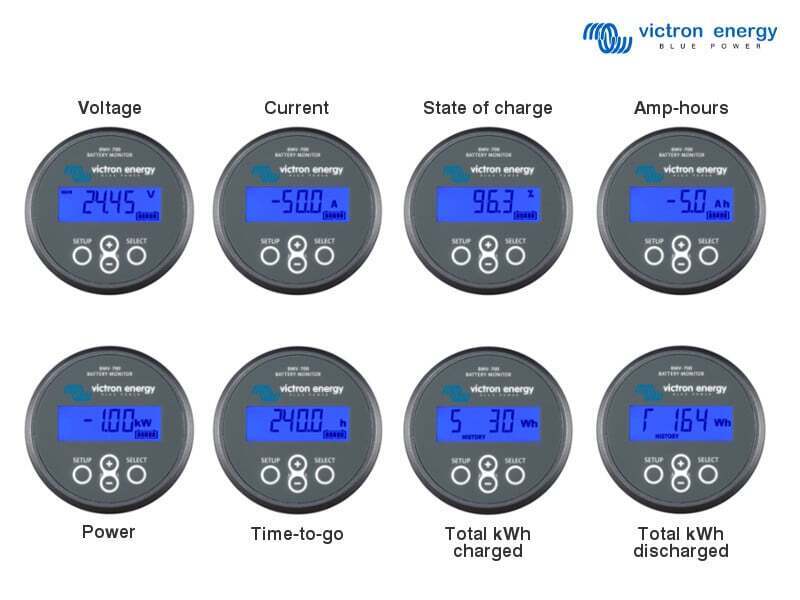

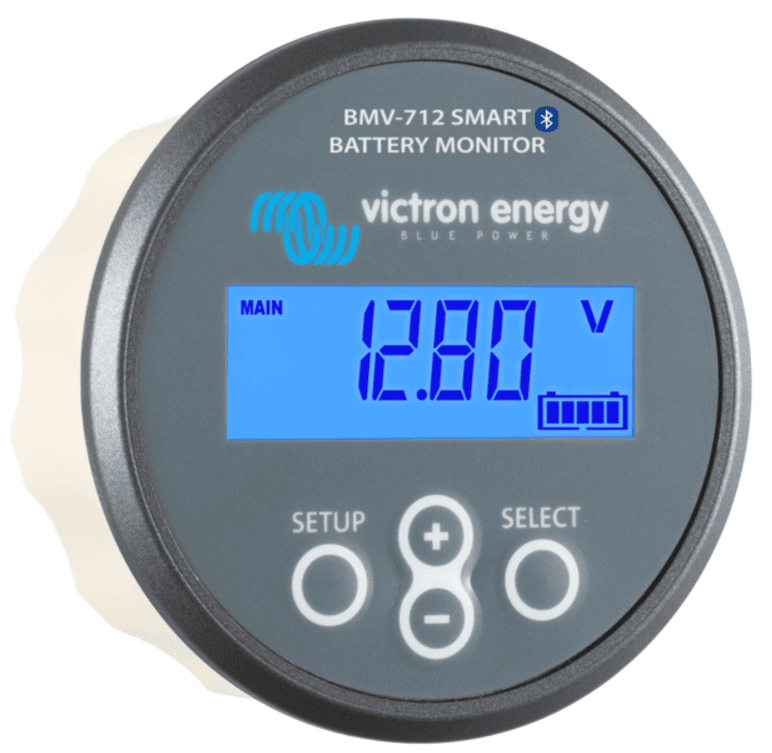

With the BMV-712, you can rely on precise tracking of your battery's remaining capacity. This advanced battery monitor considers variables like ampere-hours consumed, discharge current, temperature, and battery age. Its software algorithms work out these complexities to provide detailed information not just on voltage, current, and ampere-hours consumed, but also on state of charge, time-to-go, and power consumption in Watts. Moreover, the BMV-712 adds an extra input to measure a second battery's voltage, temperature, or midpoint voltage.

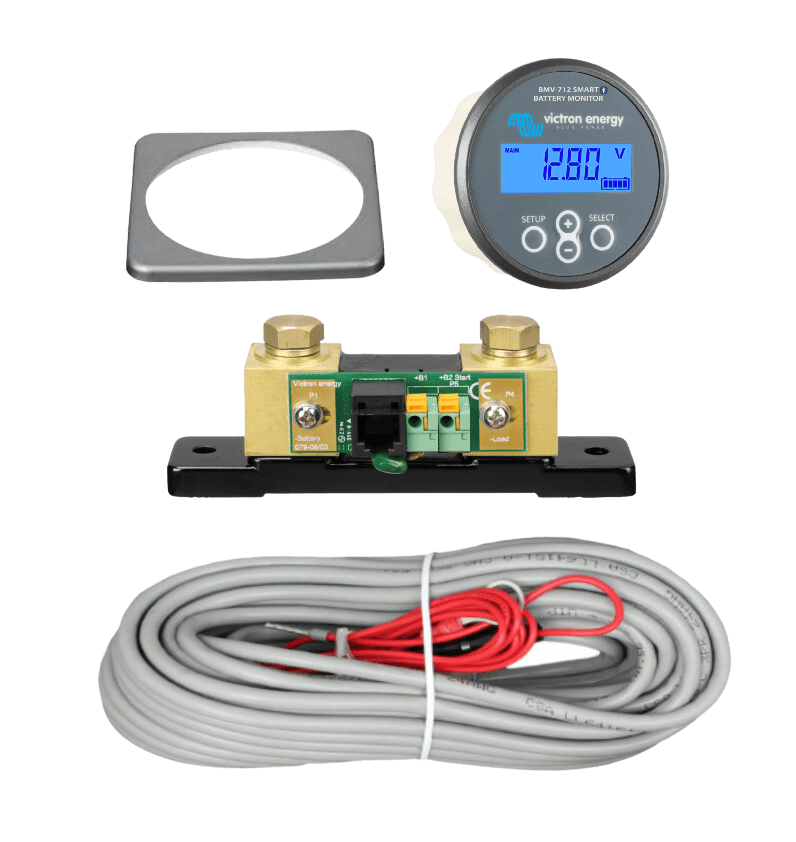

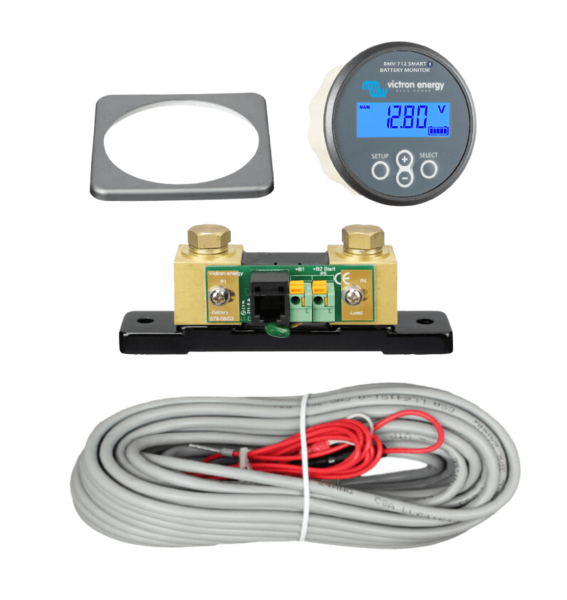

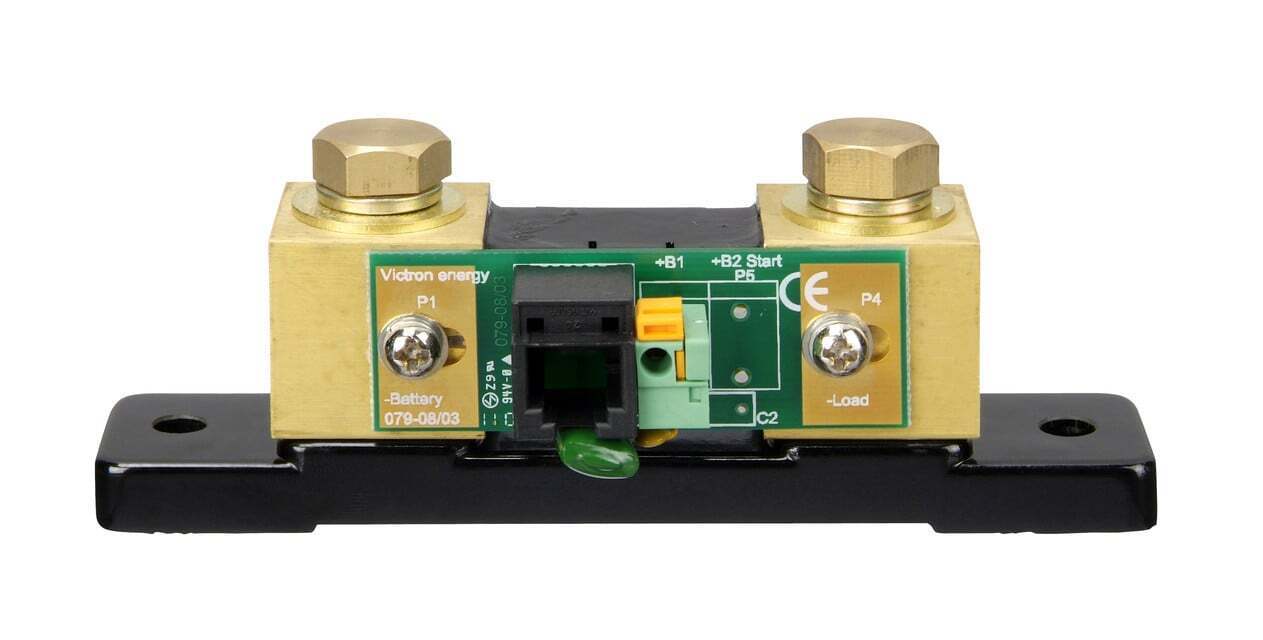

Installing the BMV-712 is as simple as it gets. All electrical connections link to the quick connect PCB on the current shunt, which connects to the monitor with a standard RJ12 telephone cable. The package includes a 10m RJ 12 cable and a 2m battery cable with fuse. No additional components needed! The package also comes with a separate front bezel for a square or round display, a rear mounting securing ring, and screws for front mounting.

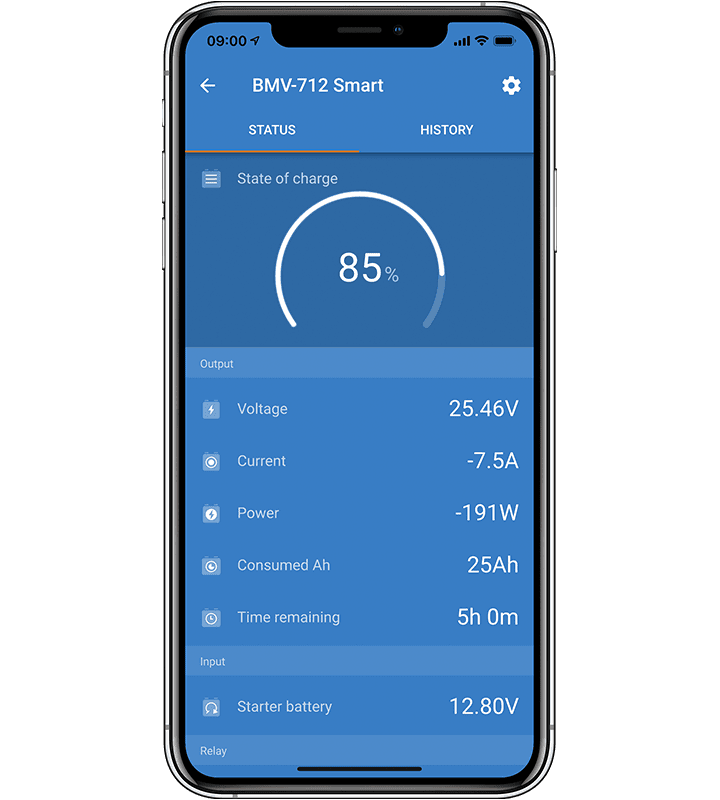

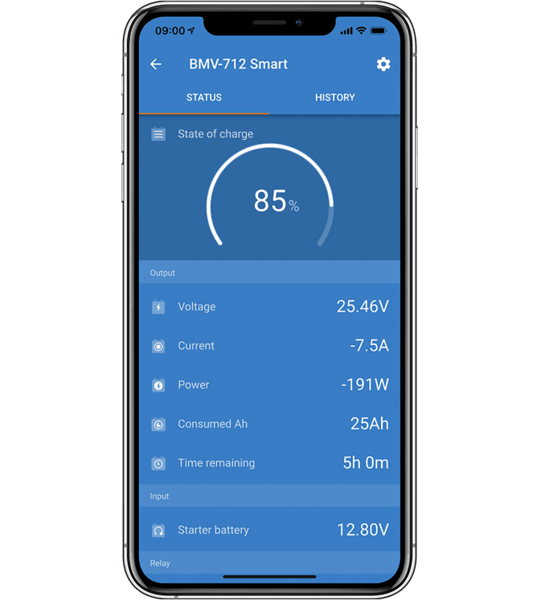

Setting up the BMV-712 is a breeze, thanks to its quick install menu and detailed setup menu with scrolling texts. For an even simpler solution, you can download our smartphone app and manage settings from there.
Previously a feature of large, industrial battery banks, midpoint voltage monitoring is now accessible and affordable with the BMV-712. This feature is essential for monitoring any battery bank as it alerts you to any deviations that can point to a problem with your battery. Following an alarm for midpoint voltage deviation can save your expensive battery from severe damage. Consult the BMV manual for more detailed information.
The BMV-712 offers extra input to measure voltage (of a second battery), temperature, or midpoint voltage, and corresponding alarm and relay settings.
When batteries are connected in series, one bad cell or battery can wreak havoc on your large, expensive battery bank. Timely warnings can be generated by measuring the midpoint voltage. For more information, consult section 5.2 of the BMV manual. To maximize the service life of series-connected batteries, we recommend our Battery Balancer (BMS012201000).
With built-in Bluetooth, the BMV-712 is ready for the Internet of Things (IoT) era. As Bluetooth is implemented in most other Victron Energy products, wireless communication between products will simplify your system installation and enhance performance. Plus, the bi-stable alarm relay prevents increased current draw in case of an alarm.
Take advantage of your smartphone or another Bluetooth enabled device to:
The BMV-712 is designed to offer comprehensive monitoring of your battery bank in various scenarios, such as:
The BMV-712 has all the features of the BMV-700, but it also includes an extra input to measure a second battery's voltage, temperature, or midpoint voltage. Additionally, the BMV-712 has built-in Bluetooth for easy wireless setup and monitoring.
The SmartShunt is essentially a BMV with Bluetooth and without a display. The BMV-712, on the other hand, has a physical display and also includes Bluetooth. The decision between the two depends on your preference for a physical display and the specific monitoring needs of your system.
Midpoint voltage monitoring is a feature that monitors the voltage halfway along a string of batteries. If there's a significant or increasing deviation from the expected midpoint voltage, it indicates a potential problem with one of the batteries in the string. This feature can help prevent severe damage to an expensive battery bank.
Battery Monitor | BMV-712 Smart |
---|---|
Supply voltage range | 6.5 - 70 VDC |
Current draw, back light off | < 1mA |
Input voltage range, auxiliary battery | 6.5 - 70 VDC |
Battery capacity (Ah) | 1 - 999 Ah |
Operating temperature range | -40 +50°C (-40 - 120°F) |
Measures voltage of second battery, or temperature, or midpoint | Yes |
Temperature measurement range | -20 +50°C |
VE.Direct communication port | Yes |

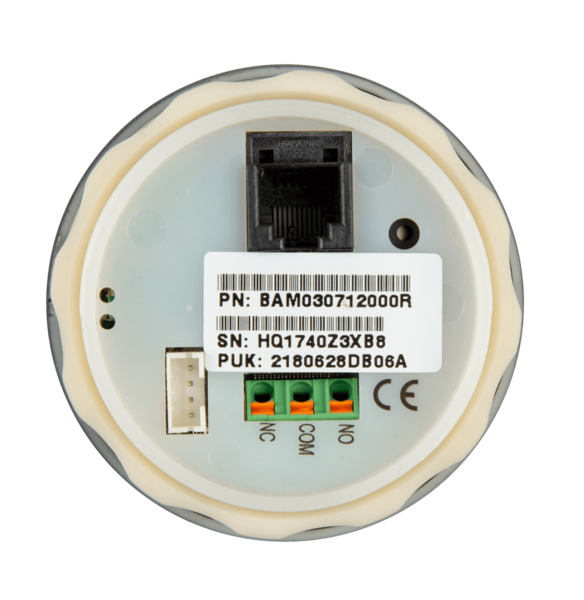

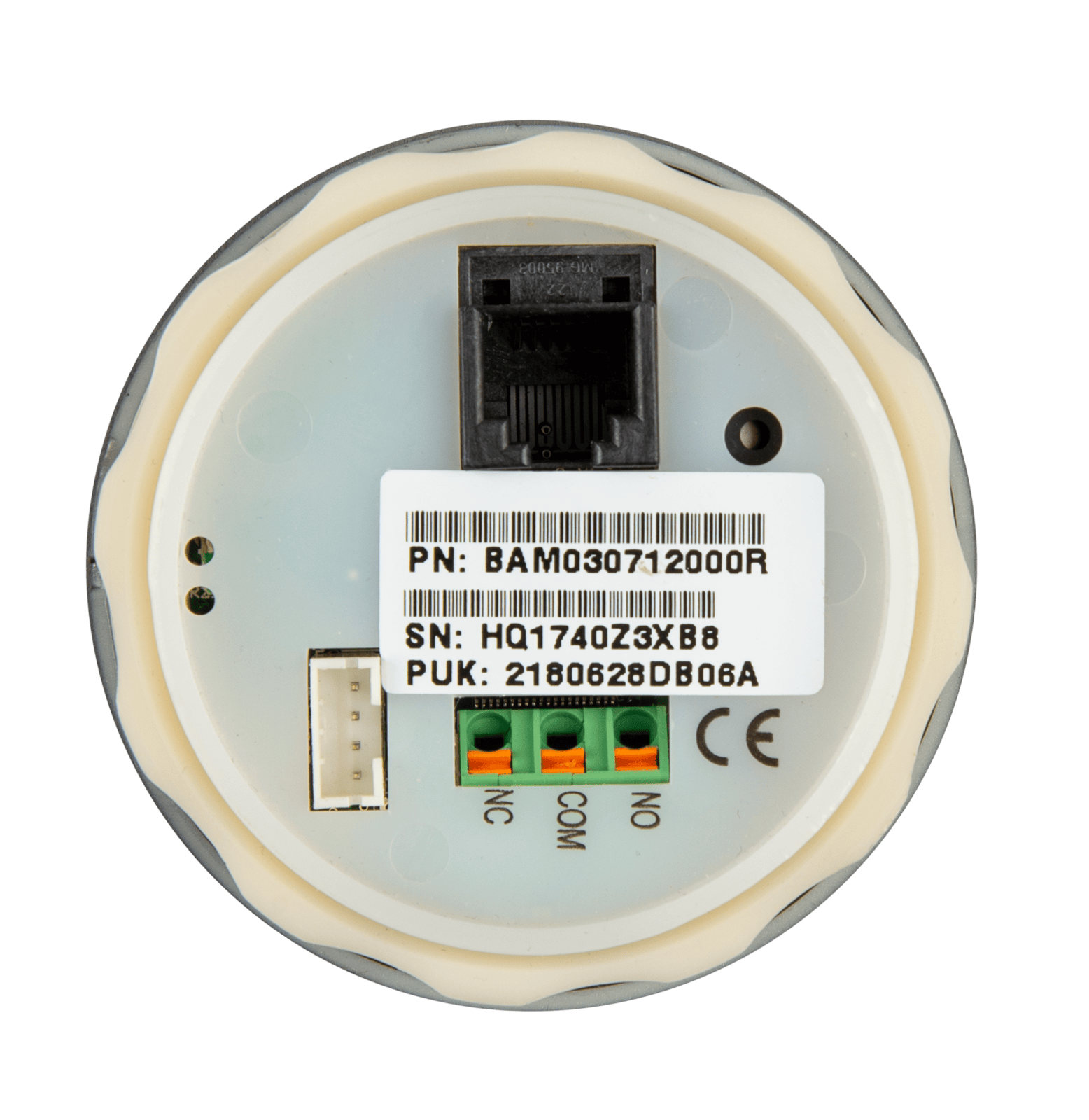

Bistable relay | 60V / 1A normally open (function can be inverted) |
Resolution & Accuracy (with a 500 A shunt) | |
Current | ±0,01A |
Voltage | ±0,01V |
Amp hours | ±0,1 Ah |
State of charge (0 – 100%) | ±0,1% |
Time to go | ±1 min |
Temperature (0 - 50°C or 30 - 120°F) | ±1°C/°F |
Accuracy of current measurement | ±0,4% |
Accuracy of voltage measurement | ±0,3% |
Installation & Dimensions | |
Installation | Flush mount |
Front | 63mm diameter |
Front bezel | 69 x 69mm (2.7 x 2.7 inch) |
Body diameter and depth | 52mm (2.0 inch) and 31mm (1.2 inch) |
Protection category | IP55 (not intended for outdoor use) |
Standards | |
Safety | EN 60335-1 |
Emission / Immunity | EN 55014-1 / EN 55014-2 |
Automotive | ECE R10-4 / EN 50498 |
Accessories | |
Shunt (included) | 500A / 50mV |
Cables (included) | 10 meter 6 core UTP with RJ12 connectors, and cable with fuse for ‘+’ connection |
Temperature sensor | Optional (ASS000100000) |
