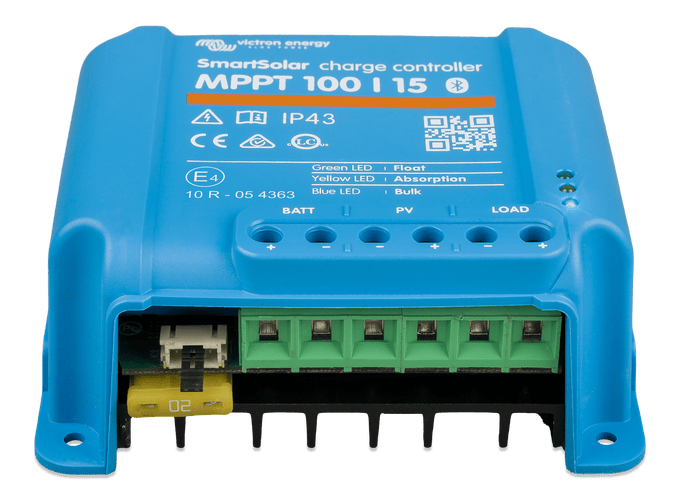

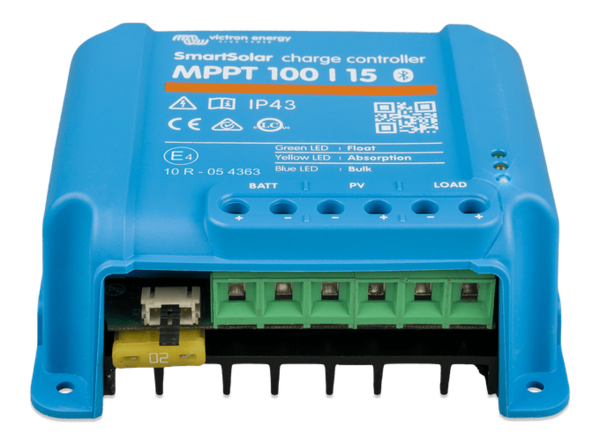

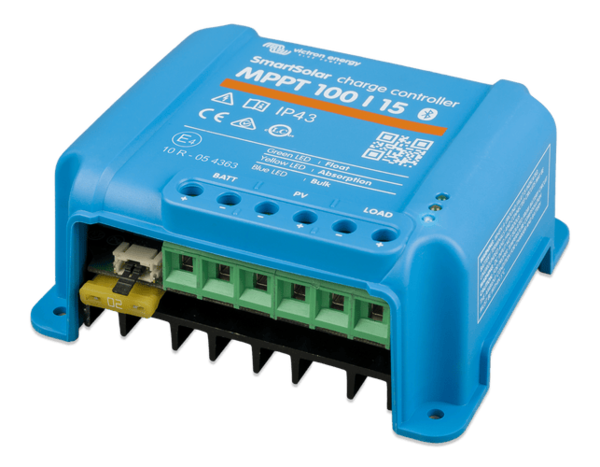

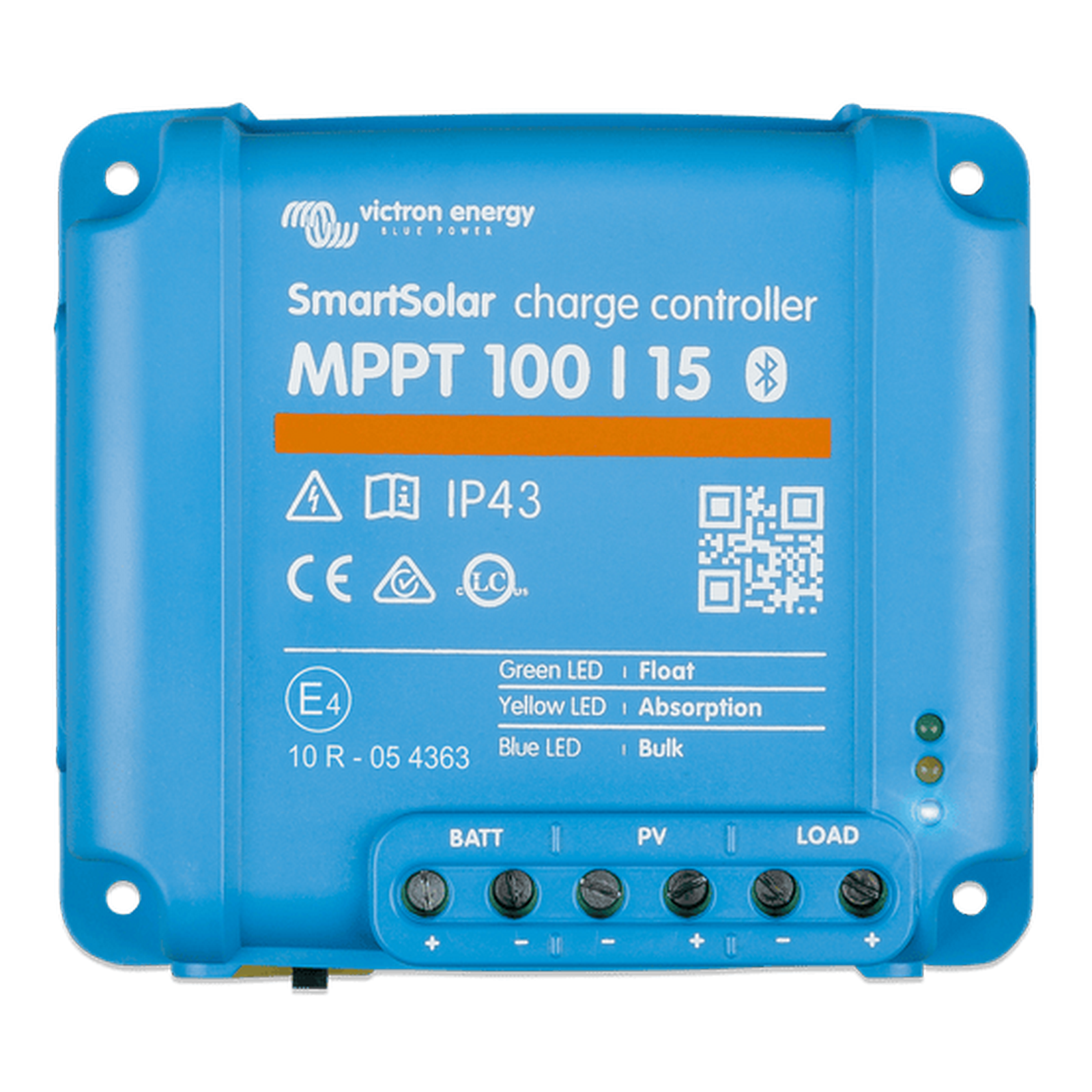

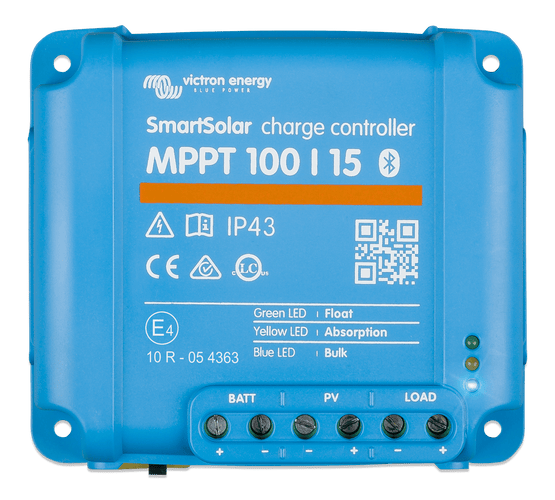

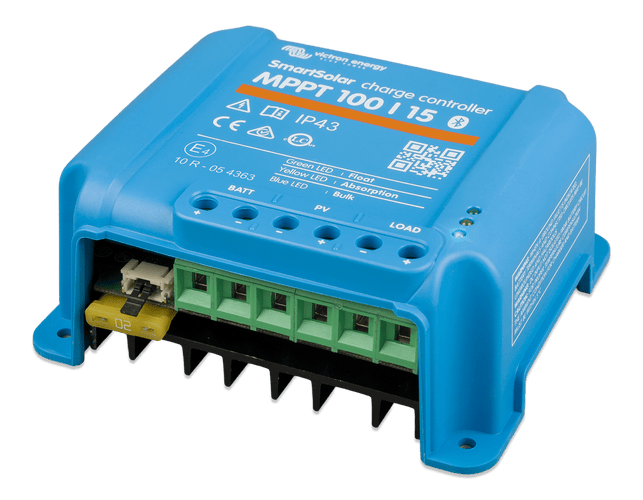

Maximize your solar system's efficiency with the Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller. This controller is engineered to bring you unparalleled ease of use and performance, ensuring you get the most out of your solar installation.

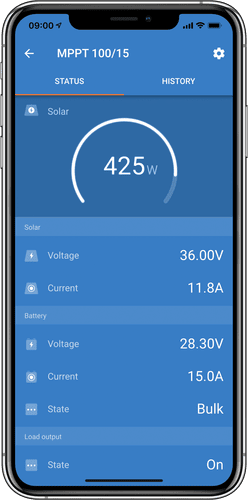

With built-in Bluetooth Smart technology, managing your SmartSolar Charge Controllers has never been easier. This feature allows for wireless setup, monitoring, updates, and synchronization, providing a seamless experience in managing your solar energy.
The VE.Direct feature offers a robust wired data connection to Cerbo GX and other GX devices, PCs, and more. This connectivity ensures efficient data sharing and device integration, enhancing your system's performance and reliability.
Our ultra-fast Maximum Power Point Tracking (MPPT) technology is designed to optimize your energy harvest, boosting it by up to 30% compared to PWM charge controllers, and by up to 10% more than slower MPPT controllers. It's perfect for handling cloudy skies and changing light conditions, ensuring maximum efficiency.
To prevent battery over-discharge, all loads can be connected to the load output. This feature intelligently disconnects the load when the battery voltage drops to a predetermined level, ensuring your battery's longevity and health.
The Battery Life algorithm enhances the way your solar charge controller manages the battery, efficiently charging it to avoid harmful cycles between partially charged and fully discharged states. This strategy helps achieve a near-full recharge approximately once every week, extending your battery's lifespan.
Visit our software section to learn how to customize the battery charge algorithm according to your needs. This flexibility allows for a personalized charging process, optimizing your system's performance.
Discover additional functionalities like day/night timing and light dimming by exploring the software section on our website. These features offer more control over your solar system, adapting it to your specific requirements.
The internal temperature sensor provides precise charge compensation by adjusting the absorption and float charge voltages according to temperature fluctuations, ensuring efficient and accurate charging under varying environmental conditions.
Enhance your system's monitoring capabilities by using a Smart Battery Sense or a BMV-712 Smart Battery Monitor. These optional devices communicate vital battery voltage and temperature information to your SmartSolar Charge Controllers via Bluetooth, further optimizing your system's efficiency.
The sophisticated 3-stage charging process includes Bulk, Absorption, and Float stages, designed for efficient and thorough battery charging. This adaptive approach ensures optimal recharging, based on the battery's discharge level, and maintains the batteries at a healthy voltage, preventing overcharging during inactivity.
Through the VictronConnect App, you can choose from 8 pre-set charge algorithms or create a fully programmable charge algorithm to suit your specific needs. Additionally, equalization charging for certain lead-acid batteries can be activated to ensure all cells are balanced, promoting battery health and longevity.
Upgrade to the Victron 12/24V 15A SmartSolar MPPT 100/15 Bluetooth Solar Charge Controller for a smart, efficient, and customizable solar charging experience, ensuring your solar system performs at its best.

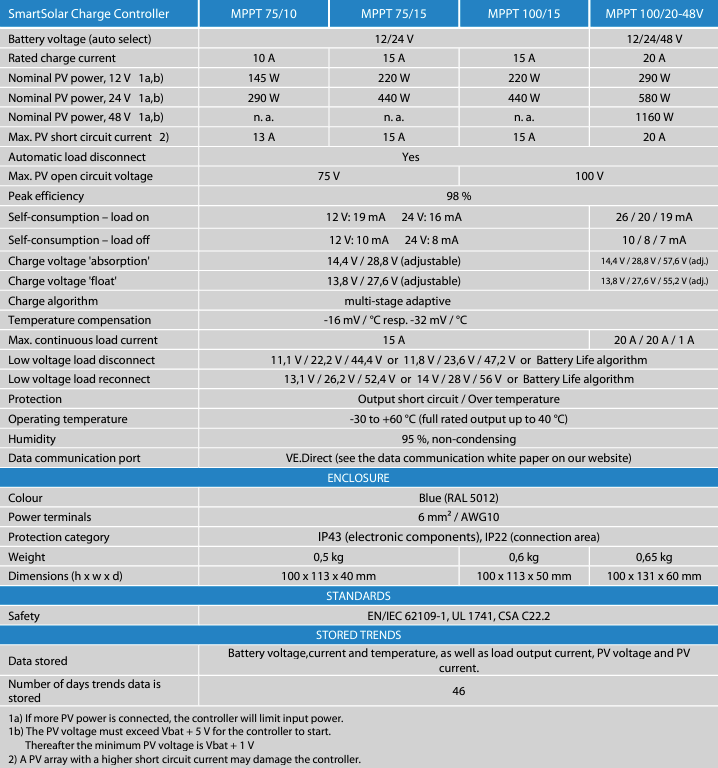

Solar Charge Controller | MPPT 100/15 |
---|---|
Battery voltage (auto select) | 12/24 V |
Rated charge current | 15 A |
Nominal PV power, 12 V | 220 W |
Nominal PV power, 24 V | 440 W |
Nominal PV power, 48 V | n.a. |
Max. PV short circuit current | 15 A |
Automatic load disconnect | Yes |
Max. PV open circuit voltage | 100 V |
Peak efficiency | 98% |
Self-consumption – load on | 12 V: 19 mA 24 V: 16 mA |
Self-consumption – load off | 12 V: 10 mA 24 V: 8 mA |
Charge voltage 'absorption' | 14.4 V / 28.8 V (adj.) |
Charge voltage 'float' | 13.8 V / 27.6 V (adj.) |
Charge algorithm | multi-stage adaptive |
Temperature compensation | -16 mV / °C resp. -32 mV / °C |
Max. continuous load current | 15 A |
Low voltage load disconnect | 11.1 V / 22.2 V / 44.4 V or 11.8 V / 23.6 V / 47.2 V or Battery Life algorithm |
Low voltage load reconnect | 13.1 V / 26.2 V / 52.4 V or 14 V / 28 V / 56 V or Battery Life algorithm |
Protection | Output short circuit / Over temperature |
Operating temperature | -30 to +60 °C (full rated output up to 40 °C) |
Humidity | 95%, non-condensing |
Data communication port | VE.Direct |
Enclosure | |
Colour | Blue (RAL 5012) |

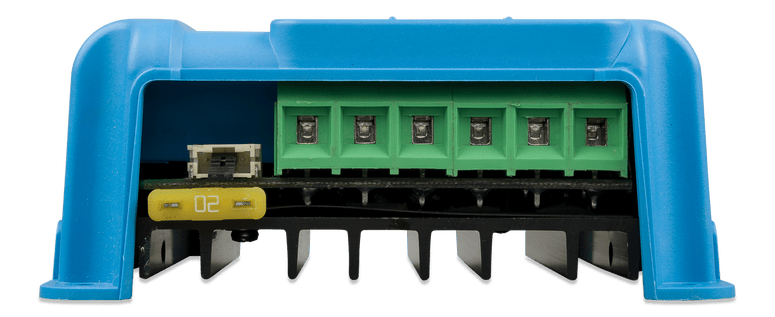

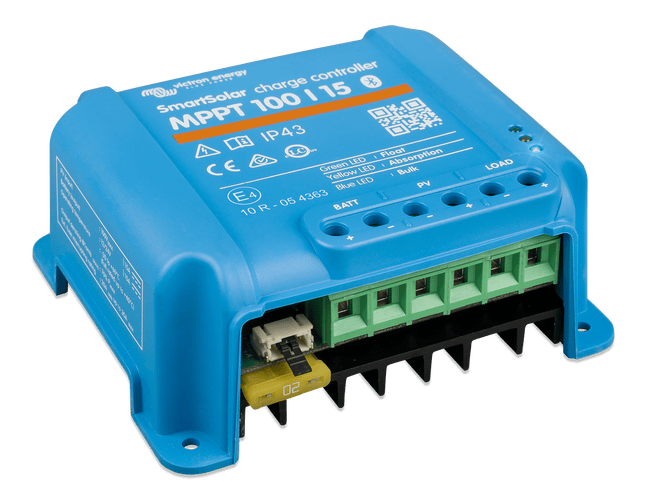

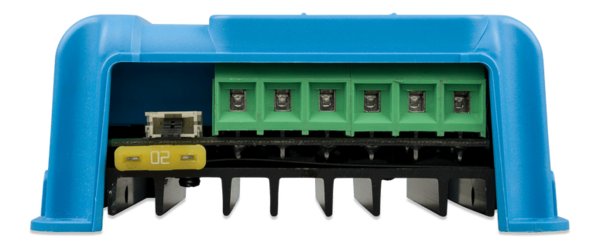

Power terminals | 6 mm² / AWG10 |
Protection category | IP43 (electronic components), IP22 (connection area) |
Weight | 0.6 kg |

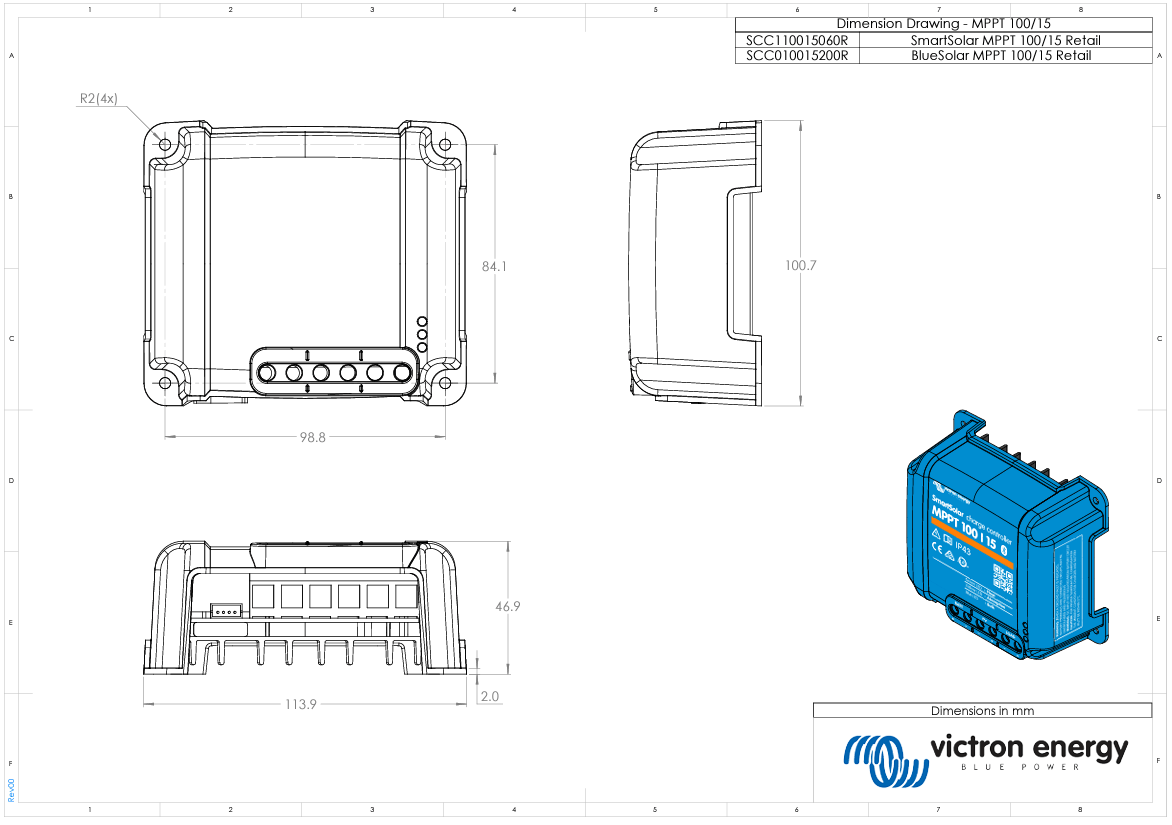

Dimensions (h x w x d) | 100 x 113 x 50 mm |
Standards | |
Safety | EN/IEC 62109-1, UL 1741, CSA C22.2 |

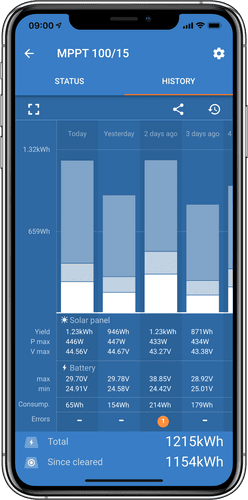

Stored Trends | |
Data stored | Battery voltage, current and temperature, as well as load output current, PV voltage and PV current. |
Number of days trends data is stored | 46 |
Note:
1a) If more PV power is connected, the controller will limit input power.
1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter, the minimum PV voltage is Vbat + 1 V.
2. A PV array with a higher short circuit current may damage the controller.
