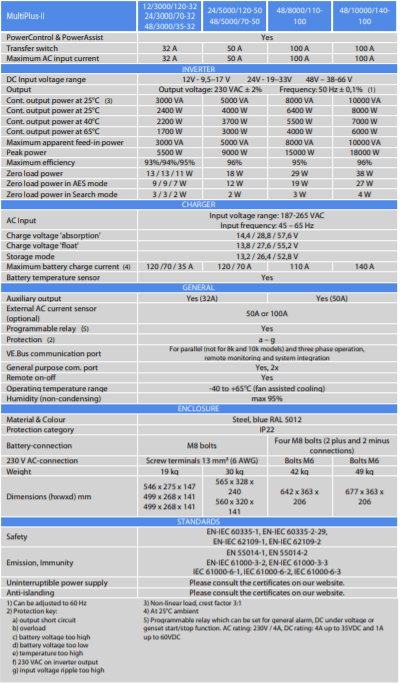

Specifications:
Specifications
| MultiPlus-II |
12/3000/120-32 |
| PowerControl & PowerAssist |
Yes |
| Transfer switch |
32 A |
| Maximum AC input current |
32 A |
| Inverter |
|
| DC Input voltage range |
9.5 – 17 V |
| Output |
230 VAC ± 2% |
| Frequency |
50 Hz ± 0.1% |
| Cont. output power at 25°C (3) |
3000 VA |
| Cont. output power at 25°C |
2400 W |
| Cont. output power at 40°C |
2200 W |
| Cont. output power at 65°C |
1700 W |
| Max apparent feed-in power |
3000 VA |
| Peak power |
5500 W |
| Maximum efficiency |
93 % |
| Zero load power |
13 W |
| Zero load power in AES mode |
9 W |
| Zero load power in Search mode |
3 W |
| Charger |
|
| AC Input voltage range |
187-265 VAC |
| Input frequency |
45 – 65 Hz |
| Charge voltage 'absorption' |
14.4 V (adjustable) |
| Charge voltage 'float' |
13.8 V (adjustable) |
| Storage mode |
13.2 V (adjustable) |
| Max. battery charge current (4) |
120 A |
| Battery temperature sensor |
Yes |
| General |
|
| Auxiliary output |
Yes (32A) |
| External AC current sensor (optional) |
50 A or 100 A |
| Programmable relay (5) |
Yes |
| Protection (2) |
a-g |
| VE.Bus communication port |
For parallel and three phase operation, remote monitoring and system integration |
| General purpose com. port |
Yes (2x) |
| Remote on-off |
Yes |
| Operating temperature range |
-40 to +65°C (fan assisted) |
| Humidity (non-condensing) |
Max 95% |
| Enclosure |
|
| Material & Colour |
Steel, blue RAL 5012 |
| Protection category |
IP22 |
| Battery-connection |
M8 bolts |
| 230 V AC-connection |
Screw terminals 13 mm² / AWG6 |
| Weight |
19 kg |

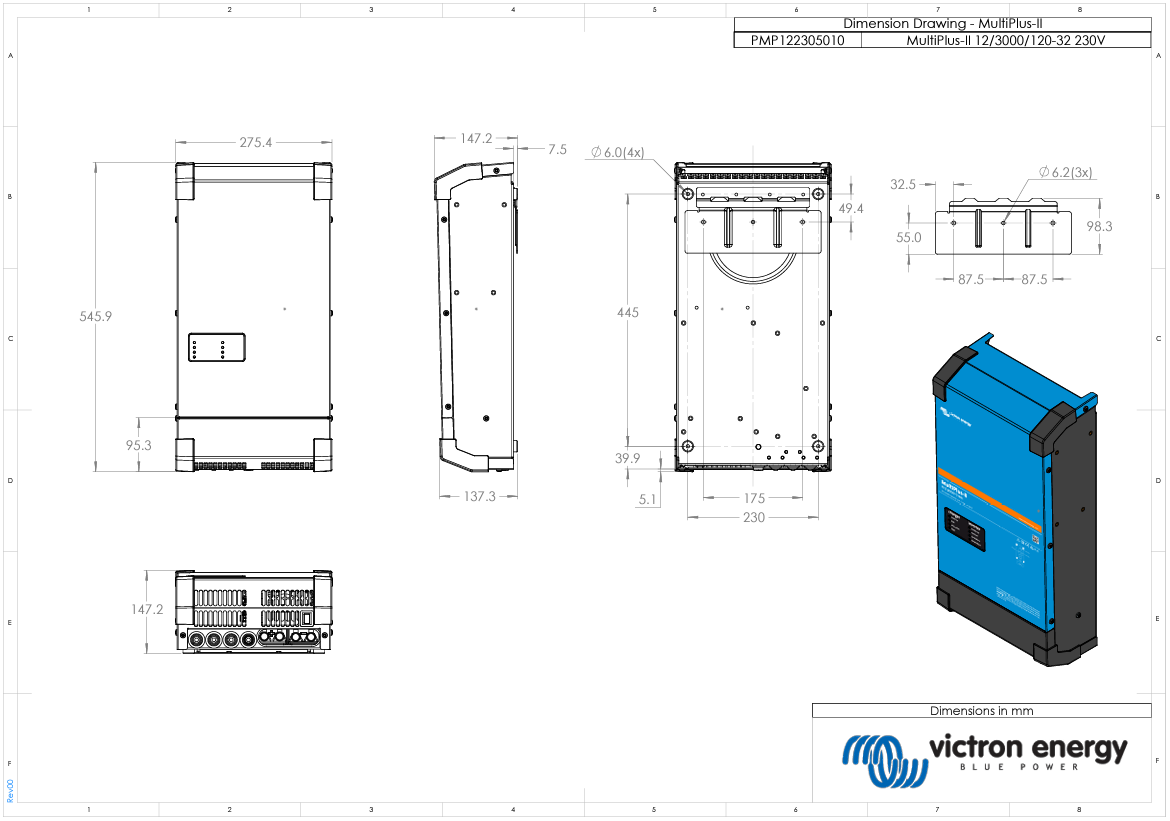

| Dimensions (h x w x d) |
546 x 275 x 147 mm |
| Standards |
|
| Safety |
EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
| Emission, Immunity |
EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
| Uninterruptible power supply |
Please consult the certificates on our website. |
| Anti-islanding |
Please consult the certificates on our website. |
- Can be adjusted to 60 Hz
- Protection key:
- a) output short circuit
- b) overload
- c) battery voltage too high
- d) battery voltage too low
- e) temperature too high
- f) 230 VAC on inverter output
- g) input voltage ripple too high
- Non-linear load, crest factor 3:1
- Up to 25°C ambient
- Programmable relay which can be set for:
- General alarm
- DC under voltage
- Genset start/stop function.
- AC rating: 230V / 4A
- DC rating: 4A up to 35VDC and 1A up to 60VDC
