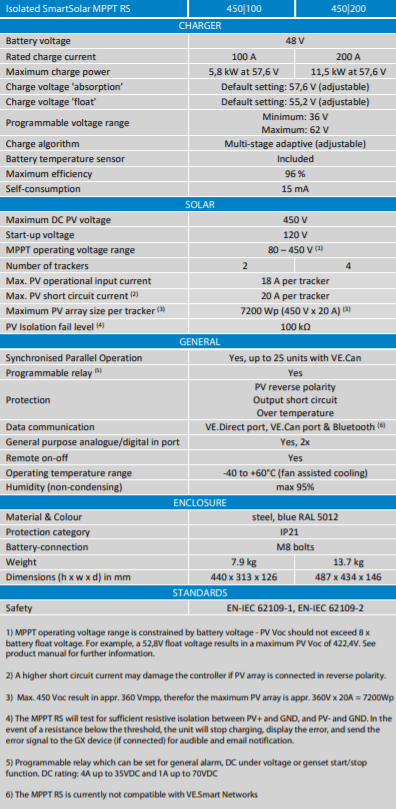

Specifications:
Specifications
| Model |

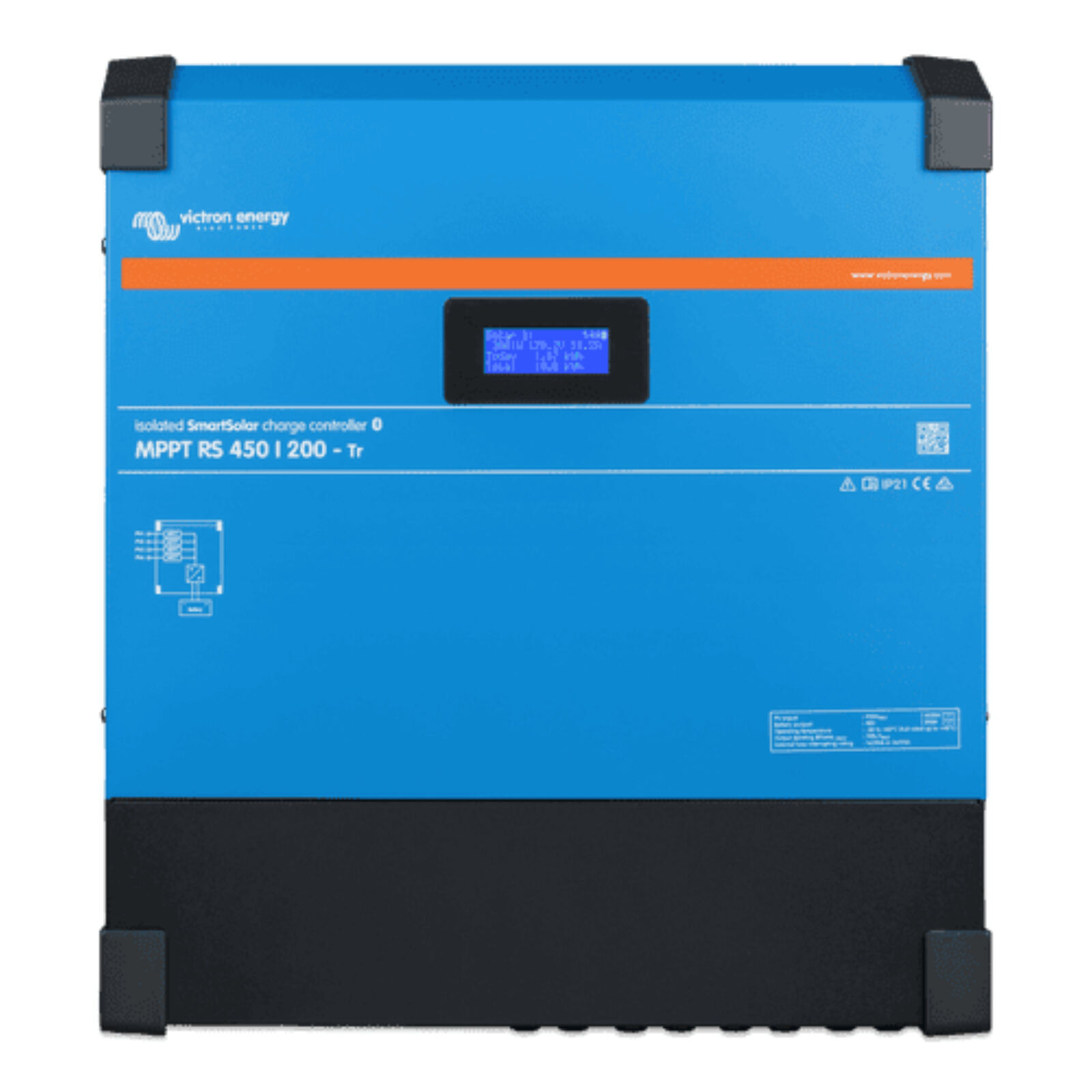

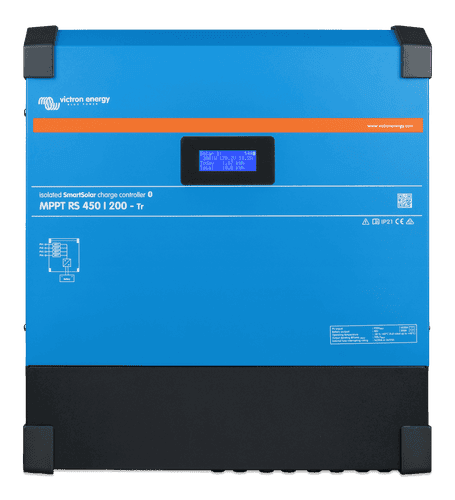

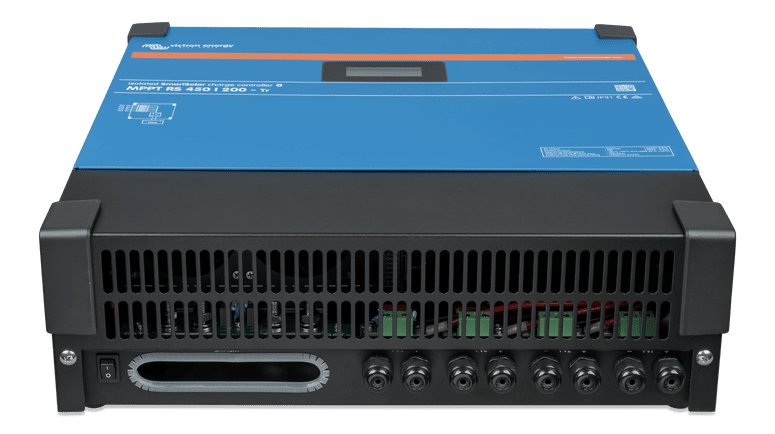

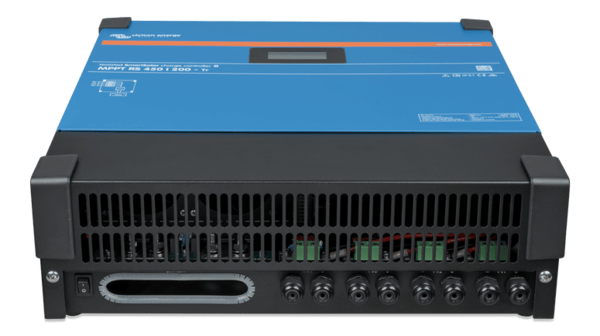

SmartSolar MPPT RS 450/200 |
| Charger |
|
| Battery Voltage |
48 V |
| Rated Charge Current |
200 A |
| Maximum Charge Power |
11.5 kW at 57.6 V |
| Charge Voltage 'Absorption’ |
Default: 57.6 V (adjustable) |
| Charge Voltage 'Float' |
Default: 55.2 V (adjustable) |
| Programmable Voltage Range |
Min: 36 V, Max: 60 V (7) |
| Charge Algorithm |
Multi-stage adaptive (adjustable) |
| Battery Temperature Sensor |
Included |
| Maximum Efficiency |
96 % |
| Self-Consumption |
15 mA |
| Solar |
|
| Maximum DC PV Voltage |
450 V |
| Start-up Voltage |
120 V |
| MPPT Operating Voltage Range |
80 – 450 V (1) |

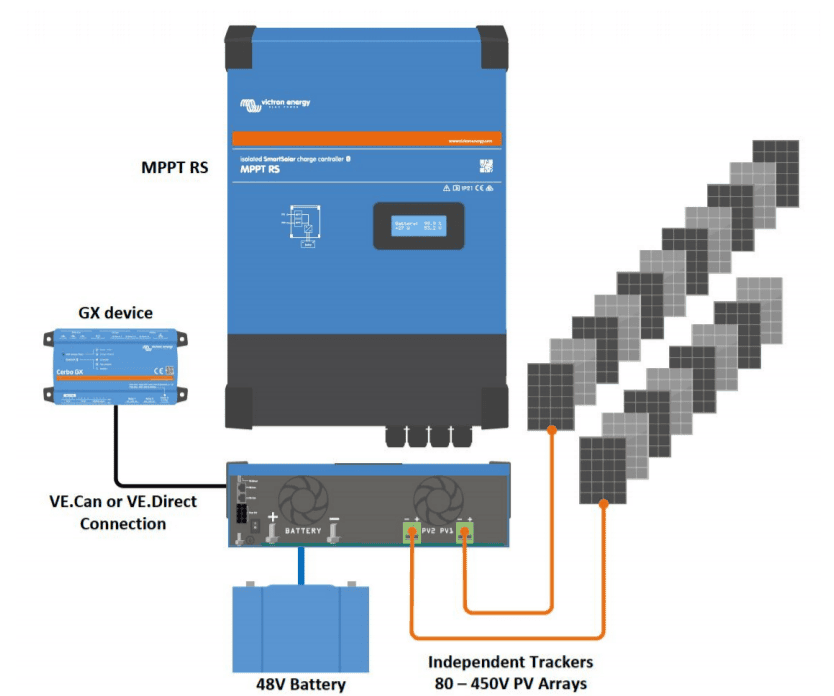

| Number of Trackers |
4 |
| Max. PV Operational Input Current |
18 A per tracker |
| Max. PV Short Circuit Current (2) |
20 A per tracker |
| Max. DC Output Charging Power |
4000 W per tracker, 11520 W total |
| Maximum PV Array Size per Tracker (3) |
7200 Wp (450 V x 20 A) (3) |
| PV Isolation Fail Level (4) |
100 kΩ |
| General |
|
| Synchronised Parallel Operation |
Yes, up to 25 units with VE.Can |
| Programmable Relay (5) |
Yes |
| Protections |
PV reverse polarity, Output short circuit, Over temperature |
| Data Communication |

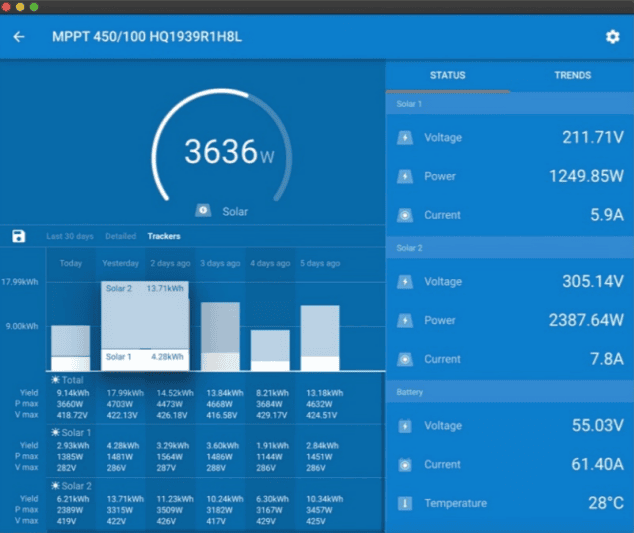

VE.Direct port, VE.Can port & Bluetooth (6) |
| Bluetooth Frequency |
2402 – 2480 MHz |
| Bluetooth Power |
4dBm |
| General Purpose Analogue/Digital In Port |
Yes, 2x |
| Remote On-Off |
Yes |
| Operating Temperature Range |
-40 to +60 °C (fan assisted cooling) |
| Humidity (Non-Condensing) |
Max 95 % |
| Enclosure |
|
| Enclosure Material & Colour |
Steel, blue RAL 5012 |
| Protection Category |
IP21 |
| Battery-Connection |
M8 bolts |

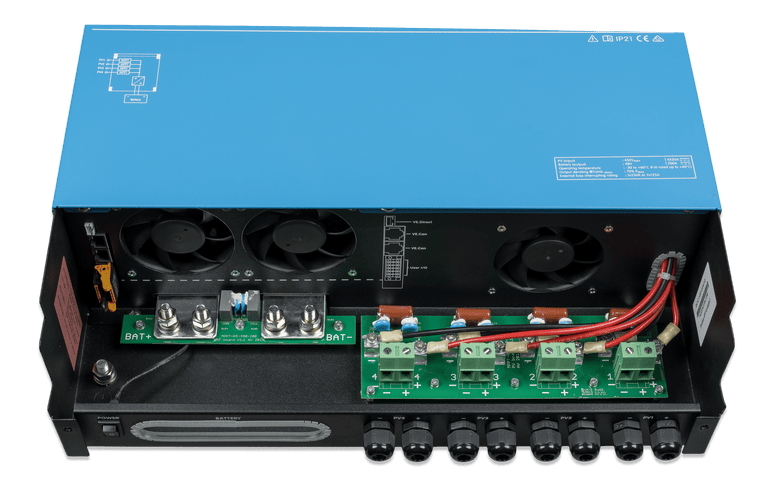

| Power Terminals PV Input (-Tr version) |
2 x 16 mm2 |
| Power Terminals PV Input (MC4 version) |
1 pair of male and female MC4 connectors per tracker |
| Weight |
13.7 kg |

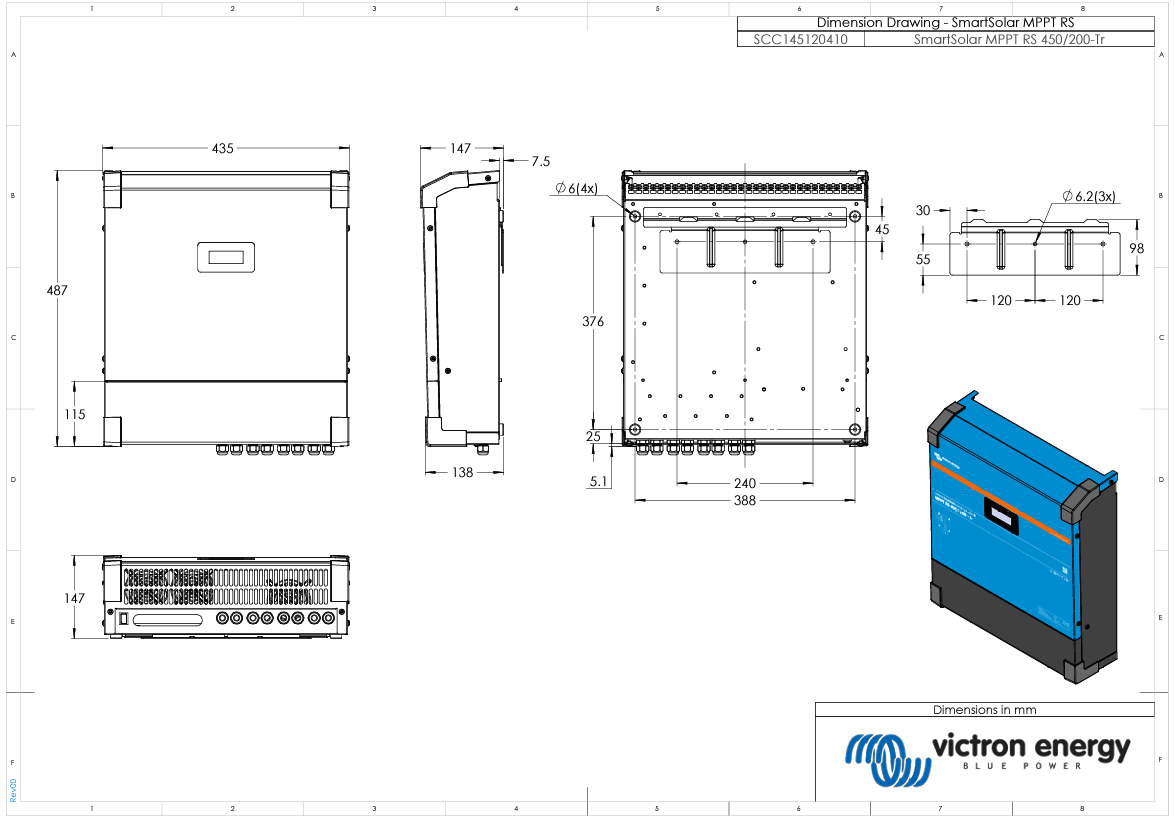

| Dimensions (h x w x d) in mm |
487 x 434 x 146 |
| Standards |
|
| Safety |
EN-IEC 62109-1, EN-IEC 62109-2 |
-
MPPT Operating Voltage Range Constraints:
- Battery voltage limits PV VOC.
- PV VOC should not exceed 8 times the battery float voltage.
- Example: A 52.8 V float voltage results in a maximum PV VOC of 422.4 V.
- Refer to the product manual for more details.
-
PV Array and Short Circuit Current:
- A high short circuit current may damage the controller if PV array is connected in reverse polarity.
-
Maximum PV Array Calculation:
- Max. 450 VOC leads to approximately 360 Vmpp.
- Therefore, the maximum PV array is around 360 V x 20 A = 7200 Wp.
-
PV Isolation and MPPT RS Functionality:
- MPPT RS tests for sufficient resistive isolation between PV+ and GND, and PV- and GND.
- If resistance is below the threshold, the unit stops charging, displays an error, and sends an error signal to the GX device (if connected) for audible and email notification.
-
Programmable Relay:
- Can be set for general alarm, DC under voltage, or genset start/stop function.
- DC rating: 4 A up to 35 VDC and 1 A up to 70 VDC.
-
Compatibility with VE.Smart Networks:
- The MPPT RS is currently not compatible with VE.Smart Networks.
-
Charger Set-Point and Output Voltage:
- Float and absorption set-point can be set to a maximum of 60 V.
- Output voltage at the charger terminals can be higher due to temperature compensation and voltage drop over the battery cables.
- Maximum output current reduces linearly from full current at 60 V to 5A at 62 V.
- Equalization voltage can be set to a maximum of 62V.
- Equalization current percentage can be set to a maximum of 6%.
