The MultiPlus-II is a versatile inverter/charger tailor-made for the unique energy demands of RV, marine and caravan enthusiasts. The MultiPlus-II seamlessly manages your on-the-go power needs. Its robust design accommodates the flexible power requirements of modern caravans, providing a reliable power source for a wide array of appliances, even while traversing remote off-grid locations. This powerhouse brings unparalleled energy management with a massive 220A mains charger and a 50A AC transfer switch, providing you with continuous and reliable power.
The heart of the MultiPlus-II is its robust 5000VA / 4000W inverter, equipped with a reliable toroidal transformer capable of delivering a peak power of 9000W. This means you can run virtually any appliance that plugs into a standard 10A or 15A power point, from air conditioning units to kitchen appliances, all with the assurance that your power supply can handle the load with ease. Its substantial power output and surge capacity ensure that your travel experience is marked by convenience and reliability, letting you focus on making memories rather than managing energy.
Understanding the fluctuating power environment in RVs, the MultiPlus-II ensures that your vehicle's generator or grid connection is never overwhelmed. It intelligently allocates surplus power for charging, and when extra energy is needed, it supplements with battery power, guaranteeing a constant, stable supply.
The MultiPlus-II stands out during grid failures, maintaining an uninterrupted power supply to your RV's essential systems. With its ultra-fast switching capability, it guarantees that your comfort and convenience are never compromised, allowing you to enjoy all the luxuries of home while on the move.
Equipped with dual AC outputs, the MultiPlus-II dedicates power to critical systems without draining your storage batteries. Secondary systems, such as water heaters, can be powered only when external AC is available by using AC output 2, preserving battery life for when you need it most.
For larger RVs requiring more power, the MultiPlus-II can be scaled up. Multiple units can run in parallel, delivering substantial output for all your energy needs. This scalability makes it an ideal solution for extended travel and off-grid living, where power demands can be as unpredictable as your next destination.
Manage your power system remotely with intuitive monitoring and control solutions. Whether through a dedicated control panel or a smart device, the MultiPlus-II keeps you informed and in control, ensuring your adventures are powered safely and efficiently.
For your caravanning and boating adventures, the MultiPlus-II offers the power and flexibility you need to travel with confidence. It provides a reliable energy hub that meets the demands of both your journey and your destination

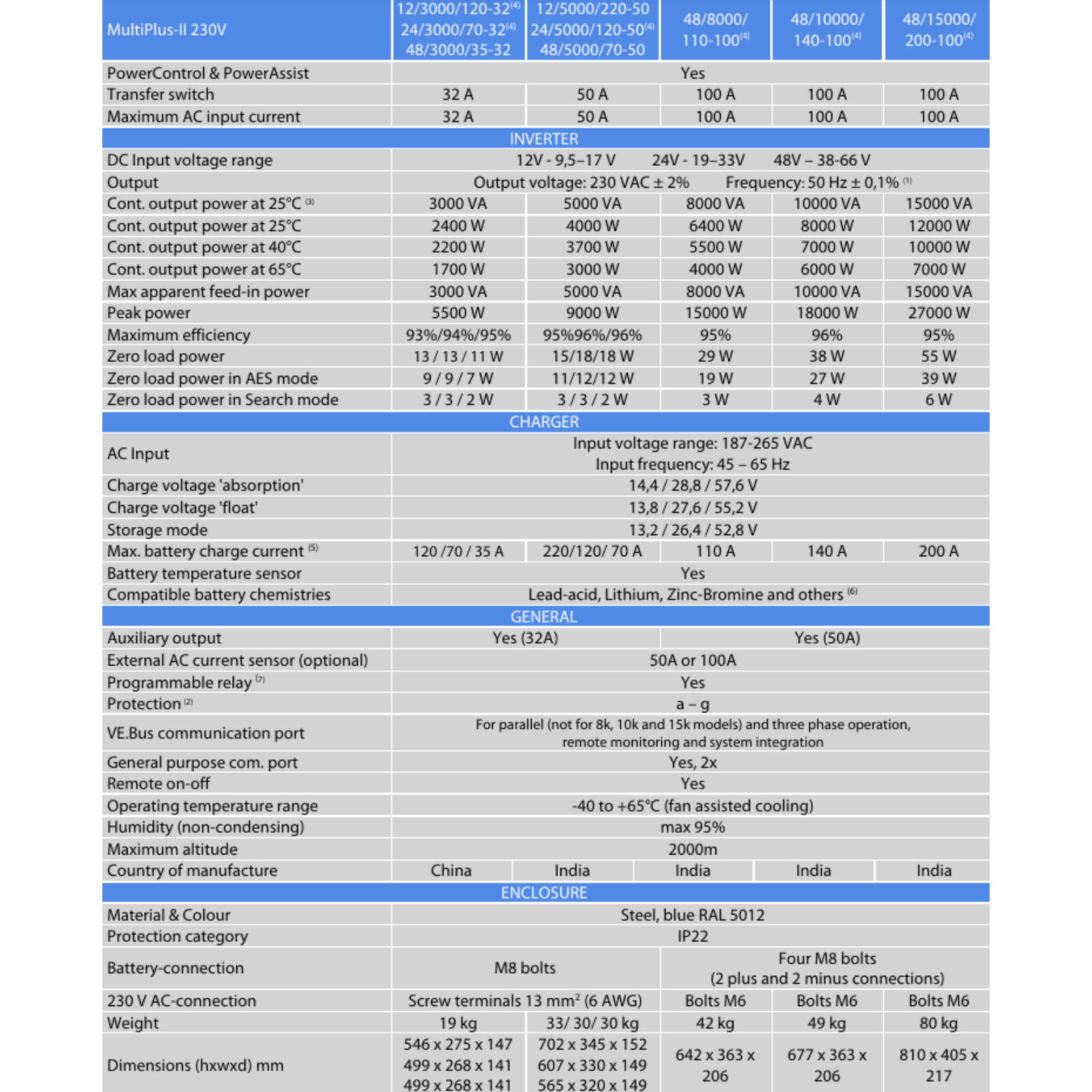

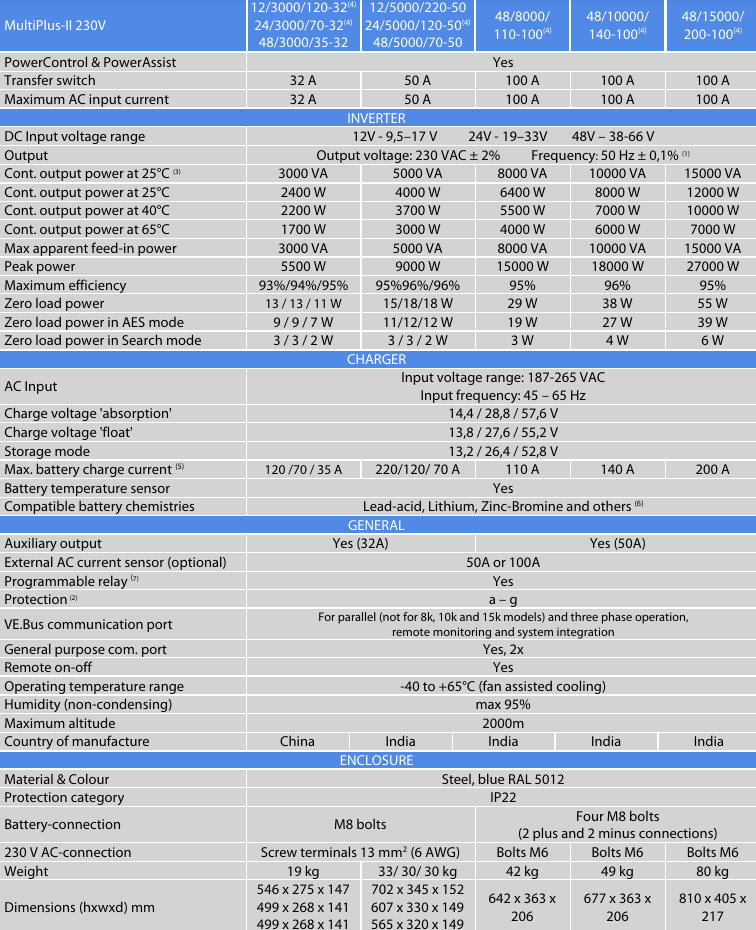

MultiPlus-II | 12/5000/220-50 |
---|---|
PowerControl & PowerAssist | Yes |
Transfer switch | 50 A |
Maximum AC input current | 50 A |
Inverter | |
DC Input voltage range | 12V: 9.5 – 17 V |
Output | 230 VAC ± 2% |
Frequency | 50 Hz ± 0.1% |
Cont. output power at 25°C (3) | 5000 VA |
Cont. output power at 25°C | 4000 W |
Cont. output power at 40°C | 3700 W |
Cont. output power at 65°C | 3000 W |
Max apparent feed-in power | 5000 VA |
Peak power | 9000 W |
Maximum efficiency | 96% |
Zero load power | 18 W |
Zero load power in AES mode | 12 W |
Zero load power in Search mode | 2 W |
Charger | |
AC Input voltage range | 187-265 VAC |
Input frequency | 45 – 65 Hz |
Charge voltage 'absorption' | 14.4 (adjustable) |
Charge voltage 'float' | 13.5 (adjustable) |
Storage mode | 13.5 (adjustable) |
Max. battery charge current (4) | 12 V: 220 A |
Battery temperature sensor | Yes |
General | |
Auxiliary output | Yes (32A) |
External AC current sensor (optional) | 50 A or 100 A |
Programmable relay (5) | Yes |
Protection (2) | a-g |
VE.Bus communication port | For parallel and three phase operation, remote monitoring and system integration |
General purpose com. port | Yes (2x) |
Remote on-off | Yes |
Operating temperature range | -40 to +65°C (fan assisted) |
Humidity (non-condensing) | Max 95% |
Enclosure | |
Material & Colour | Steel, blue RAL 5012 |
Protection category | IP22 |
Battery-connection | M8 bolts |
230 V AC-connection | Screw terminals 13 mm² / AWG6 |
Weight | 33 kg |

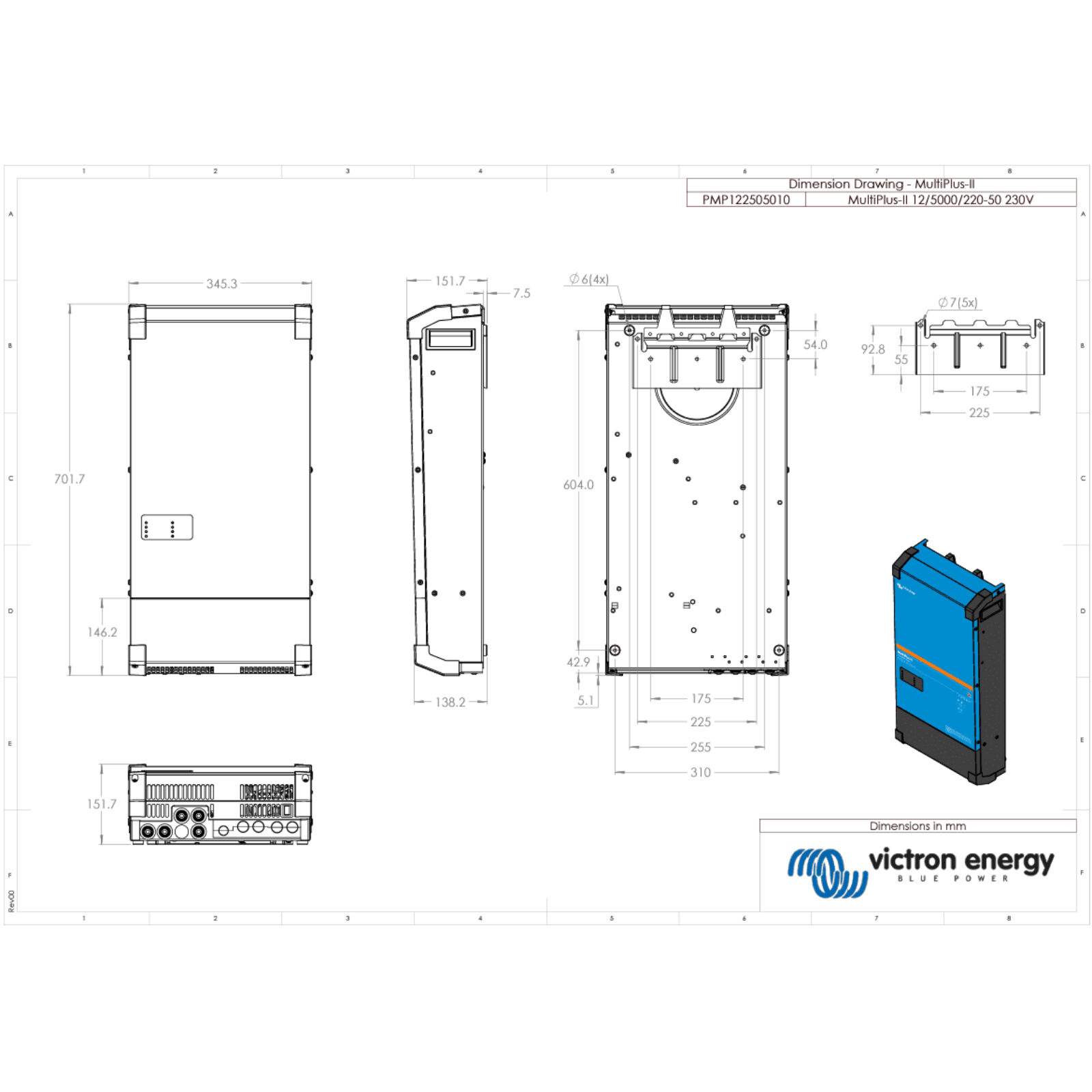

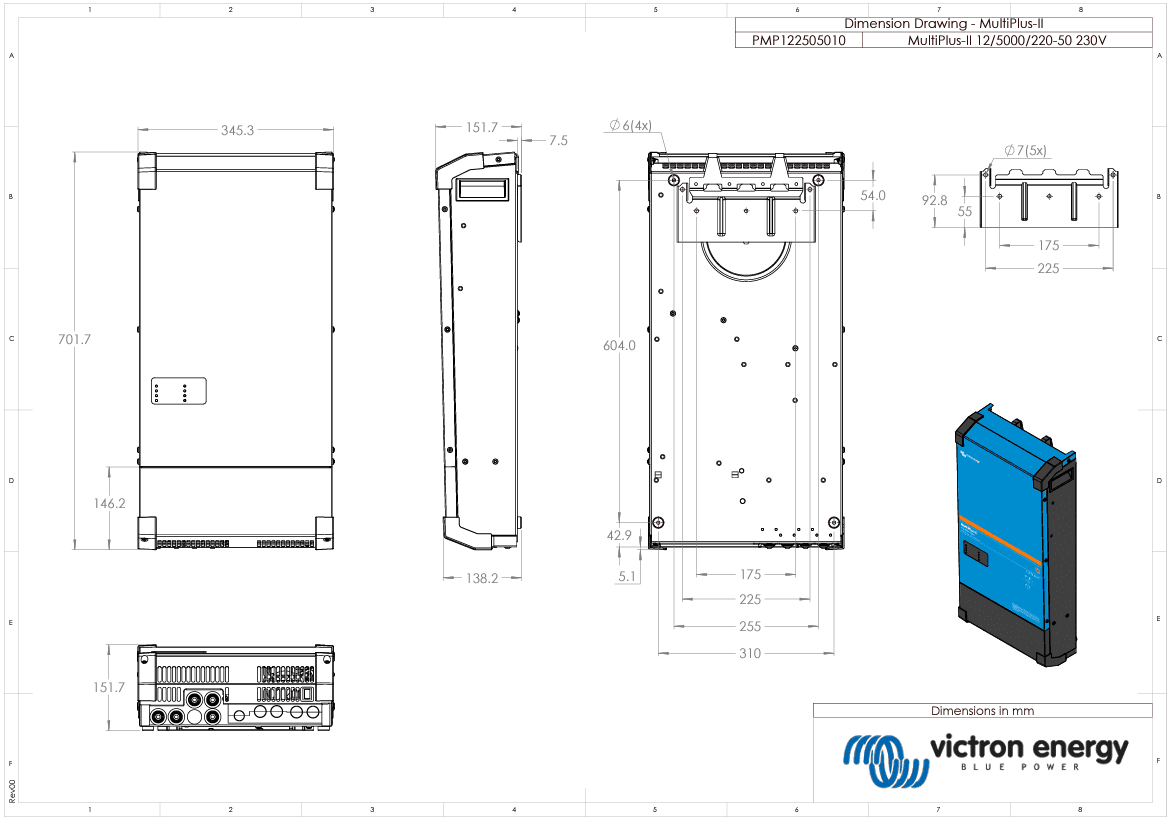

Dimensions (h x w x d) | 12V: 702 x 345 x 152 mm |
Standards | |
Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 |
Emission, Immunity | EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3 |
Uninterruptible power supply | Please consult the certificates on our website. |
Anti-islanding | Please consult the certificates on our website. |
