Ubiquiti UMR-Ultra Ultra-compact managed LTE mobile router for IoT applications with integrated WiFi, WAN failover, and DC power input support [UMR-Ultra]

Ubiquiti UMR-Ultra Ultra-compact managed LTE mobile router for IoT applications with integrated WiFi, WAN failover, and DC power input support [UMR-Ultra]

Hurry! 14 items left!

Price	$272.26
	Collect 272 Everyday Rewards points Log in to MyDeal to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

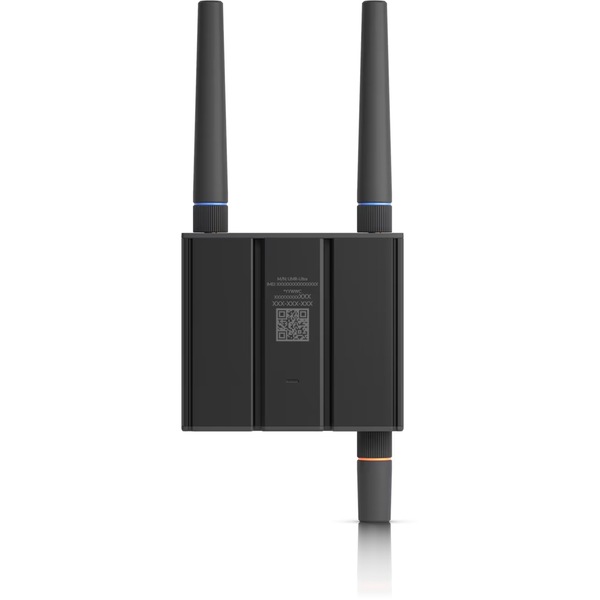

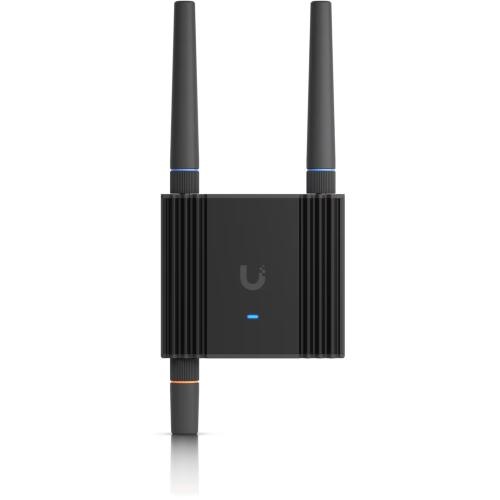

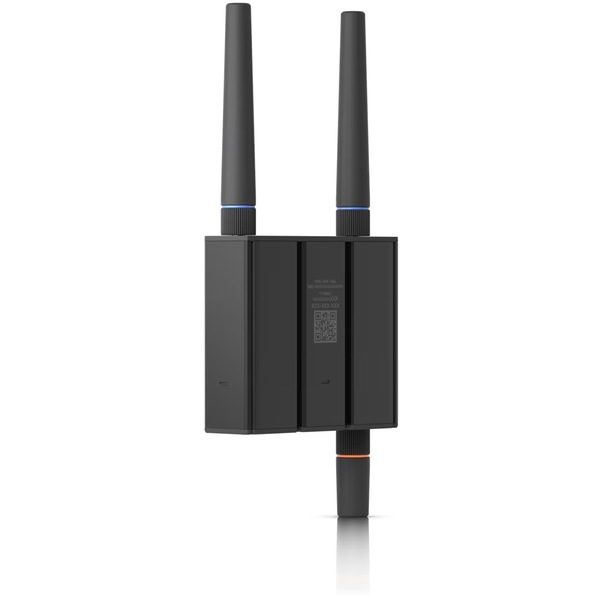

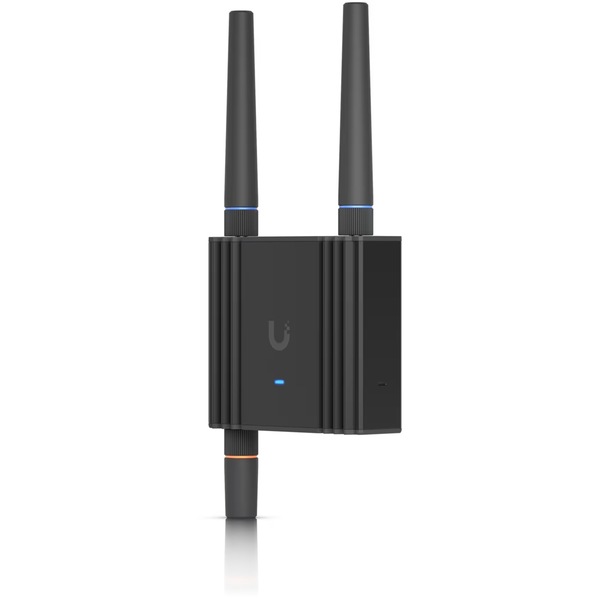

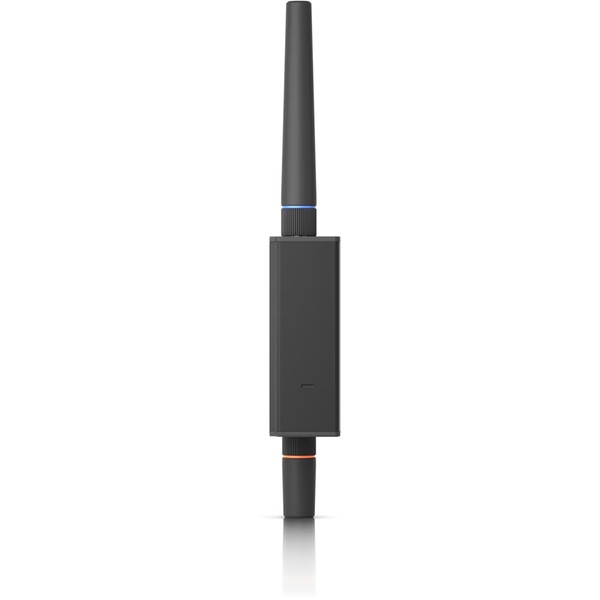

Ubiquiti UMR-Ultra Ultra-compact managed LTE mobile router for IoT applications with integrated WiFi, WAN failover, and DC power input support

Mobile Router Ultra
Ultra-compact managed LTE mobile router for IoT applications with integrated LTE, wired WAN, WiFi, automatic failover, and DC power input support.
- Site-to-site VPN and VPN client routing

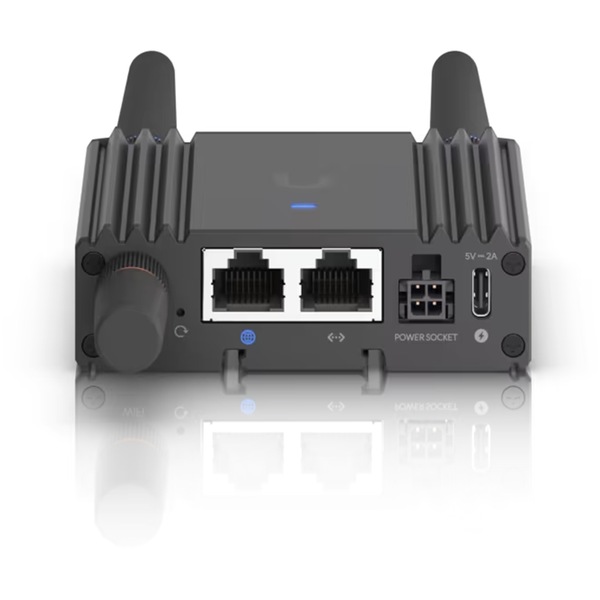

- (2) FE RJ45 ports
- Automatic failover among LTE, wired WAN and WiFi
- Powered using USB Type-C or 4-pin DC power socket
- Wall and DIN rail mount options
- Optional Mobility Cloud Subscription
- WiFi 4 single chain 2.4 GHz radio

Mechanical
Dimensions
Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1")
With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1")
Weight
Device: 200 g (7.1 oz)
DIN rail/wall mounts: 20 g (0.7 oz)
Enclosure material
Polycarbonate, aluminum alloy
Mount material
Polycarbonate
Hardware
Management interface
Ethernet
WiFi
WiFi 4
Networking interface
(2) FE RJ45 ports
LTE Category 4 radio
Power supply
USB Type-C (5V DC/2A)
4-pin* ATX DC power socket (9-30V DC)
*Please refer to the Installation Guide for detailed power socket pinout.
Max. power consumption
5.7W
SIM
nano SIM
LTE bands
B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B25, B26, B28, B66, B34, B38, B39, B40, B41
3G bands
B1, B2, B4, B5, B6, B8, B19
LTE throughput speed
Download 150 Mbps / Upload 50 Mbps
*Speed depends on network coverage and performance at the device location.
WiFi standards
WiFi 4, 2.4 GHz, 20/40 MHz
Max. WiFi TX power
17 dBm
Antenna SMA ports
(1) Mobile 1: SMA female connector, supports 1Rx only
(1) Mobile 2: SMA female connector, supports 1Tx and 1Rx
(1) WiFi: RP-SMA female connector
External antennas
(2) Mobile/LTE antennas with SMA male connectors
(1) WiFi antenna with RP-SMA male connector
LED
Status: blue/white
Button
Factory reset
Mounting
DIN rail/wall mount (Included)
Ambient operating temperature
-30 to 70° C (-22 to 158° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
CE
Supported WiFi Data Rates
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4)
6.5 Mbps to 150 Mbps (MCS0 - MCS7, HT 20/40)
- MPN: UMR-Ultra

GTIN: 810084697146
